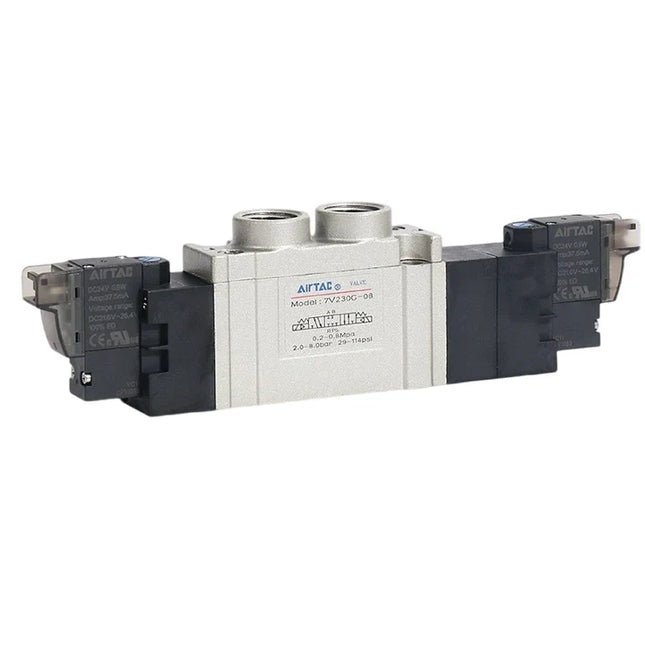

AIRTAC 7V Series Solenoid Valve
Product Features
- Flexible Wiring: The plug-in wiring method allows the terminal to be freely interchanged between horizontal and vertical mounting positions.
- Integrated Exhaust: Features an internal integrated structure where the pilot exhaust air is collected and centrally discharged from the R and S ports.
- High Flow Rate: The body is constructed from extruded aluminum alloy. The internal bore uses special processing technology to effectively increase the flow area, significantly improving the valve's flow rate.
- Versatile Mounting: Both threaded port type and block manifold port type are optional. The valve can be integrated and assembled with the base to save valuable installation space.
General Specifications
| Item | Parameters |
|---|---|
| Positions | 5/2 Way (Five-way Two-position) or 5/3 Way (Five-way Three-position) |
| Working Medium | Air (Filtered through 40µm filter or finer) |
| Operating Pressure | 0.15 ~ 0.8 MPa (21 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Temperature | -20 ~ 70°C |
| Lubrication | Not required. (If added, ISO VG32 is recommended and must not be stopped). |
| Pilot Exhaust | Main line and pilot exhaust use centralized exhaust. |
| Max Frequency | 5Hz (Single/Double Solenoid) or 3Hz (Three-position) |
Model Specific Data
| Series | Port Size / Type | Effective Orifice (Cv) | Weight (g) (Single/Double/3-Pos) |
|---|---|---|---|
| 7V05xx | Threaded: In=Ex=M5 Block: Φ4 |
M5: 3.4mm²(0.2) 3-Pos: 2.2mm²(0.13) |
30g / 45g / 50g |
| 7V1xx | Threaded: In=Ex=PT1/8 Block: Φ4, Φ6, Φ8 |
06: 8.0mm²(0.47) 3-Pos: 7.0mm²(0.41) |
80g / 90g / 100g |
| 7V2xx | Threaded: In=PT1/4, Ex=PT1/8 Block: Φ8, Φ10 |
08: 14.7mm²(0.87) 3-Pos: 10.8mm²(0.64) |
120g / 135g / 145g |
| 7V3xx | Threaded: In=PT3/8, Ex=PT1/4 | 10: 38.4mm²(2.26) 3-Pos: 30.5mm²(1.8) |
230g / 265g / 305g |
Electrical Specifications
| Item | AC220V | AC110V | DC24V | DC12V |
|---|---|---|---|---|
| Operating Voltage Range | ±15% | ±10% | ||
| Power Consumption | 1.1 VA | 0.9 W | ||
| Protection Degree | Dustproof | |||
| Insulation Class | F Class | |||
| Wiring Form | Plug-in Type | |||
| Excitation Time | Below 0.05 seconds | |||
Product Ordering Code
Example: 7V 2 10 J 08 B 050 G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | 7V: Five-way Solenoid Valve |
| 2 | Series Code | 05: 0500 | 1: 100 | 2: 200 | 3: 300 |
| 3 | Control Type |
10: Single Solenoid, 2-Position 20: Double Solenoid, 2-Position 30C: Double Solenoid, 3-Pos, Center Closed 30E: Double Solenoid, 3-Pos, Center Exhaust 30P: Double Solenoid, 3-Pos, Center Pressure |
| 4 | Port Type |
Blank: Threaded Port Type J: Block Manifold Port Type |
| 5 | Port Size |
M5: M5 06: PT1/8 08: PT1/4 10: PT3/8 |
| 6 | Initial State |
Blank: Double Solenoid (No State Option) NC: Normally Closed NO: Normally Open |
| 7 | Standard Voltage |
A: AC220V | B: DC24V C: AC110V | F: DC12V |
| 8 | Wire Length |
050: 0.5m (Lead Wire) 200: 2.0m (Lead Wire) |
| 9 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
Note: No thread code is needed for M5 port or Block Manifold Port Type.
