7V0500-300

890 products

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M6FT

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M6FT

    Specifications: 7V0500 series base,Number of consecutive: 6,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $9.80

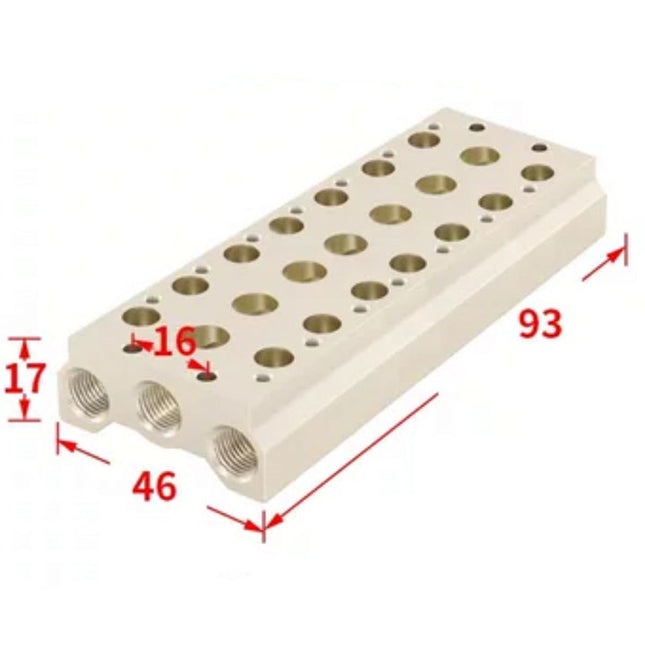

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M7F

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M7F

    Specifications: 7V0500 series base,Number: 7,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $11.10

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M7FG

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M7FG

    Specifications: 7V0500 series base,Number: 7,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $11.10

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M7FT

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M7FT

    Specifications: 7V0500 series base,Number: 7,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $11.10

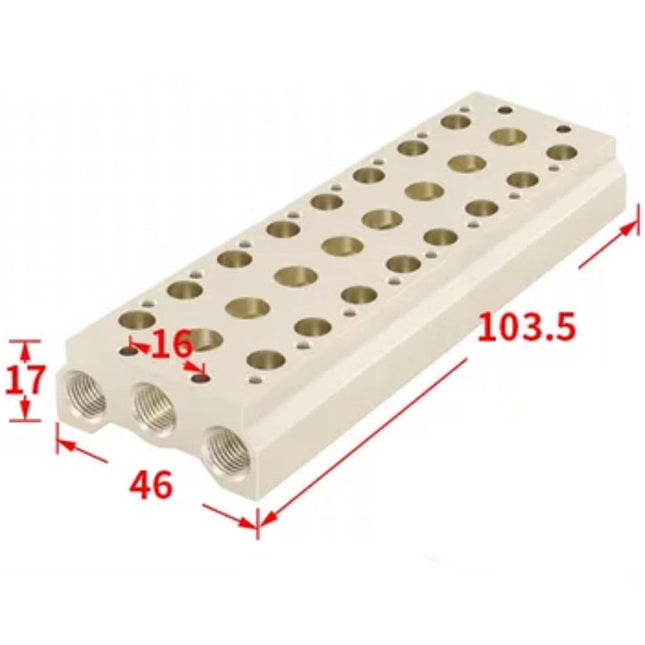

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M8F

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M8F

    Specifications: 7V0500 series base,Number: 8,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $12.00

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M8FG

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M8FG

    Specifications: 7V0500 series base,Number: 8,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $12.00

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M8FT

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M8FT

    Specifications: 7V0500 series base,Number: 8,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $12.00

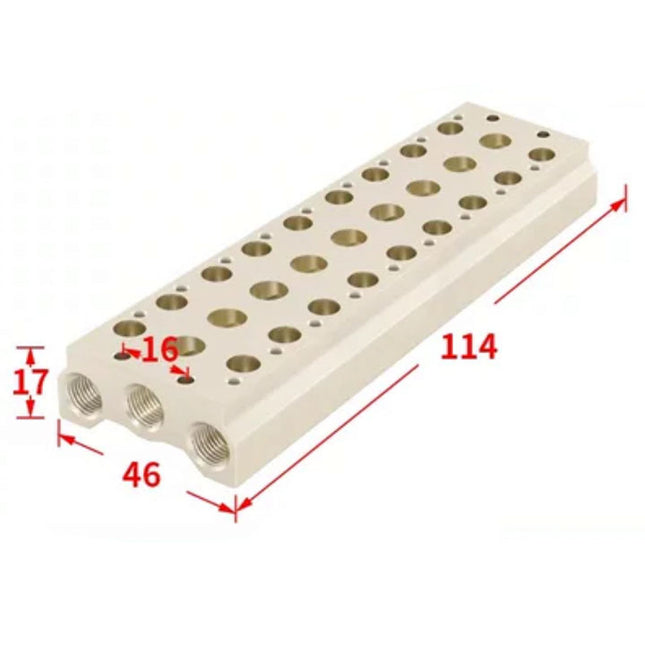

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M9F

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M9F

    Specifications: 7V0500 series base,Number of companies: 9 companies,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $13.20

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M9FG

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M9FG

    Specifications: 7V0500 series base,Number of companies: 9 companies,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $13.20

  • Airtac 7V0500M: Pneumatic Air Valve Manifold  - 7V0500M9FT

    Airtac 7V0500M: Pneumatic Air Valve Manifold - 7V0500M9FT

    Specifications: 7V0500 series base,Number of companies: 9 companies,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Integrates the direction control valves of the same series to form valve group to save space and cost.2. Easy to examine when there are faults due to the unified air intake and exhaust and unified wiring.3. Flexible combination and strong expansion capability.Manifold kit contains: manifold seal and screw.

    $13.20

  • 7V11006A050

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006A050G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A050G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006A050T

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A050T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006A200

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 2.0m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006A200G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A200G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 2.0m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006A200T

    Airtac 7V110-06: Solenoid Air Valve - 7V11006A200T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 2.0m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006B050G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006B050G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC24V,Terminal wire length: 0.5m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006B200G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006B200G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC24V,Terminal wire length: 2.0m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006C050

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 0.5m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006C050G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C050G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 0.5m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006C050T

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C050T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 0.5m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006C200

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 2.0m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006C200G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C200G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 2.0m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006C200T

    Airtac 7V110-06: Solenoid Air Valve - 7V11006C200T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC110V,Terminal wire length: 2.0m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006F050

    Airtac 7V110-06: Solenoid Air Valve - 7V11006F050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC12V,Terminal wire length: 0.5m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006F050G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006F050G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC12V,Terminal wire length: 0.5m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V11006F200

    Airtac 7V110-06: Solenoid Air Valve - 7V11006F200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC12V,Terminal wire length: 2.0m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006F200G

    Airtac 7V110-06: Solenoid Air Valve - 7V11006F200G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC12V,Terminal wire length: 2.0m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V11006F200T

    Airtac 7V110-06: Solenoid Air Valve - 7V11006F200T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: DC12V,Terminal wire length: 2.0m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J06A050

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06A050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: AC220V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V110J06A200

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06A200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: AC220V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J06C050

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06C050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: AC110V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V110J06C200

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06C200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: AC110V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J06F050

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06F050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: DC12V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $24.00

  • 7V110J06F200

    Airtac 7V110J-06: Solenoid Air Valve - 7V110J06F200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø6mm,Standard voltage: DC12V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08A050

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08A050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: AC220V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08A200

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08A200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: AC220V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08B050

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08B050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: DC24V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08B200

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08B200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: DC24V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08C050

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08C050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: AC110V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08C200

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08C200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: AC110V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08F050

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08F050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: DC12V,Terminal wire length: 0.5m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V110J08F200

    Airtac 7V110J-08: Solenoid Air Valve - 7V110J08F200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position single electric control,Type of nozzle: quick plug connector,Nozzle caliber: ø8mm,Standard voltage: DC12V,Terminal wire length: 2.0m,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $25.20

  • 7V12006A050

    Airtac 7V120-06: Solenoid Air Valve - 7V12006A050

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position double electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $36.40

  • 7V12006A050G

    Airtac 7V120-06: Solenoid Air Valve - 7V12006A050G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position double electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $36.40

  • 7V12006A050T

    Airtac 7V120-06: Solenoid Air Valve - 7V12006A050T

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position double electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 0.5m,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $36.40

  • 7V12006A200

    Airtac 7V120-06: Solenoid Air Valve - 7V12006A200

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position double electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 2.0m,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $38.50

  • 7V12006A200G

    Airtac 7V120-06: Solenoid Air Valve - 7V12006A200G

    Specifications: five two (III) solenoid valve,Series: 100 series,Electric control mode: double position double electric control,Nozzle type: threaded nozzle,Nozzle caliber: PT1/8,Standard voltage: AC220V,Terminal wire length: 2.0m,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1. Terminal electrical entry with switchable horizontal and vertical insertion modes.2. Inner exhaust structure which can collect pilot airflow and then exhaust intensively from R S port.3. Die-cast molding with aluminum alloy for body. The shape of cavity is reasonable which can increase valve's flow.4. Threaded type and quick connector type are optional. Integrate manifold to form valve group and save space.The Airtac 7V100 valve series is a functional replacement for the SMC SY5_20 series.

    $38.50


You have seen 480 out of 890 products

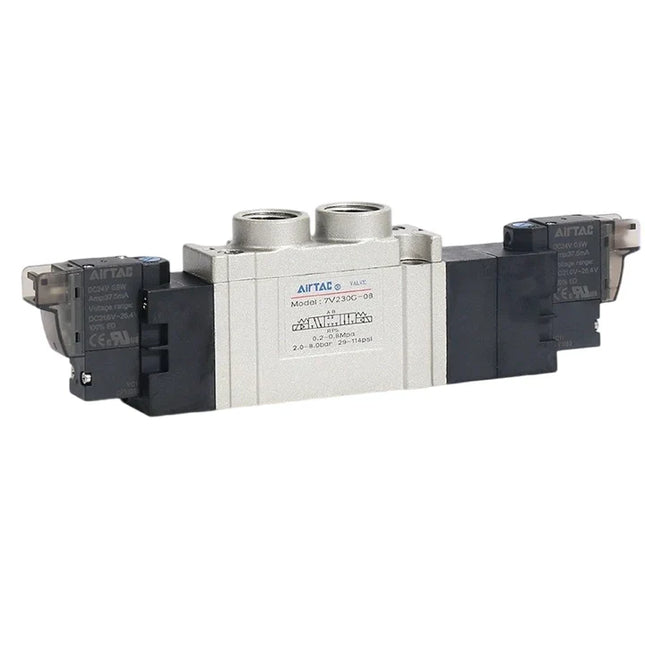

AIRTAC 7V Series Solenoid Valve

AIRTAC 7V Series Solenoid Valve

  • Product Features
  • Specifications
  • Electrical Specifications
  • Product Ordering Code

Product Features

  • Plug-in wiring method allows the terminal to be freely interchanged between horizontal and vertical mounting.
  • Internal integrated structure allows the pilot exhaust air to be collected and centrally discharged from the R and S ports.
  • The body is made of extruded aluminum alloy, and the internal hole adopts special processing technology, which effectively increases the flow area and improves the valve's flow rate.
  • Threaded port type and block manifold port type are optional; the valve can be integrated and assembled with the base, saving installation space.

Specifications

Item 7V05xx 7V1xx 7V2xx 7V3xx
Port Size / Type [Note 1] Threaded: Intake=Exhaust=M5; Block: Φ4 Threaded: Intake=Exhaust=PT1/8; Block: Φ4 or Φ6 or Φ8 Threaded:Intake=PT1/4 ; Exhaust=PT1/8 ; Block: Φ8 or Φ10 Threaded:Intake=PT3/8 ; Exhaust=PT1/4
Effective Orifice (Cv) [Note 4] M5: 3.4mm²(0.2) ; 7V0530CM5: 2.2mm²(0.13) 06: 8.0mm²(0.47); 7V130C06: 7.0mm²(0.41) 08: 14.7mm²(0.87); 7V230C08: 10.8mm²(0.64) 10: 38.4mm²(2.26); 7V330C10: 30.5mm²(1.8)
Weight (g) (Single/Double Solenoid) 7V0510/20: 30g/45g ; 7V0530: 50g 7V110/120: 80g/90g ; 7V130: 100g 7V210/220: 120g/135g ; 7V230: 145g 7V310/320: 230g/265g ; 7V330: 305g
Maximum Operating Frequency [Note 3] 5Hz or 3Hz 5Hz or 3Hz 5Hz or 3Hz 5Hz or 3Hz
Positions Five-way Two-position or Five-way Three-position
Working Medium Air (filtered through 40µm filter or finer)
Operating Pressure Range 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Working Temperature -20~70°C
Lubrication [Note 2] No need
Pilot Exhaust Mode Main line and pilot exhaust use centralized exhaust
[Note 1] Port thread PT, G, and NPT thread are optional for threaded port type.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Maximum operating frequency is for the air condition.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.

Electrical Specifications

Item AC220V AC110V DC24V DC12V
Standard Voltage AC220V AC110V DC24V DC12V
Operating Voltage Range AC: ±15% DC: ±10%
Power Consumption 1.1VA 0.9W
Protection Degree Dustproof
Insulation Class F Class
Wiring Form Plug-in Type
Excitation Time Below 0.05 seconds

Product Ordering Code

Example Code: 7V 2 10 J 08 B 050

1. Model Code 2. Series Code 3. Electrical Control Type 4. Port Type 5. Port Size 6. Initial State 7. Standard Voltage 8. Wire Length Code 9. Thread Type Code [Note 1]
7V: Five-way Two-position Solenoid Valve 05: 0500 Series 10: Single Solenoid, Two Position Blank: Threaded Port Type M5: M5 NC: Normally Closed Type A: AC220V
1: 100 Series 20: Double Solenoid, Two Position J: Block Manifold Port Type 06: PT1/8 NO: Normally Open Type B: DC24V 050: 0.5m (Lead Wire) Blank: PT Thread
2: 200 Series 30C: Double Solenoid, Three Position, Center Closed 08: PT1/4 Blank: Double Solenoid (No Initial State) C: AC110V 200: 2.0m (Lead Wire) G: G Thread
3: 300 Series 30E: Double Solenoid, Three Position, Center Exhaust 10: PT3/8 E: Double Solenoid (No Initial State Opt.) F: DC12V T: NPT Thread
30P: Double Solenoid, Three Position, Center Pressure
Note: [Note 1] No thread code is needed for M5 port or Block Manifold Port Type.
