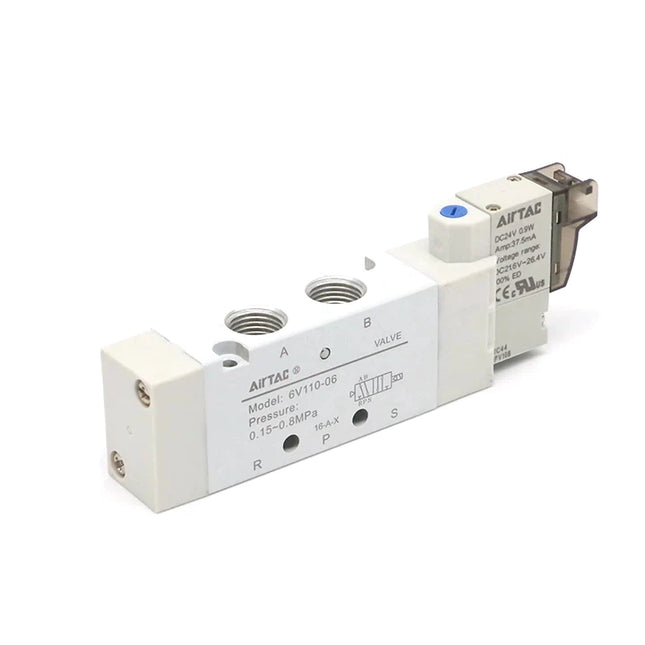

AIRTAC 6V Series Solenoid Valve
5/2 Way & 5/3 Way Directional Control Valve
Product Features
- Flexible Installation: The plug-in wiring method allows the electrical terminal to be freely interchanged between horizontal and vertical mounting orientations, saving space.
- Integrated Exhaust: Features an internal integrated structure that collects pilot exhaust air and centrally discharges it from the R and S ports, reducing noise and environmental contamination.
- Optimized Flow: The valve body is crafted from precision extruded aluminum alloy. The internal spool hole adopts special processing technology, which effectively increases the flow area and significantly improves the valve's flow rate.
- Manifold Integration: Both threaded port types and block manifold port types are available. The valve can be seamlessly integrated and assembled with a manifold base to save installation space and streamline piping.
General Specifications
| Parameter | Description |
|---|---|
| Positions / Ways | 5-Way 2-Position (5/2) or 5-Way 3-Position (5/3) |
| Working Medium | Air (filtered through 40µm filter element or finer) |
| Operating Pressure Range | 0.15 ~ 0.8 MPa (21 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Working Temperature | -20 ~ 70°C (No freezing) |
| Max Operating Frequency | 5 cycles/sec (2-Position) / 3 cycles/sec (3-Position) |
| Lubrication [Note 3] | Not required |
| Pilot Exhaust Mode | Main line and pilot exhaust use centralized exhaust |
Model Specific Parameters
| Series | Port Size / Type [Note 1] | Effective Orifice (Cv) [Note 4] | Weight (g) (Single / Double / 3-Pos) |
|---|---|---|---|
| 6V05xx | Threaded: M5 Block: Φ4 |
M5: 3.4mm² (0.2) 6V0530M5: 2.2mm² (0.13) |
35g / 50g / 65g |
| 6V1xx | Threaded: PT1/8 or M5 Block: Φ4, Φ6, Φ8 |
06: 8.9mm² (0.52) 6V130C06: 8.0mm² (0.47) |
60g / 75g / 90g |
| 6V2xx | Threaded: In/Out=PT1/8 or PT1/4, Exh=PT1/8 Block: Φ6, Φ8, Φ10 |
08: 15.4mm² (0.91) 6V230C08: 14.2mm² (0.84) |
100g / 115g / 130g |
| 6V3xx | Threaded: In/Out=PT3/8, Exh=PT1/4 | 10: 38.4mm² (2.26) 6V330C10: 30.5mm² (1.8) |
230g / 265g / 305g |
[Note 1] PT, G, and NPT threads are available for the threaded port type.
[Note 3] If lubrication is added, it must be maintained continuously. ISO VG32 or equivalent is recommended.
[Note 4] Effective orifice and Cv values are calculated based on tested flow data.
[Note 3] If lubrication is added, it must be maintained continuously. ISO VG32 or equivalent is recommended.
[Note 4] Effective orifice and Cv values are calculated based on tested flow data.
Electrical Specifications
| Item | Parameters |
|---|---|
| Standard Voltage |
AC: 220V, 110V, 24V DC: 24V, 12V |
| Voltage Tolerance |
AC: +15% ~ -10% DC: ±10% |
| Power Consumption |
AC: 1.1 VA DC: 0.9 W |
| Protection Degree | IP65 (Dustproof & Water Resistant) |
| Insulation Class | F Class |
| Wiring Form | Plug-in Type |
| Excitation Time | 0.05 seconds or less |
Product Ordering Code
Example: 6V 2 10 J 08 B 050 G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | 6V: 5/2 Way or 5/3 Way Solenoid Valve |
| 2 | Series Code |
05: 0500 Series | 1: 100 Series 2: 200 Series | 3: 300 Series |
| 3 | Control Type |
10: Single Solenoid, 2-Position 20: Double Solenoid, 2-Position 30C: Double Solenoid, 3-Position (Center Closed) 30E: Double Solenoid, 3-Position (Center Exhaust) 30P: Double Solenoid, 3-Position (Center Pressure) |
| 4 | Port Type |
Blank: Threaded Port Type J: Block Manifold Port Type |
| 5 | Port Size |
M5: M5 06: PT1/8 08: PT1/4 10: PT3/8 |
| 6 | Standard Voltage |
A: AC220V | C: AC110V | E: AC24V B: DC24V | F: DC12V |
| 7 | Wire Length Code |
050: 0.5m Lead Wire 200: 2.0m Lead Wire |
| 8 | Thread Type Code |
Blank: PT Thread G: G Thread T: NPT Thread *Note: No code needed for Block Manifold Type. |
