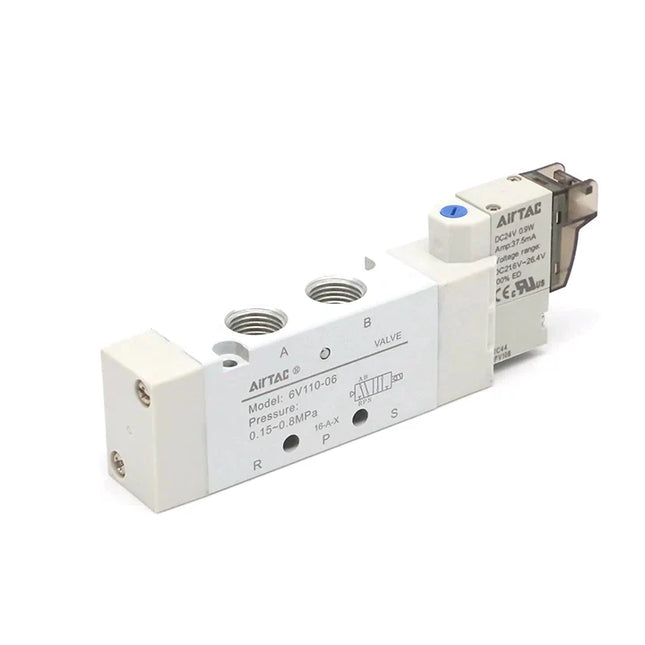

AIRTAC 6V Series Solenoid Valve
Product Features
- Plug-in wiring method allows the terminal to be freely interchanged between horizontal and vertical mounting.
- Internal integrated structure allows the pilot exhaust air to be collected and centrally discharged from the R and S ports.
- The body is made of extruded aluminum alloy, and the internal hole adopts special processing technology, which effectively increases the flow area and improves the valve's flow rate.
- Threaded port type and block manifold port type are optional; the valve can be integrated and assembled with the base, saving installation space.
Specifications
| Item | 6V05xx | 6V1xx | 6V2xx | 6V3xx |
|---|---|---|---|---|
| Port Size / Type [Note 1] | Threaded: M5; Block: Φ4 | Threaded: PT1/8 or M5; Block: Φ4 or Φ6 or Φ8 | Threaded: Intake=PT1/8 / PT1/4 Exhaust=PT1/8 ; Block: Φ6 or Φ8 or Φ10 | Threaded: Intake=PT3/8 Exhaust=PT1/4 |
| Effective Orifice (Cv) [Note 4] | M5:3.4mm²(0.2) ; 6V0530M5:2.2mm²（0.13） | 06:8.9mm²(0.52) ; 6V130C06:8.0mm²（0.47） | 08:15.4mm²(0.91) ; 6V230C08:14.2mm²（0.84） | 10:38.4mm²(2.26) ; 6V330C10:30.5mm²（1.8） |
| Weight (g) (Threaded/Block) | 10:35g 20:50g 30:65g | 10:60g 20:75g 30:90g | 10:100g 20:115g 30:130g | 10:230g 20:265g 30:305g |
| Maximum Operating Frequency [Note 2] | 5Hz or 3Hz | 5Hz or 3Hz | 5Hz or 3Hz | 5Hz or 3Hz |
| Positions | Five-way Two-position or Five-way Three-position | |||
| Working Medium | Air (filtered through 40µm filter or finer) | |||
| Operating Pressure Range | 0.15~0.8MPa (21~114psi) | |||
| Proof Pressure | 1.2MPa (175psi) | |||
| Working Temperature | -20~70°C | |||
| Lubrication [Note 3] | No need | |||
| Pilot Exhaust Mode | Main line and pilot exhaust use centralized exhaust | |||
[Note 1] Port thread PT, G, and NPT thread are optional for threaded port type.
[Note 2] Maximum operating frequency is for the air condition.
[Note 3] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
[Note 2] Maximum operating frequency is for the air condition.
[Note 3] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
Electrical Specifications
| Item | AC220V | AC110V | DC24V | DC12V | |
|---|---|---|---|---|---|
| Standard Voltage | AC220V | AC110V | DC24V | DC12V | |
| Operating Voltage Range | AC:+15%～-10% | DC: ±10% | |||
| Power Consumption | 1.1VA | 0.9W | |||
| Protection Degree | Dustproof | ||||
| Insulation Class | F Class | ||||
| Wiring Form | Plug-in Type | ||||
| Excitation Time | Below 0.05 seconds | ||||
Product Ordering Code
Example Code: 6V 2 10 J 08 B 050
| 1. Model Code | 2. Series Code | 3. Electrical Control Type | 4. Port Type | 5. Port Size | 6. Standard Voltage | 7. Wire Length Code | 8. Thread Type Code [Note 1] |
|---|---|---|---|---|---|---|---|
| 6V: Five-way Two-position, Five-way Three-position Solenoid Valve | 05: 0500 Series | 10: Single Solenoid, Two Position | Blank: Threaded Port Type | M5: M5 | A: AC220V | ||
| 1: 100 Series | 20: Double Solenoid, Two Position | J: Block Manifold Port Type | 06: PT1/8 | B: DC24V | 050: 0.5m (Lead Wire) | Blank: PT Thread | |
| 2: 200 Series | 30C: Double Solenoid, Three Position, Center Closed | 08: PT1/4 | C: AC110V | 200: 2.0m (Lead Wire) | G: G Thread | ||
| 3: 300 Series | 30E: Double Solenoid, Three Position, Center Exhaust | 10: PT3/8 | F: DC12V | T: NPT Thread | |||
| 30P: Double Solenoid, Three Position, Center Pressure |
Note: [Note 1] No code is needed for Block Manifold Port Type or Three-Position Control Type when selecting thread type.
