Orders over $30 and under 1.5 kg qualify for free shipping and tax exemption.

6TA

286 products

  • 6TV0500M4F

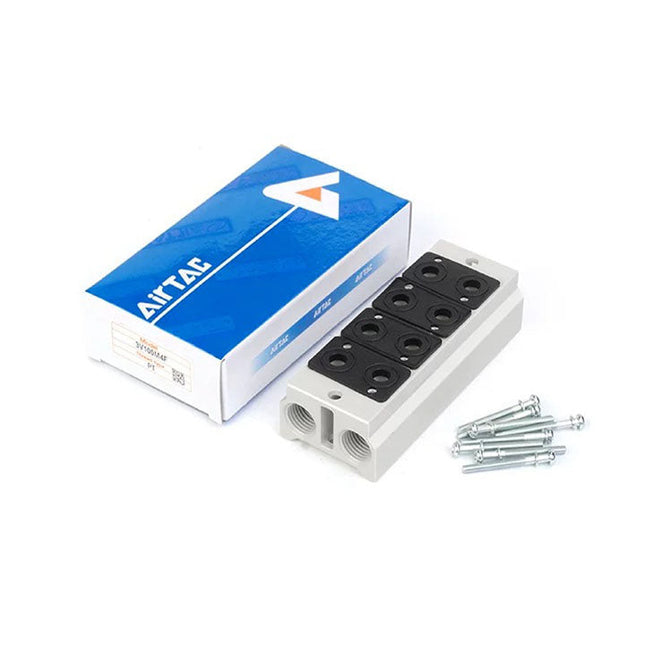

    Airtac 6TV0500M: Air Valve Manifold - 6TV0500M4F

    Specification: 6TV0500 series base,Number of consecutive: 4,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.It is available to integrate the direction control valves of the same series to form valve group to save space and cost.2.It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.3.Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.

    $7.70

  • 6TV0500M3F

    Airtac 6TV0500M: Air Valve Manifold - 6TV0500M3F

    Specification: 6TV0500 series base,Number of consecutive: 3,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.It is available to integrate the direction control valves of the same series to form valve group to save space and cost.2.It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.3.Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.

    $6.40

  • 6TV0500M2F

    Airtac 6TV0500M: Air Valve Manifold - 6TV0500M2F

    Specification: 6TV0500 series base,Number of consecutive: 2,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.It is available to integrate the direction control valves of the same series to form valve group to save space and cost.2.It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.3.Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.

    $5.10

  • 6TV0500M1F

    Airtac 6TV0500M: Air Valve Manifold - 6TV0500M1F

    Specification: 6TV0500 series base,Number of consecutive: 1 company,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.It is available to integrate the direction control valves of the same series to form valve group to save space and cost.2.It is easy to examine when there are faults owning to the unified air intake and exhaust and unified wiring.3.Flexible combination and strong expansion capability can make any combination or expansion of the numbers of direction control valves that are connected.

    $3.80

  • 6TA32010T

    Airtac 6TA320-10: Air valve(3/2 way) - 6TA32010T

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT3/8,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $29.10

  • 6TA32010G

    Airtac 6TA320-10: Air valve(3/2 way) - 6TA32010G

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT3/8,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $29.10

  • 6TA32010

    Airtac 6TA320-10: Air valve(3/2 way) - 6TA32010

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT3/8,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $29.10

  • 6TA31010NOT

    Airtac 6TA310-10-NO: Air valve(3/2 way) - 6TA31010NOT

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally open type,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA31010NCT

    Airtac 6TA310-10-NC: Air valve(3/2 way) - 6TA31010NCT

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally closed,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA31010NOG

    Airtac 6TA310-10-NO: Air valve(3/2 way) - 6TA31010NOG

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally open type,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA31010NCG

    Airtac 6TA310-10-NC: Air valve(3/2 way) - 6TA31010NCG

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally closed,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA31010NO

    Airtac 6TA310-10-NO: Air valve(3/2 way) - 6TA31010NO

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally open type,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA31010NC

    Airtac 6TA310-10-NC: Air valve(3/2 way) - 6TA31010NC

    Specifications: Three-port two-position air control valve,Series: 300 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT3/8,Initial state: normally closed,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $23.10

  • 6TA22008T

    Airtac 6TA220-08: Air valve(3/2 way) - 6TA22008T

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/4,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA22008G

    Airtac 6TA220-08: Air valve(3/2 way) - 6TA22008G

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/4,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA22008

    Airtac 6TA220-08: Air valve(3/2 way) - 6TA22008

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/4,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA21008NOT

    Airtac 6TA210-08-NO: Air valve(3/2 way) - 6TA21008NOT

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally open type,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21008NCT

    Airtac 6TA210-08-NC: Air valve(3/2 way) - 6TA21008NCT

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally closed,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21008NOG

    Airtac 6TA210-08-NO: Air valve(3/2 way) - 6TA21008NOG

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally open type,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21008NCG

    Airtac 6TA210-08-NC: Air valve(3/2 way) - 6TA21008NCG

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally closed,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21008NO

    Airtac 6TA210-08-NO: Air valve(3/2 way) - 6TA21008NO

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally open type,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21008NC

    Airtac 6TA210-08-NC: Air valve(3/2 way) - 6TA21008NC

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/4,Initial state: normally closed,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA22006T

    Airtac 6TA220-06: Air valve(3/2 way) - 6TA22006T

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA22006G

    Airtac 6TA220-06: Air valve(3/2 way) - 6TA22006G

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA22006

    Airtac 6TA220-06: Air valve(3/2 way) - 6TA22006

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA21006NOT

    Airtac 6TA210-06-NO: Air valve(3/2 way) - 6TA21006NOT

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21006NCT

    Airtac 6TA210-06-NC: Air valve(3/2 way) - 6TA21006NCT

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21006NOG

    Airtac 6TA210-06-NO: Air valve(3/2 way) - 6TA21006NOG

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21006NCG

    Airtac 6TA210-06-NC: Air valve(3/2 way) - 6TA21006NCG

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21006NO

    Airtac 6TA210-06-NO: Air valve(3/2 way) - 6TA21006NO

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA21006NC

    Airtac 6TA210-06-NC: Air valve(3/2 way) - 6TA21006NC

    Specifications: Three-port two-position air control valve,Series: 200 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA12006T

    Airtac 6TA120-06: Air valve(3/2 way) - 6TA12006T

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA12006G

    Airtac 6TA120-06: Air valve(3/2 way) - 6TA12006G

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA12006

    Airtac 6TA120-06: Air valve(3/2 way) - 6TA12006

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position double pneumatic control,Nozzle caliber: PT1/8,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA11006NOT

    Airtac 6TA110-06-NO: Air valve(3/2 way) - 6TA11006NOT

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA11006NCT

    Airtac 6TA110-06-NC: Air valve(3/2 way) - 6TA11006NCT

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: NPT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA11006NOG

    Airtac 6TA110-06-NO: Air valve(3/2 way) - 6TA11006NOG

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA11006NCG

    Airtac 6TA110-06-NC: Air valve(3/2 way) - 6TA11006NCG

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: G tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA11006NO

    Airtac 6TA110-06-NO: Air valve(3/2 way) - 6TA11006NO

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally open type,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA11006NC

    Airtac 6TA110-06-NC: Air valve(3/2 way) - 6TA11006NC

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: PT1/8,Initial state: normally closed,Tooth type: PT tooth,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA120M5

    Airtac 6TA120-M5: Air valve(3/2 way) - 6TA120M5

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position double pneumatic control,Nozzle caliber: M5Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA110M5NO

    Airtac 6TA110-M5-NO: Air valve(3/2 way) - 6TA110M5NO

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: M5,Initial state: normally open type,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA110M5NC

    Airtac 6TA110-M5-NC: Air valve(3/2 way) - 6TA110M5NC

    Specifications: Three-port two-position air control valve,Series: 100 series,Electric control mode: double position single pneumatic control,Nozzle caliber: M5,Initial state: normally closed,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA0520M5

    Airtac 6TA0520-M5: Air valve(3/2 way) - 6TA0520M5

    Specifications: Three-port two-position air control valve,Series: 0500 series,Electric control mode: double position double pneumatic control,Nozzle caliber: M5Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $21.40

  • 6TA0510M5NO

    Airtac 6TA0510-M5-NO: Air valve(3/2 way) - 6TA0510M5NO

    Specifications: Three-port two-position air control valve,Series: 0500 series,Electric control mode: double position single pneumatic control,Nozzle caliber: M5,Initial state: normally open type,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

  • 6TA0510M5NC

    Airtac 6TA0510-M5-NC: Air valve(3/2 way) - 6TA0510M5NC

    Specifications: Three-port two-position air control valve,Series: 0500 series,Electric control mode: double position single pneumatic control,Nozzle caliber: M5,Initial state: normally closed,Click to download the Airtac catalogProduct Features1.The body is extruded by aluminum alloy, and the inner hole is specially processed to increase the flow rate.2.Can integrate manifold to form valve group to save space.

    $16.70

You have seen 286 out of 286 products

6TA Series Valve Product Information

Valve

  • Product Features
  • Specifications
  • Product Ordering Code

Product Features

  • The main body is formed by aluminum alloy extrusion, with a special internal bore processing to effectively increase the flow rate.
  • Can be integrated with a base to form a valve bank, saving installation space.

Specifications

Model 6TA0510 6TA0520 6TA110 6TA120
Port Size Inlet=Outlet=Exhaust=M5 Inlet=Exhaust=Outlet=PT1/8 or M5
Effective Area (Cv) M5: 3.4mm² (0.2) 06: 8.9mm² (0.52)
Model 6TA210 6TA220 6TA310 6TA320
Port Size 06: Inlet/Outlet/Exhaust=PT1/8
08: Inlet/Outlet=PT1/4; Exhaust=PT1/8
Inlet/Outlet=PT3/8; Exhaust=PT1/4
Effective Area (Cv) 08: 15.4mm² (0.91) 10: 38.4mm² (2.26)
Working Medium Air (filtered by 40μm or larger)
Actuation Mode Externally air piloted
Operating Pressure 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Operating Temperature -20~70℃
Max. Operating Frequency 5 cycles/sec
Note:
• PT, NPT, and G threads are available.
• If lubricated, do not stop midway. Use turbine oil ISO VG32 or equivalent.

Product Ordering Code

Example: 6TA 2 10 08 NC □

Item Code Description
Series Code 05 / 1 / 2 / 3 0500 / 100 / 200 / 300 Series
Control Type 10 / 20 Single Air Control / Double Air Control
Port Size M5 / 06 / 08 / 10 M5 / PT1/8 / PT1/4 / PT3/8
Initial State NC / NO Normally Closed / Normally Open
Thread Type Blank / G / T PT / G / NPT Thread
Note: No initial state option is available for the double air control model.
