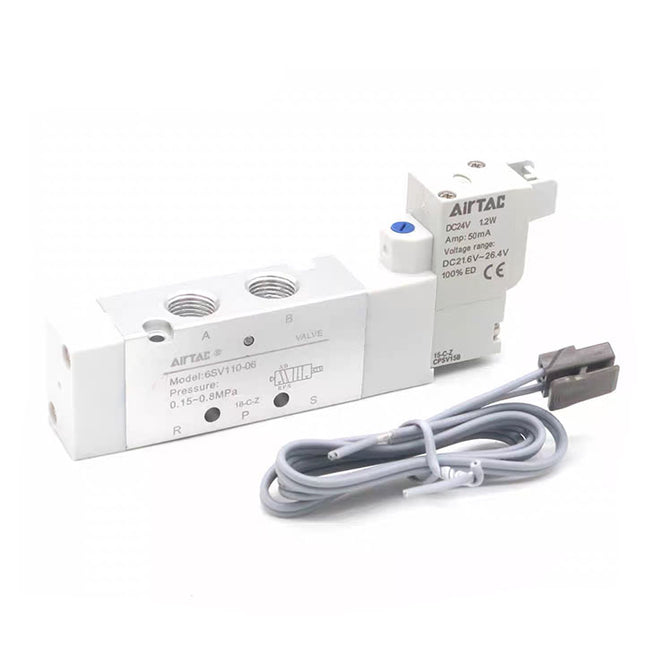

6SV Series Solenoid Valve & Manifold Base
Product Features
Solenoid Valve Features
- Flexible Mounting: Plug-in wiring method allows terminals to be installed horizontally or vertically freely.
- Integrated Exhaust: Internal pilot structure allows pilot air to be collected and exhausted from the R and S ports.
- Durability: Aluminum alloy die-cast body. The inner hole uses special processing technology for low friction, low starting pressure, and long service life.
- Space Saving: Can be integrated with the base to form a valve group, saving installation space.
Manifold Base Features
- Integration: Integrates directional control valves of the same series into a valve group, saving space and cost.
- Unified Management: Unified air intake and exhaust, unified wiring, making it easy to troubleshoot.
- Flexibility: Flexible combination and strong expandability. The number of connected directional control valves can be arbitrarily combined or expanded.
Mechanical Specifications
1. Solenoid Valve (6SV Series)
| Model | 6SV110 | 6SV120 | 6SV130 | 6SV210 | 6SV220 | 6SV230 |
|---|---|---|---|---|---|---|
| Port Size | In=Out=Exhaust=M5 (or PT1/8) | In=Out=PT1/8 (or PT1/4), Exh=PT1/8 | ||||
| Fluid | Air (Filtered by 40μm filter) | |||||
| Acting Type | Internal Pilot | |||||
| Pressure (2-Pos) | 0.2 ~ 0.8 MPa (29 ~ 114 psi) | |||||
| Pressure (3-Pos) | 0.15 ~ 0.8 MPa (21 ~ 114 psi) | |||||
| Proof Pressure | 1.2 MPa (175 psi) | |||||
| Temperature | -20 ~ 70°C | |||||
| Max Frequency | 5 cycle/s | 5 cycle/s | 3 cycle/s | 5 cycle/s | 5 cycle/s | 3 cycle/s |
2. Manifold Base
| Item \ Model | 6SV100M | 6SV200M |
|---|---|---|
| Fluid | Air (Filtered by 40μm filter) | |
| Temperature | -20 ~ 70°C | |
| Applicable Valve | 6SV100 Series | 6SV200 Series |
Electrical Specifications
| Item | Parameters | ||||
|---|---|---|---|---|---|
| Standard Voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Voltage Tolerance | AC: +15% ~ -10% | DC: ±10% | |||
| Power Consumption | 2.0 VA | 1.2 W | |||
| Protection Class | IP65 | ||||
| Insulation Class | F Class | ||||
| Activation Time | 0.05 sec or less | ||||
Product Ordering Code
1. Solenoid Valve Ordering Code
Example: 6SV 2 10 08 B
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code | 6SV: 6SV Series Solenoid Valve |
| 2 | Size Series |
1: 100 Series (Compact) 2: 200 Series (Standard) |
| 3 | Control Type |
10: 5/2 Single Solenoid 20: 5/2 Double Solenoid 30C: 5/3 Closed Center 30E: 5/3 Exhaust Center 30P: 5/3 Pressure Center |
| 4 | Port Size |
M5: M5 06: PT 1/8" (or G1/8, NPT1/8) 08: PT 1/4" (or G1/4, NPT1/4) |
| 5 | Standard Voltage |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| 6 | Electrical Entry |
Blank: Plug-in Type I: Grommet (Lead wire) D: DIN Terminal M: M8 Connector |
| 7 | Wire Length |
Blank: 0.5m (Standard) 200: 2m |
| 8 | Thread Type |
Blank: PT G: G Thread T: NPT |
2. Manifold Base Ordering Code
Example: 6SV100M 5F G
| No. | Item | Options / Description |
|---|---|---|
| 1 | Model Code |
6SV100M: Base for 6SV100 Series 6SV200M: Base for 6SV200 Series |
| 2 | Station Code |
1F: 1 Station 2F: 2 Stations ... 20F: 20 Stations |
| 3 | Thread Type |
Blank: PT G: G Thread T: NPT |
