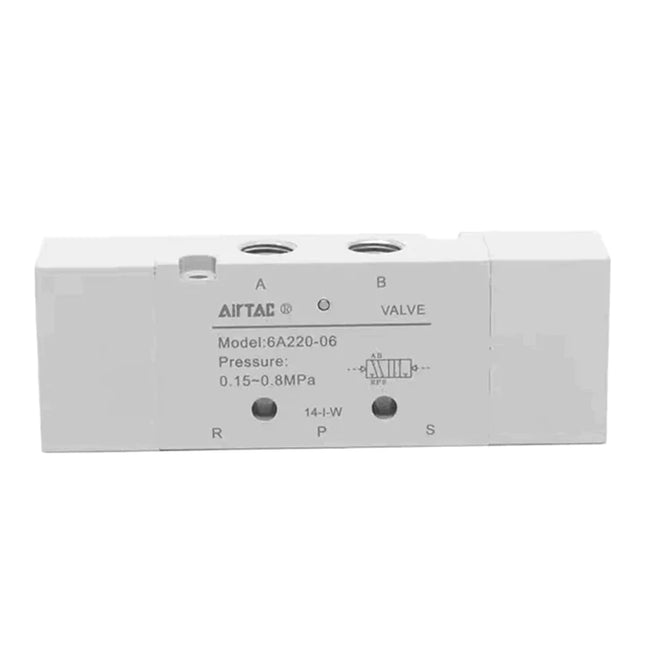

AIRTAC 6A Series Air Piloted Valve
Externally Piloted | 5/2 Way & 5/3 Way Directional Control
Product Features
- Optimized Flow Path: The main body is precision-formed by aluminum alloy extrusion, featuring a special internal processing technology that effectively reduces friction resistance and increases the overall flow rate.
- Air Piloted Actuation: Uses an external compressed air signal for switching, making it highly reliable and safe for environments where electrical sparks or solenoid coils are undesirable.
- Manifold Integration: Can be seamlessly integrated with a manifold base to form a consolidated valve bank, saving significant installation space and simplifying pneumatic tubing layouts.
- Multiple Configurations: Available in 5/2-way (Single/Double pilot) and 5/3-way (Closed, Exhaust, or Pressure Center) configurations to meet diverse pneumatic circuit requirements.
Technical Specifications
General Specifications
| Working Medium | Air (filtered by a 40μm or larger filter screen) |
| Actuation Mode | Externally Air Piloted |
| Operating Pressure |
3-Position Type: 0.2 ~ 0.8 MPa (29 ~ 114 psi) Other Types: 0.15 ~ 0.8 MPa (21 ~ 114 psi) |
| Proof Pressure | 1.2 MPa (175 psi) |
| Operating Temperature | -20 ~ 70°C (No freezing) |
| Max. Operating Frequency | 5 cycles/sec (2-Position) | 3 cycles/sec (3-Position) |
| Lubrication | Not required. (If lubricated, do not stop midway. Use turbine oil ISO VG32). |
Model Specific Parameters
| Series | Port Size | Effective Area (Cv) [10/20 Type vs 30C Type] |
Weight (g) [10 / 20 / 30 Type] |
|---|---|---|---|
|
6A05 (0500 Series) |
Inlet = Outlet = Exhaust = M5 |
10/20: 3.4mm² (0.2) 30C: 2.2mm² (0.13) |
20 / 25 / 30 |
|
6A1 (100 Series) |
Inlet = Outlet = Exhaust = M5 or PT1/8" |
10/20: 8.9mm² (0.52) 30C: 8.0mm² (0.47) |
50 / 60 / 65 |
|
6A2 (200 Series) |
Inlet = Outlet = PT1/8" or PT1/4" Exhaust = PT1/8" |
10/20: 15.4mm² (0.91) 30C: 14.2mm² (0.84) |
120 / 135 / 145 |
|
6A3 (300 Series) |
Inlet = Outlet = PT3/8" Exhaust = PT1/4" |
10/20: 38.4mm² (2.26) 30C: 30.5mm² (1.8) |
250 / 290 / 320 |
Product Ordering Code
Example: 6A 2 10 08 G
| No. | Item | Options & Description |
|---|---|---|
| 1 | Model Code | 6A: Air Piloted Directional Control Valve |
| 2 | Series Code |
05: 0500 Series | 1: 100 Series 2: 200 Series | 3: 300 Series |
| 3 | Control Type |
10: Single Air Piloted (5/2 Way) 20: Double Air Piloted (5/2 Way) 30C: Double Air Piloted, Closed Center (5/3 Way) 30E: Double Air Piloted, Exhaust Center (5/3 Way) 30P: Double Air Piloted, Pressure Center (5/3 Way) |
| 4 | Port Size |
M5: M5 x 0.8 | 06: PT 1/8" 08: PT 1/4" | 10: PT 3/8" |
| 5 | Thread Type |
Blank: PT Thread G: G Thread T: NPT Thread |
