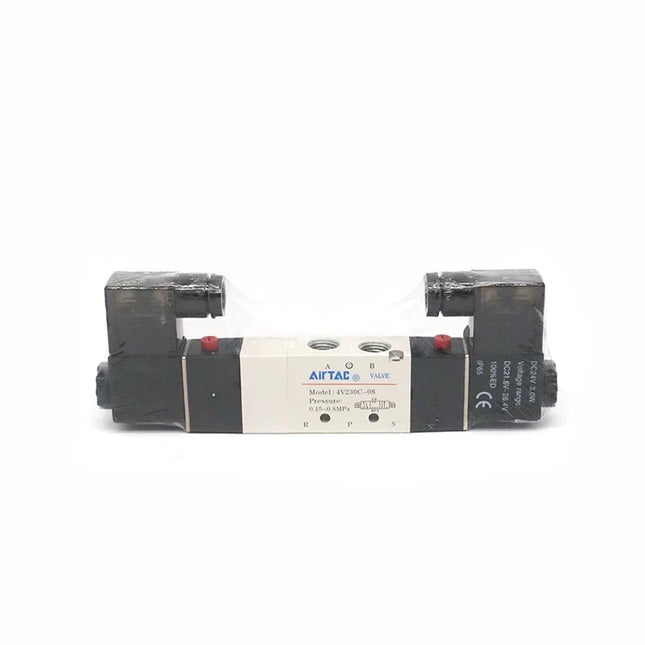

AIRTAC 4V100 Series Solenoid Valve
Product Features
- Pilot operated type, with internal pilot or external pilot type optional.
- Reliable structure, with sensitive commutation.
- Double solenoid, two-position valves have a memory function.
- The internal hole adopts special processing technology, featuring small friction resistance, low starting pressure, and long service life.
- No need for lubrication.
- Can be integrated and assembled with the base, saving installation space.
- Equipped with a manual override, convenient for installation and debugging.
- Multiple standard voltage levels are available for selection.
Specifications
| Item | 4V110/120-M5 | 4V130x-M5 | 4V110/120-06 | 4V130x-06 |
|---|---|---|---|---|
| Working Medium | Air (filtered through 40µm filter or finer) | |||
| Operation Type | Internal Pilot or External Pilot Optional | |||
| Port Size [Note 1] | Inlet/Outlet = M5 | Inlet/Outlet = PT1/8 | ||
| Positions | Five-way Two-position or Five-way Three-position | |||
| Effective Orifice (Cv) [Note 4] | 4V110-06,4V120-06:10.2mm²(Cv=0.6) 4V130C-06:8.6mm²(Cv=0.51) | |||
| Lubrication [Note 2] | No need | |||
| Operating Pressure Range | 0.15~0.8MPa (21~114psi) | |||
| Proof Pressure | 1.2MPa (175psi) | |||
| Working Temperature | -20~70°C | |||
| Body Material | Aluminum Alloy | |||
| Max Operating Frequency [Note 3] | 3 times/second or 5 times/second | 3 times/second or 5 times/second | ||
| Weight (g) | 4V110: 120; 4V120: 175 | 200 | 4V110: 120; 4V120: 175 | 200 |
[Note 1] G thread and NPT thread are optional for port thread type.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Maximum operating frequency is for the air condition.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Maximum operating frequency is for the air condition.
[Note 4] Effective orifice and Cv value are calculated based on tested flow data.
Electrical Specifications
| Item | AC220V | AC110V | AC24V | DC24V | DC12V |
|---|---|---|---|---|---|
| Operating Voltage Range | AC: ±15% | DC: ±10% | |||
| Power Consumption | 3.5VA | 3.5VA | 4.0VA | 2.8W | 2.5W |
| Protection Degree | IP65 (DIN40050) | ||||
| Insulation Class | B Class | ||||
| Wiring Form | DIN Socket Type, Lead Wire Type | ||||
| Excitation Time | Below 0.05 seconds | ||||
Product Ordering Code
Example Code: 4V 1 10 06 A -W
| 1. Model Code | 2. Series Code | 3. Electrical Control Type | 4. Port Size | 5. Standard Voltage | 6. Wiring Form | 7. Thread Type Code | 8. Pilot Type Code |
|---|---|---|---|---|---|---|---|
| 4V: Five-way Two-position Solenoid Valve | 1: 100 Series | 10: Single Solenoid, Two Position | M5: M5 | A: AC220V | Blank: DIN Socket Type | Blank: Internal Pilot | |
| 4V: Five-way Three-position Solenoid Valve | 20: Double Solenoid, Two Position | 06: 1/8" | B: DC24V | I: Lead Wire Type [Note] | Blank: PT Thread | ||
| 30C: Double Solenoid, Three Position, Center Closed | C: AC110V | G: G Thread | W: External Pilot (Available for 06 Port Size only) | ||||
| 30E: Double Solenoid, Three Position, Center Exhaust | E: AC24V | T: NPT Thread | |||||
| 30P: Double Solenoid, Three Position, Center Pressure | F: DC12V |
Note: The standard wire length for the lead-wire type is 0.5m.
