AIRTAC 4V100 Series Solenoid Valve

Show previous products

•

  View options

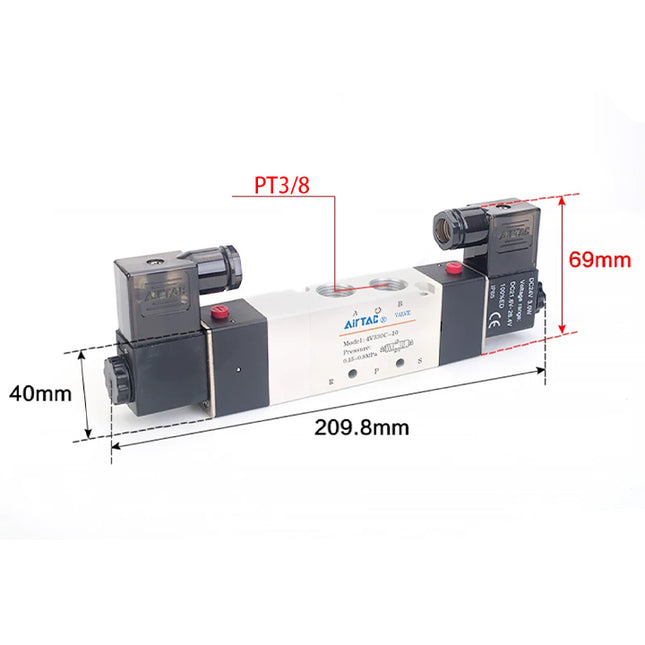

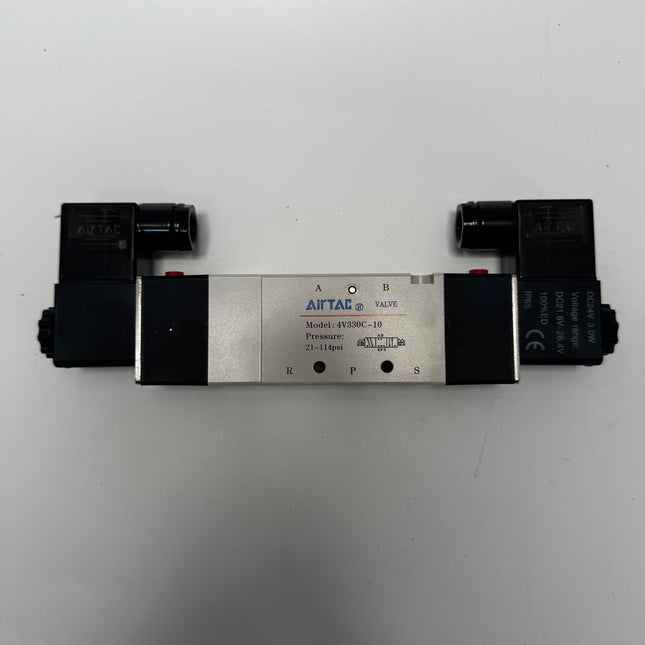

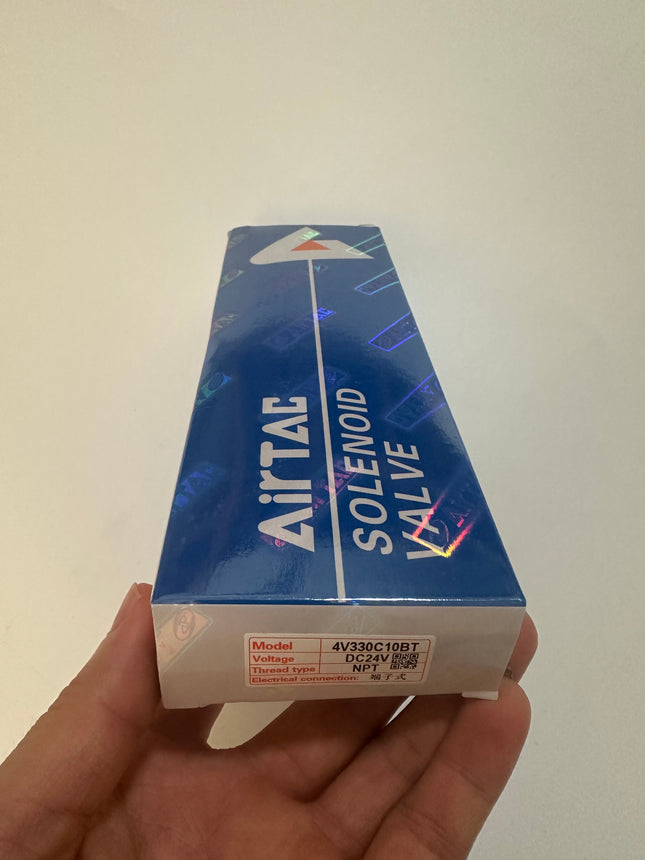

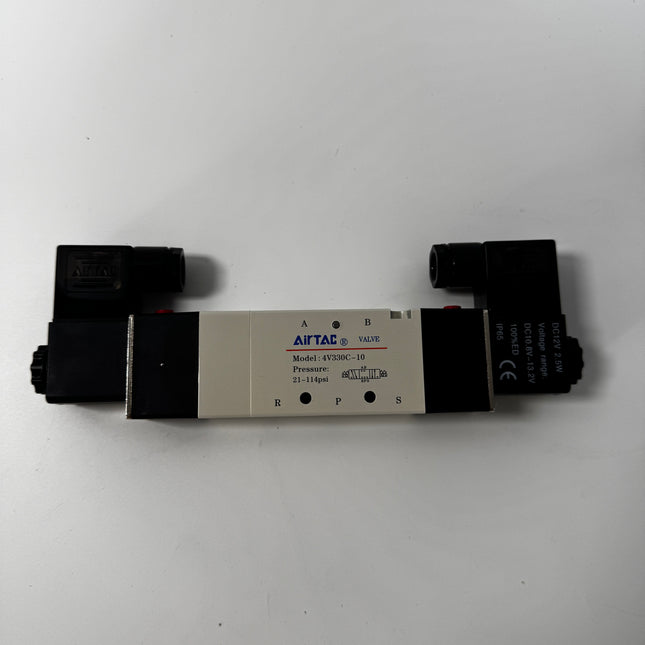

  Airtac 4V series: pneumatic solenoid valve - 4V330C10BT

  Specifications: 4V300 series solenoid valve; 5/3-way, double solenoid, closed center; NPT3/8 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V330C10BT: 4V=five-port solenoid valve; 3=300 series; 30C=5/3-way, double solenoid, closed center; 10=3/8 inch; B=DC24V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, closed center; internal pilot Ports P supply, A/B outlets: NPT3/8; R/S exhausts: NPT1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 21.3 mm²; Cv=1.25 Frequency / weight Max. 3 cycles/s at no load; 450 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P, A, B, R and S blocked. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V330 DIN view. Upper horizontal span 69 (inner 40). Axial span 209; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 82.9, body reference 99. Two-port face: 2×Ø4.3, spacing 50, end offset 69.9; three-port face: spacing 45, end references 72.4 and 94.9. Drawing letters: A=NPT1/4, B=NPT3/8, C=24, D=82.9, E=4; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $77.41

  View options

•

  View options

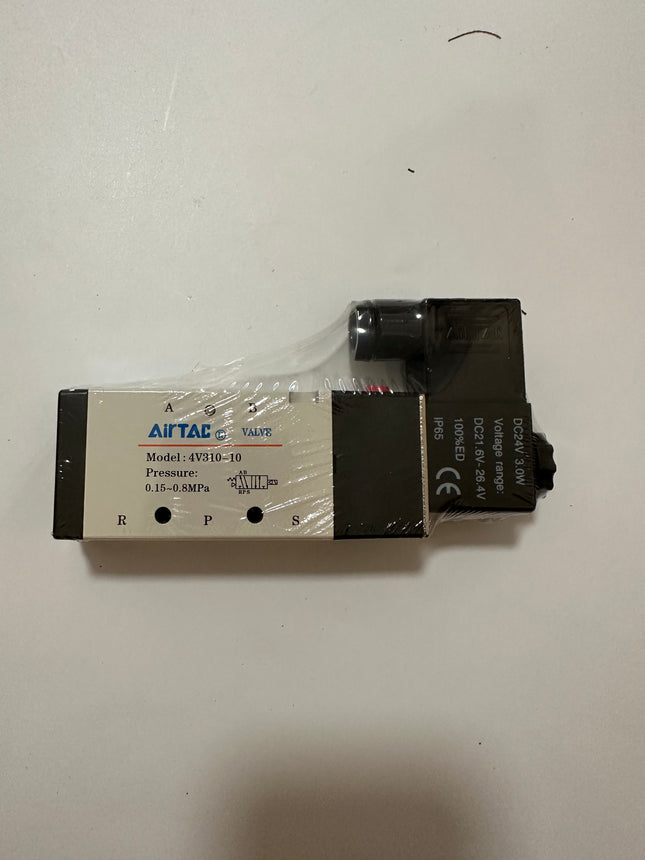

  Airtac 4V series: pneumatic solenoid valve - 4V31010BT

  Specifications: 4V300 series solenoid valve; 5/2-way, single solenoid; NPT3/8 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V31010BT: 4V=five-port solenoid valve; 3=300 series; 10=5/2-way, single solenoid; 10=3/8 inch; B=DC24V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: NPT3/8; R/S exhausts: NPT1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65 Frequency / weight Max. 4 cycles/s at no load; 310 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V310 DIN view. Upper horizontal span 69 (inner 40). Axial span 135; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 28, body reference 80; additional vertical 98.7. Two-port face: 2×Ø4.3, spacing 50, end offset 15; three-port face: spacing 45, end references 17.5 and 40. Drawing letters: A=NPT1/4, B=NPT3/8, C=24, D=28, E=4; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V31010; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 63: speeds 600/700/800; areas 9.7/11.4/13.0; tubes 10×6.5 at 600–700, 16×11 at 800. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 80: speeds 300/400/500/600/700/800; areas 7.9/10.5/13.1/15.7/18.3/20.9; tubes 10×6.5 at 300–400, 16×11 at 500–800. Controls: PTL03, PSL03, PSS03, ASC30010. Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $39.32

  View options

•

  View options

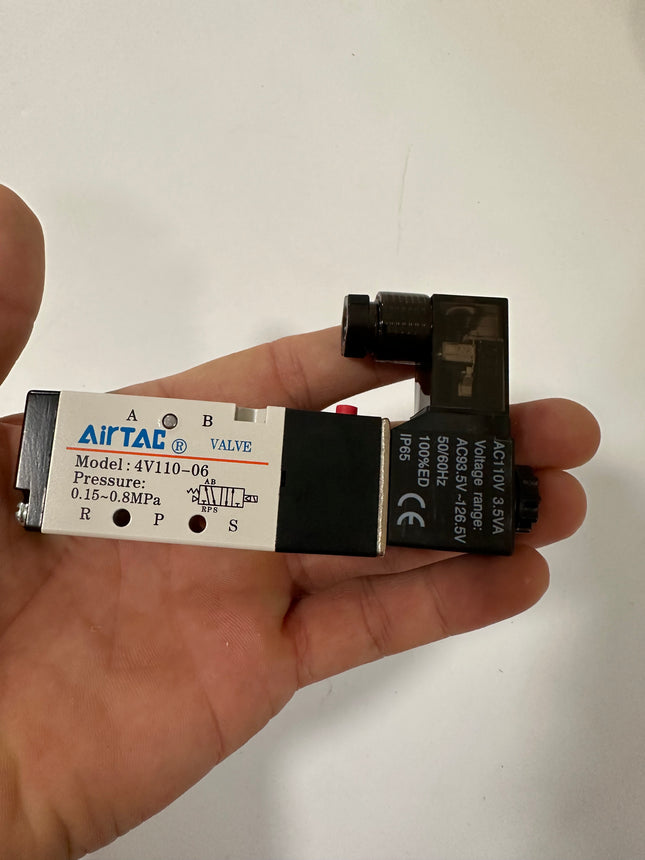

  Airtac 4V series: pneumatic solenoid valve - 4V11006C-W

  Specifications: 4V100 series solenoid valve; 5/2-way, single solenoid; PT1/8 supply/outlets; AC110V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Airtac 4V100 series valves are functional alternatives to SMC VFS1000 series valves. Model Code Explained 4V11006C-W: 4V=five-port solenoid valve; 1=100 series; 10=5/2-way, single solenoid; 06=1/8 inch; C=AC110V; blank electrical code=DIN; blank thread code=PT; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 10.2 mm²; Cv=0.6 Frequency / weight Max. 5 cycles/s at no load; 120 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications AC110V; AC tolerance ±15%; 3.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.72, 4V110 DIN view. Upper horizontal span 55 (inner 34). Axial span 99.4 (additional vertical callout 92.3); body side width 27, offset 9.5; port-face width 18, inner width 13; manual pin 2.5. Side fixing holes 2×Ø3.3, spacing 14, end offset 21.2. Two-port face: 2×Ø3.3, spacing 30, end offset 13.2; three-port face end reference 28.2. Drawing letters: A=PT1/8, B=28, C=14.2, D=1, E=16, F=20.2, G=3; 5 ports use A. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 100M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 100M1F. P-100M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V100/5V100 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=154.5, BA=142.5, BC=99.5, BD=28, C=77, CA=22, CB=27, D=57.5, E=43, F=19, G=19, H=36, ØK=4.5, KB=5, KC=20, P=1/4, PA=10, PB=40. P is port size; select PT/G/NPT. A for 1F–16F: 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323; KA: 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V110-06/4V120-06: 10.2 mm², Cv=0.6; 4V130C-06: 8.6 mm², Cv=0.51. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V110-06; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–1200 L/min (200 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V11006; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 20: speeds 300/400/500/600/700/800; areas 0.5/0.7/0.8/1.0/1.2/1.3; tube 6×4. Controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006. Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 25: speeds 300/400/500/600/700/800; areas 0.8/1.0/1.3/1.5/1.8/2.0; tube 6×4 at 300–500, 8×5 at 600–800. Bore 32: speeds 300/400/500; areas 1.3/1.7/2.1; tube 6×4. Controls: PTLM5, PSLM5, PSSM5, PTL01, PSL01, PSS01, ASC10006. Silencers: BSLM5, BSLMM5, BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 32: speeds 600/700/800; areas 2.5/2.9/3.4; tube 8×5. Controls: PTL01, PSL01, PSS01, ASC10006. Silencers: BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports M5=M5, 06=1/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V230E08B

  Specifications: 4V200 series solenoid valve; 5/3-way, double solenoid, exhaust center; PT1/4 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V230E08B: 4V=five-port solenoid valve; 2=200 series; 30E=5/3-way, double solenoid, exhaust center; 08=1/4 inch; B=DC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, exhaust center; internal pilot Ports P supply, A/B outlets: PT1/4; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 3 cycles/s at no load; 360 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P blocked; A/B connected to exhaust. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V230 DIN view. Upper horizontal span 67 (inner 40). Axial span 190; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 75.4, body reference 80. Two-port face: 2×Ø3.3, spacing 38, end offset 66.4; three-port face: spacing 36, end references 67.4 and 85.4. Drawing letters: A=PT1/8, B=PT1/4, C=21, D=74.9, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $58.64

  View options

•

  View options

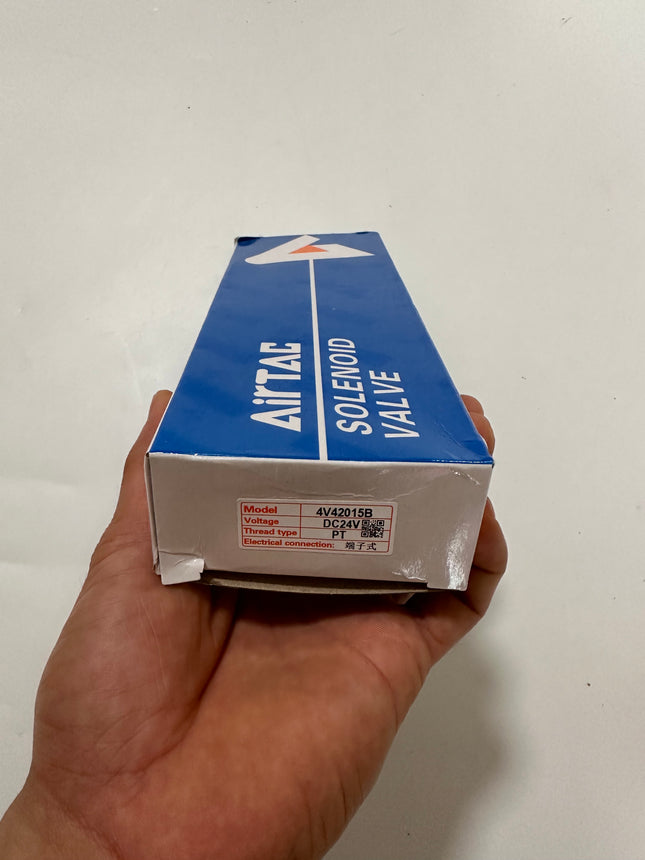

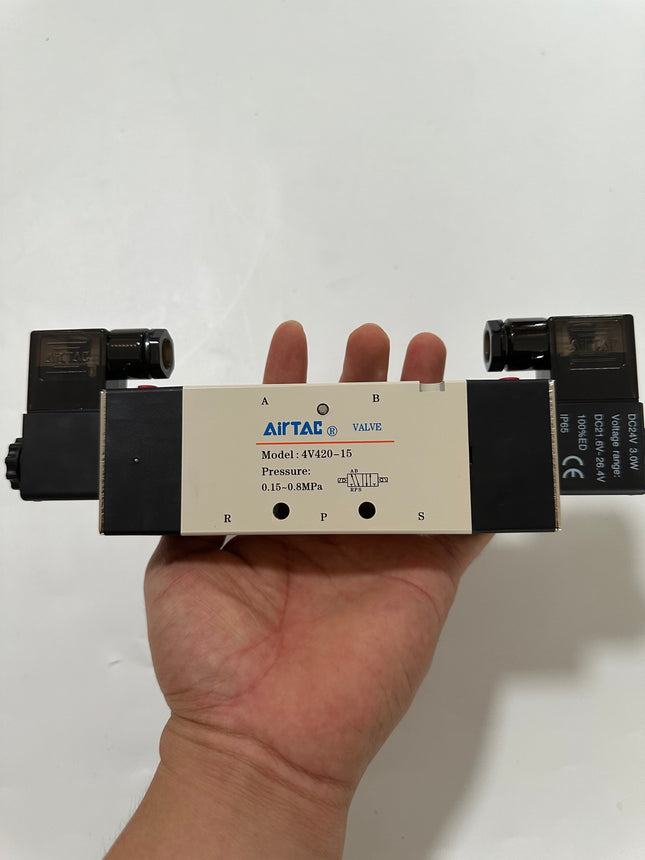

  Airtac 4V series: pneumatic solenoid valve - 4V42015B

  Specifications: 4V400 series solenoid valve; 5/2-way, double solenoid; PT1/2 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog mismatch: This existing link opens the 4V300 catalog; this product is 4V400. Request the matching 4V400 catalog before using its drawings. Model Code Explained 4V42015B: 4V=five-port solenoid valve; 4=400 series; 20=5/2-way, double solenoid; 15=1/2 inch; B=DC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, double solenoid; internal pilot Ports P supply, A/B outlets: PT1/2; R/S exhausts: PT1/2 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 48.0 mm²; Cv=2.82 Frequency / weight Max. 3 cycles/s at no load; 720 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Double-solenoid, two-position memory function. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.78, 4V420 DIN view. Upper horizontal span 74 (inner 40). Axial span 222.8; body side width 50, offset 17.5; port-face width 34, inner width 27; manual pin 2.8. Side holes 2×Ø5.5, spacing 28, end offset 97.4, body reference 113. Two-port face: 2×Ø4.3, spacing 72, port spacing 36, horizontal offset 4, end references 75.4 and 93.4; three-port face: spacing 63, end references 79.9 and 111.4. All 5 main ports: PT1/2. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 400M base: 1F–8F (1–8 stations), blank thread=PT, G=G, T=NPT; e.g. 400M1F. P-400M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V400/5V400 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=243, BA=223, BC=168.5, BD=57, C=107, CA=33, CB=50, D=100, E=94, F=35, G=30.5, H=75, ØK=5.5, KB=6, KC=32, P=1/2, PA=15, PB=68. P is port size; select PT/G/NPT. A for 1F–8F: 61, 96, 131, 166, 201, 236, 271, 306; KA: 49, 84, 119, 154, 189, 224, 259, 294. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V410-15/4V420-15: 48.0 mm², Cv=2.82; 4V430C-15: 40.0 mm², Cv=2.35. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V410-15; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–6000 L/min (500 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V42015; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 15=1/2 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $82.20

  View options

•

  View options

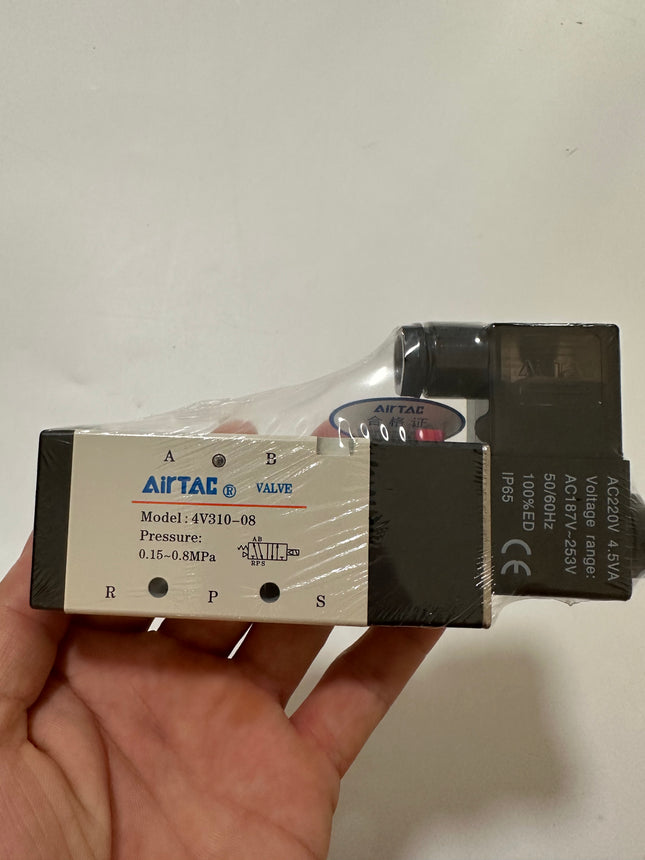

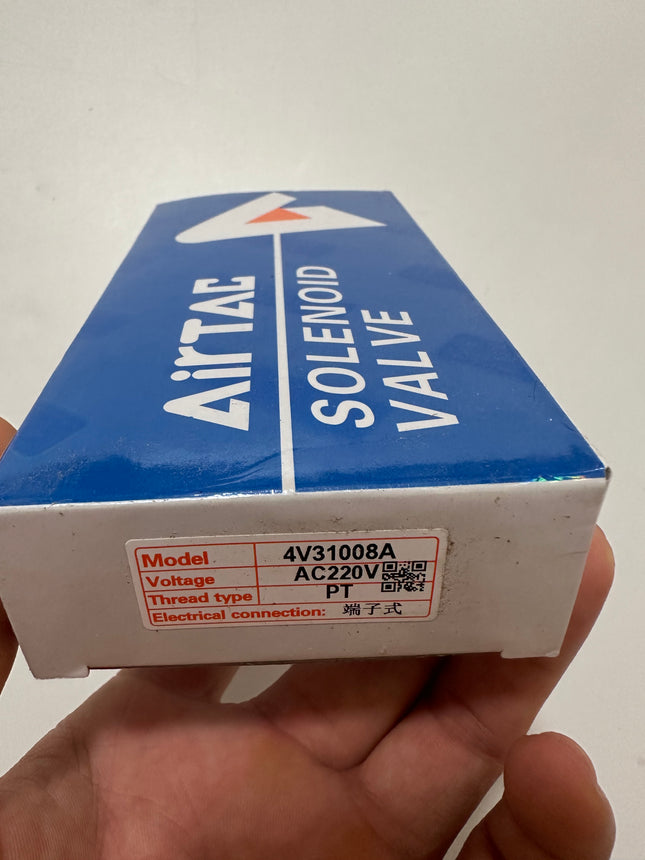

  Airtac 4V series: pneumatic solenoid valve - 4V31008A

  Specifications: 4V300 series solenoid valve; 5/2-way, single solenoid; PT1/4 supply/outlets; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V31008A: 4V=five-port solenoid valve; 3=300 series; 10=5/2-way, single solenoid; 08=1/4 inch; A=AC220V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: PT1/4; R/S exhausts: PT1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 4 cycles/s at no load; 310 g catalog weight for one valve; actual weight governs. Electrical Specifications AC220V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V310 DIN view. Upper horizontal span 69 (inner 40). Axial span 135; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 28, body reference 80; additional vertical 98.7. Two-port face: 2×Ø4.3, spacing 50, end offset 15; three-port face: spacing 45, end references 17.5 and 40. Drawing letters: A=PT1/4, B=PT1/4, C=22, D=29, E=0; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V31008; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 63: speeds 600/700/800; areas 9.7/11.4/13.0; tubes 10×6.5 at 600–700, 16×11 at 800. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $39.32

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V21006A

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; PT1/8 supply/outlets; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21006A: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 06=1/8 inch; A=AC220V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. Electrical Specifications AC220V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=PT1/8, B=PT1/8, C=18, D=22.7, E=0; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21006; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 32: speeds 600/700/800; areas 2.5/2.9/3.4; tube 8×5. Controls: PTL01, PSL01, PSS01, ASC10006. Silencers: BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

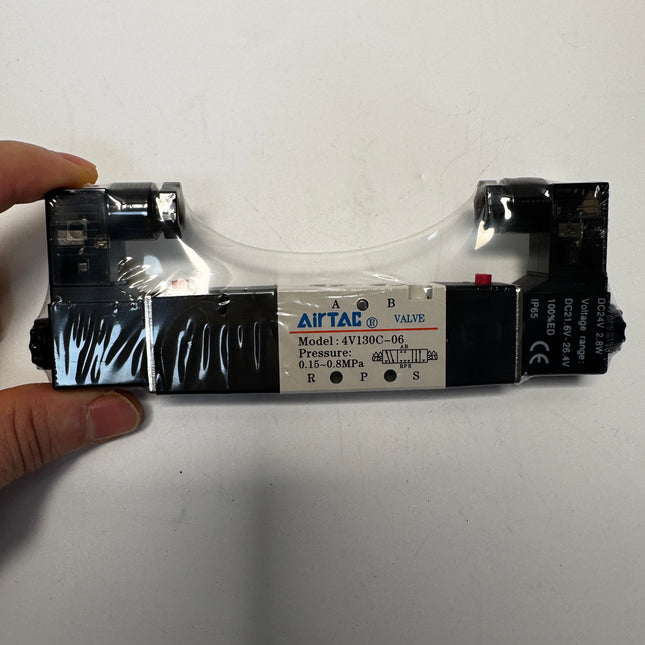

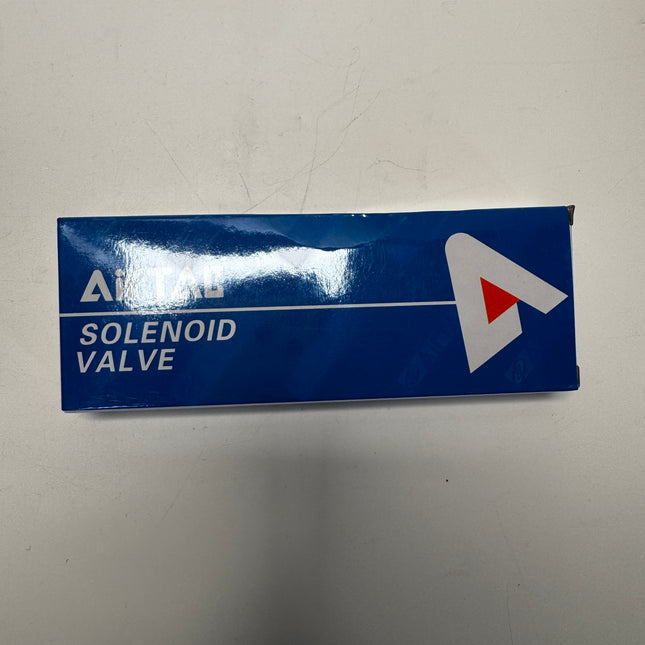

  Airtac 4V series: pneumatic solenoid valve - 4V130C06B

  Specifications: 4V100 series solenoid valve; 5/3-way, double solenoid, closed center; PT1/8 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V100 series valves are functional alternatives to SMC VFS1000 series valves. Model Code Explained 4V130C06B: 4V=five-port solenoid valve; 1=100 series; 30C=5/3-way, double solenoid, closed center; 06=1/8 inch; B=DC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, closed center; internal pilot Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 8.6 mm²; Cv=0.51 Frequency / weight Max. 3 cycles/s at no load; 200 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 2.8 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P, A, B, R and S blocked. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.72, 4V130 DIN view. Upper horizontal span 55 (inner 34). Axial span 157.4; body side width 27, offset 9.5; port-face width 18, inner width 13; manual pin 2.5. Side fixing holes 2×Ø3.3, spacing 14, end offset 64.2. Two-port face: 2×Ø3.3, spacing 30, end offset 56.2; three-port face end reference 71.2. Drawing letters: A=PT1/8, B=28, C=57.2, D=1, E=16, F=63.2, G=3; 5 ports use A. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 100M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 100M1F. P-100M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V100/5V100 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=154.5, BA=142.5, BC=99.5, BD=28, C=77, CA=22, CB=27, D=57.5, E=43, F=19, G=19, H=36, ØK=4.5, KB=5, KC=20, P=1/4, PA=10, PB=40. P is port size; select PT/G/NPT. A for 1F–16F: 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323; KA: 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V110-06/4V120-06: 10.2 mm², Cv=0.6; 4V130C-06: 8.6 mm², Cv=0.51. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V110-06; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–1200 L/min (200 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports M5=M5, 06=1/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $56.31

  View options

•

  View options

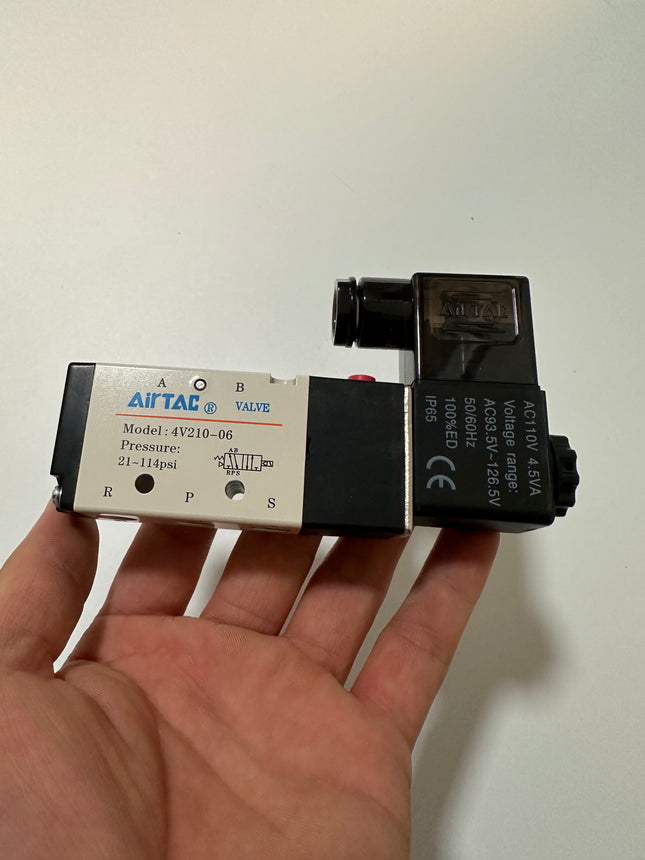

  Airtac 4V series: pneumatic solenoid valve - 4V21006CT

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; NPT1/8 supply/outlets; AC110V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21006CT: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 06=1/8 inch; C=AC110V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: NPT1/8; R/S exhausts: NPT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. Electrical Specifications AC110V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=NPT1/8, B=NPT1/8, C=18, D=22.7, E=0; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21006; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 32: speeds 600/700/800; areas 2.5/2.9/3.4; tube 8×5. Controls: PTL01, PSL01, PSS01, ASC10006. Silencers: BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V21008BT

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; NPT1/4 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21008BT: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 08=1/4 inch; B=DC24V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: NPT1/4; R/S exhausts: NPT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0 Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=NPT1/8, B=NPT1/4, C=21, D=21.2, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21008; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Bore 50: speeds 300/400/500/600/700/800; areas 3.1/4.1/5.1/6.1/7.2/8.3; tubes 8×5 at 300–500, 10×6.5 at 600–800. Controls: PTL02, PSL02, PSS02, ASC20008. Silencers: BSL02, BSLM02, BESL02, PAL02, PALM02. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V21008F-W

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; PT1/4 supply/outlets; DC12V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21008F-W: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 08=1/4 inch; F=DC12V; blank electrical code=DIN; blank thread code=PT; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: PT1/4; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0 Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications DC12V; DC tolerance ±10%; 2.5 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=PT1/8, B=PT1/4, C=21, D=21.2, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21008; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Bore 50: speeds 300/400/500/600/700/800; areas 3.1/4.1/5.1/6.1/7.2/8.3; tubes 8×5 at 300–500, 10×6.5 at 600–800. Controls: PTL02, PSL02, PSS02, ASC20008. Silencers: BSL02, BSLM02, BESL02, PAL02, PALM02. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

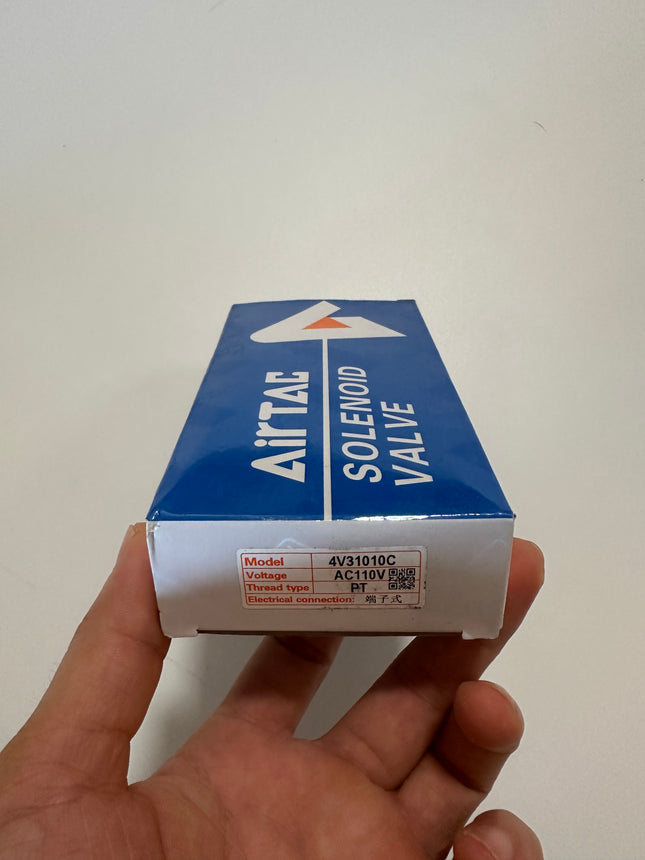

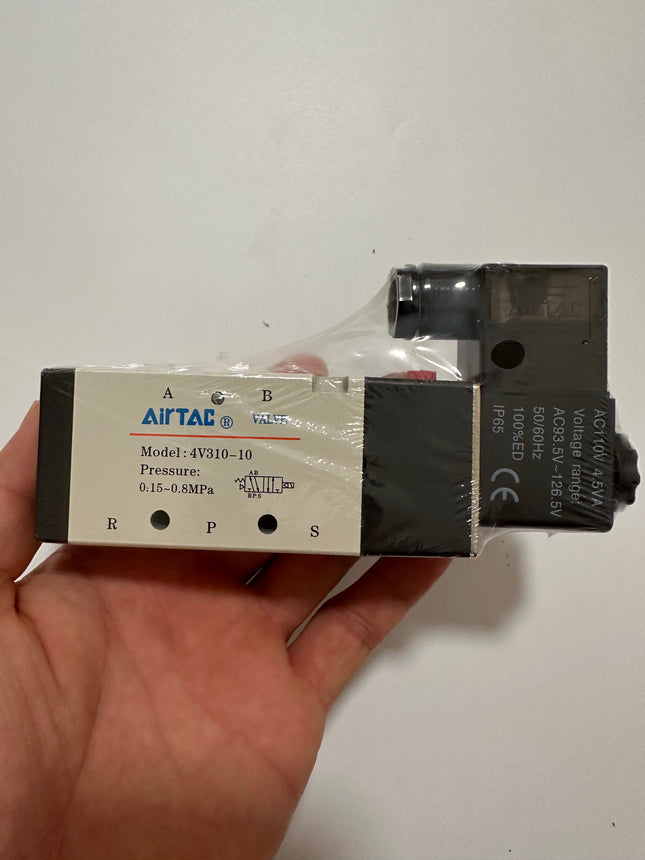

  Airtac 4V series: pneumatic solenoid valve - 4V31010C

  Specifications: 4V300 series solenoid valve; 5/2-way, single solenoid; PT3/8 supply/outlets; AC110V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V31010C: 4V=five-port solenoid valve; 3=300 series; 10=5/2-way, single solenoid; 10=3/8 inch; C=AC110V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: PT3/8; R/S exhausts: PT1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65 Frequency / weight Max. 4 cycles/s at no load; 310 g catalog weight for one valve; actual weight governs. Electrical Specifications AC110V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V310 DIN view. Upper horizontal span 69 (inner 40). Axial span 135; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 28, body reference 80; additional vertical 98.7. Two-port face: 2×Ø4.3, spacing 50, end offset 15; three-port face: spacing 45, end references 17.5 and 40. Drawing letters: A=PT1/4, B=PT3/8, C=24, D=28, E=4; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V31010; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 63: speeds 600/700/800; areas 9.7/11.4/13.0; tubes 10×6.5 at 600–700, 16×11 at 800. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 80: speeds 300/400/500/600/700/800; areas 7.9/10.5/13.1/15.7/18.3/20.9; tubes 10×6.5 at 300–400, 16×11 at 500–800. Controls: PTL03, PSL03, PSS03, ASC30010. Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $39.32

  View options

•

  View options

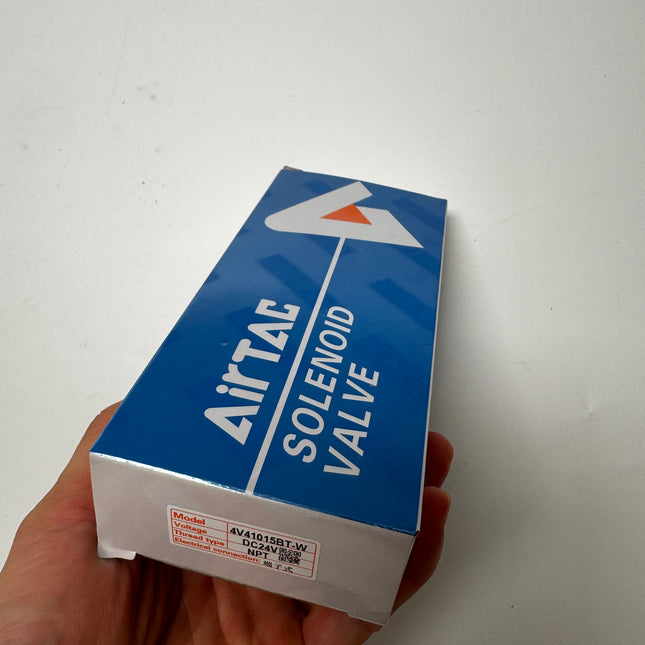

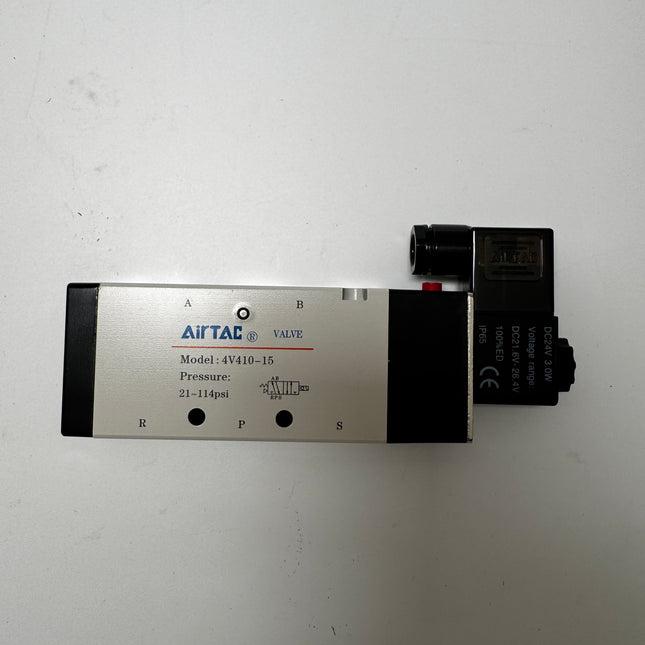

  Airtac 4V series: pneumatic solenoid valve - 4V41015BT-W

  Specifications: 4V400 series solenoid valve; 5/2-way, single solenoid; NPT1/2 supply/outlets; DC24V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Model Code Explained 4V41015BT-W: 4V=five-port solenoid valve; 4=400 series; 10=5/2-way, single solenoid; 15=1/2 inch; B=DC24V; blank electrical code=DIN; T=NPT; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: NPT1/2; R/S exhausts: NPT1/2 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 48.0 mm²; Cv=2.82 Frequency / weight Max. 3 cycles/s at no load; 590 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.78, 4V410 DIN view. Upper horizontal span 74 (inner 40). Axial span 168.4; body side width 50, offset 17.5; port-face width 34, inner width 27; manual pin 2.8. Side holes 2×Ø5.5, spacing 28, end offset 43, body reference 113.8. Two-port face: 2×Ø4.3, spacing 72, port spacing 36, horizontal offset 4, end references 21 and 39; three-port face: spacing 63, end references 25.5 and 57. All 5 main ports: NPT1/2. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 400M base: 1F–8F (1–8 stations), blank thread=PT, G=G, T=NPT; e.g. 400M1F. P-400M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V400/5V400 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=243, BA=223, BC=168.5, BD=57, C=107, CA=33, CB=50, D=100, E=94, F=35, G=30.5, H=75, ØK=5.5, KB=6, KC=32, P=1/2, PA=15, PB=68. P is port size; select PT/G/NPT. A for 1F–8F: 61, 96, 131, 166, 201, 236, 271, 306; KA: 49, 84, 119, 154, 189, 224, 259, 294. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V410-15/4V420-15: 48.0 mm², Cv=2.82; 4V430C-15: 40.0 mm², Cv=2.35. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V410-15; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–6000 L/min (500 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V41015; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 15=1/2 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $53.98

  View options

•

  View options

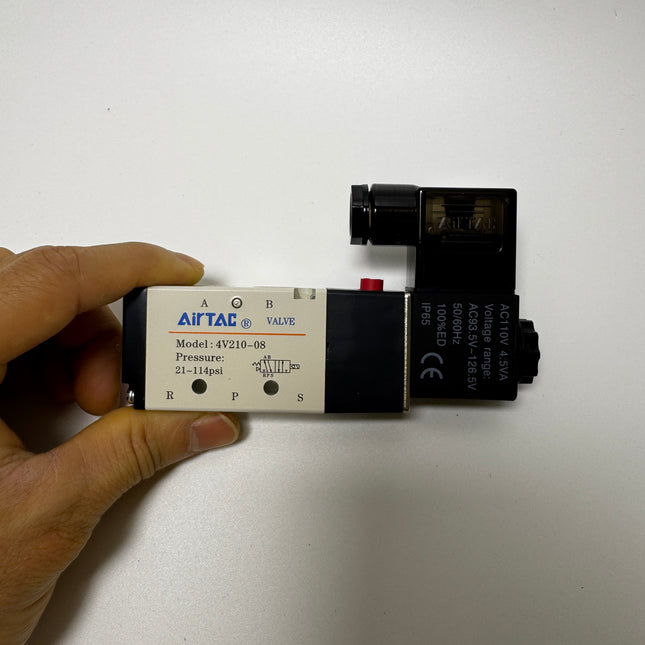

  Airtac 4V series: pneumatic solenoid valve - 4V21008CT

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; NPT1/4 supply/outlets; AC110V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21008CT: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 08=1/4 inch; C=AC110V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: NPT1/4; R/S exhausts: NPT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 17.0 mm²; Cv=1.0 Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. Electrical Specifications AC110V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=NPT1/8, B=NPT1/4, C=21, D=21.2, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21008; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Bore 50: speeds 300/400/500/600/700/800; areas 3.1/4.1/5.1/6.1/7.2/8.3; tubes 8×5 at 300–500, 10×6.5 at 600–800. Controls: PTL02, PSL02, PSS02, ASC20008. Silencers: BSL02, BSLM02, BESL02, PAL02, PALM02. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

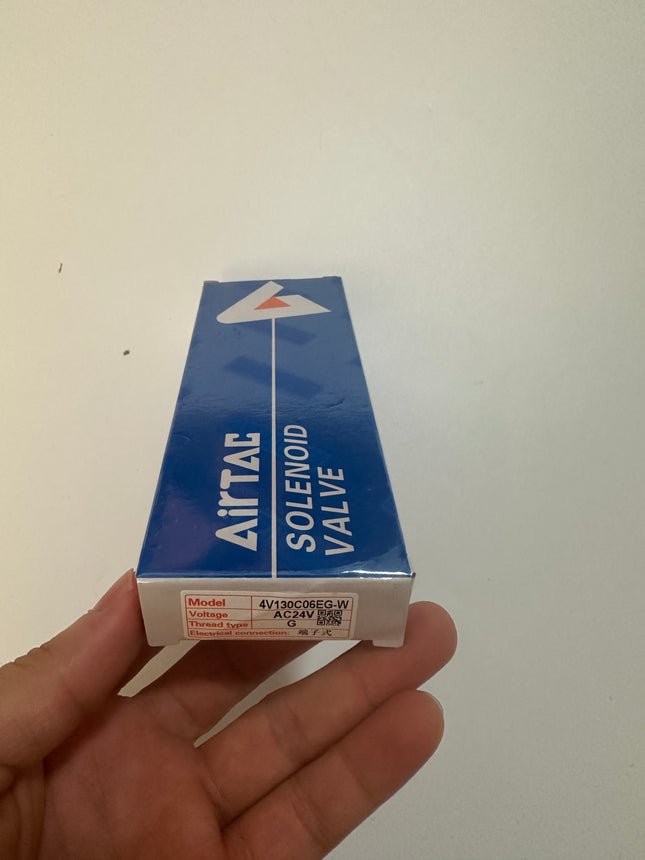

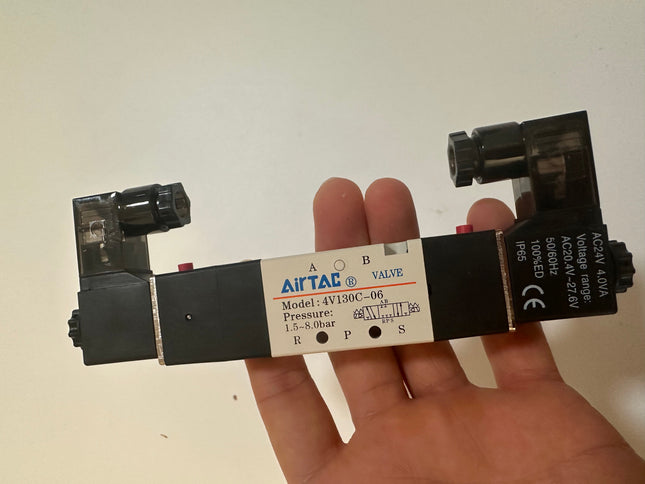

  Airtac 4V series: pneumatic solenoid valve - 4V130C06EG-W

  Specifications: 4V100 series solenoid valve; 5/3-way, double solenoid, closed center; G1/8 supply/outlets; AC24V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Airtac 4V100 series valves are functional alternatives to SMC VFS1000 series valves. Model Code Explained 4V130C06EG-W: 4V=five-port solenoid valve; 1=100 series; 30C=5/3-way, double solenoid, closed center; 06=1/8 inch; E=AC24V; blank electrical code=DIN; G=G; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, closed center; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: G1/8; R/S exhausts: G1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 8.6 mm²; Cv=0.51 Frequency / weight Max. 3 cycles/s at no load; 200 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications AC24V; AC tolerance ±15%; 4.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P, A, B, R and S blocked. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.72, 4V130 DIN view. Upper horizontal span 55 (inner 34). Axial span 157.4; body side width 27, offset 9.5; port-face width 18, inner width 13; manual pin 2.5. Side fixing holes 2×Ø3.3, spacing 14, end offset 64.2. Two-port face: 2×Ø3.3, spacing 30, end offset 56.2; three-port face end reference 71.2. Drawing letters: A=G1/8, B=28, C=57.2, D=1, E=16, F=63.2, G=3; 5 ports use A. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 100M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 100M1F. P-100M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V100/5V100 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=154.5, BA=142.5, BC=99.5, BD=28, C=77, CA=22, CB=27, D=57.5, E=43, F=19, G=19, H=36, ØK=4.5, KB=5, KC=20, P=1/4, PA=10, PB=40. P is port size; select PT/G/NPT. A for 1F–16F: 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323; KA: 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V110-06/4V120-06: 10.2 mm², Cv=0.6; 4V130C-06: 8.6 mm², Cv=0.51. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V110-06; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–1200 L/min (200 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports M5=M5, 06=1/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $56.31

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V130E06E

  Specifications: 4V100 series solenoid valve; 5/3-way, double solenoid, exhaust center; PT1/8 supply/outlets; AC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V100 series valves are functional alternatives to SMC VFS1000 series valves. Model Code Explained 4V130E06E: 4V=five-port solenoid valve; 1=100 series; 30E=5/3-way, double solenoid, exhaust center; 06=1/8 inch; E=AC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, exhaust center; internal pilot Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 3 cycles/s at no load; 200 g catalog weight for one valve; actual weight governs. Electrical Specifications AC24V; AC tolerance ±15%; 4.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P blocked; A/B connected to exhaust. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.72, 4V130 DIN view. Upper horizontal span 55 (inner 34). Axial span 157.4; body side width 27, offset 9.5; port-face width 18, inner width 13; manual pin 2.5. Side fixing holes 2×Ø3.3, spacing 14, end offset 64.2. Two-port face: 2×Ø3.3, spacing 30, end offset 56.2; three-port face end reference 71.2. Drawing letters: A=PT1/8, B=28, C=57.2, D=1, E=16, F=63.2, G=3; 5 ports use A. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 100M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 100M1F. P-100M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V100/5V100 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=154.5, BA=142.5, BC=99.5, BD=28, C=77, CA=22, CB=27, D=57.5, E=43, F=19, G=19, H=36, ØK=4.5, KB=5, KC=20, P=1/4, PA=10, PB=40. P is port size; select PT/G/NPT. A for 1F–16F: 38, 57, 76, 95, 114, 133, 152, 171, 190, 209, 228, 247, 266, 285, 304, 323; KA: 28, 47, 66, 85, 104, 123, 142, 161, 180, 199, 218, 237, 256, 275, 294, 313. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V110-06/4V120-06: 10.2 mm², Cv=0.6; 4V130C-06: 8.6 mm², Cv=0.51. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V110-06; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–1200 L/min (200 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports M5=M5, 06=1/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $56.31

  View options

•

  View options

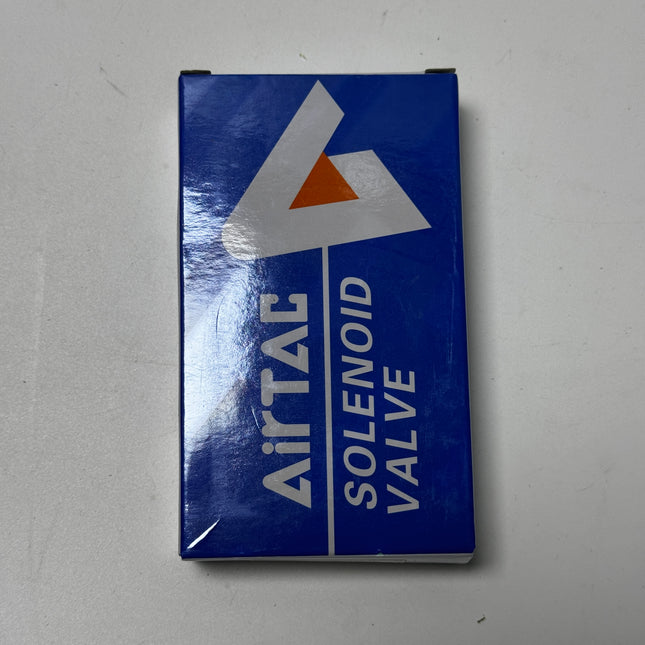

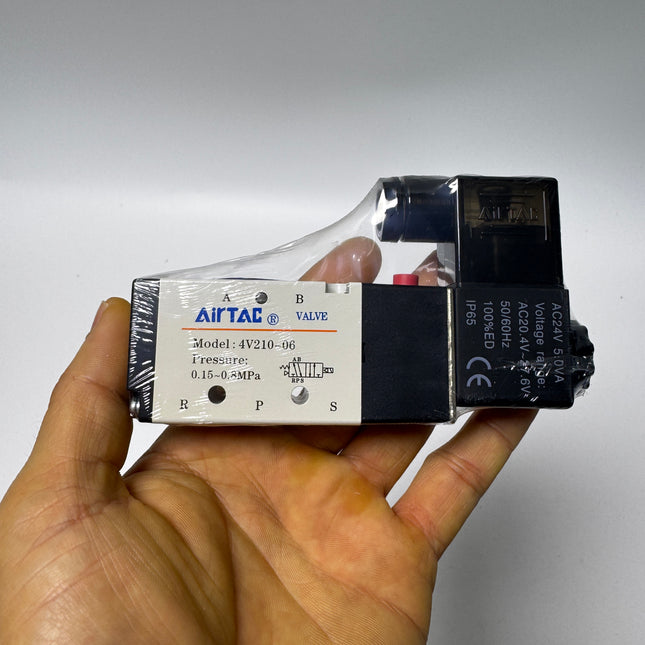

  Airtac 4V series: pneumatic solenoid valve - 4V21006E

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; PT1/8 supply/outlets; AC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21006E: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 06=1/8 inch; E=AC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. Electrical Specifications AC24V; AC tolerance ±15%; 5.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=PT1/8, B=PT1/8, C=18, D=22.7, E=0; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21006; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 32: speeds 600/700/800; areas 2.5/2.9/3.4; tube 8×5. Controls: PTL01, PSL01, PSS01, ASC10006. Silencers: BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V21006E-W

  Specifications: 4V200 series solenoid valve; 5/2-way, single solenoid; PT1/8 supply/outlets; AC24V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V21006E-W: 4V=five-port solenoid valve; 2=200 series; 10=5/2-way, single solenoid; 06=1/8 inch; E=AC24V; blank electrical code=DIN; blank thread code=PT; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: PT1/8; R/S exhausts: PT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 5 cycles/s at no load; 220 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications AC24V; AC tolerance ±15%; 5.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V210 DIN view. Upper horizontal span 67 (inner 40). Axial span 117; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 21.7, body reference 62.2. Two-port face: 2×Ø3.3, spacing 38, end offset 12.7; three-port face: spacing 36, end references 13.7 and 31.7. Drawing letters: A=PT1/8, B=PT1/8, C=18, D=22.7, E=0; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V21006; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 32: speeds 600/700/800; areas 2.5/2.9/3.4; tube 8×5. Controls: PTL01, PSL01, PSS01, ASC10006. Silencers: BSL01, BSLM01, BESL01, PAL01, PALM01. Bore 40: speeds 300/400/500/600/700/800; areas 2.0/2.6/3.3/3.9/4.6/5.2; tubes 6×4 at 300–400, 8×5 at 500–600, 10×6.5 at 700–800. Controls: PTL01, PSL01, PSS01, ASC10006, PTL02, PSL02, PSS02, ASC20008. Silencers: BSL01/02, BSLM01/02, BESL01/02, PAL01/02, PALM01/02. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $26.30

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V230C08BG

  Specifications: 4V200 series solenoid valve; 5/3-way, double solenoid, closed center; G1/4 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V230C08BG: 4V=five-port solenoid valve; 2=200 series; 30C=5/3-way, double solenoid, closed center; 08=1/4 inch; B=DC24V; blank electrical code=DIN; G=G; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, closed center; internal pilot Ports P supply, A/B outlets: G1/4; R/S exhausts: G1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 13.6 mm²; Cv=0.8 Frequency / weight Max. 3 cycles/s at no load; 360 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P, A, B, R and S blocked. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V230 DIN view. Upper horizontal span 67 (inner 40). Axial span 190; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 75.4, body reference 80. Two-port face: 2×Ø3.3, spacing 38, end offset 66.4; three-port face: spacing 36, end references 67.4 and 85.4. Drawing letters: A=G1/8, B=G1/4, C=21, D=74.9, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $58.64

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V31010AG

  Specifications: 4V300 series solenoid valve; 5/2-way, single solenoid; G3/8 supply/outlets; AC220V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V31010AG: 4V=five-port solenoid valve; 3=300 series; 10=5/2-way, single solenoid; 10=3/8 inch; A=AC220V; blank electrical code=DIN; G=G; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: G3/8; R/S exhausts: G1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65 Frequency / weight Max. 4 cycles/s at no load; 310 g catalog weight for one valve; actual weight governs. Electrical Specifications AC220V; AC tolerance ±15%; 4.5 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V310 DIN view. Upper horizontal span 69 (inner 40). Axial span 135; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 28, body reference 80; additional vertical 98.7. Two-port face: 2×Ø4.3, spacing 50, end offset 15; three-port face: spacing 45, end references 17.5 and 40. Drawing letters: A=G1/4, B=G3/8, C=24, D=28, E=4; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V31010; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 63: speeds 600/700/800; areas 9.7/11.4/13.0; tubes 10×6.5 at 600–700, 16×11 at 800. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 80: speeds 300/400/500/600/700/800; areas 7.9/10.5/13.1/15.7/18.3/20.9; tubes 10×6.5 at 300–400, 16×11 at 500–800. Controls: PTL03, PSL03, PSS03, ASC30010. Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $39.32

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V32010E-W

  Specifications: 4V300 series solenoid valve; 5/2-way, double solenoid; PT3/8 supply/outlets; AC24V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Airtac 4V300 series valves are functional alternatives to SMC VFS3000 series valves. Model Code Explained 4V32010E-W: 4V=five-port solenoid valve; 3=300 series; 20=5/2-way, double solenoid; 10=3/8 inch; E=AC24V; blank electrical code=DIN; blank thread code=PT; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, double solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: PT3/8; R/S exhausts: PT1/4 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 28.0 mm²; Cv=1.65 Frequency / weight Max. 4 cycles/s at no load; 400 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications AC24V; AC tolerance ±15%; 5.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Double-solenoid, two-position memory function. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.76, 4V320 DIN view. Upper horizontal span 69 (inner 40). Axial span 190; body side width 40, offset 13.5; port-face width 27, inner width 20; manual pin 2.4. Side holes 2×Ø4.3, spacing 24, end offset 82.9, body reference 80. Two-port face: 2×Ø4.3, spacing 50, end offset 69.9; three-port face: spacing 45, end references 72.4 and 94.9. Drawing letters: A=PT1/4, B=PT3/8, C=24, D=82.9, E=4; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 300M base: 1F–12F (1–12 stations), blank thread=PT, G=G, T=NPT; e.g. 300M1F. P-300M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V300/5V300 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=208, BA=190, BC=135, BD=40, C=97, CA=28, CB=40, D=75, E=64, F=28, G=26, H=54, ØK=4.5, KB=5, KC=26, P=3/8, PA=13.5, PB=53. P is port size; select PT/G/NPT. A for 1F–12F: 52, 80, 108, 136, 164, 192, 220, 248, 276, 304, 332, 360; KA: 42, 70, 98, 126, 154, 182, 210, 238, 266, 294, 322, 350. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V310-10/4V320-10: 28.0 mm², Cv=1.65; 4V330C-10: 21.3 mm², Cv=1.25. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V310-10; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–3200 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V32010; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 63: speeds 300/400/500; areas 4.9/6.5/8.1; tubes 8×5 at 300–400, 10×6.5 at 500. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 63: speeds 600/700/800; areas 9.7/11.4/13.0; tubes 10×6.5 at 600–700, 16×11 at 800. Controls: PTL02, PSL02, PSS02, ASC20008, PTL03, PSL03, PSS03, ASC30010. Silencers: BSL02/03, BSLM02/03, BESL02/03, PAL02/03, PALM02/03. Bore 80: speeds 300/400/500/600/700/800; areas 7.9/10.5/13.1/15.7/18.3/20.9; tubes 10×6.5 at 300–400, 16×11 at 500–800. Controls: PTL03, PSL03, PSS03, ASC30010. Silencers: BSL03, BSLM03, BESL03, PAL03, PALM03. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 08=1/4 inch, 10=3/8 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $65.76

  View options

•

  View options

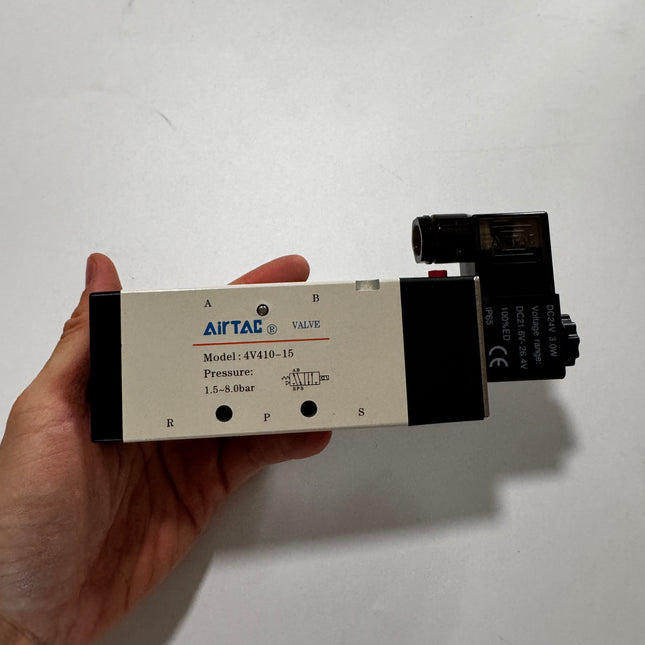

  Airtac 4V series: pneumatic solenoid valve - 4V41015BG-W

  Specifications: 4V400 series solenoid valve; 5/2-way, single solenoid; G1/2 supply/outlets; DC24V; DIN connector; external pilot, M5×0.8 pilot port. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. The -W external-pilot ordering suffix follows the 2022 catalog; the linked edition omits this suffix from its ordering table. Model Code Explained 4V41015BG-W: 4V=five-port solenoid valve; 4=400 series; 10=5/2-way, single solenoid; 15=1/2 inch; B=DC24V; blank electrical code=DIN; G=G; -W=external pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; external pilot, M5×0.8 pilot port Ports P supply, A/B outlets: G1/2; R/S exhausts: G1/2 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 48.0 mm²; Cv=2.82 Frequency / weight Max. 3 cycles/s at no load; 590 g catalog weight for one valve; actual weight governs. External pilot supply pressure is not separately specified; confirm it for the application. The catalog does not establish zero-pressure operation. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.78, 4V410 DIN view. Upper horizontal span 74 (inner 40). Axial span 168.4; body side width 50, offset 17.5; port-face width 34, inner width 27; manual pin 2.8. Side holes 2×Ø5.5, spacing 28, end offset 43, body reference 113.8. Two-port face: 2×Ø4.3, spacing 72, port spacing 36, horizontal offset 4, end references 21 and 39; three-port face: spacing 63, end references 25.5 and 57. All 5 main ports: G1/2. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. Selected external pilot port: M5×0.8. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 400M base: 1F–8F (1–8 stations), blank thread=PT, G=G, T=NPT; e.g. 400M1F. P-400M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V400/5V400 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=243, BA=223, BC=168.5, BD=57, C=107, CA=33, CB=50, D=100, E=94, F=35, G=30.5, H=75, ØK=5.5, KB=6, KC=32, P=1/2, PA=15, PB=68. P is port size; select PT/G/NPT. A for 1F–8F: 61, 96, 131, 166, 201, 236, 271, 306; KA: 49, 84, 119, 154, 189, 224, 259, 294. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V410-15/4V420-15: 48.0 mm², Cv=2.82; 4V430C-15: 40.0 mm², Cv=2.35. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V410-15; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–6000 L/min (500 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V41015; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 15=1/2 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $53.98

  View options

•

  View options

  Airtac 4V series: pneumatic solenoid valve - 4V41015E

  Specifications: 4V400 series solenoid valve; 5/2-way, single solenoid; PT1/2 supply/outlets; AC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Catalog mismatch: This existing link opens the 4V300 catalog; this product is 4V400. Request the matching 4V400 catalog before using its drawings. Model Code Explained 4V41015E: 4V=five-port solenoid valve; 4=400 series; 10=5/2-way, single solenoid; 15=1/2 inch; E=AC24V; blank electrical code=DIN; blank thread code=PT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/2-way, single solenoid; internal pilot Ports P supply, A/B outlets: PT1/2; R/S exhausts: PT1/2 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv 48.0 mm²; Cv=2.82 Frequency / weight Max. 3 cycles/s at no load; 590 g catalog weight for one valve; actual weight governs. Electrical Specifications AC24V; AC tolerance ±15%; 5.0 VA per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Single solenoid with spring return; switches supply between A/B and exhausts the other outlet. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.78, 4V410 DIN view. Upper horizontal span 74 (inner 40). Axial span 168.4; body side width 50, offset 17.5; port-face width 34, inner width 27; manual pin 2.8. Side holes 2×Ø5.5, spacing 28, end offset 43, body reference 113.8. Two-port face: 2×Ø4.3, spacing 72, port spacing 36, horizontal offset 4, end references 21 and 39; three-port face: spacing 63, end references 25.5 and 57. All 5 main ports: PT1/2. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 400M base: 1F–8F (1–8 stations), blank thread=PT, G=G, T=NPT; e.g. 400M1F. P-400M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V400/5V400 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=243, BA=223, BC=168.5, BD=57, C=107, CA=33, CB=50, D=100, E=94, F=35, G=30.5, H=75, ØK=5.5, KB=6, KC=32, P=1/2, PA=15, PB=68. P is port size; select PT/G/NPT. A for 1F–8F: 61, 96, 131, 166, 201, 236, 271, 306; KA: 49, 84, 119, 154, 189, 224, 259, 294. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V410-15/4V420-15: 48.0 mm², Cv=2.82; 4V430C-15: 40.0 mm², Cv=2.35. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V410-15; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–6000 L/min (500 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Cylinder Selection Reference 2022 p.299 lists base model 4V41015; theoretical reference only, not guaranteed cylinder speed. Bore/tube OD×ID: mm; speed: mm/s; required effective area: mm². Match actual thread, load and circuit; auxiliary codes are table options, not included parts. Bore 100: speeds 300/400/500/600/700/800; areas 12.3/16.4/20.4/24.5/28.6/32.7; tube 16×11. Controls: PTL03, PSL03, PSS03, ASC30010, PTL04, PSL04, PSS04, ASC30015. Silencers: BSL03/04, BSLM03/04, BESL03/04, PAL03/04, PALM03/04. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 15=1/2 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $53.98

  View options

•

  View options

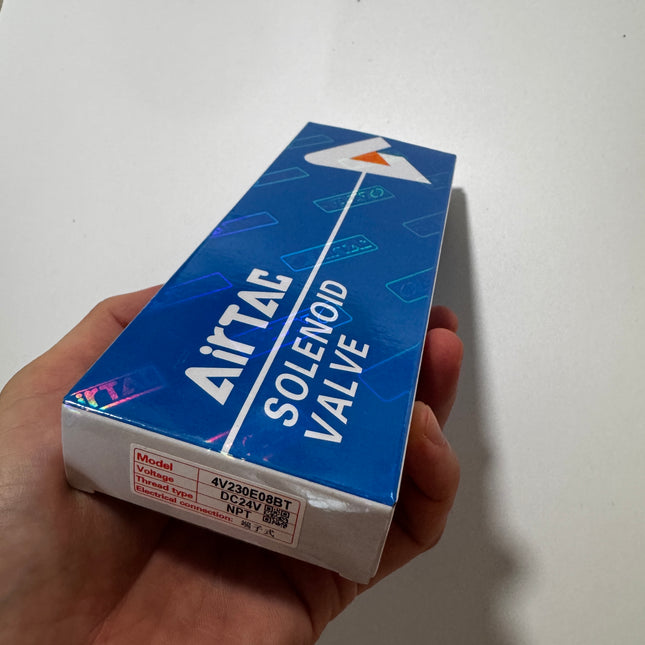

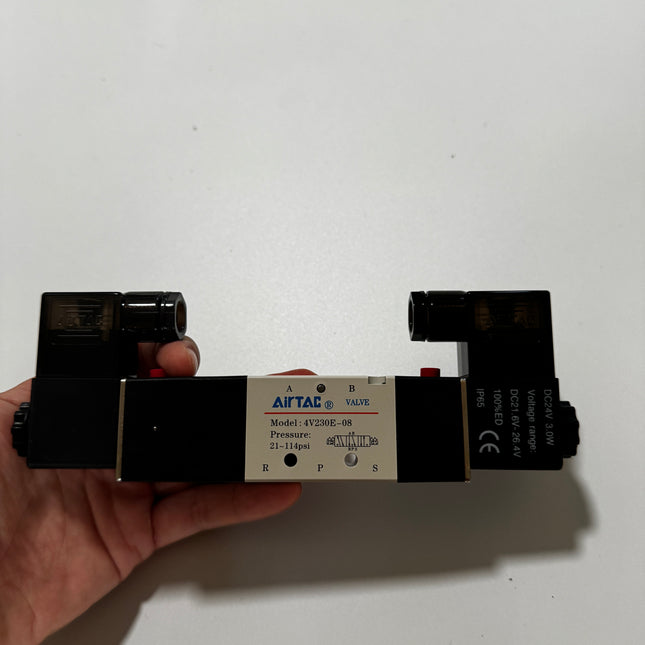

  Airtac 4V series: pneumatic solenoid valve - 4V230E08BT

  Specifications: 4V200 series solenoid valve; 5/3-way, double solenoid, exhaust center; NPT1/4 supply/outlets; DC24V; DIN connector; internal pilot. Product Catalog Download Airtac Product Catalog (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Airtac 4V200 series valves are functional alternatives to SMC VFS2000 series valves. Model Code Explained 4V230E08BT: 4V=five-port solenoid valve; 2=200 series; 30E=5/3-way, double solenoid, exhaust center; 08=1/4 inch; B=DC24V; blank electrical code=DIN; T=NPT; blank pilot suffix=internal pilot. Technical Specifications Parameter This model Air / operation 40 μm filtered air; 5/3-way, double solenoid, exhaust center; internal pilot Ports P supply, A/B outlets: NPT1/4; R/S exhausts: NPT1/8 Pressure 0.15–0.8 MPa (21–114 psi); proof 1.2 MPa (175 psi) Temperature / body −20 to 70°C; aluminum alloy Effective area / Cv Not separately stated for this configuration; see series test references below. Frequency / weight Max. 3 cycles/s at no load; 360 g catalog weight for one valve; actual weight governs. Electrical Specifications DC24V; DC tolerance ±10%; 3.0 W per coil; DIN connector. IP65 (DIN40050); class B insulation; activating time ≤0.05 s. Features and Operation Sliding-spool design gives good sealing and responsive switching. Specially finished bore reduces friction and starting pressure, supporting service life. Manual override aids setup; manifold mounting saves space. Center: P blocked; A/B connected to exhaust. No added lubrication required. Once lubricated, continue using ISO VG32 or equivalent; do not stop lubrication. External and Mounting Dimensions mm; 2022 catalog p.74, 4V230 DIN view. Upper horizontal span 67 (inner 40). Axial span 190; body side width 35, offset 10.5; port-face width 22, inner width 17; manual pin 3. Side holes 2×Ø4.3, spacing 20, end offset 75.4, body reference 80. Two-port face: 2×Ø3.3, spacing 38, end offset 66.4; three-port face: spacing 36, end references 67.4 and 85.4. Drawing letters: A=NPT1/8, B=NPT1/4, C=21, D=74.9, E=3; 2 exhaust ports use A, 3 supply/outlet ports use B. Drawing letters refer to dimension lines, not pneumatic port names; consult the drawing for their locations. M5×0.8 external pilot port is an optional -W feature, not this configuration. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Optional Manifold and Accessories Optional 200M base: 1F–16F (1–16 stations), blank thread=PT, G=G, T=NPT; e.g. 200M1F. P-200M-R2 is the blanking-plate kit. Base kit: base, gaskets, screws; plate kit: plate, screws. Quantities/weights are not stated; neither kit is included in this single-valve code. Base serves 4V200/5V200 valves; 40 μm filtered air, −20 to 70°C. Common supply/exhaust, organized wiring and expandable stations save space and simplify diagnosis. Optional assembly drawing, 2022 p.82 (mm; includes illustrated valves, not bare-base dimensions): B=189, BA=171, BC=117, BD=31.7, C=91, CA=24, CB=35, D=60, E=52, F=23, G=22, H=38, ØK=4.5, KB=5, KC=21, P=1/4, PA=10, PB=42. P is port size; select PT/G/NPT. A for 1F–16F: 44, 67, 90, 113, 136, 159, 182, 205, 228, 251, 274, 297, 320, 343, 366, 389; KA: 34, 57, 80, 103, 126, 149, 172, 195, 218, 241, 264, 287, 310, 333, 356, 379. Letter locations and assembly layout require the full drawing. Flow Characteristics Series flow-test references: 4V210-08/4V220-08: 17.0 mm², Cv=1.0; 4V230C-08: 13.6 mm², Cv=0.8. Area/Cv are calculated from test flow data; do not apply them to unlisted configurations. Curve test model 4V210-08; pressure axis 0–0.7 MPa (0.1 steps), flow axis 0–2000 L/min (400 steps). AirTAC laboratory data; axis limits are not rated flow. Read the curves for pressure-dependent flow. Internal Components Series diagram key: 1 terminal; 2 retaining nut; 3 coil; 4 armature; 5 retaining plate; 6 piston; 7 pilot body; 8 body; 9 wear ring; 10 bottom cover; 11 screw; 12 spring; 13 gasket; 14 O-ring; 15 spool; 16 shaped O-ring; 17 spring; 18 manual pin; 19 return seat; 20 spring; 21 side cover; 22 return seat. Diagrams show 10/20/30C structures; numbers identify parts, not kit quantities or ordering codes. Series Ordering Options Series options, not all fitted: 10=single 5/2, 20=double 5/2; 30C/30E/30P=double 5/3, closed/exhaust/pressure center; ports 06=1/8 inch, 08=1/4 inch. A=AC220V, B=DC24V, C=AC110V, E=AC24V, F=DC12V; blank electrical code=DIN, I=0.5 m lead; blank pilot=internal, -W=external; blank thread=PT, G=G, T=NPT (M5 has no thread suffix).

  Read more less

  $58.64

  View options
