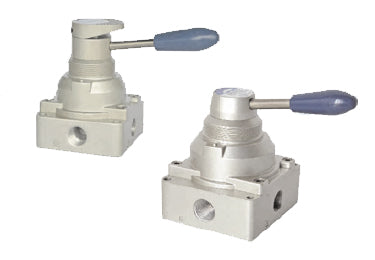

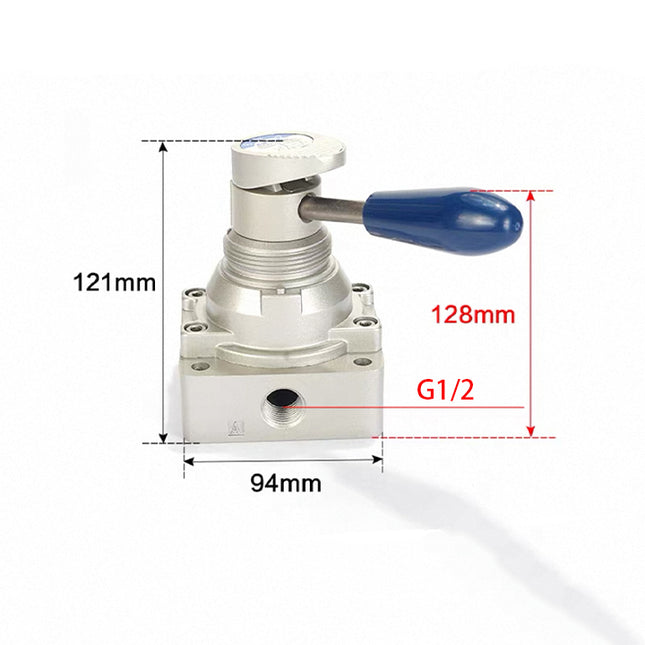

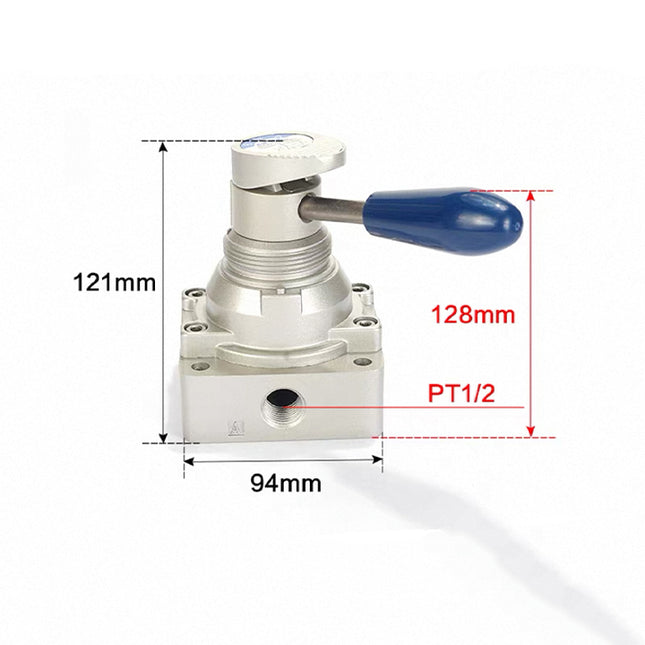

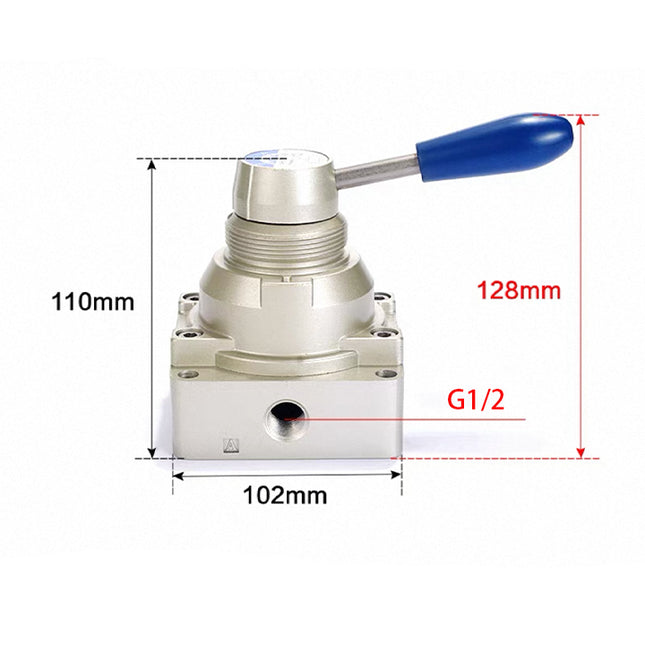

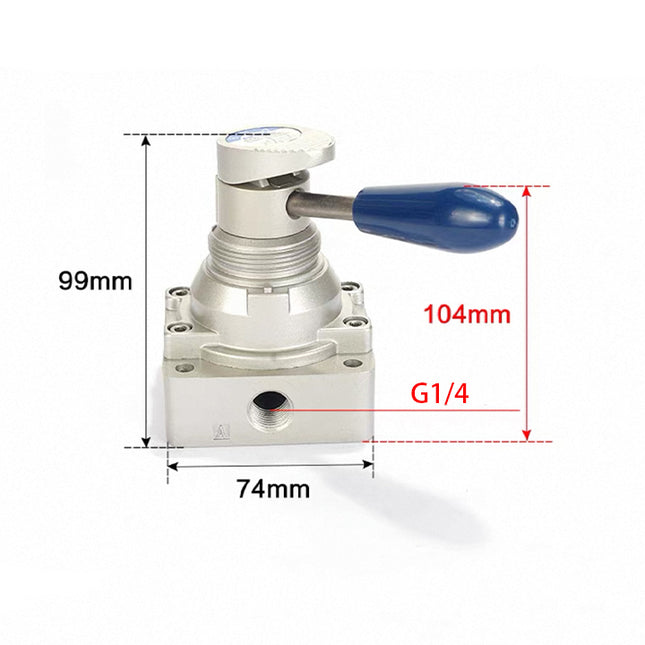

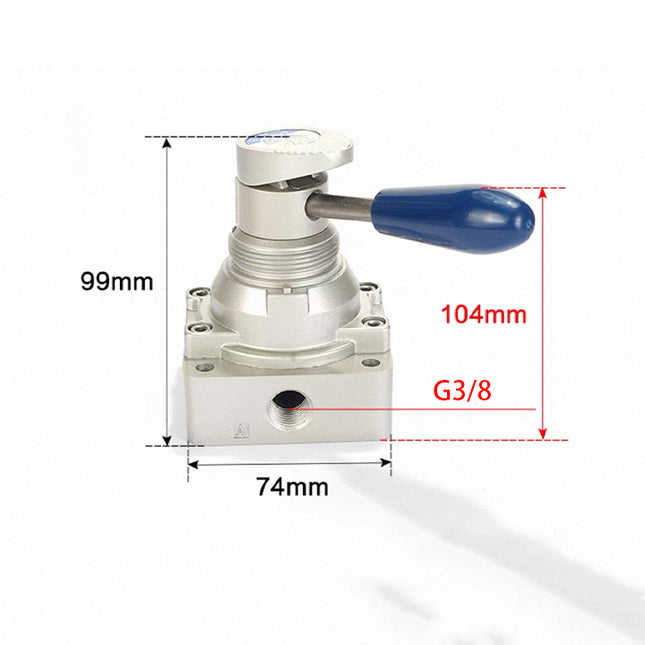

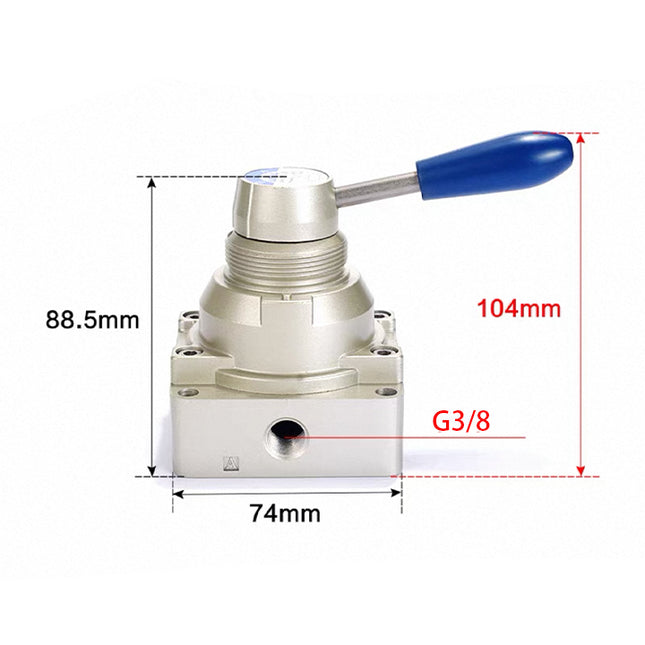

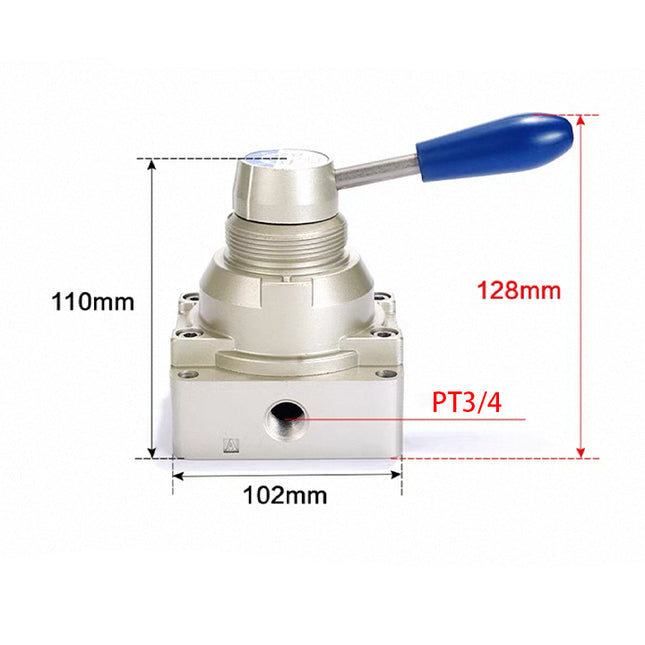

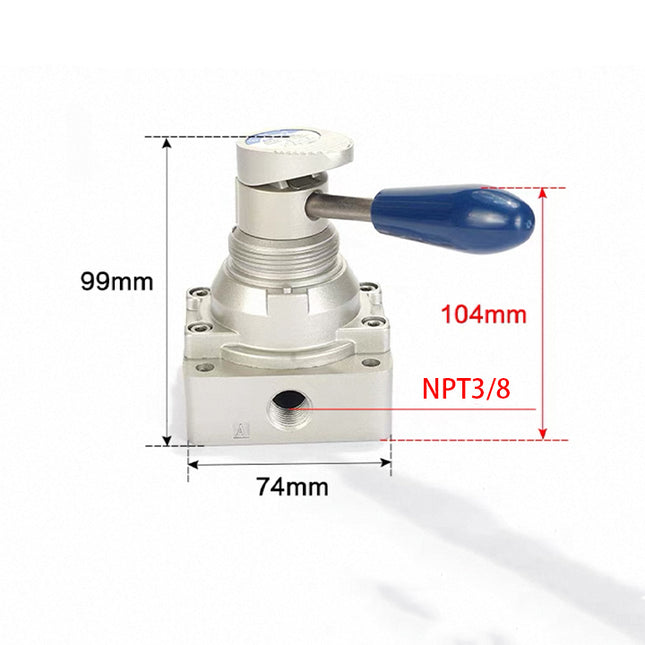

4HV, 4HVL Series Hand Rotary Valve
Product Features
- The valve's rotational switching is light and smooth, providing good tactile feedback and accurate positioning.
- It features a large effective circulation area and minimal pressure loss.
- Two installation modes are available: panel mounting and base mounting. Panel mounting version includes the necessary mounting nuts.
Specifications
| Model | 4HV2□□-06(L) | 4HV2□□-08(L) | 4HV3□□-08(L) | 4HV3□□-10(L) | 4HV4□□-15(L) | 4HV4□□-20(L) |
|---|---|---|---|---|---|---|
| Working Medium | Air (filtered by 40μm or larger filter element) | |||||
| Actuation Mode | Hand Rotary, Direct Acting | |||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
| Effective Area | 14.0mm² (Cv=0.78) |
16.0mm² (Cv=0.89) |
30.0mm² (Cv=1.67) |
33.0mm² (Cv=1.83) |
88.0mm² (Cv=4.89) |
95.0mm² (Cv=5.27) |
| Number of Positions | 4-Port 2-Position, 4-Port 3-Position | |||||
| Lubrication | Not required | |||||
| Operating Pressure Range | 0~1.0MPa (0~145psi) | |||||
| Proof Pressure | 1.5MPa (215psi) | |||||
| Operating Temperature | -20~70°C | |||||
| Operating Angle | 90° (4-Port 3-Position is 45°) | |||||
[Note 1] G and NPT thread types are available.
Product Ordering Code
| ① Spec. Code | ② Series | ③ Positions | ④ Port Size | ⑤ Mounting Style | ⑥ Handle Type | ⑦ Thread Type |
|---|---|---|---|---|---|---|
| 4HV: Hand Rotary Valve |
2: 2 Series 3: 3 Series 4: 4 Series |
10: 4-Port 2-Position 30: 4-Port 3-Position [Note 1] |
06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2" 20: 3/4" |
Blank: Body (Base) Mount S: Panel Mount [Note 2] |
Blank: Standard (Without Lock) L: Locking Type |
Blank: PT Thread G: G Thread T: NPT Thread |
[Note 1] The 4-Port 3-Position model is only available as a center-closed type.
[Note 2] The panel mount version includes mounting nuts.
