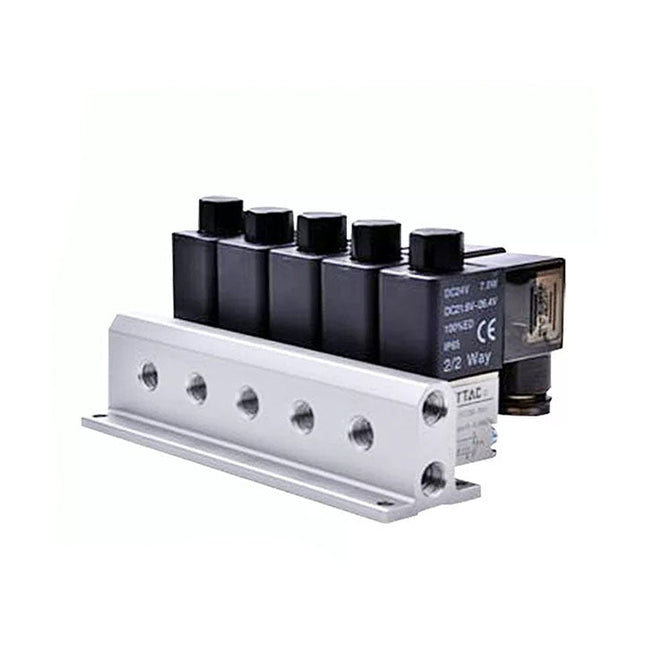

3V2M Series Solenoid Valve
Product Features
- Vibration-proof structure, coaxial inner chamber, optional sliding spool or lifting guide rail type.
- Coaxial coil solenoid, excellent sealing, large flow, no need for oil lubrication.
- Equipped with a manual override device, simplifying installation and debugging.
- Designed for use with a manifold base, allowing for centralized use and space saving.
- Features uniform air supply and wiring, making troubleshooting easier.
- Offers flexible combination and strong expandability, allowing for arbitrary expansion of connected valves.
- Dedicated base comes with a gasket and pin seal, and does not support switching between Normally Closed (NC) and Normally Open (NO).
Specifications
| Item | Value |
|---|---|
| Model | 3V2M |
| Working Medium | Air (Filtered through 40μm filter screen or above) |
| Action Type | Direct Acting |
| Max Pressure Differential | PT1/8 |
| Number of Positions | Two-way Two-position |
| Effective Cross Section Area | 1.7mm2(Cv=0.1) |
| Exhaust Method | Centralized Exhaust Type, Independent Exhaust Type |
| Operating Pressure Range | 0～0.8MPa (0~114psi) |
| Guaranteed Pressure Resistance | 1.2MPa(175psi) |
| Operating Temperature | -20～70°C |
| Body Material | Aluminum Alloy |
[Note 1] Available pipe thread types are G thread and NPT thread.
Electrical Specifications
| Item | Specific Parameters |
|---|---|
| Standard Voltage | AC220V, AC110V, AC24V, DC24V, DC12V |
| Operating Voltage Range | AC: ±15%, DC: ±10% |
| Power Consumption | AC: 7VA, DC: 7.0W |
| Protection Class | IP65 (DIN40050) |
| Vibration Resistance Level | Level 8 |
| Connection Type | DIN Socket Type, Lead Wire Type |
| Energizing Time | Below 0.05 seconds |
| Max Operating Frequency | 10Hz |
[Note 1] The maximum operating frequency is under no-load condition.
Product Ordering Code
A. Single Valve Ordering Code (3V2M NC A -)
| No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Spec Code | Specification Code | Initial State | Standard Voltage | Electrical Connection |
| Options | 3V2M: 3-way 2-position Valve with Base Type | NC: Normally Closed NO: Normally Open |
A: AC220V B: DC24V C:AC110V E:AC24V F: DC12V |
Blank: DIN Socket I: Lead Wire Type |
B. Base Ordering Code (3V2M 5F D -)
| No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Spec Code | Specification Code | No. of Stations Code | Exhaust Type | Thread Type Code |
| Options | 3V2M: 3-way 2-position Valve with Base Type | 1F to 20F: 1 to 20 Stations | Blank: Centralized Exhaust D: Independent Exhaust |
Blank: PT Thread G: G Thread T: NPT Thread |
C. Assembly Ordering Code (Valve + Base: 3V2M NC A D 5F D)
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|---|---|
| Spec Code | Specification Code | Initial State | Standard Voltage | Connection | Stations | Exhaust Type | Thread Type |
| Options | 3V2M | NC/NO | A/B/.../F | Blank/I [Note] | 1F...20F | Blank/D | Blank/G/T |
D. Panel Mounting Ordering Code (P-3V2M-R2)
| No. | 1 | 2 | 3 |
|---|---|---|---|
| Spec Code | Component Code | Specification Code | Accessory Info |
| Options | P: Assembly | 3V2M: 3-way 2-position Valve with Base Type | R2: Base plate blanking cover |
General Notes:
• For lead-wire type valves, the standard wire length is 0.5m.
• The base assembly includes the base, sealant, and screws. The port diameter is only 1/8".
• For lead-wire type valves, the standard wire length is 0.5m.
• The base assembly includes the base, sealant, and screws. The port diameter is only 1/8".
