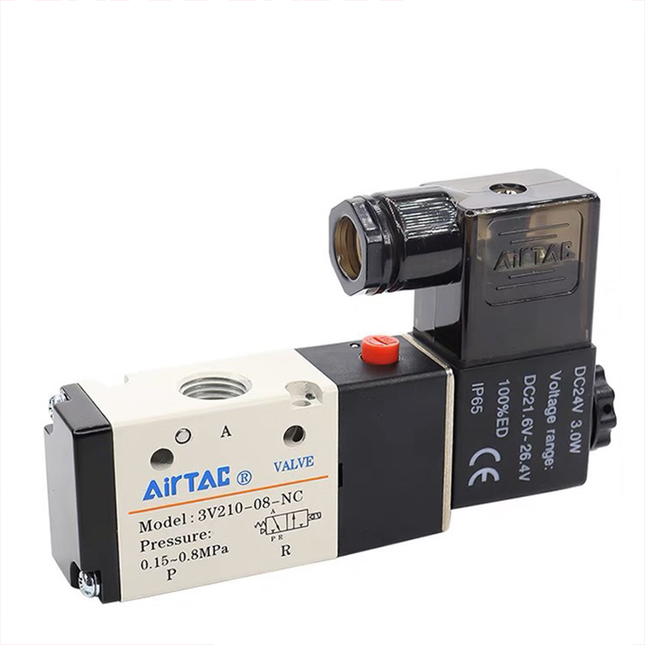

AIRTAC 3V100 Series Solenoid Valve

AIRTAC 3V100 Series Solenoid Valve

  • Product Features
  • Specifications
  • Electrical Specifications
  • Product Ordering Code

Product Features

  • Pilot operated type; Internal pilot or external pilot type is optional.
  • Sensitive commutation, good reliability, and fast response.

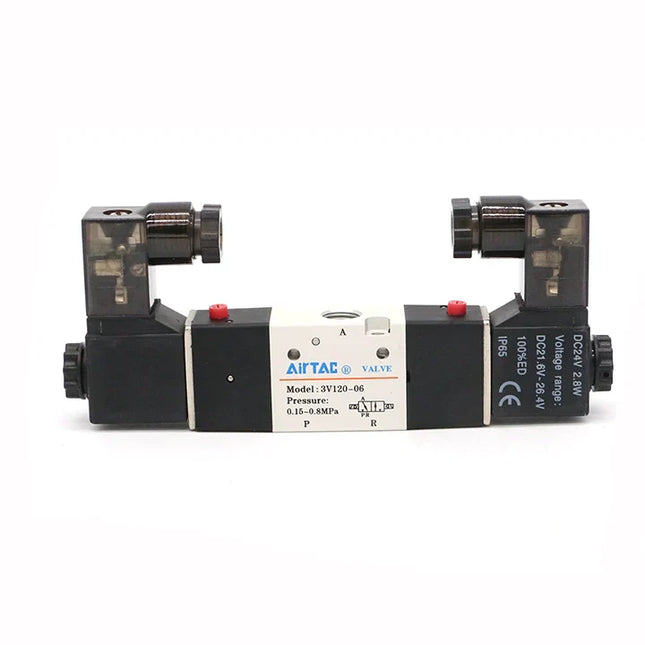

  • Double solenoid valves have a memory function.
  • The internal hole adopts special processing technology, featuring small friction resistance, low starting pressure, and long service life.
  • No need for lubrication.
  • Equipped with a manual override, convenient for installation and debugging.
  • Multiple standard voltage levels are available for selection.
  • Can be integrated and assembled with the base, saving installation space.

Specifications

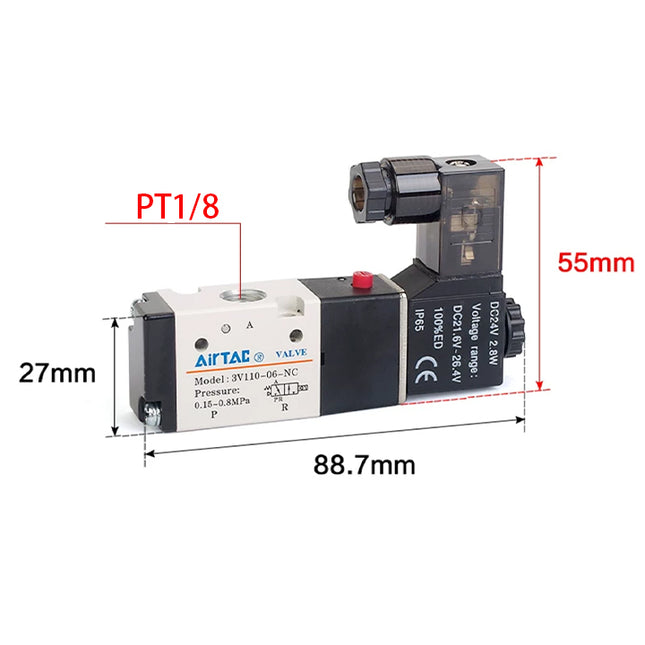

Item 3V110-M5 3V120-M5 3V110-06 3V120-06
Working Medium Air (filtered through 40µm filter or finer)
Operation Type Internal Pilot or External Pilot Optional
Port Size [Note 1] M5 M5 PT1/8 PT1/8
Effective Orifice (Cv value) [Note 3] 3V110-06, 3V120-06: 10.2mm² (Cv≈0.6)
Positions Three-way Two-position
Lubrication [Note 2] No need
Operating Pressure Range 0.15~0.8MPa (21~114psi)
Proof Pressure 1.2MPa (175psi)
Working Temperature -20~70°C
Body Material Aluminum Alloy
[Note 1] G thread and NPT thread are optional for port thread type.
[Note 2] If lubrication is added, it should not be discontinued mid-use. Recommended lubricant is ISO VG32 or equivalent.
[Note 3] Effective orifice and Cv value are calculated based on tested flow data.

Electrical Specifications

Item AC220V AC110V AC24V DC24V DC12V
Operating Voltage Range AC: ±15% DC: ±10%
Power Consumption 3.5VA 3.5VA 4.0VA 2.8W 2.5W
Protection Degree IP65 (DIN40050)
Insulation Class B Class
Wiring Form DIN Socket Type, Lead Wire Type
Excitation Time Below 0.05 seconds
Maximum Operating Frequency [Note 1] 5 times/second
[Note 1] The maximum operating frequency is for the air condition.

Product Ordering Code

Example Code: 3V 1 10 06 NO A       -W

1. Model Code 2. Series Code 3. Electrical Control Type 4. Port Size 5. Initial State 6. Standard Voltage 7. Wiring Form 8. Thread Type Code 9. Pilot Type Code
3V: Three-way Two-position Solenoid Valve 1: 100 Series 10: Single Solenoid, Two Position M5: M5 NC: Normally Closed Type A: AC220V Blank: DIN Socket Type 1/8": 1/8" Blank: Internal Pilot
20: Double Solenoid, Two Position 06: 1/8" NO: Normally Open Type B: DC24V I: Lead Wire Type [Note] Blank: PT Thread -W: External Pilot
No Code (for Double Solenoid) C: AC110V G: G Thread
E: AC24V T: NPT Thread
F: DC12V M5: M5
Note: The standard wire length for the lead-wire type is 0.5m.
