Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

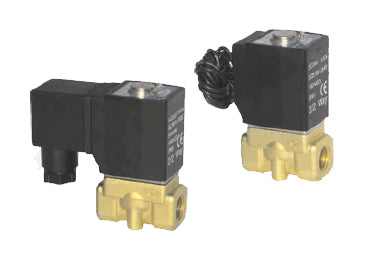

Direct-acting two-position, two-way solenoid valve with fast and sensitive action.
Wide operating pressure range, with options for ultra-high pressure (X), high pressure (H), standard, large flow (L), and extra large flow (T).
Compact, small, lightweight, and easy to assemble and disassemble.
The valve body is made of brass; the coil has a heat resistance classification of Grade B. The standard seal material is FPM-F (Viton), suitable for various working media. For other seal materials, please consult our company's technical department.
The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	Max. Operating Pressure		Max. Proof Pressure
Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	MPa	psi	MPa	psi
2WX030	-06 PT1/8	1.5	0.10	1.8	305	3.0	450	5.0	750
2WX030	-08 PT1/4	1.5	0.10	1.8	295	3.0	450
2WH030	-06 PT1/8	2.0	0.18	3.0	305	2.0	300
2WH030	-08 PT1/4	2.0	0.18	3.0	295	2.0	300
2W030	-06 PT1/8	3.0	0.33	6.0	305	1.0	150
2W030	-08 PT1/4	3.0	0.33	6.0	295	1.0	150
2WL030	-06 PT1/8	4.0	0.55	10.0	305	0.5	75
2WL030	-08 PT1/4	4.0	0.55	10.0	295	0.5	75
2WT030	-06 PT1/8	6.0	1.10	12.0	305	0.1	15
2WT030	-08 PT1/4	6.0	1.10	12.0	295	0.1	15
2WX050	-10 PT3/8	3.0	0.34	6.1	620	3.0	450
2WX050	-15 PT1/2	3.0	0.34	6.1	600	3.0	450
2WH050	-10 PT3/8	4.0	0.55	10.0	620	2.0	300
2WH050	-15 PT1/2	4.0	0.55	10.0	600	2.0	300
2W050	-10 PT3/8	5.0	0.83	15.0	620	1.0	150
2W050	-15 PT1/2	5.0	0.83	15.0	600	1.0	150
2WL050	-10 PT3/8	7.0	1.40	25.0	620	0.5	75
2WL050	-15 PT1/2	7.0	1.40	25.0	600	0.5	75
2WT050	-10 PT3/8	10.0	2.20	40.0	620	0.1	15
2WT050	-15 PT1/2	10.0	2.20	40.0	600	0.1	15

Note 1: G and NPT thread types are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2W030 series is 10g lighter, and for the 2W050 series, it is 20g lighter.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2W: 2/2 Way Solenoid Valve
2	Pressure Type	X: Ultra-high Pressure H: High Pressure Blank: Standard Type L: Large Flow T: Extra Large Flow
3	Series Code	030: 030 Series 050: 050 Series
4	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
5	Coil Voltage	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
6	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
7	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.
