Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

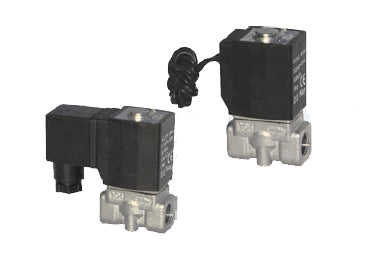

Automatically positioned two-position, two-way solenoid valve with fast and sensitive action.
Wide operating pressure range, available in ultra-high pressure (X), high pressure (H), standard, and large flow (L) models.
Compact structure, small size, lightweight, easy to assemble and disassemble.
The valve body is made of SUS304 stainless steel, and the electromagnetic coil has a Class B heat resistance rating. The standard seal material is FPM-F (Viton), suitable for various working media. Please consult our company for other material options.
The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	Max. Operating Pressure		Max. Proof Pressure
Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	MPa	psi	MPa	psi
2SX030	-06 PT1/8	1.5	0.10	1.8	300	3.0	450	5.0	750
2SX030	-08 PT1/4	1.5	0.10	1.8	295	3.0	450
2SH030	-06 PT1/8	2.0	0.18	3.0	300	2.0	300
2SH030	-08 PT1/4	2.0	0.18	3.0	290	2.0	300
2S030	-06 PT1/8	3.0	0.33	6.0	300	1.0	150
2S030	-08 PT1/4	3.0	0.33	6.0	290	1.0	150
2SL030	-06 PT1/8	4.0	0.55	10.0	300	0.5	75
2SL030	-08 PT1/4	4.0	0.55	10.0	290	0.5	75
2ST030	-06 PT1/8	6.0	1.10	12.0	300	0.1	15
2ST030	-08 PT1/4	6.0	1.10	12.0	290	0.1	15
2SX050	-10 PT3/8	3.0	0.34	6.1	600	3.0	450
2SX050	-15 PT1/2	3.0	0.34	6.1	590	3.0	450
2SH050	-10 PT3/8	4.0	0.55	10.0	600	2.0	300
2SH050	-15 PT1/2	4.0	0.55	10.0	590	2.0	300
2S050	-10 PT3/8	5.0	0.83	15.0	600	1.0	150
2S050	-15 PT1/2	5.0	0.83	15.0	590	1.0	150
2SL050	-10 PT3/8	7.0	1.40	25.0	600	0.5	75
2SL050	-15 PT1/2	7.0	1.40	25.0	590	0.5	75
2ST050	-10 PT3/8	10.0	2.20	40.0	600	0.1	15
2ST050	-15 PT1/2	10.0	2.20	40.0	590	0.1	15

Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2S030 series is 10g lighter, and the weight for the 2S050 series with lead wire is 328g.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2S: 2/2 Way Normally Closed Solenoid Valve
2	Pressure Type	X: Ultra-high Pressure H: High Pressure Blank: Standard Type L: Large Flow T: Extra Large Flow
3	Series Code	030: 030 Series 050: 050 Series
4	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
5	Coil Voltage	A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V
6	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
7	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.

Accessory Ordering Code

Position 1	Position 2	Position 3
F: Accessory	2S030: 030 Series Valve Body 2S050: 050 Series Valve Body	LB: L-type Mounting Bracket
