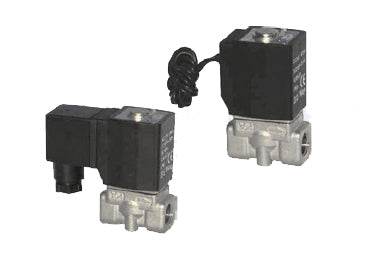

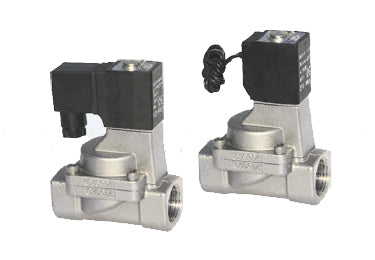

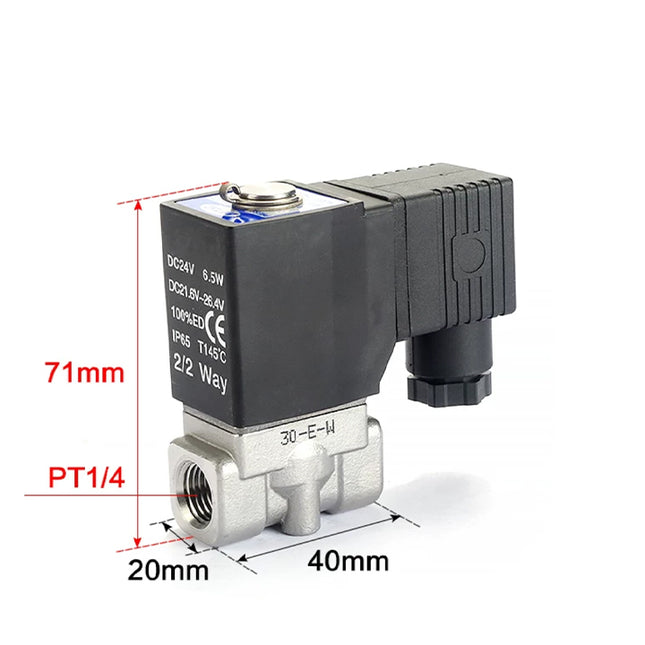

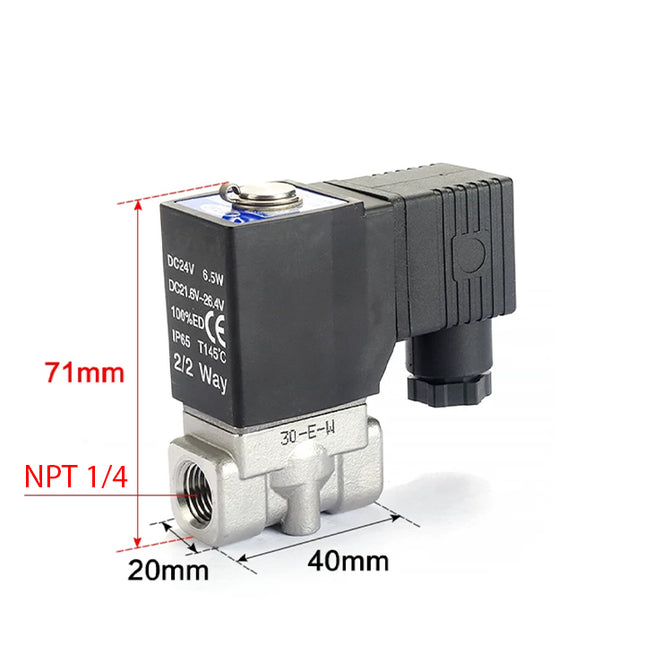

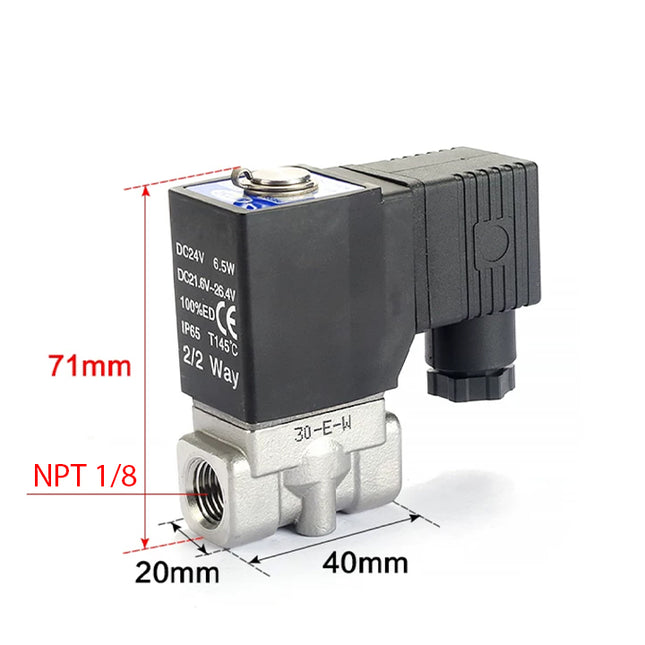

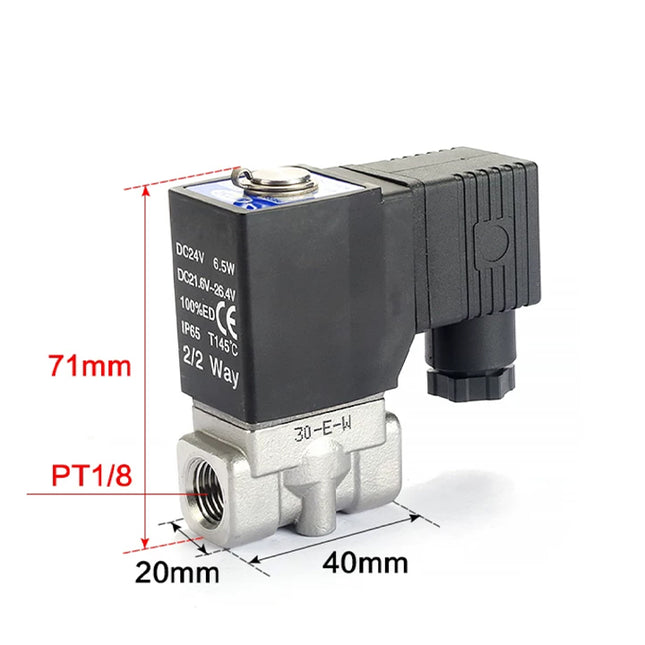

Valve
Product Features
- Automatically positioned two-position, two-way solenoid valve with fast and sensitive action.
- Wide operating pressure range, available in ultra-high pressure (X), high pressure (H), standard, and large flow (L) models.
- Compact structure, small size, lightweight, easy to assemble and disassemble.
- The valve body is made of SUS304 stainless steel, and the electromagnetic coil has a Class B heat resistance rating. The standard seal material is FPM-F (Viton), suitable for various working media. Please consult our company for other material options.
- The coil protection class is IP65, with electrical connection options of direct lead wire or DIN connector.
Specifications
| Model No. | Port Size [Note 1] | Orifice Dia. (mm) | Cv Value | Effective Area (mm²) | Weight (g) [Note 2] | Max. Operating Pressure | Max. Proof Pressure | ||
|---|---|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | ||||||
| 2SX030 | -06 PT1/8 | 1.5 | 0.10 | 1.8 | 300 | 3.0 | 450 | 5.0 | 750 |
| -08 PT1/4 | 295 | ||||||||
| 2SH030 | -06 PT1/8 | 2.0 | 0.18 | 3.0 | 300 | 2.0 | 300 | ||
| -08 PT1/4 | 290 | ||||||||
| 2S030 | -06 PT1/8 | 3.0 | 0.33 | 6.0 | 300 | 1.0 | 150 | ||
| -08 PT1/4 | 290 | ||||||||
| 2SL030 | -06 PT1/8 | 4.0 | 0.55 | 10.0 | 300 | 0.5 | 75 | ||
| -08 PT1/4 | 290 | ||||||||
| 2ST030 | -06 PT1/8 | 6.0 | 1.10 | 12.0 | 300 | 0.1 | 15 | ||
| -08 PT1/4 | 290 | ||||||||
| 2SX050 | -10 PT3/8 | 3.0 | 0.34 | 6.1 | 600 | 3.0 | 450 | ||
| -15 PT1/2 | 590 | ||||||||
| 2SH050 | -10 PT3/8 | 4.0 | 0.55 | 10.0 | 600 | 2.0 | 300 | ||
| -15 PT1/2 | 590 | ||||||||
| 2S050 | -10 PT3/8 | 5.0 | 0.83 | 15.0 | 600 | 1.0 | 150 | ||
| -15 PT1/2 | 590 | ||||||||
| 2SL050 | -10 PT3/8 | 7.0 | 1.40 | 25.0 | 600 | 0.5 | 75 | ||
| -15 PT1/2 | 590 | ||||||||
| 2ST050 | -10 PT3/8 | 10.0 | 2.20 | 40.0 | 600 | 0.1 | 15 | ||
| -15 PT1/2 | 590 | ||||||||
Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2S030 series is 10g lighter, and the weight for the 2S050 series with lead wire is 328g.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2S030 series is 10g lighter, and the weight for the 2S050 series with lead wire is 328g.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Model Code |
|
| 2 | Pressure Type |
|
| 3 | Series Code |
|
| 4 | Port Size |
|
| 5 | Coil Voltage |
|
| 6 | Connection Type |
|
| 7 | Thread Code |
|
Note 1: The standard length for the lead wire type is 0.5m.
Accessory Ordering Code
| Position 1 | Position 2 | Position 3 |
|---|---|---|
|
|
|
