Valve Product Information

Valve

Product Features
Specifications
Product Ordering Code

Product Features

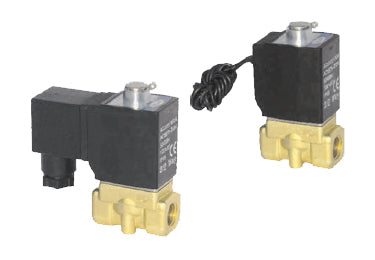

Direct-acting, normally open type; starts at zero pressure difference with fast and sensitive action.
Wide operating pressure range, available in ultra-high pressure (X), high pressure (H), standard, and large flow (L) models.
The valve body is made of brass, featuring a small size, light weight, and easy installation.
The standard seal material is FPM-F (Viton), which is suitable for various working media. The material is selected based on the actual working conditions.
The coil has a protection class of IP65, with electrical connection options of direct lead wire or DIN connector.

Specifications

Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	Max. Operating Pressure		Max. Proof Pressure
Model No.	Port Size [Note 1]	Orifice Dia. (mm)	Cv Value	Effective Area (mm²)	Weight (g) [Note 2]	MPa	psi	MPa	psi
2KWX030	-06 PT1/8	1.5	0.10	1.8	315	2.0	300	3.0	450
2KWX030	-08 PT1/4	1.5	0.10	1.8	305	2.0	300
2KWH030	-06 PT1/8	2.0	0.18	3.0	315	1.5	220
2KWH030	-08 PT1/4	2.0	0.18	3.0	305	1.5	220
2KW030	-06 PT1/8	3.0	0.33	6.0	315	0.7	100
2KW030	-08 PT1/4	3.0	0.33	6.0	305	0.7	100
2KWL030	-06 PT1/8	4.0	0.55	10.0	315	0.4	60
2KWL030	-08 PT1/4	4.0	0.55	10.0	305	0.4	60
2KWX050	-10 PT3/8	3.0	0.34	6.1	635	2.0	300
2KWX050	-15 PT1/2	3.0	0.34	6.1	615	2.0	300
2KWH050	-10 PT3/8	4.0	0.55	10.0	635	1.5	220
2KWH050	-15 PT1/2	4.0	0.55	10.0	615	1.5	220
2KW050	-10 PT3/8	5.0	0.83	15.0	635	0.7	100
2KW050	-15 PT1/2	5.0	0.83	15.0	615	0.7	100
2KWL050	-10 PT3/8	7.0	1.40	25.0	635	0.4	60
2KWL050	-15 PT1/2	7.0	1.40	25.0	615	0.4	60

Note 1: G, NPT threads are available.
Note 2: The weight listed is for the DIN connector type. The lead wire type for the 2KW030 series is 10g lighter, and for the 2KW050 series, it is 20g lighter.

Product Ordering Code

Position	Description	Options & Values
1	Model Code	2KW: 2/2 Way Direct Acting Normally Open Solenoid Valve
2	Pressure Type	X: Ultra-high Pressure H: High Pressure Blank: Standard Type L: Large Flow
3	Series Code	030: 030 Series 050: 050 Series
4	Port Size	06: 1/8" 08: 1/4" 10: 3/8" 15: 1/2"
5	Coil Voltage	A: AC220V B: DC24V C: AC110V D: AC24V F: DC12V
6	Connection Type	Blank: DIN connector type I: Lead wire type [Note 1]
7	Thread Code	Blank: PT thread G: G thread T: NPT thread

Note 1: The standard length for the lead wire type is 0.5m.

Show previous products

View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008BIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008BIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008BT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008C

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008CG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008CI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008CIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008CIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008CT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008E

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008EG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008EI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008EIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008EIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008ET

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008F

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008FG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008FI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008FIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008FIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWL030-08: 2 Way Solenoid Valve - 2KWL03008FT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: large flow type Series: 030 series Nozzle caliber: 1/4" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWX030-06: 2 Way Solenoid Valve - 2KWX03006A

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: ultra-high pressure type Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWX030-06: 2 Way Solenoid Valve - 2KWX03006AG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: ultra-high pressure type Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options
View options

Airtac 2KWX030-06: 2 Way Solenoid Valve - 2KWX03006AI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: ultra-high pressure type Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, with super high pressure (X). High pressure (H). Standard and large capacity (L) available; 3. Small size, light weight, easy installation and disassembly; 4. Body material is brass. The heat resistance grade of the coil is Class B. Standard sealing material is FPM-F. For other materials, please contact us. 5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected. The Airtac 2KW valve series is a functional replacement for the SMC VXED2.VXH series. The Airtac 2KW series has been updated to the Airtac 2KWA series.

Read more less

$63.05

View options

You have seen 192 out of 575 products

Show more products
