2LA / 2KLA Series Stainless Steel Solenoid Valve

Product Features
Specifications (Valve)
Specifications (Coil)
Ordering Codes

Product Features

Diverse Functions:
- 2LA Series: 2/2 Way Normally Closed (NC). Available in Direct Acting and Pilot Operated types.
- 2KLA Series: 2/2 Way Normally Open (NO). Direct Acting type.
Material: Body made of SUS304 Stainless Steel, suitable for corrosive environments.
High Performance: Uses H-grade heat-resistant coil and PTFE (Teflon) seals.
Wide Application: Ideal for high temperature fluids, hot water, steam, and oil.
Protection: Coil protection class IP65.

Valve Mechanical Specifications

1. Direct Acting Type (2LA - NC / 2KLA - NO)

Function	Model	Port Size	Orifice (mm)	Cv	Area (mm²)	Weight (g)	Max Op. Diff. Pressure		Max Proof Pressure
Function	Model	Port Size	Orifice (mm)	Cv	Area (mm²)	Weight (g)	MPa	psi	MPa	psi
NC (2LA)	2LAH030	1/8", 1/4"	2.0	0.18	3.0	244.5	2.0	300	3.0	450
	2LA030	1/8", 1/4"	3.0	0.33	6.0	244.5	1.0	150
	2LAH050	3/8", 1/2"	4.0	0.55	10.0	529	2.0	300
	2LA050	3/8", 1/2"	5.0	0.83	15.0	529	1.0	150
NO (2KLA)	2KLAH030	1/8", 1/4"	2.0	0.18	3.0	243.5	1.5	220
	2KLA030	1/8", 1/4"	3.0	0.33	6.0	243.5	0.7	100
	2KLAH050	3/8", 1/2"	4.0	0.55	10.0	528	1.5	220
	2KLA050	3/8", 1/2"	5.0	0.83	15.0	528	0.7	100

2. Pilot Operated Type (2LA Only)

Model	Port Size	Orifice (mm)	Cv	Weight (g)	Op. Pressure (MPa)	Proof Pressure (MPa)
2LA150-15	1/2"	15.0	5.50	570	Max: 0.7 Min: 0.05	1.5
2LA200-20	3/4"	20.0	9.50	723
2LA250-25	1"	25.0	12.50	1027
2LA320-32	1-1/4"	35.0	23.00	2262
2LA400-40	1-1/2"	40.0	31.00	2642
2LA500-50	2"	50.0	49.00	3509

Fluid: Air, Water, Steam, Oil.
Viscosity Limit: Below 20CST (Direct Acting: 50CST).
Fluid Temp: Oil -10~150°C | Hot Water 1~150°C | Steam < 183°C.

Coil & Electrical Specifications

1. Coil Parameters (Power & Temp Rise)

Coil Series	Power Type	Voltage (V)	Freq (Hz)	Voltage Tolerance	Power (VA/W)		Temp Rise (°C)
Coil Series	Power Type	Voltage (V)	Freq (Hz)	Voltage Tolerance	Start	Hold	Temp Rise (°C)
110 Series (For 030 Valves)	AC	220, 110, 24	50	±15%	10.0 VA	15.0 VA	50
		220, 110, 24	60		8.0 VA	11.0 VA	45
		24	50/60		(Refer to above)		50/45
	DC	24, 12	-	±10%	6.5 W		50
160 Series (For 050/150+ Valves)	AC	220, 110, 24	50	±15%	25.0 VA	35.0 VA	65
		220, 110, 24	60		22.0 VA	30.0 VA	60
		24	50/60		(Refer to above)		65/60
	DC	24, 12	-	±10%	12.0 W		50

2. Coil Selection Guide

Valve Model	Coil Series
2LA□030 / 2KLA□030	110 Series (ID Φ10.0mm)
2LA□050 / 2KLA□050 2LA150 ~ 2LA500	160 Series (ID Φ16.0mm)

Ordering Codes

1. Direct Acting Valve (2LA / 2KLA)

Example: 2KLA H 030 08 A G

Code	Item	Options
2LA / 2KLA	Model	2LA: NC (Normally Closed) 2KLA: NO (Normally Open)
H	Pressure Type	H: High Pressure Blank: Standard Pressure
030	Orifice	030: Φ3.0/2.0mm 050: Φ5.0/4.0mm
08	Port Size	06: 1/8", 08: 1/4" (For 030) 10: 3/8", 15: 1/2" (For 050)
A	Voltage	A: AC220V B: DC24V C: AC110V E: AC24V
Blank	Connection	Blank: DIN Terminal I: Grommet (Lead Wire)
Blank	Thread	Blank: PT G: G T: NPT

2. Pilot Operated Valve (2LA)

Example: 2LA 150 15 A G

Code	Item	Options
2LA	Model	2LA Pilot Operated NC
150	Orifice	150: Φ15mm ... 500: Φ50mm
15	Port Size	15: 1/2" ... 50: 2"
A	Voltage	A, B, C, E, F
Blank	Connection	DIN Terminal / Grommet
Blank	Thread	PT, G, NPT

3. Coil & Connector Ordering

Item	Ordering Example	Description
Coil	CD A 110 A H	CD/CL: DIN/Lead Wire 110/160: Spec (ID 10mm/16mm) A/B..: Voltage H: Heat Class (Must specify H for 2LA/2KLA)
Connector	F-2WA030LBF	Connector with light (Universal AC/DC)

Show previous products

View options

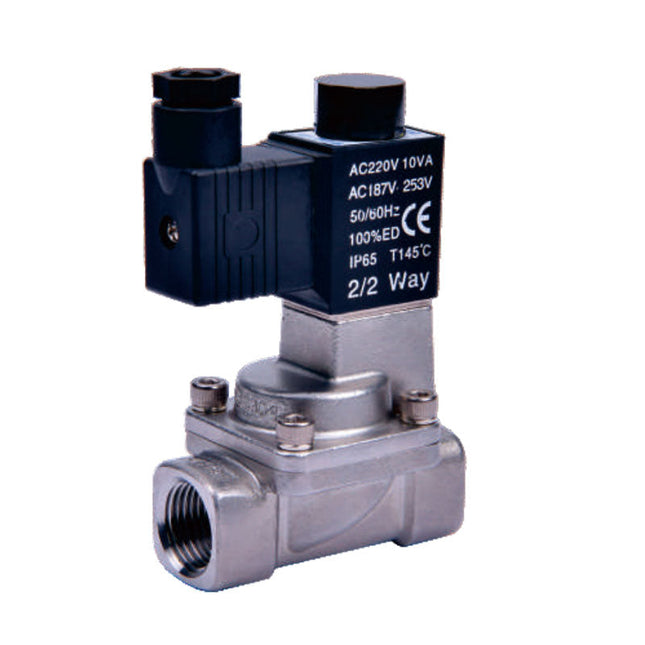

Airtac Fluid Control Valves-Coils & Accessories - CDA110KF

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø10.0mm) With the valve body: normally open type special Coil voltage: DC12V Heat resistance grade: F Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$15.30

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA160KEH

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø16.0mm) With the valve body: normally open type special Coil voltage: AC24V Heat resistance grade: H grade Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$18.20

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA160KCH

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø16.0mm) With the valve body: normally open type special Coil voltage: AC110V Heat resistance grade: H grade Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$18.20

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA160KBH

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø16.0mm) With the valve body: normally open type special Coil voltage: DC24V Heat resistance grade: H grade Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$18.20

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA160KB

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø16.0mm) With the valve body: normally open type special Coil voltage: DC24V Heat resistance grade: F Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$20.70

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA110KA

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø10.0mm) With the valve body: normally open type special Coil voltage: AC220V Heat resistance grade: F Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$15.30

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA110KAH

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø10.0mm) With the valve body: normally open type special Coil voltage: AC220V Heat resistance grade: H grade Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$12.40

View options
View options

Airtac Fluid Control Valves-Coils & Accessories - CDA110KB

Coil category: DIN socket coil Coil inner diameter: coil specification (inner diameter ø10.0mm) With the valve body: normally open type special Coil voltage: DC24V Heat resistance grade: F Click to download Airtac product catalog Product Features 1. Straight-acting normally open 2 port two-position solenoid valve, reversing quickly. Sensitive. 2. Piston pilot normally open 2 port two-position solenoid valve, reversing quickly. Large flow. 3. Use a wide range of pressure, high pressure type (H). Standard type to choose from. 4. Compact structure. Small size, light weight, easy assembly and disassembly. 5. body material SUS304 stainless steel, electromagnetic coil heat-resistant grade H, seal material PTFE (Teflon), suitable for a variety of working medium, especially suitable for high temperature water and saturated steam. 6. The protection grade of the coil is IP65, and the power connection mode is direct outlet type. DIN socket type.

Read more less

$15.30

View options

You have seen 80 out of 80 products
