2LA / 2KLA Series Stainless Steel Solenoid Valve

Product Features
Specifications (Valve)
Specifications (Coil)
Ordering Codes

Product Features

Diverse Functions:
- 2LA Series: 2/2 Way Normally Closed (NC). Available in Direct Acting and Pilot Operated types.
- 2KLA Series: 2/2 Way Normally Open (NO). Direct Acting type.
Material: Body made of SUS304 Stainless Steel, suitable for corrosive environments.
High Performance: Uses H-grade heat-resistant coil and PTFE (Teflon) seals.
Wide Application: Ideal for high temperature fluids, hot water, steam, and oil.
Protection: Coil protection class IP65.

Valve Mechanical Specifications

1. Direct Acting Type (2LA - NC / 2KLA - NO)

Function	Model	Port Size	Orifice (mm)	Cv	Area (mm²)	Weight (g)	Max Op. Diff. Pressure		Max Proof Pressure
Function	Model	Port Size	Orifice (mm)	Cv	Area (mm²)	Weight (g)	MPa	psi	MPa	psi
NC (2LA)	2LAH030	1/8", 1/4"	2.0	0.18	3.0	244.5	2.0	300	3.0	450
	2LA030	1/8", 1/4"	3.0	0.33	6.0	244.5	1.0	150
	2LAH050	3/8", 1/2"	4.0	0.55	10.0	529	2.0	300
	2LA050	3/8", 1/2"	5.0	0.83	15.0	529	1.0	150
NO (2KLA)	2KLAH030	1/8", 1/4"	2.0	0.18	3.0	243.5	1.5	220
	2KLA030	1/8", 1/4"	3.0	0.33	6.0	243.5	0.7	100
	2KLAH050	3/8", 1/2"	4.0	0.55	10.0	528	1.5	220
	2KLA050	3/8", 1/2"	5.0	0.83	15.0	528	0.7	100

2. Pilot Operated Type (2LA Only)

Model	Port Size	Orifice (mm)	Cv	Weight (g)	Op. Pressure (MPa)	Proof Pressure (MPa)
2LA150-15	1/2"	15.0	5.50	570	Max: 0.7 Min: 0.05	1.5
2LA200-20	3/4"	20.0	9.50	723
2LA250-25	1"	25.0	12.50	1027
2LA320-32	1-1/4"	35.0	23.00	2262
2LA400-40	1-1/2"	40.0	31.00	2642
2LA500-50	2"	50.0	49.00	3509

Fluid: Air, Water, Steam, Oil.
Viscosity Limit: Below 20CST (Direct Acting: 50CST).
Fluid Temp: Oil -10~150°C | Hot Water 1~150°C | Steam < 183°C.

Coil & Electrical Specifications

1. Coil Parameters (Power & Temp Rise)

Coil Series	Power Type	Voltage (V)	Freq (Hz)	Voltage Tolerance	Power (VA/W)		Temp Rise (°C)
Coil Series	Power Type	Voltage (V)	Freq (Hz)	Voltage Tolerance	Start	Hold	Temp Rise (°C)
110 Series (For 030 Valves)	AC	220, 110, 24	50	±15%	10.0 VA	15.0 VA	50
		220, 110, 24	60		8.0 VA	11.0 VA	45
		24	50/60		(Refer to above)		50/45
	DC	24, 12	-	±10%	6.5 W		50
160 Series (For 050/150+ Valves)	AC	220, 110, 24	50	±15%	25.0 VA	35.0 VA	65
		220, 110, 24	60		22.0 VA	30.0 VA	60
		24	50/60		(Refer to above)		65/60
	DC	24, 12	-	±10%	12.0 W		50

2. Coil Selection Guide

Valve Model	Coil Series
2LA□030 / 2KLA□030	110 Series (ID Φ10.0mm)
2LA□050 / 2KLA□050 2LA150 ~ 2LA500	160 Series (ID Φ16.0mm)

Ordering Codes

1. Direct Acting Valve (2LA / 2KLA)

Example: 2KLA H 030 08 A G

Code	Item	Options
2LA / 2KLA	Model	2LA: NC (Normally Closed) 2KLA: NO (Normally Open)
H	Pressure Type	H: High Pressure Blank: Standard Pressure
030	Orifice	030: Φ3.0/2.0mm 050: Φ5.0/4.0mm
08	Port Size	06: 1/8", 08: 1/4" (For 030) 10: 3/8", 15: 1/2" (For 050)
A	Voltage	A: AC220V B: DC24V C: AC110V E: AC24V
Blank	Connection	Blank: DIN Terminal I: Grommet (Lead Wire)
Blank	Thread	Blank: PT G: G T: NPT

2. Pilot Operated Valve (2LA)

Example: 2LA 150 15 A G

Code	Item	Options
2LA	Model	2LA Pilot Operated NC
150	Orifice	150: Φ15mm ... 500: Φ50mm
15	Port Size	15: 1/2" ... 50: 2"
A	Voltage	A, B, C, E, F
Blank	Connection	DIN Terminal / Grommet
Blank	Thread	PT, G, NPT

3. Coil & Connector Ordering

Item	Ordering Example	Description
Coil	CD A 110 A H	CD/CL: DIN/Lead Wire 110/160: Spec (ID 10mm/16mm) A/B..: Voltage H: Heat Class (Must specify H for 2LA/2KLA)
Connector	F-2WA030LBF	Connector with light (Universal AC/DC)

Show previous products

View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015BI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015BIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015BIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015BT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015C

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015CG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015CI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015CIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015CIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015CT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC110V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015E

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015EG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015EI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015EIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015EIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015ET

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: AC24V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015F

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015FG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015FI

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: PT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015FIG

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: G tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015FIT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: outlet type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

Airtac 2KLH050-15: 2 Way Solenoid Valve - 2KLH05015FT

Specifications: 2 port two-position normally open solenoid valve Pressure conditions: high pressure type Series: 050 series Nozzle caliber: 1/2" Coil voltage: DC12V Power connection mode: DIN socket type Tooth type: NPT tooth Click to download Airtac product catalog Product Features 1. Direct-acting normally open two-position two-way solenoid valve, high sensitivity, can quickly switch direction; 2. Wide pressure range, including standard high pressure (H) to choose from; 3. Compact structure. Small size. Light weight, installation. Easy disassembly. 4. The valve body is made of SUS304, the coil heat resistance grade is H, and the standard sealing material is PTFE (Teflon), which is suitable for high temperature water. Steam and other working media. 5. The protection grade of the coil is IP65, and the protective ring or terminal can be selected. The Airtac 2KL valve series is a functional replacement for the SMC VND.VXH series. The Airtac 2KL series has been updated to the Airtac 2KLA series.

Read more less

$86.13

View options
View options

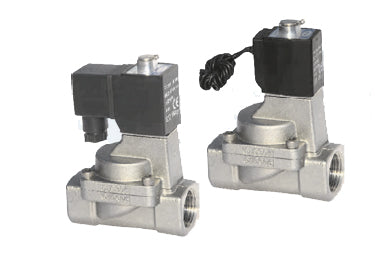

Airtac 2KL150-15: 2 Way Solenoid Valve - 2KL15015A
