Sensor Mounting Accessories
Brackets & Bands for DMS, EMS, CMS Series Sensors
Product Features
- Secure & Stable Mounting: Designed to firmly attach magnetic sensors to the cylinder body, preventing displacement even under high vibration or shock conditions.
- Wide Compatibility: Tailored solutions available for various cylinder profiles, including smooth round bodies, aluminum profiles, and tie-rod cylinders.
- Durable Materials: Constructed from high-quality aluminum alloy, stainless steel bands, and tough engineering plastics for long life and excellent corrosion resistance in industrial environments.
- Easy Adjustment: Sliding bracket mechanisms and adjustable steel bands allow for quick, tool-friendly, and highly precise positioning of the sensor along the cylinder stroke.
- Comprehensive Range: Covers an extensive range of cylinder bore sizes, from miniature Φ6mm applications up to heavy-duty Φ250mm cylinders.

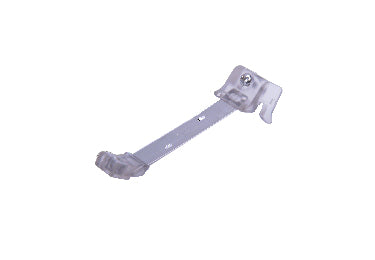

Round Cylinder Mounting Accessories
Prefix Code: F (Accessory)
Model Type: MQ (Aluminum/Stainless Steel brackets for round cylinders)
Model Type: MQ (Aluminum/Stainless Steel brackets for round cylinders)
1. Aluminum Clamp & Bracket Types
| Prefix | Model Code | Bore Size Code | Applicable Products | Applicable Bore Size |
|---|---|---|---|---|
| F | MQ | A20 | MCK, MBL, MAL | Φ20 |
| A25 | MCK, MBL, MAL | Φ25 | ||
| A32 | MCK, MBL, MAL | Φ32 | ||
| A40 | MCK, MBL, MAL | Φ40 | ||
| A50 | MCK, MBL, MAL | Φ50 | ||
| A63 | MCK, MBL, MAL | Φ63 | ||
| A80 | MCK, MBL, MAL | Φ80 | ||
| A32T/A40T/A50T | TWG | Φ32 / Φ40 / Φ50 |

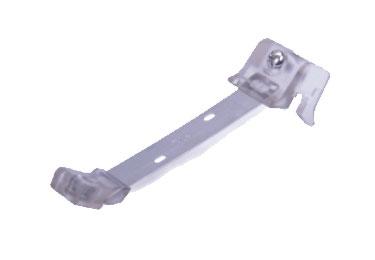

2. Steel Band / Plastic Clip Types
| Bore Code | Applicable Cylinder Products | Applicable Bore Size |
|---|---|---|
| S06 | PB, PBR, MI, MF, MG, MA, MAC | Φ6 |
| S08 | PB, PBR, MI, MF, MG, MA, MAC | Φ8 |
| S10 | PB, PBR, MI, MF, MG, MA, MAC | Φ10 |
| S12 | PB, PBR, MI, MF, MG, MA, MAC | Φ12 |
| S16 | PB, PBR, MI, MF, MG, MA, MAC | Φ16 |
| S20 | PB, PBR, MI, MF, MG, MA, MAC | Φ20 |
| S25 | PB, PBR, MI, MF, MG, MA, MAC | Φ25 |
| S32 | PB, PBR, MI, MF, MG, MA, MAC | Φ32 |
| S40 | PB, PBR, MI, MF, MG, MA, MAC | Φ40 |
| S50 | PB, PBR, MI, MF, MG, MA, MAC | Φ50 |
| S63 | PB, PBR, MI, MF, MG, MA, MAC | Φ63 |

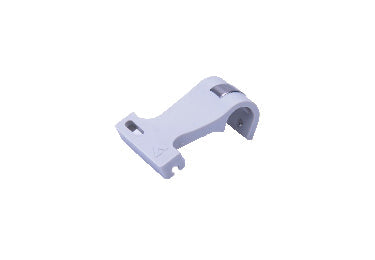

Tie Rod Cylinder Mounting Accessories
Prefix Code: F (Accessory)
Model Type: SC (Tie rod cylinder mounting sensor bracket)
Model Type: SC (Tie rod cylinder mounting sensor bracket)
| Prefix | Model Code | Bore Size Code | Applicable Products | Applicable Bore Size |
|---|---|---|---|---|
| F | SC | 32 | SC, SGC | Φ32, Φ40 |
| 50 | SC, SGC | Φ50 | ||
| 63 | SC, SGC | Φ63 | ||
| 80 | SC, SGC | Φ80, Φ100 | ||
| 125 | SC, SGC | Φ125 | ||
| 160 | SC, SGC | Φ160, Φ200 | ||
| 250 | SC, SGC | Φ250 |
