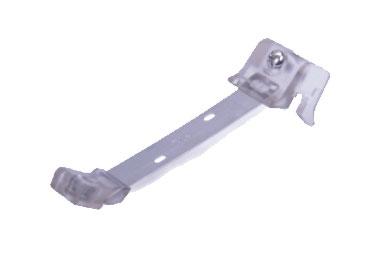

CMS/DMS cylinder position switch mounting bracket for NPB series 3/4 inch bore sizeDownload the Airtac catalog for DMS/CMS Cylinder Switches Read more
SKU: F-MQNS3/4
$2.13
F: Accessory Prefix
MQ: Mounting accessories for round cylinders (includes aluminum and stainless steel types)
| ① Series Code | ② Model Code | ③ Bore Size Code | Applicable Products | Applicable Bore Size |
|---|---|---|---|---|
| F | MQ | A20 | MCK, MBL, MAL | Φ20 |
| A25 | MCK, MBL, MAL | Φ25 | ||
| A32 | MCK, MBL, MAL | Φ32 | ||
| A40 | MCK, MBL, MAL | Φ40 | ||
| A50 | MCK, MBL, MAL | Φ50 | ||
| A63 | MCK, MBL, MAL | Φ63 | ||
| A80 | MCK, MBL, MAL | Φ80 | ||
| A32T/A40T/A50T | TWG | Φ32/Φ40/Φ50 |
| Code | Applicable Products | Applicable Bore |
|---|---|---|
| S06 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ6 |
| S08 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ8 |
| S10 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ10 |
| S12 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ12 |
| S16 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ16 |
| S20 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ20 |
| S25 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ25 |
| S32 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ32 |
| S40 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ40 |
| S50 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ50 |
| S63 | PB / PBR/ MI/ MF/ MG/ MA/ MAC | Φ63 |
SC: Tie rod cylinder mounting sensor bracket
| ① Series Code | ② Model Code | ③ Bore Size Code | Applicable Product | Applicable Bore |
|---|---|---|---|---|
| F | SC | 32 | SC, SGC | Φ32, Φ40 |
| 50 | SC, SGC | Φ50 | ||
| 63 | SC, SGC | Φ63 | ||
| 80 | SC, SGC | Φ80, Φ100 | ||
| 125 | SC, SGC | Φ125 | ||
| 160 | SC, SGC | Φ160, Φ200 | ||
| 250 | SC, SGC | Φ250 |
