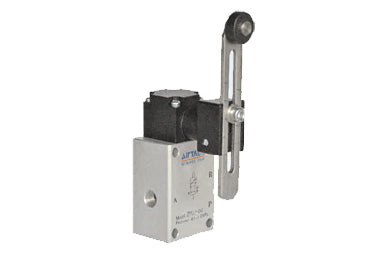

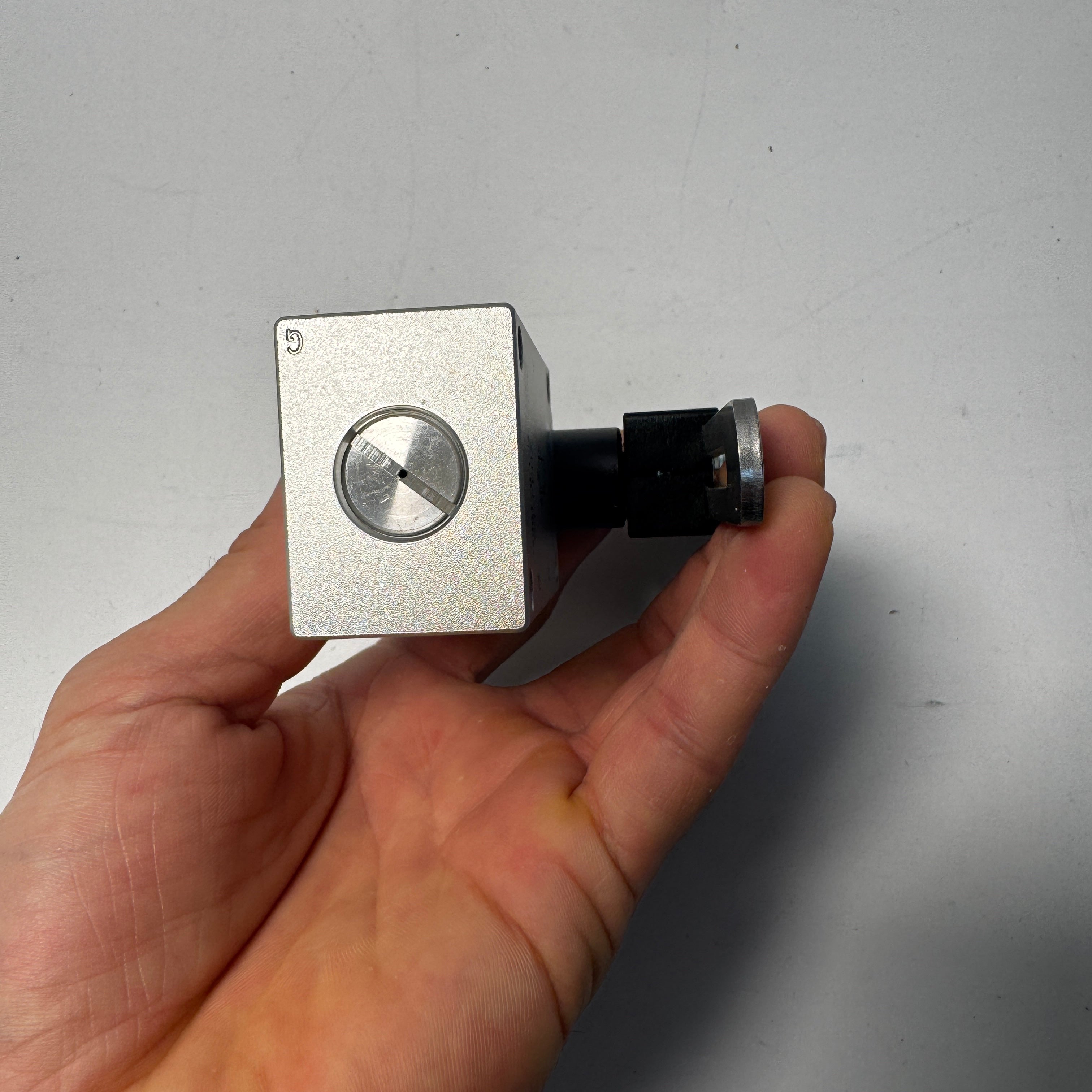

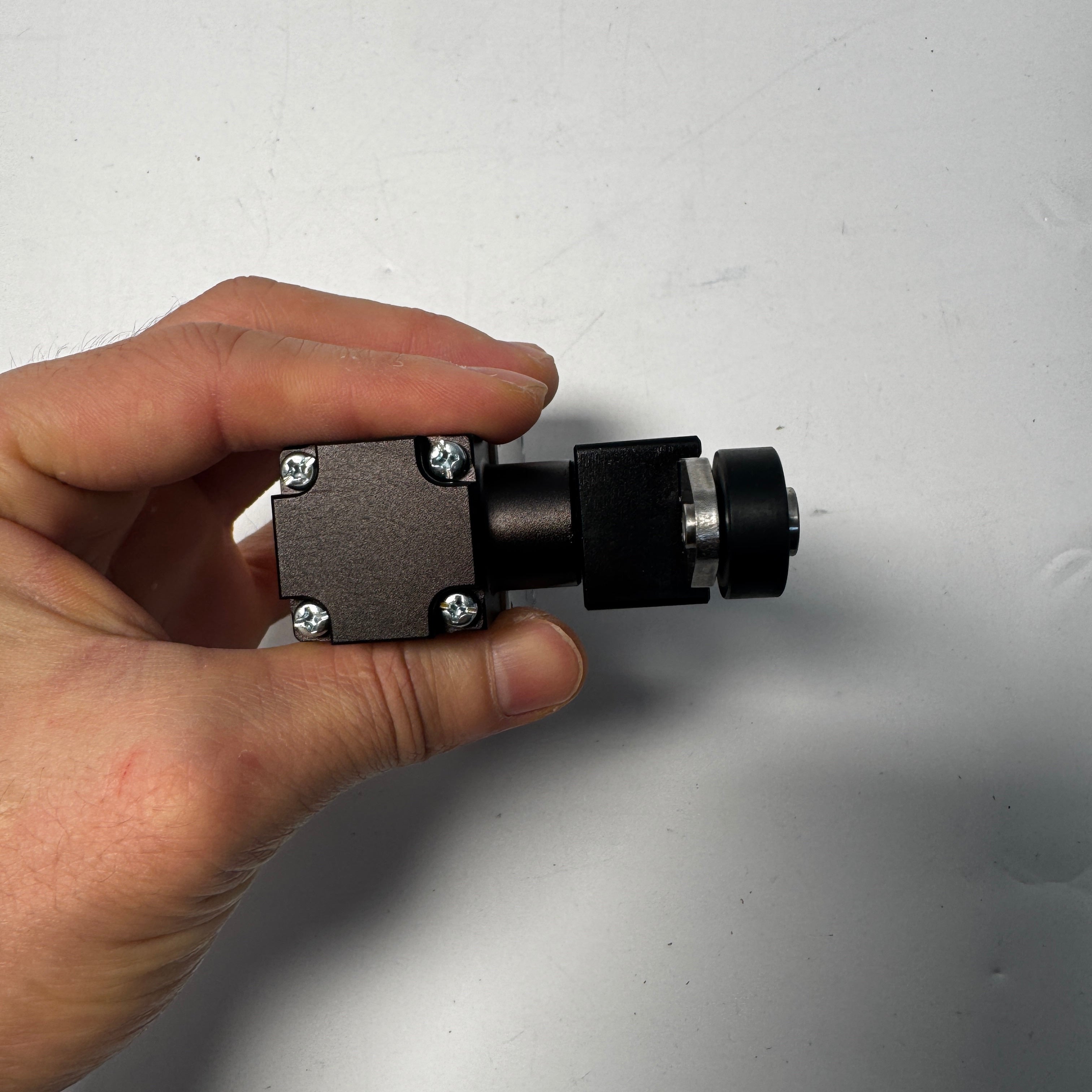

Airtac ZM3 series: mechanically operated directional valve - ZM3J06G

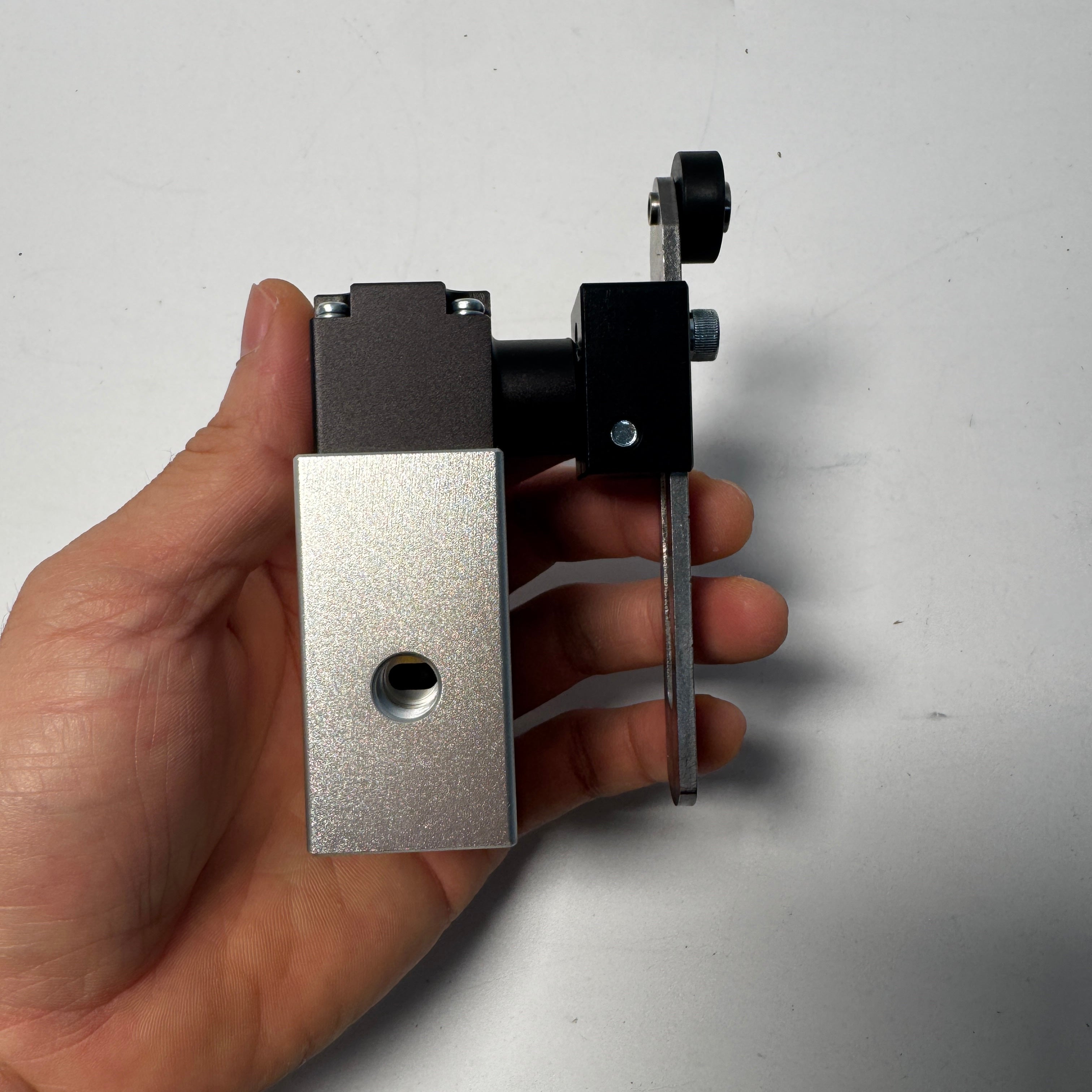

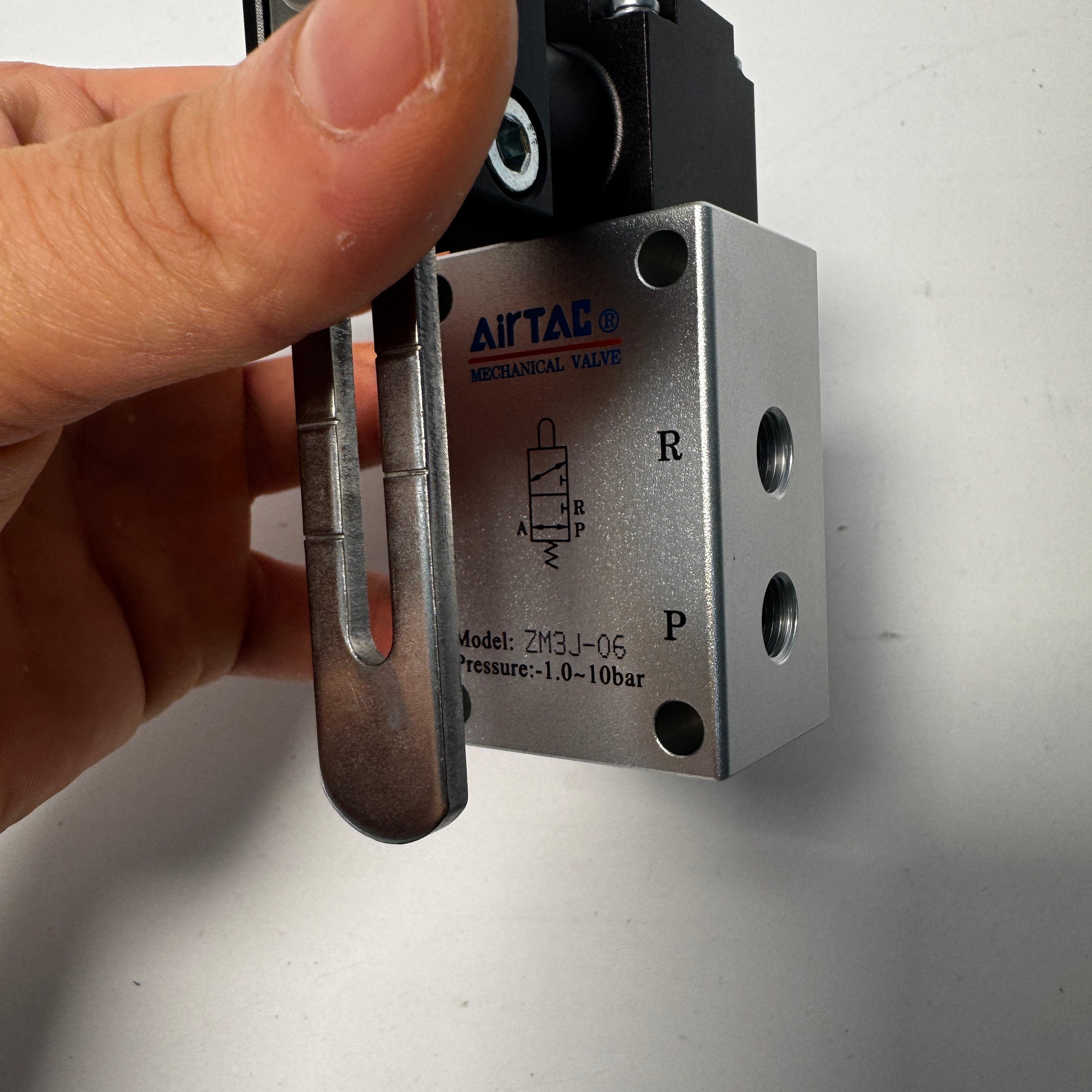

Photos are for reference only. Not all models have pictures.

Description

Specifications: ZM3J06G is an AirTAC ZM3 heavy-duty control valve with 3 ports, 2 positions, a adjustable roller lever actuator and G 1/8 inch connections. The omitted W code selects the standard operating-angle version.

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Functional Alternative Statement

Airtac ZM3 series valves are functional alternatives to SMC VM800 series valves.

Model Code Explained

Parameter Details
Exact ordering code ZM3J06G
Series ZM3 3 ports, 2 positions; external direct mechanical control
Control-head code J Adjustable roller lever
Port-size code 06 G 1/8 inch
Thread option G = G
Color suffix Not used for this control-head type
Angle option Blank = standard-angle type

Technical Specifications

Parameter Details
Fluid Air, filtered through a 40 μm filter element
Operating method External direct acting
Valve function 3 ports, 2 positions
Selected control form adjustable roller lever
Working connection G 1/8 inch
Effective flow area 6.0 mm²
Cv 0.34
Operating-pressure range −0.1–1.0 MPa (−1–10 bar; −15–145 psi)
Proof pressure 1.5 MPa (215 psi)
Working temperature −20 to 70 °C
Body material Aluminum alloy
Lubrication Not required

Features and Pneumatic Operation

The heavy-duty head converts mechanical contact into a 3/2 pneumatic signal. The adjustable lever, roller installation and head-orientation features are shown separately so that the mechanism can be set to suit the machine contact position.

The operating force is supplied by an external machine mechanism. The catalog describes this arrangement for position detection or stroke/limit switching.

Lubrication is not required. If lubricated air is introduced, continue using the same lubrication medium without interruption; the catalog recommends ISO VG32 oil or an equivalent grade.

Port letters identify P as the supply, A as the controlled outlet and R as exhaust. The graphical symbol in the PDF defines the exact flow paths for the selected actuator and valve position.

Selected Operating Travel

Parameter Details
Extreme operating force F.O.F. 20 N
Force test condition Lever length 38.1 mm
Pre-travel P.T. 20°
Over-travel O.T. 30°
Total travel T.T. 50°

The listed stroke ranges are installation limits for the selected control form. Travel is not an added body dimension. Use the drawing orientation and do not drive the mechanism past its stated range.

Installation, Travel Limits and Operation

The R roller and J adjustable roller mechanisms allow the lever to be repositioned through 360° by loosening the socket-head screw. The roller can be moved to the inside of the lever, and the head orientation can be changed as illustrated. Retighten the loosened fixing screws after selecting the required position; the catalog does not assign a tightening-torque value.

The standard-angle version allows the effective actuation direction to be changed by the stepped bearing sleeve. This direction-selection feature is not available on the W large-angle version.

Adjust the roller lever to suit the contact position within the illustrated 26–89 mm range. The published 20 N extreme operating force is specified at a lever length of 38.1 mm; it is not stated as a constant force at every lever setting.

F.P. is the free head position without an applied force. O.P. is the switching position under applied force, and T.T.P. is the end-of-travel position. O.F. denotes operating force to the switching position; F.O.F. denotes force to the end position. P.T. is free-position-to-switch travel, O.T. is switch-to-end travel, and T.T. is total free-position-to-end travel. The angles and forces above are selected for this model’s standard or W option.

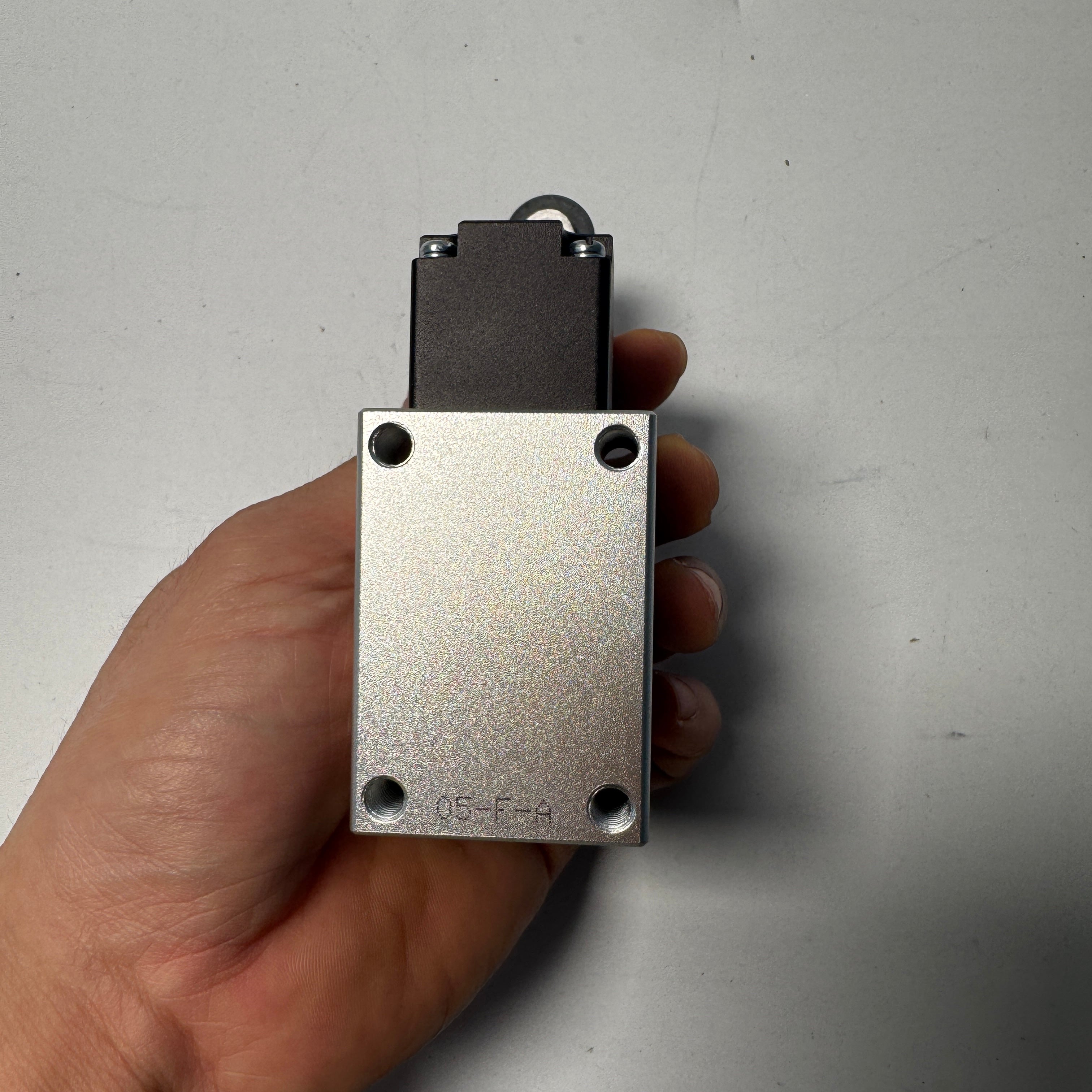

Body and Mounting Dimensions

The ZM3 dimensional drawing identifies R, J and P control heads separately. The W option changes the operating angles shown in the travel table; no extra dimensions are invented for W.

Drawing reference Value
Body front width 40 mm
Front mounting horizontal span 30 mm
Body side width 30 mm
Body height reference 57 mm
Head housing reference 25.5 mm
Front mounting vertical span 47 mm
Front lower mounting offset 5 mm
Front port height reference 23.5 mm
Front upper reference 14.6 mm
Side port spacing 18 mm
Side lower port height 14.5 mm
Front mounting holes 4 × Ø5.5 mm
Side fixing holes 4 × M6 × 1.0
Pneumatic connection callouts 3 × G 1/8 inch
Side envelope reference 67 mm
Side sub-span 47 mm
Side inner span 37 mm
Side local span 33 mm
Roller diameter 17.4 mm
Steel roller thickness 6.5 mm
Minimum lever setting 26 mm
Maximum lever setting 89 mm

Dimension Drawing Reminder

All linear drawing values above are in millimeters unless a thread or angle unit is stated. The original drawings retain the dimension-arrow relationships, actuator orientations and port views that cannot be fully represented by a two-column table.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Internal Components — Catalog Reference

The sectioned illustration is labeled ZM3R. Its numbered components are listed below as a series construction reference. This is not a spare-parts kit or an assertion that every actuator variation has an identical exploded assembly. Materials are stated only where the catalog expressly supplies them.

Drawing item Component
1 Bottom cover
2 O-ring
3 Spring
4 Spacer
5 Spool
6 Body
7 O-ring
8 Spring washer
9 Spring
10 Push rod
11 O-ring
12 Bushing
13 Spring holder
14 Spring
15 Cross-head screw
16 Top cover
17 Sliding bearing
18 Shaft
19 Roller
20 Rocker arm
21 Hex-socket screw
22 Rotating shaft
23 O-ring

Flow Characteristics

The catalog flow chart for ZM3R-06 plots operating pressure in MPa on the vertical axis from 0 to 0.8, and flow in L/min on the horizontal axis from 0 to 900. The family of curves illustrates the pressure/flow relationship. Axis limits are graph bounds, not guaranteed rated flow values for this complete valve; use the supplied curve and the required pressure conditions.

Supply Scope and Related Heads

This ordering code identifies one valve with its selected control-head form. It does not encode a multiple-valve assembly, a spare head, a silencer, mounting-panel hardware or pneumatic tubing. Where the catalog lists a separately orderable head, its exact code is given above as a replacement reference; the source does not provide a screw/gasket quantity breakdown for a service kit.

Series Ordering Options

The ZM3 family offers R fixed roller, J adjustable roller and P adjustable contact-pin heads, all with 06 (1/8 inch) connections. The blank angle option is standard and W is large-angle. PT is the blank thread code; G and T select G and NPT respectively. The dimensional/travel table inserts a hyphen before W for display, while the complete ordering diagram places W after 06.

For 1/8 and 1/4 inch connections, a blank thread suffix means PT, G means G thread and T means NPT. M5 connections have no such thread suffix. These are series alternatives; the selected configuration is the one decoded above.

Reference Weight

Catalog reference weight: 321 g, from the ZM3J06 row of the 2022 comprehensive catalog weight table (paper page 300). The reference row is the standard-angle 06 model. No separate mass is published for PT/G/NPT thread options. The table states that weights are for reference only; actual weight is determined by the delivered product. This is not a measured or packaged shipping weight.

Catalog Basis

Technical information is taken from the linked ZM3 catalog and cross-checked against the 2022 comprehensive catalog, paper pages 154–155 (PDF pages 155–156). The paper-page-300 weight table is cited separately above. No unrelated series dimensions or weights are substituted.

Optional Piping Accessories

P = this ZM3 valve’s supply (G1/8); W = its controlled working port A (G1/8); E = its exhaust port R (G1/8). All three ports are female threaded connections. The drawing identifies three same-size pneumatic connections. W here means the working route, not the model’s W large-angle option. Silencers serve E only when venting to atmosphere; ASC and GAFR connect upstream of P in positive-pressure service only. Keep supply, working and exhaust circuits separate. No pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBESL adjustable silencer; GBKC compression fitting; GBPC metal straight; GBSL silencer; GBSLM miniature silencer; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; PPA plug-in silencer; UE PU tube; US PU tube.

Use Size / complete codes
P ASC10006G,GAFR20006SG
E,P,W male G1/8 ↔ male G1/8: GBB0101
male G1/4 ↔ male G1/8: GBB0102
male G3/8 ↔ male G1/8: GBB0103
4 × 2.5: GBKC0425-01,UE95A040025100MBU,US98A040025100MBU
6 × 4: GBKC0604-01,UE95A060040100MBU,US98A060040100MBU
8 × 5: GBKC0805-01,UE95A080050100MBU,US98A080050100MBU
8 × 5.5 or 6: GBKC0806-01
10: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPSA10,GPSA10D,GPYB1001,GPYB1001D,PSA10,PSA10-S,PSA10D,PSA10D-S
4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPSA4,GPSA4D,GPYB401,GPYB401D,PSA4,PSA4-S,PSA4D,PSA4D-S
6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPSA6,GPSA6D,GPSS601A,GPSS601AD,GPSS601B,GPSS601BD,GPTL601A,GPTL601AD,GPTL601B,GPTL601BD,GPYB601,GPYB601D,GPZB601,GPZB601D,PSA6,PSA6-S,PSA6D,PSA6D-S
8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPSA8,GPSA8D,GPSS801A,GPSS801AD,GPSS801B,GPSS801BD,GPTL801A,GPTL801AD,GPTL801B,GPTL801BD,GPYB801,GPYB801D,GPZB801,GPZB801D,PSA8,PSA8-S,PSA8D,PSA8D-S
12: GPC1201,GPC1201D,GPL1201,GPL1201D,GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S
4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D
6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D
8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801D
main 6 / branch 4: GPKD6-401,GPKD6-401D
10 × 6.5: UE95A100065100MBU,US98A100065100MBU
12 × 8: UE95A120080100MBU,US98A120080100MBU
E GBESL01,GBSL01,GBSLM01
10: PPA10
12: PPA12
6: PPA6
8: PPA8

Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

PSA/GPSA are tube-side flow controls and need separate matching tube connections; they do not screw directly into P, W or E. GPHF use male RA at the valve; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branches join one circuit. Keep supply P, working A and exhaust R separate; do not bridge these paths.

Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve path to 0–70°C or narrower. Apply every stricter component limit; no system vacuum rating is established.

This externally mechanically operated ZM3 valve has a −0.1–1 MPa working range and −20–70°C temperature range with 40 µm filtered air. Its negative-pressure rating does not establish vacuum suitability for the added accessories. These options describe positive-pressure pneumatic service; verify the complete installed path and each component’s vacuum rating before vacuum use. Accessory limits may narrow the range; proof pressure is not working pressure. The piping choices are optional and ordered separately, and do not establish separately orderable panel-mounting or internal-part kits.

Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. In positive-pressure service, supply normally flows tube→thread and exhaust thread→tube. At valve working port A, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal. Never cap an active supply, working or exhaust connection.

Silencers serve only exhaust R when venting to atmosphere; they are not vacuum filters. Check flow capacity and back pressure, including adjustable silencers and remote exhaust lines; do not restrict the exhaust so that valve or actuator operation is impaired. PPA silencers require matching metric push-in exhaust sockets; they are not threaded plugs or vacuum filters.

ASC is a separately connected upstream supply flow control, assigned to P in positive-pressure service only. Both female ports require matching male connections; follow its P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. The complete valve path must meet these and every stricter component limit; the valve’s −0.1–1 MPa range does not extend the ASC rating.

GAFR is a separately connected upstream supply filter/regulator, assigned to P in positive-pressure service only. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Apply every stricter valve/component limit. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and round snap-in gauge (bar/MPa), without a reverse-flow valve. Air lubrication is not required. If lubricated air is introduced, continue with consistent lubrication using ISO VG32 or equivalent oil.

US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

GPTL recommended cap-adjustment torque: 1/8: 0.08 N·m. These are not thread-installation torques.

Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed options are ordered separately.

Product form

Specifications: ZM3J06G is an AirTAC ZM3 heavy-duty control valve with 3 ports, 2 positions, a adjustable roller lever actuator and... Read more

SKU: ZM3J06G

$55.76 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: ZM3J06G is an AirTAC ZM3 heavy-duty control valve with 3 ports, 2 positions, a adjustable roller lever actuator and G 1/8 inch connections. The omitted W code selects the standard operating-angle version.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Functional Alternative Statement

    Airtac ZM3 series valves are functional alternatives to SMC VM800 series valves.

    Model Code Explained

    Parameter Details
    Exact ordering code ZM3J06G
    Series ZM3 3 ports, 2 positions; external direct mechanical control
    Control-head code J Adjustable roller lever
    Port-size code 06 G 1/8 inch
    Thread option G = G
    Color suffix Not used for this control-head type
    Angle option Blank = standard-angle type

    Technical Specifications

    Parameter Details
    Fluid Air, filtered through a 40 μm filter element
    Operating method External direct acting
    Valve function 3 ports, 2 positions
    Selected control form adjustable roller lever
    Working connection G 1/8 inch
    Effective flow area 6.0 mm²
    Cv 0.34
    Operating-pressure range −0.1–1.0 MPa (−1–10 bar; −15–145 psi)
    Proof pressure 1.5 MPa (215 psi)
    Working temperature −20 to 70 °C
    Body material Aluminum alloy
    Lubrication Not required

    Features and Pneumatic Operation

    The heavy-duty head converts mechanical contact into a 3/2 pneumatic signal. The adjustable lever, roller installation and head-orientation features are shown separately so that the mechanism can be set to suit the machine contact position.

    The operating force is supplied by an external machine mechanism. The catalog describes this arrangement for position detection or stroke/limit switching.

    Lubrication is not required. If lubricated air is introduced, continue using the same lubrication medium without interruption; the catalog recommends ISO VG32 oil or an equivalent grade.

    Port letters identify P as the supply, A as the controlled outlet and R as exhaust. The graphical symbol in the PDF defines the exact flow paths for the selected actuator and valve position.

    Selected Operating Travel

    Parameter Details
    Extreme operating force F.O.F. 20 N
    Force test condition Lever length 38.1 mm
    Pre-travel P.T. 20°
    Over-travel O.T. 30°
    Total travel T.T. 50°

    The listed stroke ranges are installation limits for the selected control form. Travel is not an added body dimension. Use the drawing orientation and do not drive the mechanism past its stated range.

    Installation, Travel Limits and Operation

    The R roller and J adjustable roller mechanisms allow the lever to be repositioned through 360° by loosening the socket-head screw. The roller can be moved to the inside of the lever, and the head orientation can be changed as illustrated. Retighten the loosened fixing screws after selecting the required position; the catalog does not assign a tightening-torque value.

    The standard-angle version allows the effective actuation direction to be changed by the stepped bearing sleeve. This direction-selection feature is not available on the W large-angle version.

    Adjust the roller lever to suit the contact position within the illustrated 26–89 mm range. The published 20 N extreme operating force is specified at a lever length of 38.1 mm; it is not stated as a constant force at every lever setting.

    F.P. is the free head position without an applied force. O.P. is the switching position under applied force, and T.T.P. is the end-of-travel position. O.F. denotes operating force to the switching position; F.O.F. denotes force to the end position. P.T. is free-position-to-switch travel, O.T. is switch-to-end travel, and T.T. is total free-position-to-end travel. The angles and forces above are selected for this model’s standard or W option.

    Body and Mounting Dimensions

    The ZM3 dimensional drawing identifies R, J and P control heads separately. The W option changes the operating angles shown in the travel table; no extra dimensions are invented for W.

    Drawing reference Value
    Body front width 40 mm
    Front mounting horizontal span 30 mm
    Body side width 30 mm
    Body height reference 57 mm
    Head housing reference 25.5 mm
    Front mounting vertical span 47 mm
    Front lower mounting offset 5 mm
    Front port height reference 23.5 mm
    Front upper reference 14.6 mm
    Side port spacing 18 mm
    Side lower port height 14.5 mm
    Front mounting holes 4 × Ø5.5 mm
    Side fixing holes 4 × M6 × 1.0
    Pneumatic connection callouts 3 × G 1/8 inch
    Side envelope reference 67 mm
    Side sub-span 47 mm
    Side inner span 37 mm
    Side local span 33 mm
    Roller diameter 17.4 mm
    Steel roller thickness 6.5 mm
    Minimum lever setting 26 mm
    Maximum lever setting 89 mm

    Dimension Drawing Reminder

    All linear drawing values above are in millimeters unless a thread or angle unit is stated. The original drawings retain the dimension-arrow relationships, actuator orientations and port views that cannot be fully represented by a two-column table.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Internal Components — Catalog Reference

    The sectioned illustration is labeled ZM3R. Its numbered components are listed below as a series construction reference. This is not a spare-parts kit or an assertion that every actuator variation has an identical exploded assembly. Materials are stated only where the catalog expressly supplies them.

    Drawing item Component
    1 Bottom cover
    2 O-ring
    3 Spring
    4 Spacer
    5 Spool
    6 Body
    7 O-ring
    8 Spring washer
    9 Spring
    10 Push rod
    11 O-ring
    12 Bushing
    13 Spring holder
    14 Spring
    15 Cross-head screw
    16 Top cover
    17 Sliding bearing
    18 Shaft
    19 Roller
    20 Rocker arm
    21 Hex-socket screw
    22 Rotating shaft
    23 O-ring

    Flow Characteristics

    The catalog flow chart for ZM3R-06 plots operating pressure in MPa on the vertical axis from 0 to 0.8, and flow in L/min on the horizontal axis from 0 to 900. The family of curves illustrates the pressure/flow relationship. Axis limits are graph bounds, not guaranteed rated flow values for this complete valve; use the supplied curve and the required pressure conditions.

    Supply Scope and Related Heads

    This ordering code identifies one valve with its selected control-head form. It does not encode a multiple-valve assembly, a spare head, a silencer, mounting-panel hardware or pneumatic tubing. Where the catalog lists a separately orderable head, its exact code is given above as a replacement reference; the source does not provide a screw/gasket quantity breakdown for a service kit.

    Series Ordering Options

    The ZM3 family offers R fixed roller, J adjustable roller and P adjustable contact-pin heads, all with 06 (1/8 inch) connections. The blank angle option is standard and W is large-angle. PT is the blank thread code; G and T select G and NPT respectively. The dimensional/travel table inserts a hyphen before W for display, while the complete ordering diagram places W after 06.

    For 1/8 and 1/4 inch connections, a blank thread suffix means PT, G means G thread and T means NPT. M5 connections have no such thread suffix. These are series alternatives; the selected configuration is the one decoded above.

    Reference Weight

    Catalog reference weight: 321 g, from the ZM3J06 row of the 2022 comprehensive catalog weight table (paper page 300). The reference row is the standard-angle 06 model. No separate mass is published for PT/G/NPT thread options. The table states that weights are for reference only; actual weight is determined by the delivered product. This is not a measured or packaged shipping weight.

    Catalog Basis

    Technical information is taken from the linked ZM3 catalog and cross-checked against the 2022 comprehensive catalog, paper pages 154–155 (PDF pages 155–156). The paper-page-300 weight table is cited separately above. No unrelated series dimensions or weights are substituted.

    Optional Piping Accessories

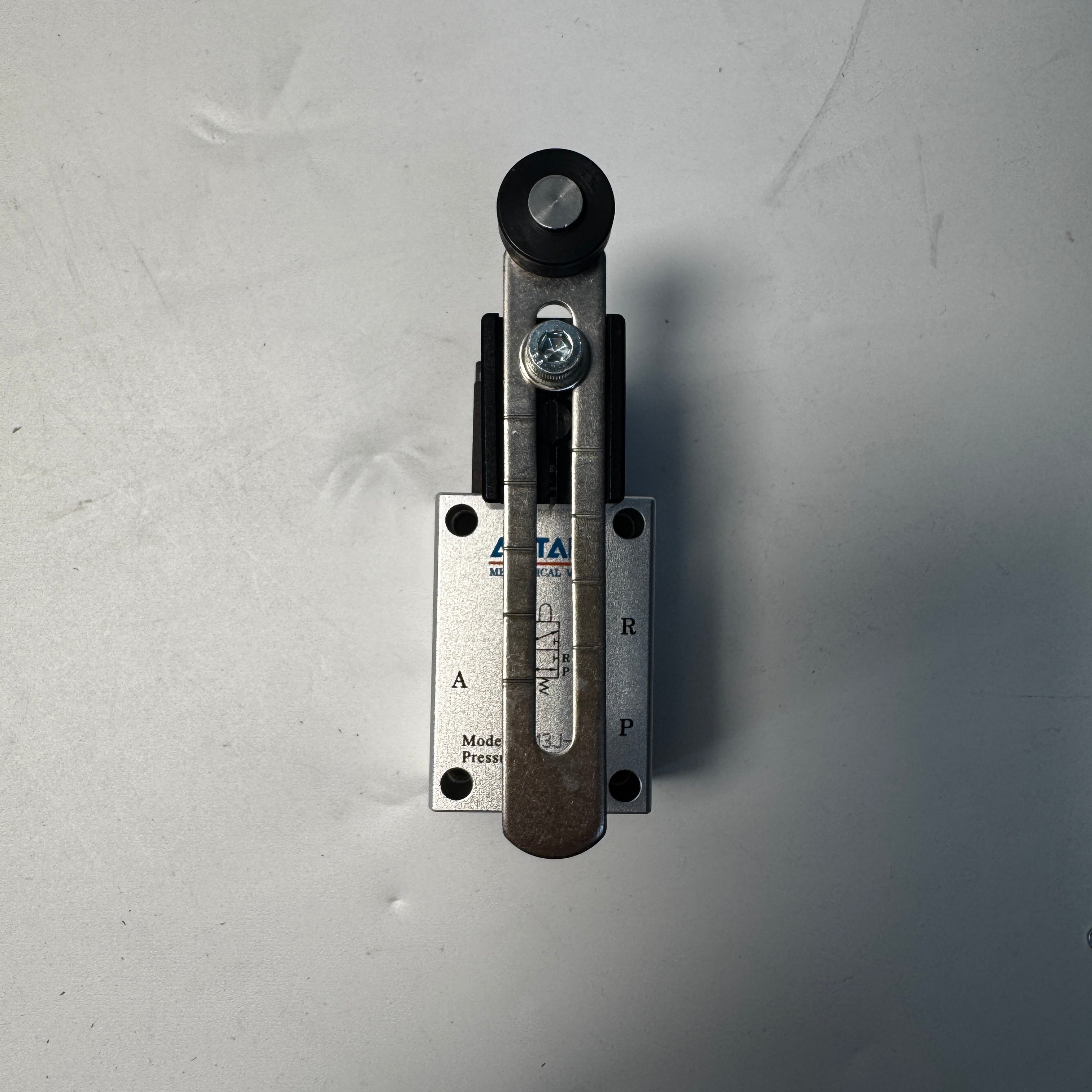

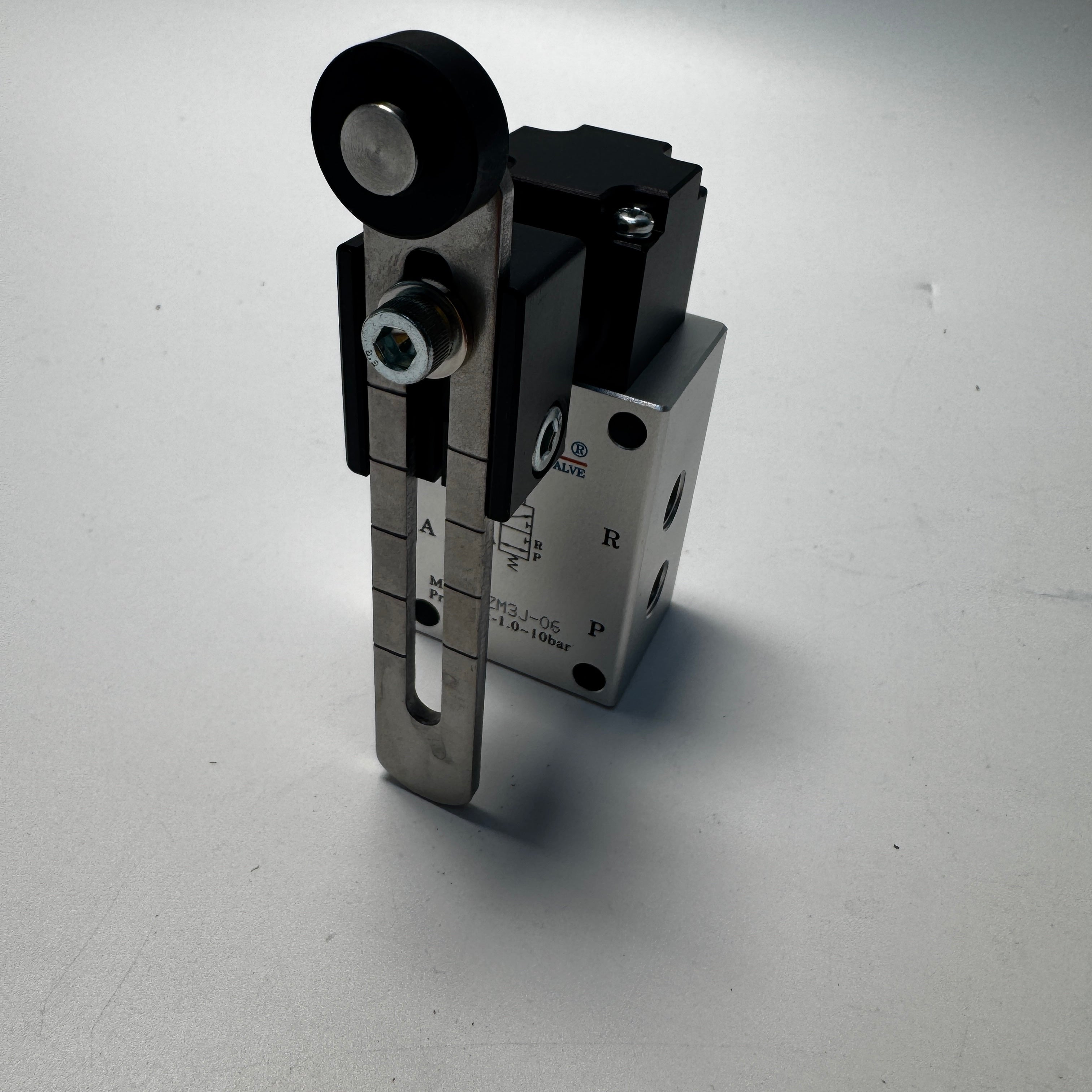

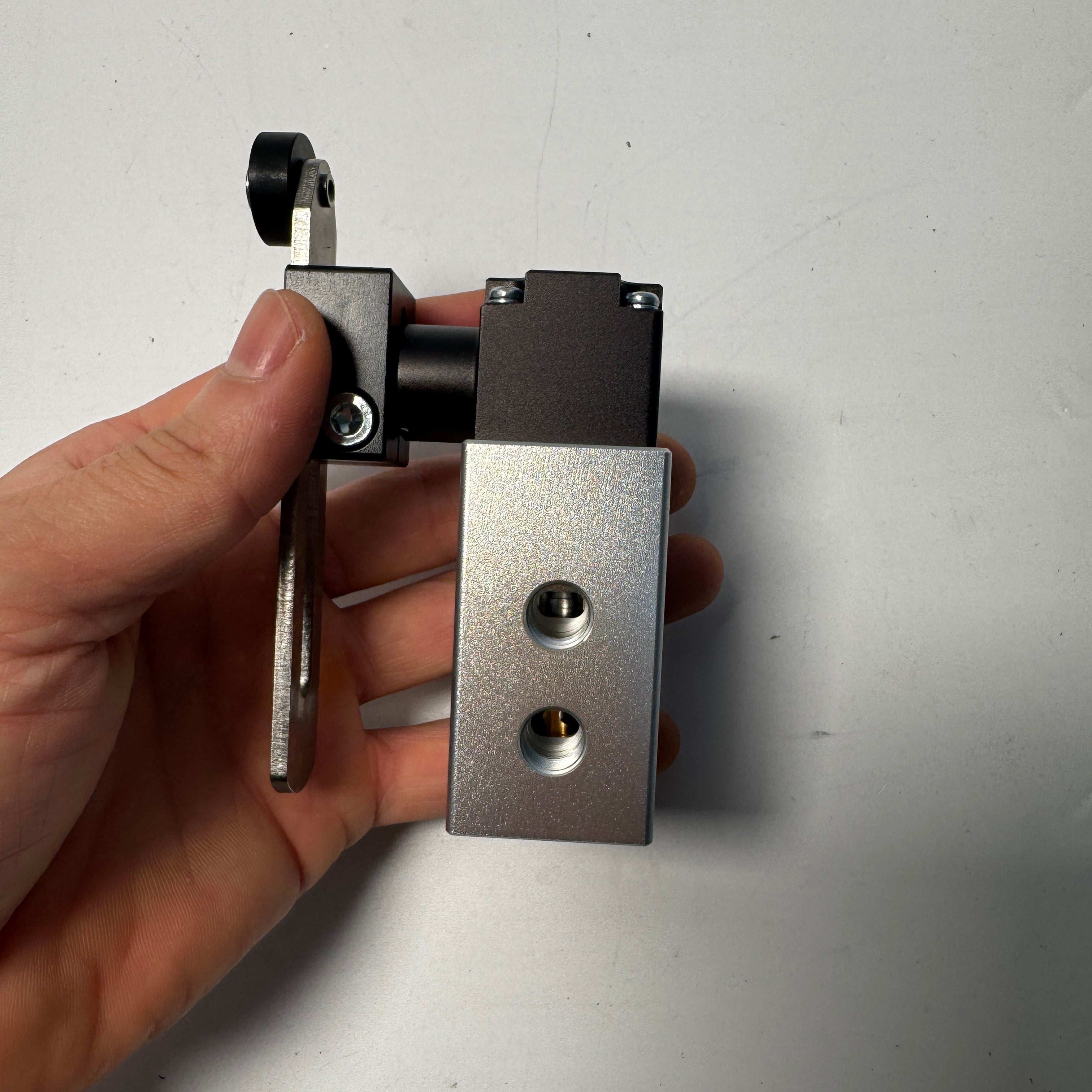

    P = this ZM3 valve’s supply (G1/8); W = its controlled working port A (G1/8); E = its exhaust port R (G1/8). All three ports are female threaded connections. The drawing identifies three same-size pneumatic connections. W here means the working route, not the model’s W large-angle option. Silencers serve E only when venting to atmosphere; ASC and GAFR connect upstream of P in positive-pressure service only. Keep supply, working and exhaust circuits separate. No pilot or manifold route is assigned. Multiple keys retain each use. Tube OD is mm (in = inches); compression/tubing show OD × ID. These piping accessories are optional and ordered separately.

    Code-prefix uses (match the longest listed family prefix): ASC inline threaded flow control; GAFR upstream filter-regulator; GBB male–male; GBESL adjustable silencer; GBKC compression fitting; GBPC metal straight; GBSL silencer; GBSLM miniature silencer; GPC straight; GPEB branch tee; GPED run tee; GPH banjo elbow; GPHF female branch banjo; GPHW twin banjo; GPKD reducing distribution fitting; GPL elbow; GPLL extended elbow; GPSA/PSA inline flow control; GPSS flow control; GPTL push-lock flow control; GPYB Y; GPZB cross; PPA plug-in silencer; UE PU tube; US PU tube.

    Use Size / complete codes
    P ASC10006G,GAFR20006SG
    E,P,W male G1/8 ↔ male G1/8: GBB0101
    male G1/4 ↔ male G1/8: GBB0102
    male G3/8 ↔ male G1/8: GBB0103
    4 × 2.5: GBKC0425-01,UE95A040025100MBU,US98A040025100MBU
    6 × 4: GBKC0604-01,UE95A060040100MBU,US98A060040100MBU
    8 × 5: GBKC0805-01,UE95A080050100MBU,US98A080050100MBU
    8 × 5.5 or 6: GBKC0806-01
    10: GBPC1001,GPC1001,GPC1001D,GPEB1001,GPEB1001D,GPED1001,GPED1001D,GPL1001,GPL1001D,GPLL1001,GPLL1001D,GPSA10,GPSA10D,GPYB1001,GPYB1001D,PSA10,PSA10-S,PSA10D,PSA10D-S
    4: GBPC401,GPC401-M,GPC401D-M,GPEB401,GPEB401D,GPED401,GPED401D,GPH401,GPH401D,GPHW401,GPHW401D,GPL401-M,GPL401D-M,GPLL401,GPLL401D,GPSA4,GPSA4D,GPYB401,GPYB401D,PSA4,PSA4-S,PSA4D,PSA4D-S
    6: GBPC601,GPC601,GPC601-M,GPC601D,GPC601D-M,GPEB601,GPEB601D,GPED601,GPED601D,GPH601,GPH601D,GPHW601,GPHW601D,GPL601,GPL601-M,GPL601D,GPL601D-M,GPLL601,GPLL601D,GPSA6,GPSA6D,GPSS601A,GPSS601AD,GPSS601B,GPSS601BD,GPTL601A,GPTL601AD,GPTL601B,GPTL601BD,GPYB601,GPYB601D,GPZB601,GPZB601D,PSA6,PSA6-S,PSA6D,PSA6D-S
    8: GBPC801,GPC801,GPC801D,GPEB801,GPEB801D,GPED801,GPED801D,GPH801,GPH801D,GPHW801,GPHW801D,GPL801,GPL801D,GPLL801,GPLL801D,GPSA8,GPSA8D,GPSS801A,GPSS801AD,GPSS801B,GPSS801BD,GPTL801A,GPTL801AD,GPTL801B,GPTL801BD,GPYB801,GPYB801D,GPZB801,GPZB801D,PSA8,PSA8-S,PSA8D,PSA8D-S
    12: GPC1201,GPC1201D,GPL1201,GPL1201D,GPSA12,GPSA12D,PSA12,PSA12-S,PSA12D,PSA12D-S
    4; male RA G1/8 / female RB G1/8: GPHF401,GPHF401D
    6; male RA G1/8 / female RB G1/8: GPHF601,GPHF601D
    8; male RA G1/8 / female RB G1/8: GPHF801,GPHF801D
    main 6 / branch 4: GPKD6-401,GPKD6-401D
    10 × 6.5: UE95A100065100MBU,US98A100065100MBU
    12 × 8: UE95A120080100MBU,US98A120080100MBU
    E GBESL01,GBSL01,GBSLM01
    10: PPA10
    12: PPA12
    6: PPA6
    8: PPA8

    Match PT/G/NPT exactly. Use the specified thread seal or face gasket. Match tube OD and compression OD/ID; metric and inch sizes are not interchangeable. Use suitable soft nylon/PU tube and check seating, clearance, bends and flow. Tighten compression bodies by the hex, not tube nuts. Where listed: D is black, blank grey, -M miniature; -S denotes only the specified 304 stainless parts.

    PSA/GPSA are tube-side flow controls and need separate matching tube connections; they do not screw directly into P, W or E. GPHF use male RA at the valve; female RB requires its own matching male thread and seal and is not a tube socket. Match both adapter ends to their separate mating parts. Branches join one circuit. Keep supply P, working A and exhaust R separate; do not bridge these paths.

    Standard push-in fittings, silencers and flow-control parts: ≤1 MPa, −20–70°C. Metal GBPC: ≤0.9 MPa; compression fittings/thread adapters: ≤1 MPa. The listed metal push-in, compression and adapter groups have a 0–150°C range, limiting the connected valve path to 0–70°C or narrower. Apply every stricter component limit; no system vacuum rating is established.

    This externally mechanically operated ZM3 valve has a −0.1–1 MPa working range and −20–70°C temperature range with 40 µm filtered air. Its negative-pressure rating does not establish vacuum suitability for the added accessories. These options describe positive-pressure pneumatic service; verify the complete installed path and each component’s vacuum rating before vacuum use. Accessory limits may narrow the range; proof pressure is not working pressure. The piping choices are optional and ordered separately, and do not establish separately orderable panel-mounting or internal-part kits.

    Flow-control suffix A restricts thread→tube, with free reverse flow; suffix B reverses it. In positive-pressure service, supply normally flows tube→thread and exhaust thread→tube. At valve working port A, suffix A restricts flow to the actuator and suffix B the return; cylinder-mounted orientation differs. Follow the flow symbols, including PSA/GPSA. Closed controls are not leak-tight isolation. Adjust gently without forcing stops; depressurize before tube removal. Never cap an active supply, working or exhaust connection.

    Silencers serve only exhaust R when venting to atmosphere; they are not vacuum filters. Check flow capacity and back pressure, including adjustable silencers and remote exhaust lines; do not restrict the exhaust so that valve or actuator operation is impaired. PPA silencers require matching metric push-in exhaust sockets; they are not threaded plugs or vacuum filters.

    ASC is a separately connected upstream supply flow control, assigned to P in positive-pressure service only. Both female ports require matching male connections; follow its P/A markings. Its limits are 0.05–0.95 MPa and −20–70°C with ≤40 µm filtration. The complete valve path must meet these and every stricter component limit; the valve’s −0.1–1 MPa range does not extend the ASC rating.

    GAFR is a separately connected upstream supply filter/regulator, assigned to P in positive-pressure service only. Both female ports require matching male piping; follow IN→OUT and check total flow and bowl/environment suitability. Inlet ≤1 MPa; regulation 0.15–0.9 MPa; −5–70°C, nonfreezing. Apply every stricter valve/component limit. Listed GAFR S versions have a 40 µm filter, PC bowl, differential/manual drain, bracket and round snap-in gauge (bar/MPa), without a reverse-flow valve. Air lubrication is not required. If lubricated air is introduced, continue with consistent lubrication using ISO VG32 or equivalent oil.

    US98A/UE95A examples are separately ordered blue 100 m metric PU coils rated 1 MPa at 23°C. US98A: −20–70°C; UE95A: −40–70°C. Match OD/ID and derate as temperature rises within valve/component limits; 1 MPa is not assured throughout. Use inch tube where the selected connection requires it; metric tube is not a substitute.

    GPTL recommended cap-adjustment torque: 1/8: 0.08 N·m. These are not thread-installation torques.

    Items marked discontinued are historical service references, not current standard recommendations. Confirm availability or a manufacturer-approved replacement. An unmarked catalogue entry does not promise current production, stock or delivery. All listed options are ordered separately.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
