Description

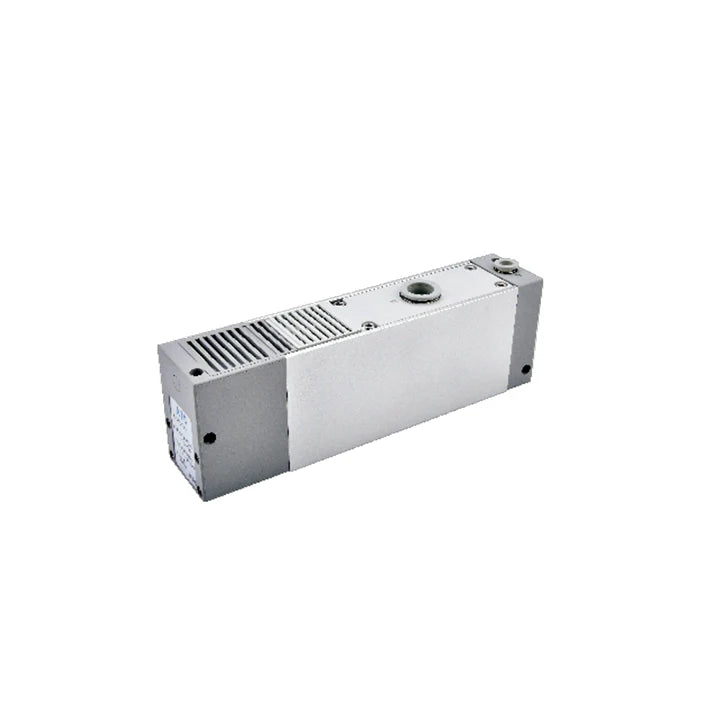

Model: Multi-stage vacuum generator Nozzle diameter: ø1.2mm Exhaust specification: through hole exhaust Exhaust port thread: NPT1/2 Intake valve and release valve combination: with intake valve Rated voltage: DC12V Lead-out mode: direct outgoing type (lead length 0.3m) Indicator light overvoltage protection circuit: with indicator light and overvoltage protection circuit Manual operation: push rotary locking screwdriver operation Vacuum pressure detection: PT1/8 vacuum pressure detection interface Vacuum digital pressure switch specification RL5 :(-100 ~ 0kPa),PNP output (wire length 2m)
Click to download Airtac product catalog
Product Features
1. Using 3-stage diffuser pipe, the vacuum flow can be increased by 250 and the flow can be saved by 20%.
2. With valve, vacuum pressure gauge or pressure switch.
3. The filter element can be replaced.
4. Built-in vacuum filter and muffler.
5. Can be installed in 3 directions (top, side, bottom).
