Description

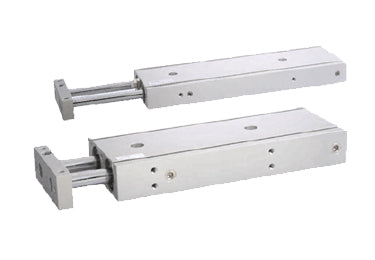

Specification: double shaft cylinder (compound type) Bore: 10mm Stroke: 20mm Magnet: with magnet Tooth type: M5X0.8
Click to download Airtac product catalog
Product Features
1. The implementation of JIS standard, high non-rotation accuracy, piston rod end deflection is small, suitable for accurate guidance.
2. The use of extended sliding support guide, no need to add lubricant, good guide performance.
3. There are mounting holes on three sides of the fixing plate, which is convenient for multi-position installation.
4. Anti-bending and torsion movement performance is good, can withstand a certain lateral load.
5. In addition to the axial, there are mounting holes on both sides of the cylinder, providing a variety of installation and fixing options.
6. There are two sets of intake and exhaust ports on both sides of the cylinder to choose from.
7. The front end of the body anti-collision pad can adjust the cylinder stroke and relieve the impact.
8. This series of standard configuration with magnets, do not provide configuration without magnets.
