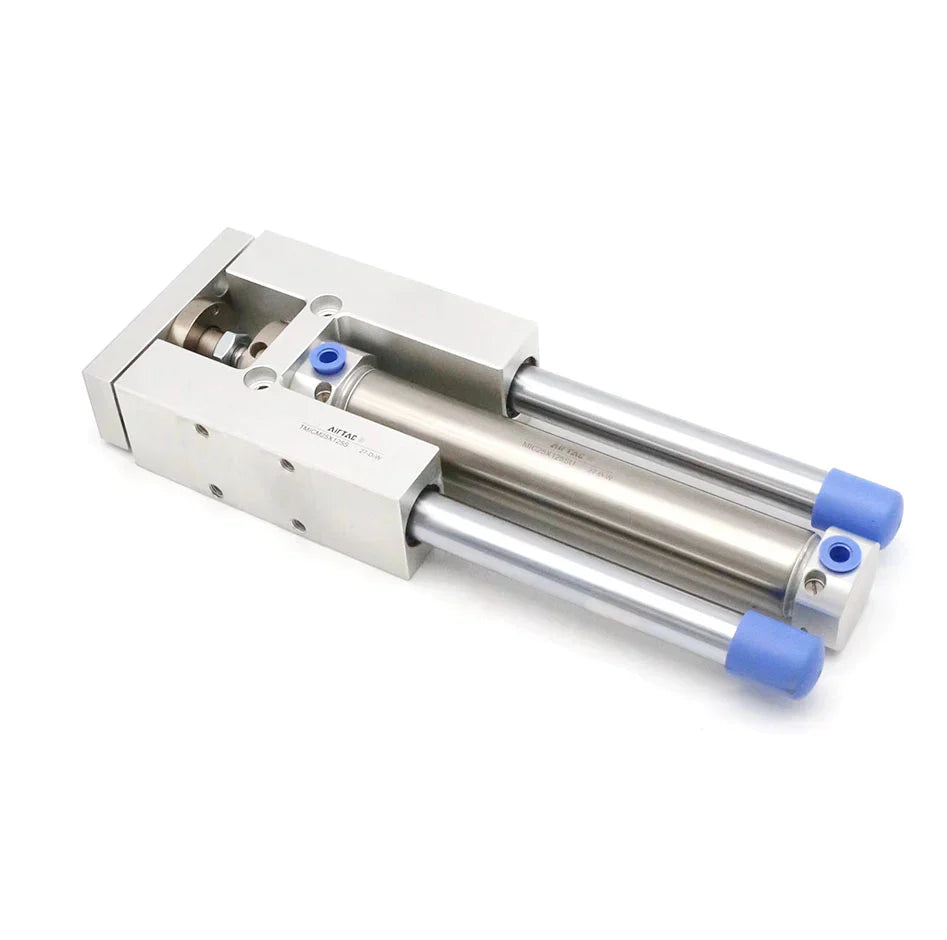

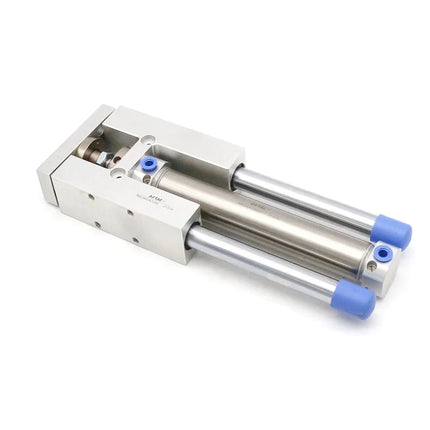

Airtac TMI series: guided mini cylinder assembly - TMICM25X25

Photos are for reference only. Not all models have pictures.

Description

Specifications: TMICM25X25 — AirTAC TMICM guided mini cylinder, double acting, guided cylinder assembly, 25 mm bore and 25 mm stroke. PT1/8 port; nonmagnetic piston.

Product Catalog

Download Airtac Product Catalog (PDF)

Download 2022 cylinder installation and weight tables (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Model Code Explained

Code Meaning
TMIC Guide unit for an MIC cylinder with adjustable cushioning
M Bronze-bush sliding bearing
25 Cylinder bore: 25 mm
X25 Stroke: 25 mm
No S code Nonmagnetic piston
No thread suffix PT pipe thread (catalog default)

Technical Specifications

Parameter Details
Model TMICM25X25
Product type guided mini cylinder
Operation double acting, guided cylinder assembly
Bore 25 mm
Stroke 25 mm
Piston-rod diameter 10 mm
Rod-end thread M10 × 1.25
Working medium Air filtered to 40 µm or finer
Operating pressure 0.15–1.0 MPa
Proof pressure 1.5 MPa
Operating temperature −20 to +70 °C
Piston speed 30–500 mm/s
Port PT1/8
Cushioning Adjustable pneumatic cushioning
