Description

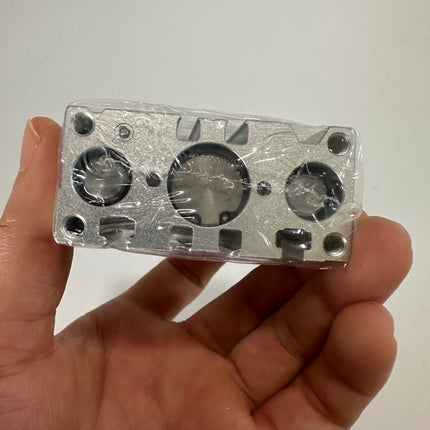

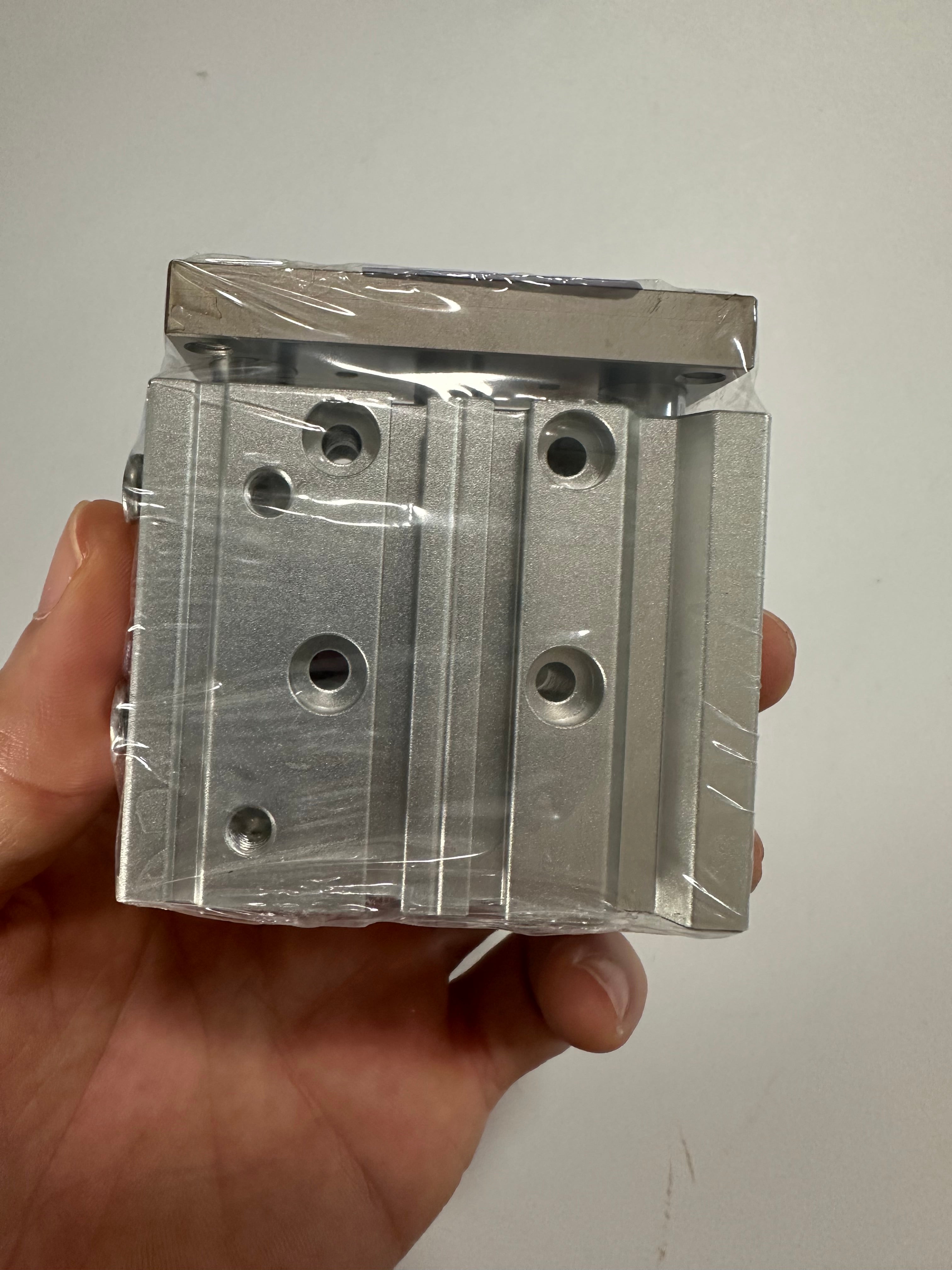

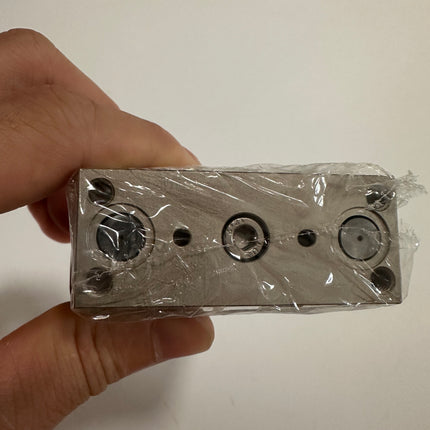

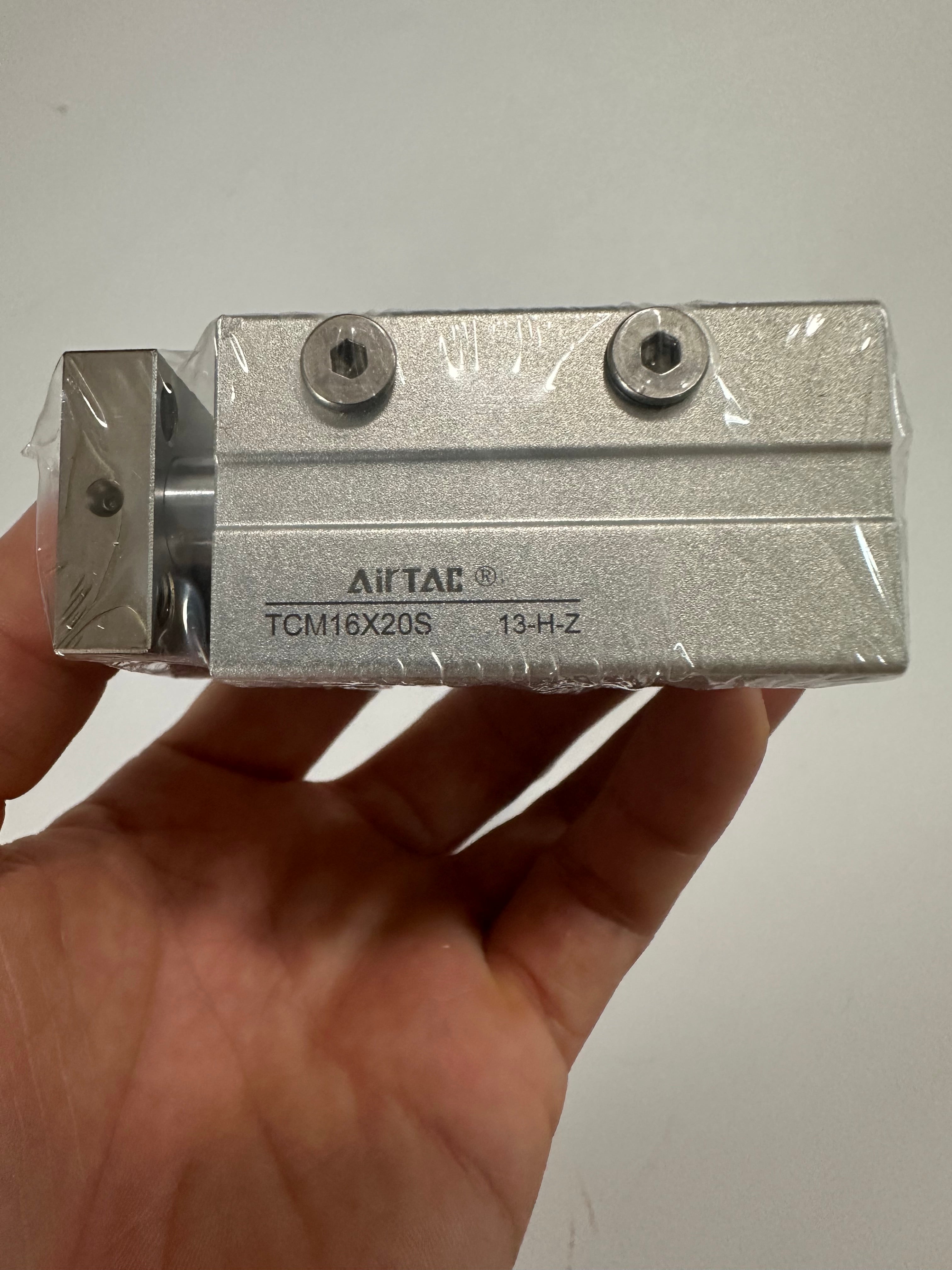

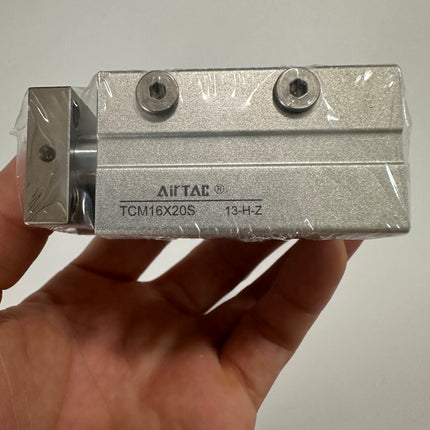

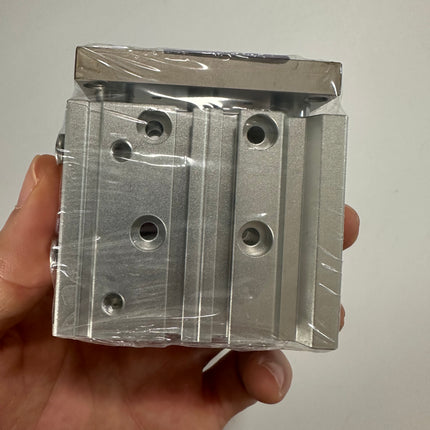

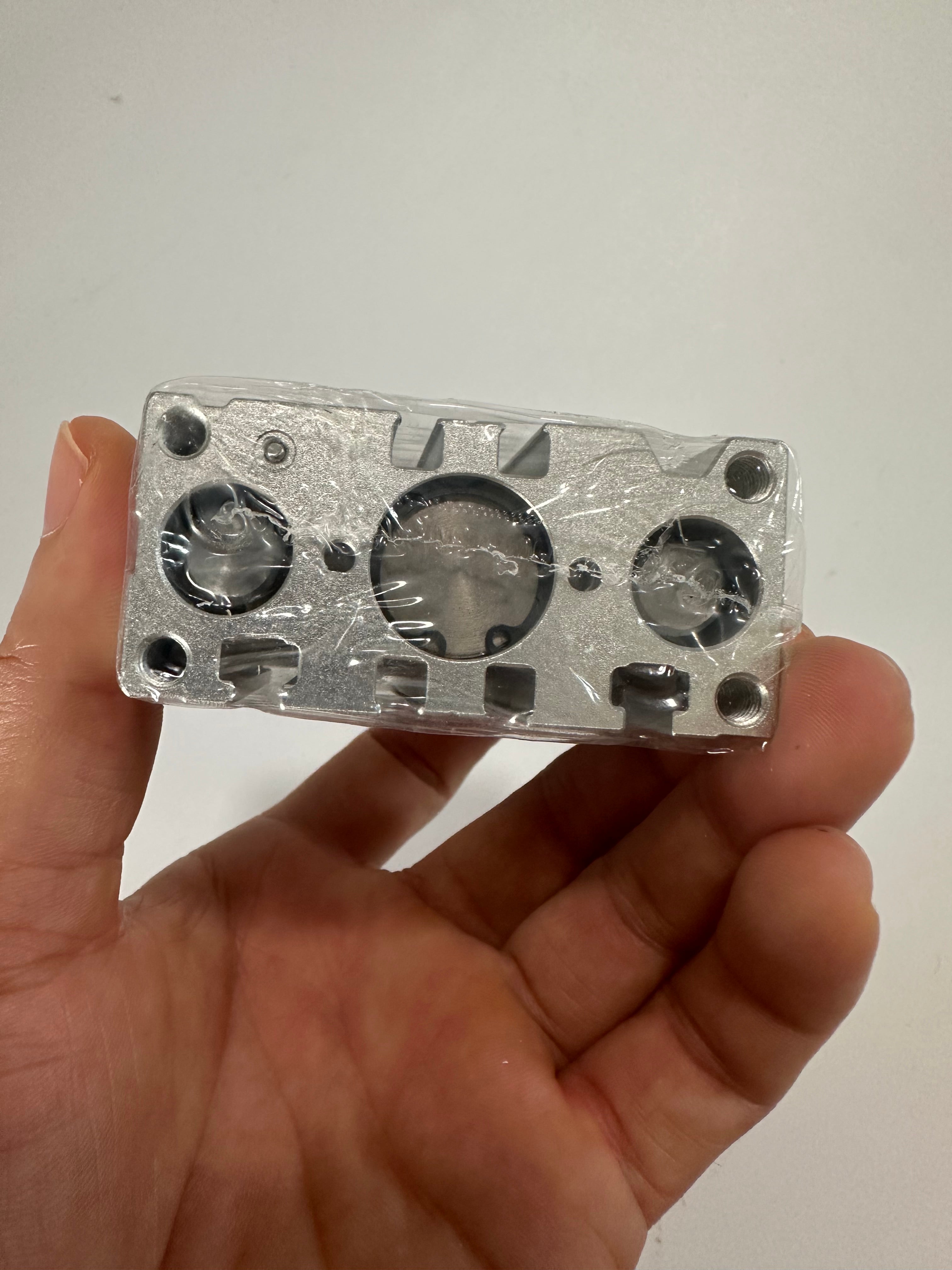

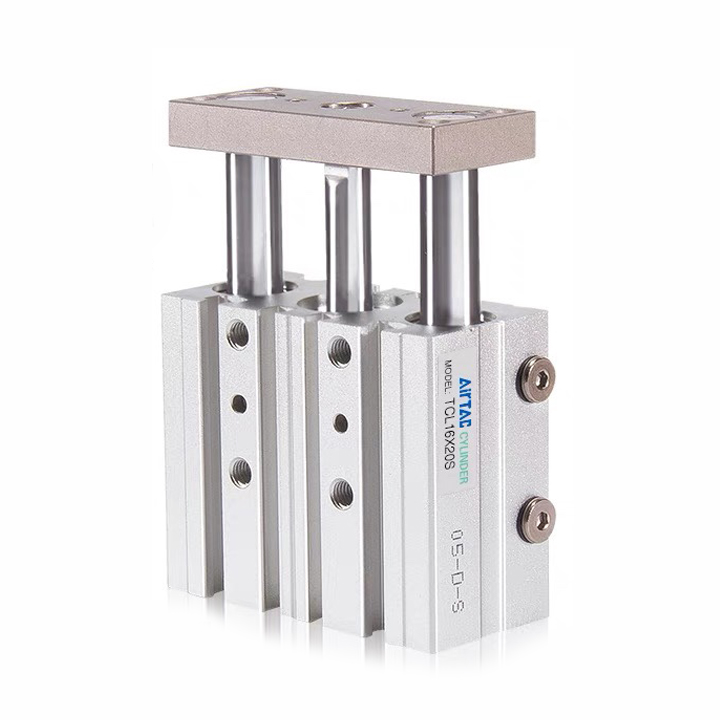

Specifications: Three-axis cylinder (compound type) Bearing: copper sleeve bearing Category: Standard Cylinder diameter: 16mm Stroke: 20mm Magnet: with magnet Tooth type: M5X0.8
Click to download Airtac product catalog
Product Features
1. Implement JIS standard.
2. Two guide rails with special bearing steel and linear bearing or brass bearing guide rail to prevent rotation. They can withstand high torque and radial loads.
* Note: Steel ball bearings: suitable for the lifting action of the cylinder or the occasion requiring high precision and high load capacity, especially for the occasion requiring low friction action process.
Brass plain bearings: suitable for action with resistance to radial loads. Compared with ordinary cylinders for the same purpose, the horizontal impact resistance is 1 times higher and the torsional rigidity is stronger.
3. The drive unit and the guide unit in the same cylinder, no additional accessories, occupy a very small space. The air inlet is optional and easy to install.
4. The bottom of the main body, the back and the fixing plate each have two precise positioning holes, which can provide high-precision positioning and installation for this occasion.
5. Switch mounting option, providing four mounting slots.
6. Host special design, provide a variety of installation methods.
