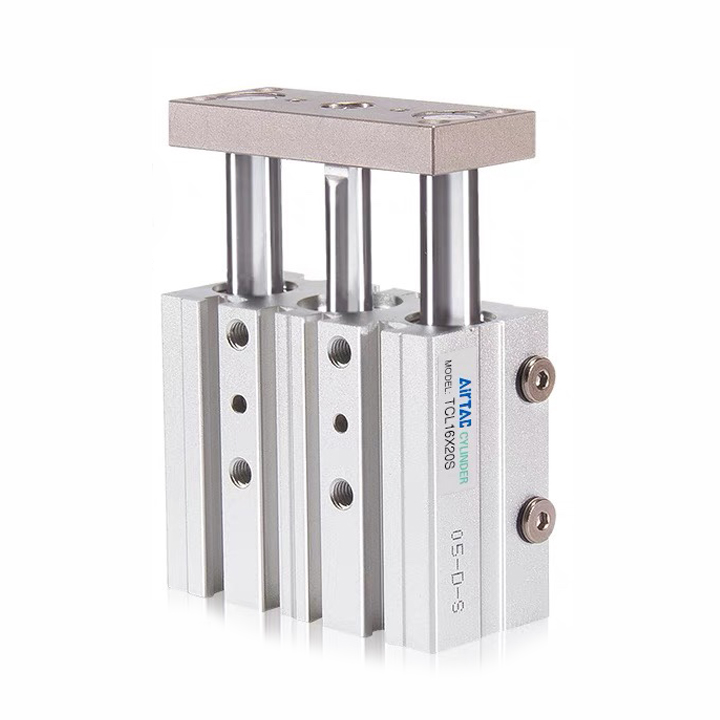

Specifications: Three-axis cylinder (compound type) Bearing: copper sleeve bearing Category: Adjustable Cylinder diameter: 50mm Stroke: 25mm Adjusting stroke: 100mm Magnet: with magnet Tooth type: G tooth
Specifications
1. Model: TCMJ50X25-100SG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm)
3. Use pressure range: 0.15~1.0MPa(22~145psi), Guaranteed pressure resistance: 1.5MPa(215psi)
4. Working temperature :-20~70℃, Use speed range :30~500mm/s, Travel tolerance range: +0/1.0≤100,+0/1.5＞100
5. Buffer type: anti-collision pad, no rotation accuracy: ±0.06°, Nozzle caliber: PT1/4, Nozzle tooth type has PT teeth, G teeth, NPT teeth to choose from
6. The non-rotation accuracy is the angle at which the cylinder fixing plate can rotate when the cylinder is fully retracted; TC series is fully equipped with magnetism, and the sensor can be optional: DMSG,CMSG,EMSG
Internal structure and main parts material: 1. fixed plate: carbon steel/2. Guide rod: medium carbon steel/3. Body: aluminum alloy/4.C type buckle: spring steel/5. Front cover: Aluminum alloy/6. Anti-collision pad: TPU/7. Alien O: NBR/8. Socket bolt: alloy steel/9.O-ring: NBR/10. Linear bearings, plain bearings: bearing steel, brass/11.C-ring: spring steel/12. O-ring: NBR/14. Back cover: Brass, Aluminum alloy/15. Piston rod: medium carbon steel/16. Piston: Brass, Aluminum alloy/17. Magnet seat: brass, aluminum alloy/18. Magnet gasket: NBR/19. Magnet: rare earth, plastic/20. Hexagon socket stop screw: alloy steel/21. Hexagon socket stop screw: alloy steel/22. Spacer sleeve: aluminum alloy
Type of sealing ring :P-TCM50-R1 NBR Material P-TCM50-R2 Fluorine rubber material
Click to download Airtac product catalog
Product Features
1. Implement JIS standard.
2. Two guide rails with special bearing steel and linear bearing or brass bearing guide rail to prevent rotation. They can withstand high torque and radial loads.
* Note: Steel ball bearings: suitable for the lifting action of the cylinder or the occasion requiring high precision and high load capacity, especially for the occasion requiring low friction action process.
Brass plain bearings: suitable for action with resistance to radial loads. Compared with ordinary cylinders for the same purpose, the horizontal impact resistance is 1 times higher and the torsional rigidity is stronger.
3. The drive unit and the guide unit in the same cylinder, no additional accessories, occupy a very small space. The air inlet is optional and easy to install.
4. The bottom of the main body, the back and the fixing plate each have two precise positioning holes, which can provide high-precision positioning and installation for this occasion.
5. Switch mounting option, providing four mounting slots.
6. Host special design, provide a variety of installation methods.
