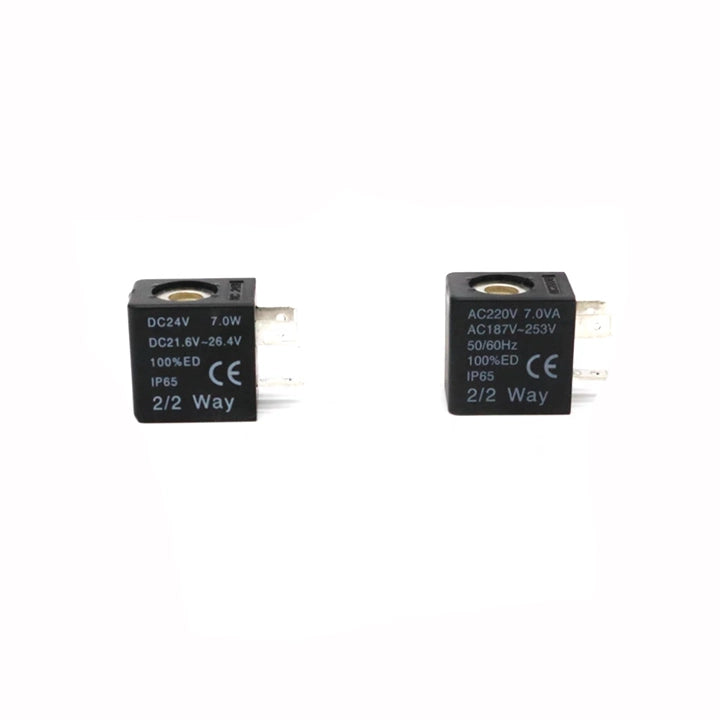

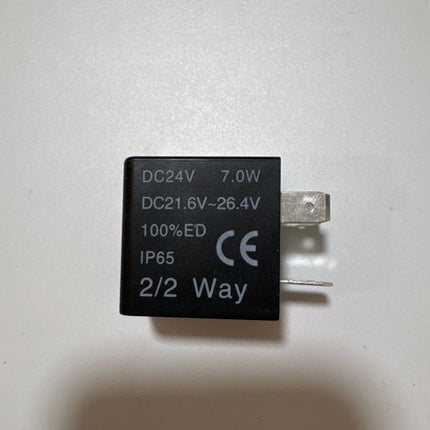

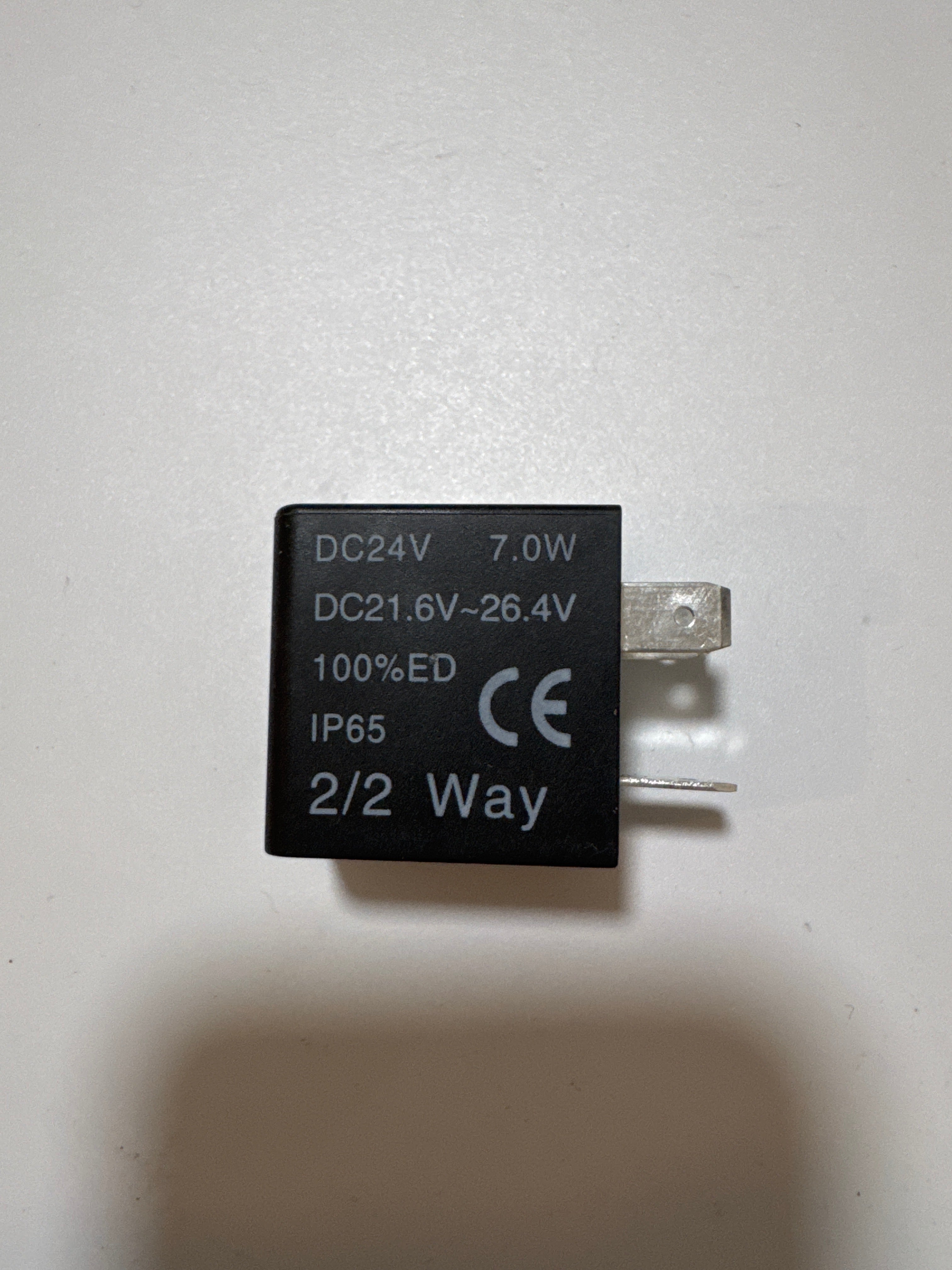

Specifications for Solenoid Valve Washer Coils For 4V110, 4V120,4V130, Series (8.0mm Orifice Solenoid Valves): Available in terminal and washer coil... Read more
SKU: CDB092B
$6.80
080, 092 Series
When wiring the terminals for the socket coil, due to different polarity indications, pay special attention to the positive and negative poles in extreme cases. Connect “1” to the positive terminal and “2” to the negative terminal. If reversed, some indicator lights may fail to illuminate, and the valve could be delayed in operation.
(Illustrations show the two wiring methods.)

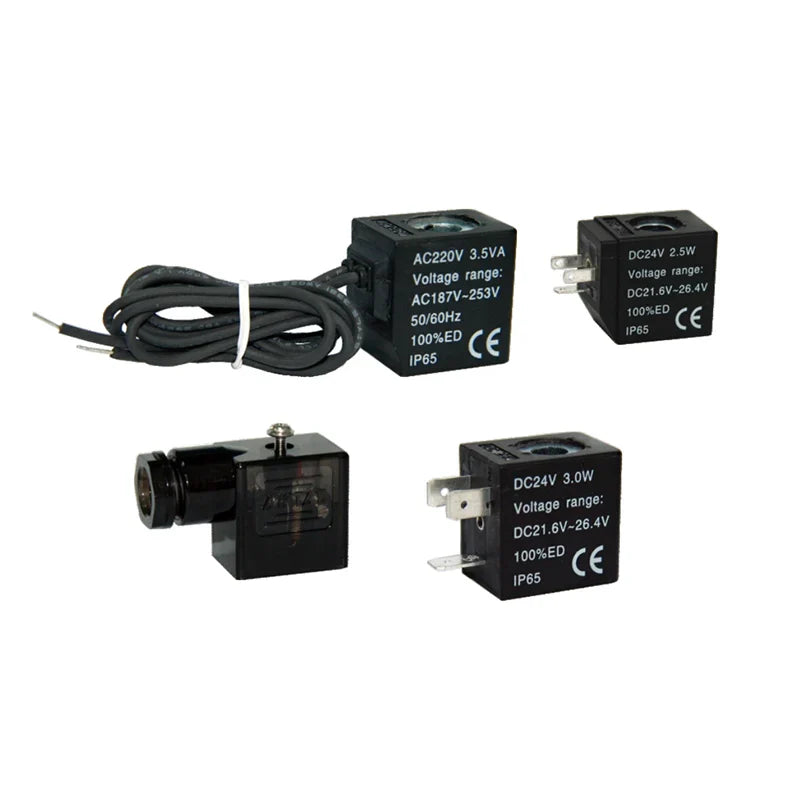

① Coil Category

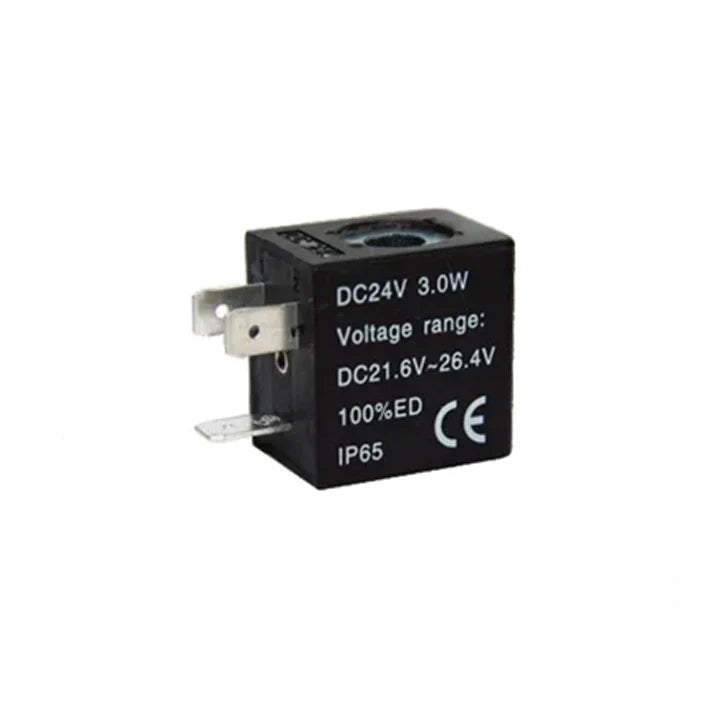

CD: DIN socket coil

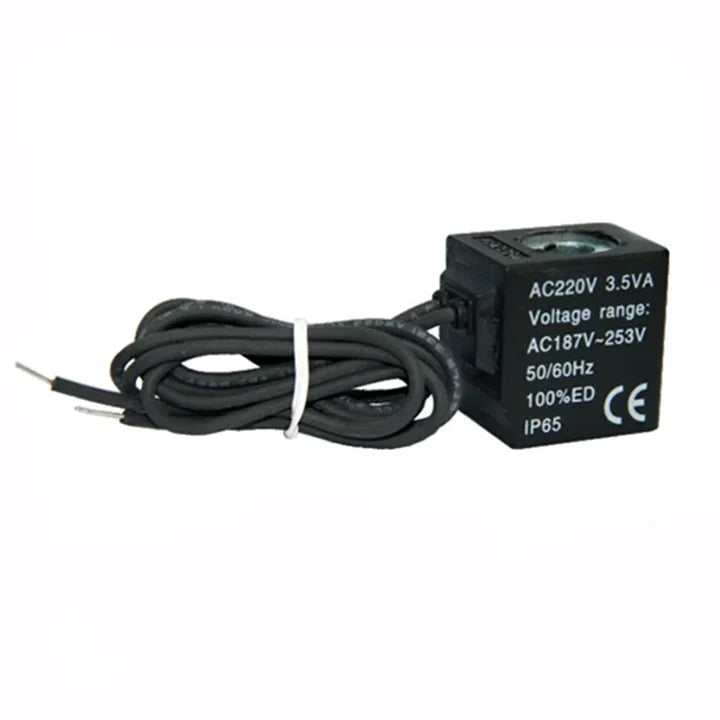

CL: Exposed-lead coil
② Coil Content
A080: Inner diameter Φ8.0mm
A092: Inner diameter Φ9.0mm
③ Standard Voltage
A: AC220V
B: DC24V
C: AC110V
E: AC24V
F: DC12V
| Product Series | Coil Model | Voltage Type | Internal Wiring Diagram | Terminal Model | Terminal Wiring Diagram | Remarks |
|---|---|---|---|---|---|---|
| 3V100 Series 4V100 Series 4M100 Series |

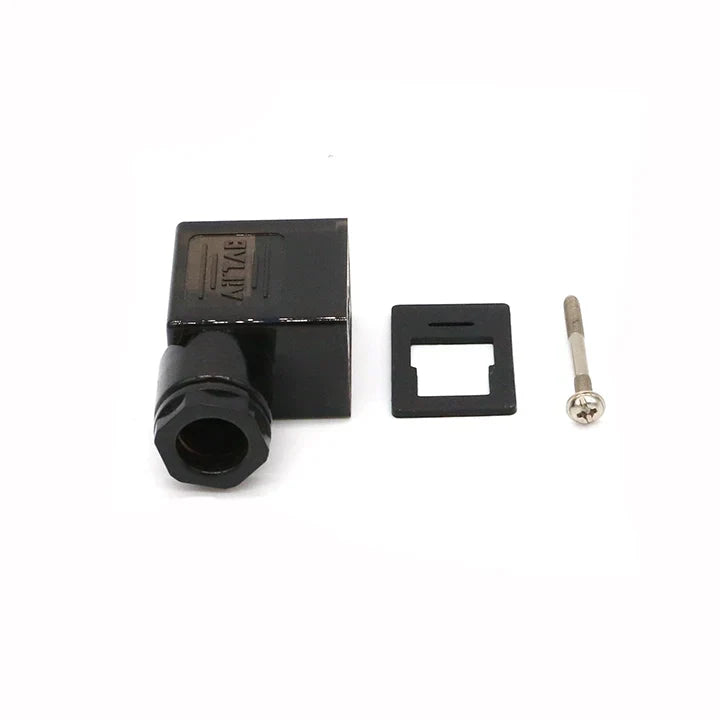

CDA080 Terminal Type | AC | ![Coil Diagram] | PL1515T-P1 | ![Wiring Diagram] | Suitable for CDA080 AC/DC coils |
| CDA080 Terminal Type | DC | ![Coil Diagram] | PL1515T-P2 | ![Wiring Diagram] | Suitable for AC-type CDA080 coil | |
| CDA080 Terminal Type | DC | ![Coil Diagram] | PL1515T-P3 | ![Wiring Diagram] | Suitable for DC-type CDA080 coil | |
| CLA080 Exposed-Lead | AC | ![Coil Diagram] | — | — | — | |
| CLA080 Exposed-Lead | DC | ![Coil Diagram] | — | — | — |
| Product Series | Coil Model | Voltage Type | Internal Wiring Diagram | Terminal Model | Terminal Wiring Diagram | Remarks |
|---|---|---|---|---|---|---|
| 3V1 Series 3V200 Series 3V300 Series 3V400 Series 4V200 Series 4V300 Series 4V400 Series 4M200 Series 4M300 Series ESV200 Series ESV300 Series ESV400 Series ESV600 Series |
CDA092 Terminal Type | AC | ![Coil Diagram] | 4V210-005-P1 | ![Wiring Diagram] | Suitable for CDA092 AC/DC coils |
| CDA092 Terminal Type | DC | ![Coil Diagram] | 4V210-005-P2 | ![Wiring Diagram] | Suitable for AC-type CDA092 coil | |
| CDA092 Terminal Type | DC | ![Coil Diagram] | 4V210-005-P3 | ![Wiring Diagram] | Suitable for DC-type CDA092 coil | |
| CLA092 Exposed-Lead | AC | ![Coil Diagram] | — | — | — | |
| CLA092 Exposed-Lead | DC | ![Coil Diagram] | — | — | — |
