Description

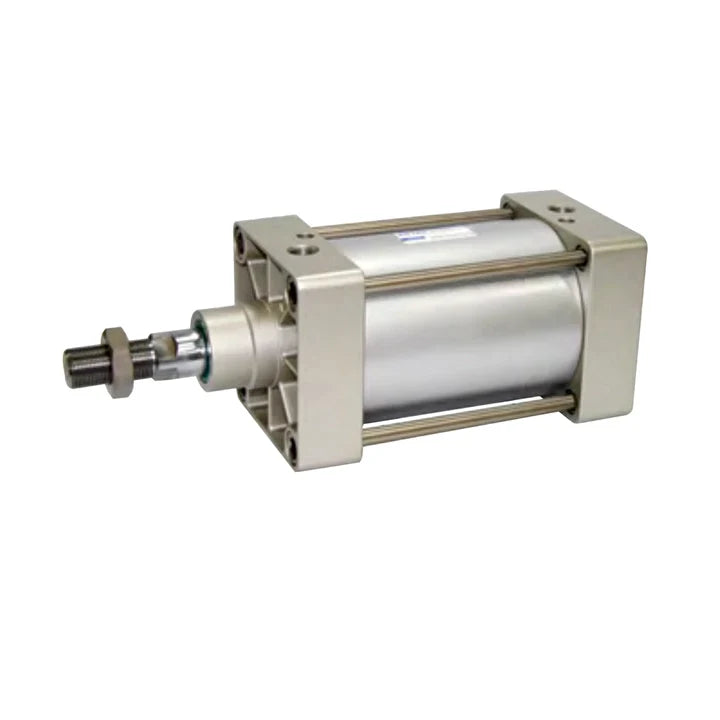

Specification: double-axis compound stroke adjustable type (steel tube type) Bore: 250mm Stroke: 1370mm Adjusting stroke: 100mm Magnet: no magnet Fixed type: TCM2 Seal material: NBR Tooth type: PT tooth
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder.
2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure.
3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
4.SG series is a steel tube cylinder with strong anti-collision ability.
5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring.
6. The cylinder buffer adjustment is stable.
7. A variety of specifications of the cylinder and installation accessories to choose from.
8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.
