Description

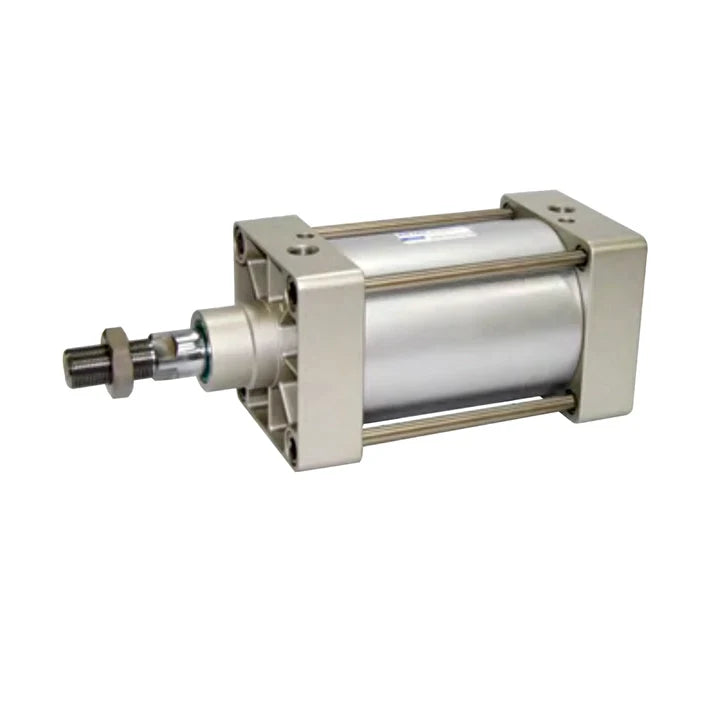

Specification: double-axis compound stroke adjustable type (aluminum tube type) Bore: 250mm Stroke: 232mm Adjusting stroke: 50mm Magnet: with magnet Fixed type: TC Seal material: fluorine rubber Tooth type: PT tooth
Specifications
1. Model: SGCJ250X232-50STCH
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 60, Nozzle caliber: PT1
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel
Type of sealing ring :P-SGCJ250N-R1 NBR Material P-SGCJ250-R2 Fluorine rubber material ， Installation accessories :F-SG250LB Axial mounting F-SG250FA Flange connecting plate F-SG250CA Single-ear fixing seat F-SG250CB Binaural mount F-SG250TC Middle Trunnion Bracket F-SG250TCM1 trunnion mount F-SG250TCM2 trunnion mount ， Piston rod end joint :F-M42X200I I Connector F-M42X200Y Y connector
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder.
2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure.
3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
4.SG series is a steel tube cylinder with strong anti-collision ability.
5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be equipped with induction magnetic ring.
6. The cylinder buffer adjustment is stable.
7. A variety of specifications of the cylinder and installation accessories to choose from.
8. Select high temperature resistant sealing material, can ensure the normal operation of the cylinder under the condition of 150°C.
