Description

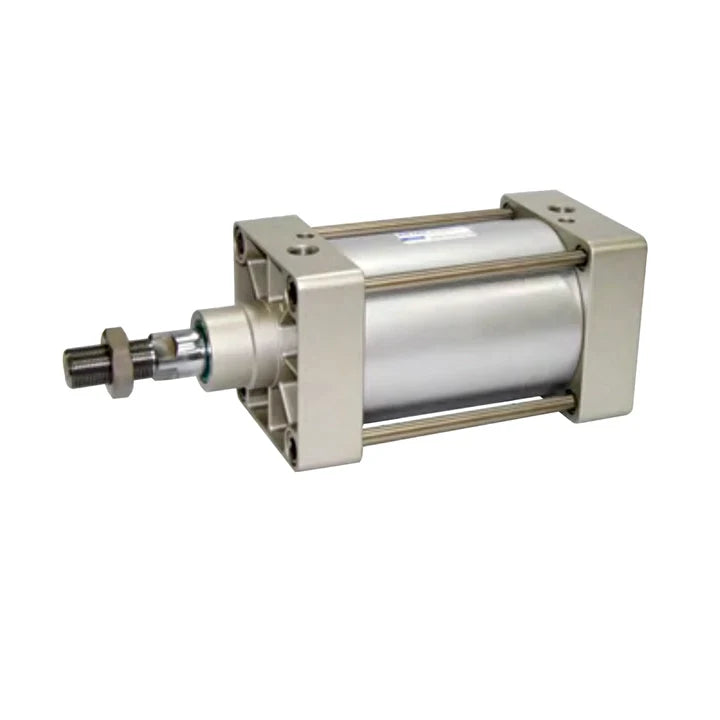

Specification: double-axis compound stroke adjustable type (aluminum tube type) Bore: 125mm Travel: 1431mm Adjusting stroke: 30mm Magnet: with magnet Fixed type: FA Seal material: fluorine rubber Tooth type: G tooth
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder;
2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure;
3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function;
4.SG series is a steel tube cylinder with strong anti-collision ability;
5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be optional induction magnetic ring;
6. The cylinder buffer adjustment is stable;
7. A variety of specifications of the cylinder and installation accessories to choose from;
8. Select high temperature resistant sealing material to ensure the normal operation of the cylinder at 150°C.
