Description

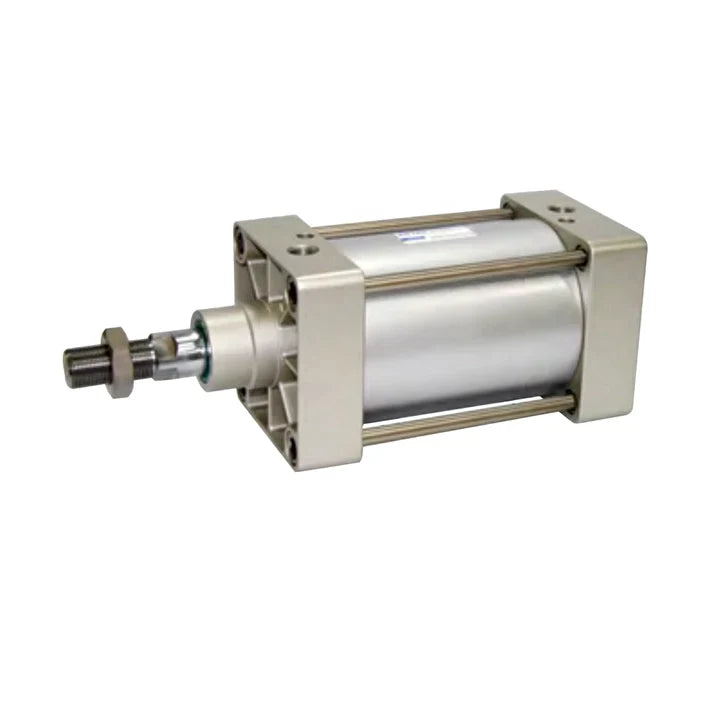

Specification: double-axis compound stroke adjustable type (aluminum tube type) Bore: 125mm Stroke: 1229mm Adjusting stroke: 30mm Magnet: with magnet Fixed type: TCM1 Seal material: TPU Tooth type: G tooth
Specifications
1. Model: SGCJ125X1229-30STCTCM1G
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover Orem: NBR(SGC250),TPU (Other)/4. Bearing: wear-resistant material/5. Front cover: Aluminum alloy/6.O-ring: NBR/7. Buffer O: NBR(SGC250),TPU (Other)/8. Wear ring: wear-resistant material/9.O-ring: NBR/10. Magnet: Rubber (SGC), None (SG)/11. Piston O: NBR/12. Hexagon Socket Screw: Carbon Steel/13. Piston: Aluminum alloy/14. Cylinder: Aluminum alloy/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel
Type of sealing ring :P-SGCJ125-R1 TPU material P-SGCJ125N-R1 NBR Material P-SGCJ125-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SG125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200F Floating joint F-M27X200U fisheye joint
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder;
2.SG series piston seal adopts two Y-type one-way seal structure, with compensation function, long life and low starting pressure;
3.SGC series piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function;
4.SG series is a steel tube cylinder with strong anti-collision ability;
5.SGC series is aluminum tube type cylinder, optional induction magnetic ring, SG series cylinder can not be optional induction magnetic ring;
6. The cylinder buffer adjustment is stable;
7. A variety of specifications of the cylinder and installation accessories to choose from;
8. Select high temperature resistant sealing material to ensure the normal operation of the cylinder at 150°C.
