Description

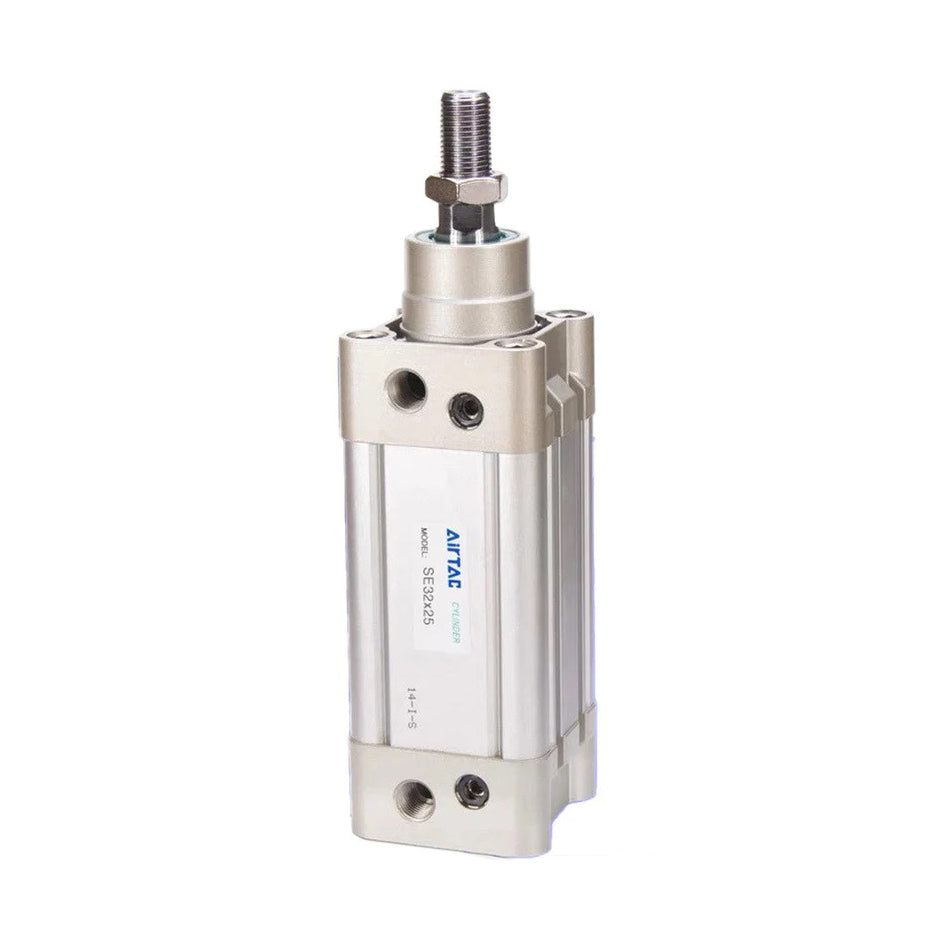

Specification: standard compound type Bore: 125mm Piston rod material: SUS316 Stroke: 1464mm Magnet: with magnet Fixed type: TC Seal material: NBR Tooth type: G tooth
Specifications
1. Model: SE125CX1464STCNG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 40, Nozzle caliber: PT1/2
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive plate, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8.O-ring: NBR/9. Piston: Aluminum alloy/10. Piston O: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic, rubber (ø125)/13. Hexagon socket bolt: carbon steel/14. Buffer gasket: TPU/15. Back cover: Aluminum alloy/16. Strut nut: Carbon steel, Stainless steel
Type of sealing ring :P-SE125N-R1 TPU material P-SE125-R1 NBR Material P-SE125N-R2 Fluorine rubber material ， Installation accessories :F-SI125LB Axial mounting F-SI125FA Flange connecting plate F-SE125CA Single-ear fixing seat F-SE125CB Binaural mount F-SI125CR Single-ear connection seat F-SE125TC Middle Trunnion Bracket F-SI125FTC Front cover trunnion bracket F-SI125TCM1 trunnion mount F-SI125TCM2 trunnion mount ， cylinder magnetic ring :GMEB109X121X6 cylinder magnetic ring SE125 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M27X200I I Connector F-M27X200Y Y connector F-M27X200U fisheye joint ， Cylinder front cover rear cover accessories :SE125 Front cover SE125 Rear lid
Click to download Airtac product catalog
Product Features
1.ISO15552 and VDMA24562 standard cylinder.
2. The piston seal adopts two Y-type one-way seal structure, which has the advantages of compensation, long service life and low starting pressure.
3. The square aluminum tube without tie rod has good corrosion resistance.
4. The cylinder buffer adjustment is stable.
5. Various specifications of the cylinder and installation accessories to choose from.
