Description

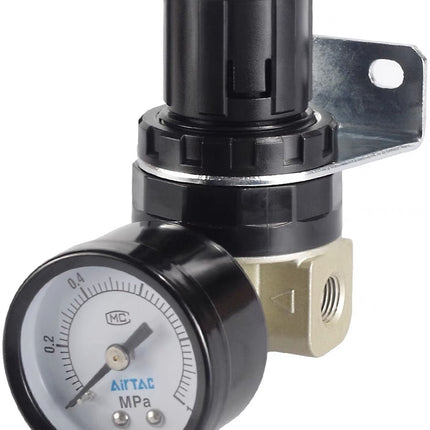

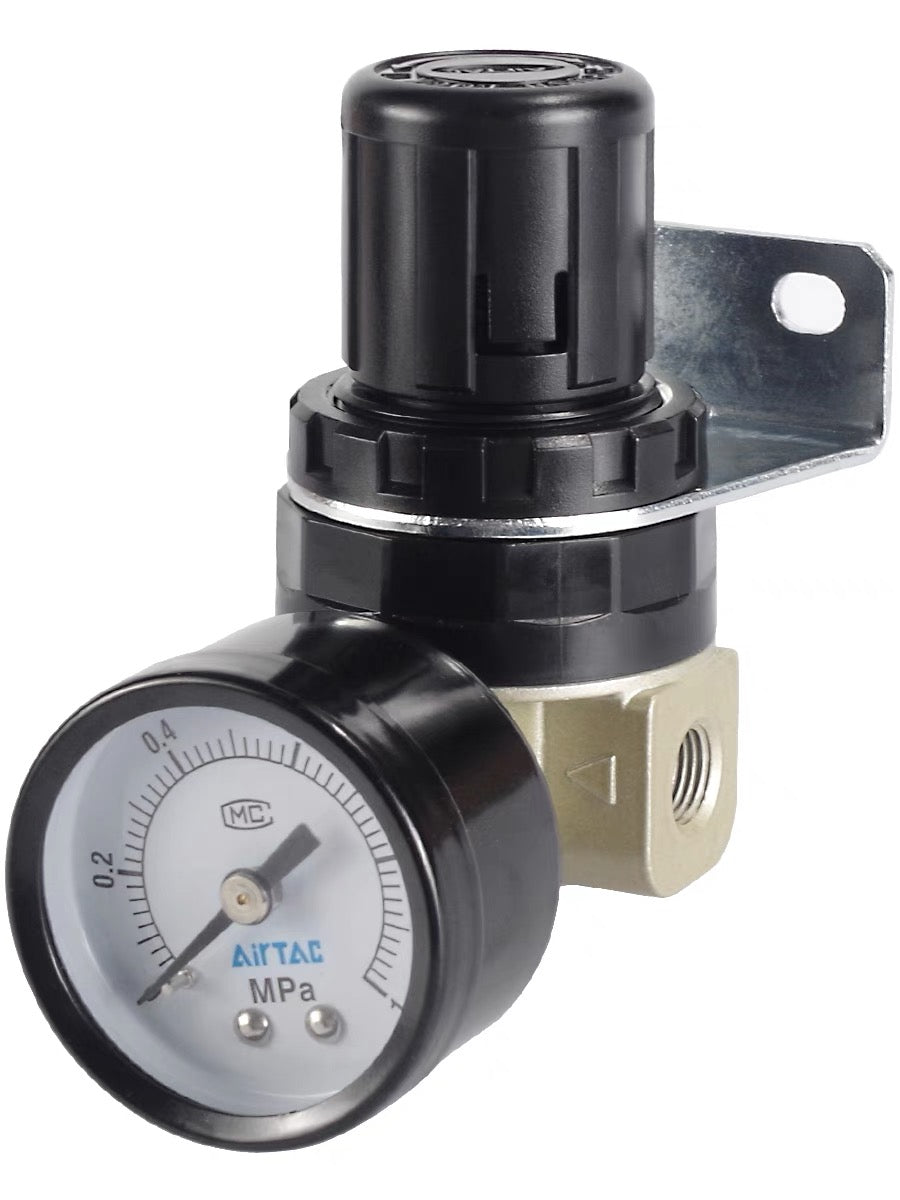

Series: 100 series Nozzle caliber: M5 Type: Standard Bracket: without bracket Pressure gauge: not attached
Specifications
1. Model: SDR100M5JN
2. Working medium: air, pressure regulating range: 0.05~0.9MPa(7 ~ 130psi), maximum operating pressure: 1.0MPa(145psi)
3. Guaranteed pressure: 1.5MPa(215psi), operating temperature range:-20~70 ℃, nozzle diameter: M5
4. Take over the tooth type G teeth, NPT teeth optional
Internal structure: 1. Body: aluminum alloy/2. Pressure regulating plug head: NBR/3.O-ring: NBR/4. Alien O order: NBR/5. Retaining ring cap: POM/6. Marking ring: POM/7. Main pressure regulator: POM/8. Main adjusting pressure shaft: fast cutting steel/9. Main pressure regulator: POM/10. Main pressure regulating hexagonal cap: fast cutting steel/11. Spring: SWC/12. Piston: POM/13. Pressure regulating valve seat: POM/14. Spring: SUS304
pressure regulating valve diaphragm :SDR100 Diaphragm
Click to download Airtac product catalog
Product Features
1. The back pressure type structure is compact, the installation is economical and time-saving.
2. A wide range of pressure regulation, in addition to the standard type and low-pressure type optional, stable output pressure, suitable for the output pressure is not high, but the performance and cost-effective requirements of the occasion.
3. monomer installation, easy to install.
