Description

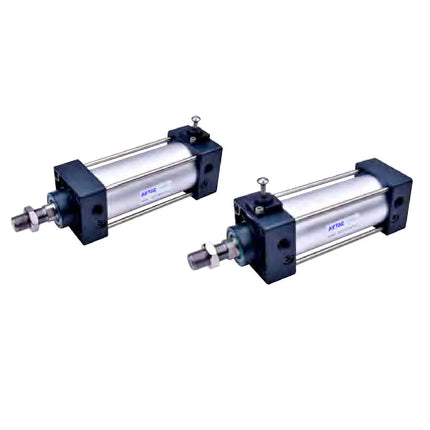

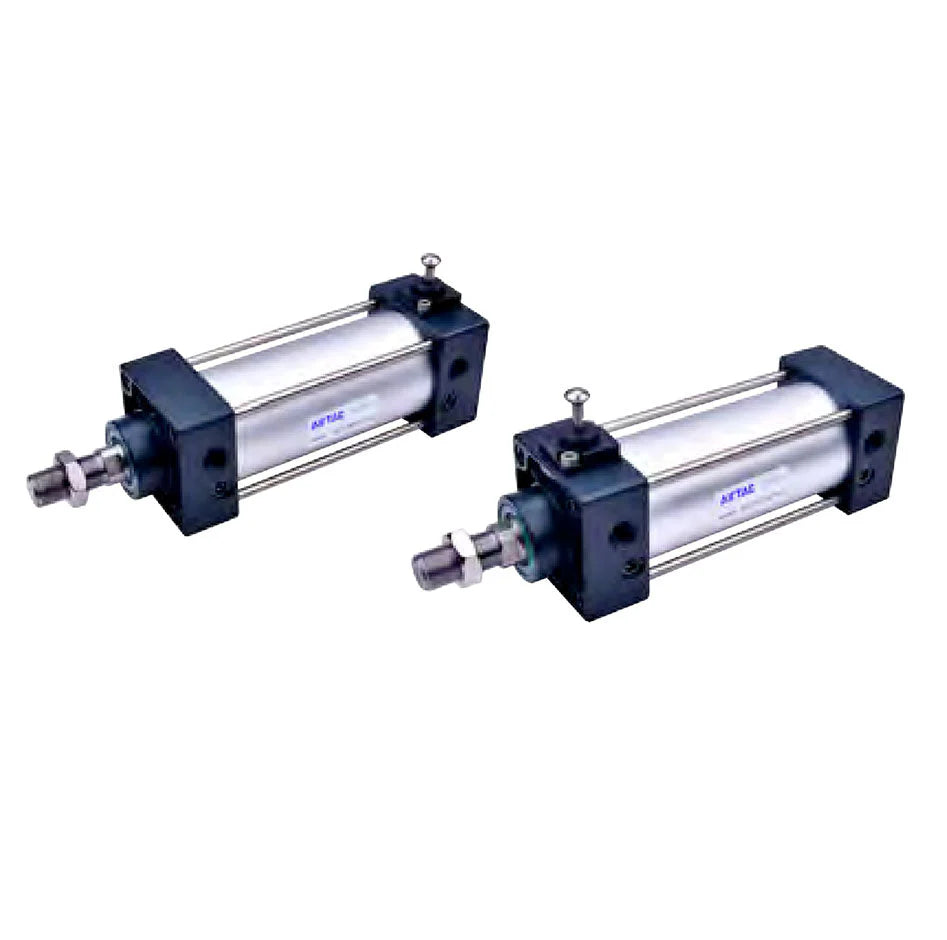

Specification: Standard double action with lock type (SC) Locking Position: Front Cover Attached Lock Type Cylinder diameter: 40mm Stroke: 949mm Magnet: with magnet Fixed type: TC Tooth type: G tooth
Specifications
1. Model: SCLF40X949STCG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke (mm): no locking end 21, Attached lock end 17, Nozzle caliber: PT1/4
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Plunger: carbon steel/12. Wear ring: wear-resistant material/13. Magnet: plastic/14. Buffer gasket: TPU/15. Lock combination/16. Rear cover: Aluminum alloy/17. Strut: carbon steel/18. Strut Nut: Carbon Steel
Installation accessories :F-SC40LB Axial mounting F-SC40FA Flange connecting plate F-SC40CA Single-ear fixing seat F-SC40CB Binaural mount F-SC40TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint
Click to download Airtac product catalog
Product Features
1. The lock cylinder has two types of front cover locking and rear cover locking.
2. There are two options for unlocking, automatic and manual.
