Airtac SCJ series: adjustable double-rod cylinder - SCJ80X200-30S

Photos are for reference only. Not all models have pictures.

Description

Specifications: SCJ80X200-30S — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 80 mm bore, 200 mm nominal stroke, 30 mm adjustment option, with magnet, TPU seal option and PT3/8 working ports.

Product Catalog

Download Airtac Product Catalog (PDF)

For product dimensions and mounting drawings, download and refer to the PDF catalog.

Model Code Explained

Code Meaning
SCJ Double-rod, double-acting cylinder with adjustable stroke
80 80 mm bore
X Separator before nominal stroke
200 200 mm nominal stroke
- Separator before adjustment stroke
30 30 mm adjustment-stroke option
S Magnetic piston
No mounting suffix Basic mounting
No seal-material suffix TPU seal option
No thread suffix PT3/8 working ports

Technical Specifications

Parameter Value
Model SCJ80X200-30S
Action Double acting, double rod, adjustable stroke
Bore 80 mm
Nominal stroke 200 mm; Catalog standard stroke
Adjustment stroke 30 mm adjustment option, not a second powered stroke
Construction Tie-rod cylinder; Airtac enterprise-standard family design
Magnetic piston With magnet; sensors separately selected
Mounting selection Basic mounting
Seal option TPU; basic O-ring materials are family references
Port thread PT3/8; two working air ports
Working medium Clean compressed air; 40 µm or finer filtration
Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
Proof pressure 1.5 MPa (15 bar); not continuous operating pressure
Operating temperature −20 to 70 °C; avoid freezing condensate
Piston speed 30–800 mm/s; match controls to load, piping and adjustment
Nominal-stroke tolerance +1 / 0 mm
Cushioning Adjustable pneumatic cushioning; 28 mm nominal cushion-stroke reference
Rod diameter / end thread 25 mm / M20×1.5
Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod holder
Estimated cylinder weight 4877 g; engineering reference, not measured shipping weight

Engineering weight estimate using the same-bore SC catalog as a baseline plus an equivalent extra-rod allowance with representative steel density. The adjustment mechanism, changed covers and internal details are not separately mass-resolved. Mounts, rod-end joints, sensors, fittings and packaging are excluded. This is not an official SCJ net mass or a measured shipping weight; no error bound is established. Use the actual weighed assembly for handling and shipping.

Confirm actual travel, stop setting and end positions; the adjustment code alone does not specify usable travel. Check cushioning at the setting; strokes shorter than 28 mm cannot provide full nominal cushion travel.

Features and Operation

SCJ provides double-acting through-rod motion and stroke adjustment. Family references: aluminium-alloy barrel and covers with tie rods, compact bidirectional grease-retaining piston seal, adjustable pneumatic cushioning.

Confirm the ordered cylinder for the 150 °C special-seal feature; this TPU configuration remains −20 to 70 °C.

External and Mounting Dimensions

Dimensions: mm except threads; magnetic/nonmagnetic basic dimensions are equal. Drawing lengths do not guarantee the installed/moving envelope. Check clearance for both rods, adjustment, mounts, rod joints, fittings and sensors.

Parameter Value
Overall drawing reference: A + 2 × stroke + adjustment 668.5 mm = 238.5 + 2 × 200 + 30
Body face span: AC + stroke 307 mm = 107 + 200
Rear drawing span: DB + stroke + adjustment 265.5 mm = 35.5 + 200 + 30
Rear adjustment reference: DB + adjustment 65.5 mm = 35.5 + 30
Body width × height 94 × 94 mm (□B)
Mounting holes 8 × M10×1.5 (K), 17 mm deep (KA); 70 × 70 mm centers (□KB)
Rod diameter / end thread D = 25 mm; E = M20×1.5; EA = 40 mm
Front locating and local geometry M = 47; MA = 21; AB = 75; DA = 54; F = 26; FA = 10; H = 22 mm
Cover / port local geometry AD = 33; AE = 33; PA = 19.5; PB = 10 mm; P = PT3/8

Mounting and Rod-End Accessories

Mounting: basic, LB, FA or TC with TCM1; match load direction and motion. Listed parts do not imply included supply/quantity. Confirm assembly and support quantities for seller-defined TC+TCM1.

Part / assembly code Application and reference
F-SC80LB Foot mount; Carbon steel
F-SC80FA Front flange; Aluminium alloy
F-SC80TC Trunnion mount; Ductile cast iron; order with the cylinder and match TCM1
F-SC80TCM1 Trunnion support; Ductile cast iron
F-M20X150I I-type rod-end joint; 608 g catalog reference. Drawing dimensions: NC = 20; ND = 80; NE = 102; NF = 40; NG = 30; NH = M20×1.5; NM = 20.
F-M20X150Y Y-type rod-end joint; 860 g catalog reference. Drawing dimensions: NA = 44.4; NC = 20; ND = 80; NP = 40; NQ = 101; NM = 20; NH = M20×1.5; PA = 53.4; PB = 45.2.
F-M20X150F Floating joint; 865 g catalog reference. Drawing dimensions: MA = 102; MB = 29; MC = 13; MD = 46; ME = 53; MF = 22; MG = 10; MH = 22; MI/MJ = M20×1.5; MK = 10°.
F-M20X150U Spherical rod-end joint; 370 g catalog reference. Drawing dimensions: PA = 18; PB = 46; PC = 20; PD = 33; PE = 77; PF = 100; PG = M20×1.5; PH = 15°; PI = 34; PJ = 30; PK = 25.

The rod-end choices use M20×1.5. Dimensions are in mm except threads and angles. MK is floating-joint angular compensation. PH is the spherical-joint angle. Carbon-steel classification does not specify all subcomponents/finishes. Add only supplied accessory mass. The floating-joint radial-offset note for M6 and smaller does not apply.

Verify genuine SCJ seal kits, wear rings, guide bushings, nuts, covers and adjustment parts by exact model, seal and production revision. Drawing numbers and bore size are not service ordering codes. Replacement magnets concern magnetic configurations only.

Force and Circuit Selection

Parameter Value
Ideal effective area, both directions 4535.67 mm² = π / 4 × (80² − 25²)
Calculated force at 0.5 MPa, both directions 2267.84 N
Force calculation Force (N) = annular pressure area (mm²) × pressure (MPa), before friction, backpressure and dynamic losses
Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s, subject to cylinder speed limits; not guaranteed payload/structural safety factors

Equal-diameter through-rod calculation. Size for annular area, load, adjusted travel, line losses, valve flow and exhaust backpressure; bore alone does not determine speed/payload.

Installation and Maintenance

Qualified staff must select, install and service the system. Guard both moving rod ends and secure the cylinder, loads and attachments. Before service or adjustment, isolate air and electricity, vent pressure and secure motion. Design safe responses to air/power loss, emergency stops and restart.

Check protection from corrosive gas, chemicals, solvents, salt, water or steam, explosive atmospheres, vibration, radiant heat and sunlight. Protect sliding surfaces from damage, dust, humidity, splashes, oil and coolant. Prevent condensate freezing; external magnetic fields may disturb magnetic sensing.

Use clean, dry, purified compressed air. Remove water, particles, oxidized oil, tar and carbon; filter to 40 µm or finer. Confirm suitability for other fluids and synthetic-oil contaminants. Excessively dry air may shorten life unless the component is designed for it.

Factory lubrication normally needs no added oil. Once oil is introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. The guide gives oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for actual flow and avoid excess oil.

Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant or metal tube near hot spatter. Check each tube’s pressure, temperature, OD, ID and bend radius; generic nylon/PU advice cannot override its rating.

PT3/8 piping torque: 8–10 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

Use speed controls at both working ports; start closed and open slowly. Meter-out commonly stabilizes motion and reduces startup runout. Adjust cushioning gradually for the load and speed, avoiding impact, rebound or forcing its screw. High mass or speed may need engineered deceleration or an external absorber.

Air compressibility and leakage prevent assuming precise prolonged intermediate stopping with a closed-center valve or precise cylinder synchronization. Verify the adjusted travel, mechanical stop setting, available cushioning, air consumption and clearances for the actual application.

Align rod and load motion and provide independent guidance against side load, bending and torque. Check long-rod buckling, sag and vibration; support long spans and limit unsupported lever arms. Use a suitable TC pivot arrangement for swinging motion rather than forcing a rigid LB mount. Check bracket loads and flange orientation.

During long storage, operate periodically and prevent corrosion, following the air-quality and lubrication requirements.

Internal Components — Family Reference

Materials below are basic SC-family references. Not a complete SCJ double-rod/adjustment-mechanism BOM. Item numbers identify drawing references, not service codes; verify parts for the production revision.

Family drawing item Basic material reference
1 — Rod-end nut Carbon steel
2 — Piston rod S45C hard-chrome-plated ground rod
3 — Front-cover O-ring TPU
4 — Guide bushing Wear-resistant material
5 — Front cover Aluminium alloy
6 — Cushion O-ring NBR
7 — Cushion seal TPU
8 — Cylinder barrel Aluminium alloy
9 — Piston Aluminium alloy
10 — Piston-rod O-ring NBR
11 — Piston O-ring NBR
12 — Magnet Plastic magnet; magnetic configuration only
13 — Wear ring Wear-resistant material
14 — Hex-socket screw Carbon steel
15 — Rear cover Aluminium alloy
16 — Tie rod Carbon steel
17 — Tie-rod nut Carbon steel

Series Ordering Options

Parameter Value
Series identity SCJ: double-rod, double-acting cylinder with adjustable stroke
Adjustment-stroke options 10, 20, 30, 40, 50, 75, 100 mm; second numeric slot after the hyphen
Magnet No suffix: without magnet; S: magnetic piston
Seal material No suffix: TPU; H: Fluororubber; N: NBR. This product uses the blank-code TPU.
Mounting Basic, LB, FA or TC with matching TCM1; TC+TCM1 package identifiers are seller-defined
Thread options PT, G and NPT; match the complete ordered port and fitting thread
Standard nominal strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 mm
Catalog nominal-stroke limits Maximum stroke 1500 mm; allowable stroke 2000 mm

Nominal strokes of 1600 mm and above are non-standard orders within the allowable range. Confirm ordering/delivery of other non-listed strokes. Match travel and clearance to the actual adjustment; it is not a powered stage.

Magnetic Sensors and Connection Leads

This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC80SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

Sensor / separate accessory Complete ordering choices
DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
F-SC80SH SCJ80 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
Electrical selection Limits and conditions
DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. The SCJ80 TPU cylinder remains −20–70 °C, so the ordinary sensor-equipped system is limited to −10–70 °C or narrower.

Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
PC straight 6 mm OD: PC603,PC603D,PC603-S,PC603D-S; 8 mm OD: PC803,PC803D,PC803-S,PC803D-S; 10 mm OD: PC1003,PC1003D,PC1003-S,PC1003D-S; 12 mm OD: PC1203,PC1203D,PC1203-S,PC1203D-S
PL elbow 6 mm OD: PL603,PL603D,PL603-S,PL603D-S; 8 mm OD: PL803,PL803D,PL803-S,PL803D-S; 10 mm OD: PL1003,PL1003D,PL1003-S,PL1003D-S; 12 mm OD: PL1203,PL1203D,PL1203-S,PL1203D-S
PLL extended elbow 6 mm OD: PLL603,PLL603D,PLL603-S,PLL603D-S; 8 mm OD: PLL803,PLL803D,PLL803-S,PLL803D-S; 10 mm OD: PLL1003,PLL1003D,PLL1003-S,PLL1003D-S; 12 mm OD: PLL1203,PLL1203D,PLL1203-S,PLL1203D-S
PEB branch tee 6 mm OD: PEB603,PEB603D,PEB603-S,PEB603D-S; 8 mm OD: PEB803,PEB803D,PEB803-S,PEB803D-S; 10 mm OD: PEB1003,PEB1003D,PEB1003-S,PEB1003D-S; 12 mm OD: PEB1203,PEB1203D,PEB1203-S,PEB1203D-S
PED run tee 6 mm OD: PED603,PED603D,PED603-S,PED603D-S; 8 mm OD: PED803,PED803D,PED803-S,PED803D-S; 10 mm OD: PED1003,PED1003D,PED1003-S,PED1003D-S; 12 mm OD: PED1203,PED1203D,PED1203-S,PED1203D-S
PYB Y fitting 6 mm OD: PYB603,PYB603D,PYB603-S,PYB603D-S; 8 mm OD: PYB803,PYB803D,PYB803-S,PYB803D-S; 10 mm OD: PYB1003,PYB1003D,PYB1003-S,PYB1003D-S; 12 mm OD: PYB1203,PYB1203D,PYB1203-S,PYB1203D-S
PH banjo elbow 6 mm OD: PH603,PH603D,PH603-S,PH603D-S; 8 mm OD: PH803,PH803D,PH803-S,PH803D-S; 10 mm OD: PH1003,PH1003D,PH1003-S,PH1003D-S; 12 mm OD: PH1203,PH1203D,PH1203-S,PH1203D-S
PHF female-branch banjo 6 mm OD: PHF603,PHF603D,PHF603-S,PHF603D-S; 8 mm OD: PHF803,PHF803D,PHF803-S,PHF803D-S; 10 mm OD: PHF1003,PHF1003D,PHF1003-S,PHF1003D-S; 12 mm OD: PHF1203,PHF1203D,PHF1203-S,PHF1203D-S
PHW twin banjo 6 mm OD: PHW603,PHW603D,PHW603-S,PHW603D-S; 8 mm OD: PHW803,PHW803D,PHW803-S,PHW803D-S; 10 mm OD: PHW1003,PHW1003D,PHW1003-S,PHW1003D-S; 12 mm OD: PHW1203,PHW1203D,PHW1203-S,PHW1203D-S
PZB cross fitting 6 mm OD: PZB603,PZB603D,PZB603-S,PZB603D-S; 8 mm OD: PZB803,PZB803D,PZB803-S,PZB803D-S; 10 mm OD: PZB1003,PZB1003D,PZB1003-S,PZB1003D-S; 12 mm OD: PZB1203,PZB1203D,PZB1203-S,PZB1203D-S
POC round straight 8 mm OD: POC803,POC803D,POC803-S,POC803D-S; 10 mm OD: POC1003,POC1003D,POC1003-S,POC1003D-S; 12 mm OD: POC1203,POC1203D,POC1203-S,POC1203D-S
PKD reducing distributor main 10 / branch 8 mm OD: PKD10-803,PKD10-803D,PKD10-803-S,PKD10-803D-S
BPC metal straight 6 mm OD: BPC603; 8 mm OD: BPC803; 10 mm OD: BPC1003; 12 mm OD: BPC1203
BPOC metal round straight 10 mm OD: BPOC1003; 12 mm OD: BPOC1203
BKC compression fitting 6 × 4 mm OD × ID: BKC0604-03,BKC0604-03-S; 8 × 5 mm OD × ID: BKC0805-03,BKC0805-03-S; 8 × 5.5 or 6 mm OD × ID: BKC0806-03,BKC0806-03-S; 10 × 6.5 mm OD × ID: BKC1065-03,BKC1065-03-S; 10 × 7.5 or 8 mm OD × ID: BKC1075-03,BKC1075-03-S; 12 × 8 mm OD × ID: BKC1208-03,BKC1208-03-S; 12 × 9 or 10 mm OD × ID: BKC1209-03,BKC1209-03-S
BB male–male adapter other end male PT1/8: BB0103,BB0103-S; other end male PT1/4: BB0203,BB0203-S; other end male PT3/8: BB0303,BB0303-S; other end male PT1/2: BB0304,BB0304-S
BD male–female adapter other end female PT1/8: BD0103,BD0103-S; other end female PT1/4: BD0203,BD0203-S
BZ unused auxiliary plug BZ03,BZ03-S
BSL valve-exhaust silencer BSL03,BSL03-S
BSLM miniature valve-exhaust silencer BSLM03,BSLM03-S
BESL adjustable valve-exhaust silencer BESL03,BESL03-S
PAL plastic valve-exhaust silencer PAL03,PAL03D
PSL elbow flow control 6 mm OD: PSL603A,PSL603AD,PSL603B,PSL603BD,PSL603A-S,PSL603AD-S,PSL603B-S,PSL603BD-S; 8 mm OD: PSL803A,PSL803AD,PSL803B,PSL803BD,PSL803A-S,PSL803AD-S,PSL803B-S,PSL803BD-S; 10 mm OD: PSL1003A,PSL1003AD,PSL1003B,PSL1003BD,PSL1003A-S,PSL1003AD-S,PSL1003B-S,PSL1003BD-S; 12 mm OD: PSL1203A,PSL1203AD,PSL1203B,PSL1203BD,PSL1203A-S,PSL1203AD-S,PSL1203B-S,PSL1203BD-S
PSS universal flow control 10 mm OD: PSS1003A,PSS1003AD,PSS1003B,PSS1003BD,PSS1003A-S,PSS1003AD-S,PSS1003B-S,PSS1003BD-S; 12 mm OD: PSS1203A,PSS1203AD,PSS1203B,PSS1203BD,PSS1203A-S,PSS1203AD-S,PSS1203B-S,PSS1203BD-S
PTL push-lock flow control 6 mm OD: PTL603A,PTL603AD,PTL603B,PTL603BD; 8 mm OD: PTL803A,PTL803AD,PTL803B,PTL803BD; 10 mm OD: PTL1003A,PTL1003AD,PTL1003B,PTL1003BD; 12 mm OD: PTL1203A,PTL1203AD,PTL1203B,PTL1203BD
PSA tube-to-tube flow control 6 mm OD: PSA6,PSA6D,PSA6-S,PSA6D-S; 8 mm OD: PSA8,PSA8D,PSA8-S,PSA8D-S; 10 mm OD: PSA10,PSA10D,PSA10-S,PSA10D-S; 12 mm OD: PSA12,PSA12D,PSA12-S,PSA12D-S
GPSA tube-to-tube flow control 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
PPA valve-exhaust plug-in silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
US98A/UE95A PU tubing 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
ASC separate inline flow control two female PT3/8: ASC30010
GAFR upstream filter/regulator female PT3/8: GAFR30010S,GAFR40010S

Separate options; no included-kit or stock promise. Connect both SCJ80 working ports using PT3/8 fittings and the specified seal; check insertion depth, wrench/rotation clearance, flow and tube loading. PT/G/NPT are not interchangeable. The M20×1.5 rod thread is not an air port.

Use suitable soft nylon/PU tubing: exact OD, plus ID for compression. Where offered: D=black, blank=grey, -M=miniature. -S identifies specified stainless-304 parts, not an all-stainless assembly. PHF has male RA and extra female RB, both PT3/8; connect or seal RB as designed. RB is not a tube socket. Tees/Y/cross/distributors must not bridge chambers or unrelated controls.

Push-in fittings, direct/threadless controls and listed silencers: 0–1 MPa, −20–70 °C. BPC/BPOC: 0–0.9 MPa, 0–150 °C; SCJ path 0.15–0.9 MPa. BKC/BB/BD/BZ: 0–1 MPa, 0–150 °C; SCJ path 0.15–1 MPa. Using the general cylinder reference −20–70 °C, 0–150 °C parts limit the assembly to 0–70 °C or narrower. Obey lower valve/tube/sensor limits; component vacuum data do not rate the cylinder assembly.

Install threads with the body hex, not the locking nut; insert tubing fully before tightening. BKC0806-03 accepts 8 × 5.5 or 8 × 6 mm; 8 × 5 mm needs BKC0805-03. BB/BD use one thread standard: BB male–male, BD male–female; other ends are labelled in the table. Match its gender/size and flow; no cross-thread conversion. BZ closes permitted unused auxiliary ports only, never active cylinder ports.

At the cylinder, A meters thread→tube exhaust (meter-out), with free reverse supply; B meters tube→cylinder supply (meter-in). A is usual for double action; B needs a designed meter-in circuit. Start closed, open slowly; closed leakage is allowed, so these are not shutoffs. PTL caps on 3/8-port variants: adjustment reference: 0.24 N·m, not pipe-thread torque. Never force caps/end stops. PSA/PSA-S/GPSA are metric tube-to-tube controls, no A/B suffixes; match both ODs and the body check/throttle symbol. GPSA does not mean G thread.

Silencers: separate valve exhaust only. Match its actual thread, flow and backpressure; not cylinder-port fittings, inlet filters or shutoffs. BESL adjusts backpressure. PPA6/8/10/12 use plain metric stems in matching sockets: POM body/cap, PE filter, 0–1 MPa, −20–70 °C; 25 dB at 0.5 MPa is a catalog test, not an onsite noise promise. PPA has no D or thread suffix.

ASC30010: separate two-female-PT3/8-port inline control; needs male fittings. Follow P/A and the check/throttle symbol. 0.05–0.95 MPa, −20–70 °C and 40 µm-or-finer filtered air; SCJ path 0.15–0.95 MPa before lower limits. Rated flow does not guarantee cylinder speed.

GAFR30010S,GAFR40010S: separate upstream PT3/8 filter/regulator, 40 µm element, PC bowl, differential/manual drain, bracket and round gauge, no reverse-flow valve. Inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Respect IN/OUT, flow/pressure loss, condensate, bowl environment and all downstream limits; not a cylinder fitting or vacuum regulator.

US98A/UE95A examples: blue 100 m coils, not supplied cut lengths. Rated 1 MPa at 23 °C, temperature derating required: US98A −20–70 °C, UE95A −40–70 °C. Match OD/ID, bend radius, routing and flow; thinner low-pressure tubes are not equivalent. Size flow for the SCJ annular area and actual load; no achieved speed is guaranteed.

Separate Directional-Valve and Tube Examples

4A PT: single control 4A31010; double control 4A32010. 4V PT: single control 4V31010B; double control 4V32010B. 5V PT: single control 5V31010B050; double control 5V32010B050. All listed B versions use DC24V. 4V has DIN entry and internal pilot; 5V has 0.5 m leads (050) and internal pilot. 4A has single/double pneumatic control, external pilot supply and no coil. 4A configurations 30010: single control has one PT1/8 pilot port, double has two; confirm pilot threads on G versions.

30010 (PT: 4A/4V/5V): P 3/8, A/B 3/8, R/S 1/4. Port dimensions use the PT/G thread assigned above; choose each endpoint independently. These separately piped valve examples are not direct cylinder fittings or included parts. Operating range: 0.15–0.8 MPa, −20 to 70 °C, 40 µm filtration. Confirm flow, load, pilot supply and exhaust backpressure; apply all lower component limits.

UN54D flame-resistant tubing: 1 MPa at 23 °C, -20 to 70 °C; UN54D100065100MBU: 10 × 6.5 mm, minimum bend radius 20 mm. US98A tubing: 1 MPa at 23 °C, -20 to 70 °C; US98A160110100MBU: 16 × 11 mm, minimum bend radius 80 mm; burst reference 3 MPa at 23 °C is not working pressure; reference mass 10.03 kg/100 m. All are blue 100 m coils; derate pressure above 23 °C. UN54D flame-resistant does not mean fireproof. Match exact OD, ID, tube compatibility and bend radius; PA6/PA12 sizes 8 × 5 and 10 × 6.5 mm are not established here.

M5 and 4M NAMUR references have their own valve connections and are not direct SCJ mounting accessories. No unverified direct adapter or complete kit is specified.

The 16 × 11 mm tube is documented, but a complete 16 mm fitting/control connection path is not established here. Do not substitute smaller fittings or infer another tube ordering code.

SCJ has two working ports and equal-diameter rods. Size flow using its annular pressure area, actual load, adjusted travel, piping losses and exhaust backpressure; a general bore-based chart does not guarantee SCJ speed.

Product form

Specifications: SCJ80X200-30S — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 80 mm bore, 200 mm nominal stroke, 30 mm adjustment... Read more

SKU: SCJ80X200-30S

$306.28 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

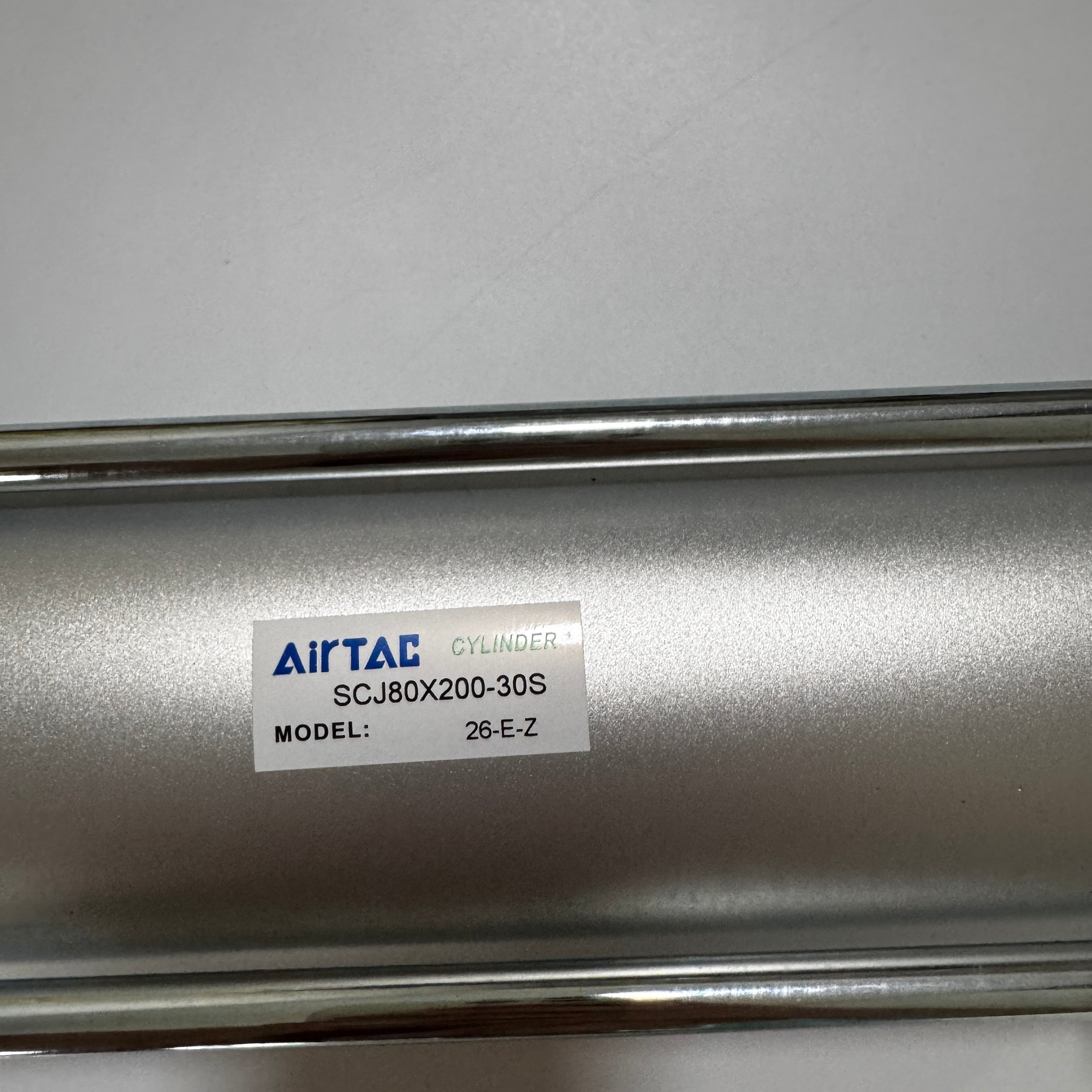

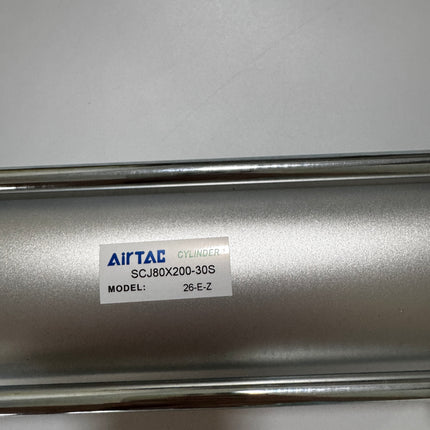

    Specifications: SCJ80X200-30S — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 80 mm bore, 200 mm nominal stroke, 30 mm adjustment option, with magnet, TPU seal option and PT3/8 working ports.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For product dimensions and mounting drawings, download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    SCJ Double-rod, double-acting cylinder with adjustable stroke
    80 80 mm bore
    X Separator before nominal stroke
    200 200 mm nominal stroke
    - Separator before adjustment stroke
    30 30 mm adjustment-stroke option
    S Magnetic piston
    No mounting suffix Basic mounting
    No seal-material suffix TPU seal option
    No thread suffix PT3/8 working ports

    Technical Specifications

    Parameter Value
    Model SCJ80X200-30S
    Action Double acting, double rod, adjustable stroke
    Bore 80 mm
    Nominal stroke 200 mm; Catalog standard stroke
    Adjustment stroke 30 mm adjustment option, not a second powered stroke
    Construction Tie-rod cylinder; Airtac enterprise-standard family design
    Magnetic piston With magnet; sensors separately selected
    Mounting selection Basic mounting
    Seal option TPU; basic O-ring materials are family references
    Port thread PT3/8; two working air ports
    Working medium Clean compressed air; 40 µm or finer filtration
    Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
    Proof pressure 1.5 MPa (15 bar); not continuous operating pressure
    Operating temperature −20 to 70 °C; avoid freezing condensate
    Piston speed 30–800 mm/s; match controls to load, piping and adjustment
    Nominal-stroke tolerance +1 / 0 mm
    Cushioning Adjustable pneumatic cushioning; 28 mm nominal cushion-stroke reference
    Rod diameter / end thread 25 mm / M20×1.5
    Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod holder
    Estimated cylinder weight 4877 g; engineering reference, not measured shipping weight

    Engineering weight estimate using the same-bore SC catalog as a baseline plus an equivalent extra-rod allowance with representative steel density. The adjustment mechanism, changed covers and internal details are not separately mass-resolved. Mounts, rod-end joints, sensors, fittings and packaging are excluded. This is not an official SCJ net mass or a measured shipping weight; no error bound is established. Use the actual weighed assembly for handling and shipping.

    Confirm actual travel, stop setting and end positions; the adjustment code alone does not specify usable travel. Check cushioning at the setting; strokes shorter than 28 mm cannot provide full nominal cushion travel.

    Features and Operation

    SCJ provides double-acting through-rod motion and stroke adjustment. Family references: aluminium-alloy barrel and covers with tie rods, compact bidirectional grease-retaining piston seal, adjustable pneumatic cushioning.

    Confirm the ordered cylinder for the 150 °C special-seal feature; this TPU configuration remains −20 to 70 °C.

    External and Mounting Dimensions

    Dimensions: mm except threads; magnetic/nonmagnetic basic dimensions are equal. Drawing lengths do not guarantee the installed/moving envelope. Check clearance for both rods, adjustment, mounts, rod joints, fittings and sensors.

    Parameter Value
    Overall drawing reference: A + 2 × stroke + adjustment 668.5 mm = 238.5 + 2 × 200 + 30
    Body face span: AC + stroke 307 mm = 107 + 200
    Rear drawing span: DB + stroke + adjustment 265.5 mm = 35.5 + 200 + 30
    Rear adjustment reference: DB + adjustment 65.5 mm = 35.5 + 30
    Body width × height 94 × 94 mm (□B)
    Mounting holes 8 × M10×1.5 (K), 17 mm deep (KA); 70 × 70 mm centers (□KB)
    Rod diameter / end thread D = 25 mm; E = M20×1.5; EA = 40 mm
    Front locating and local geometry M = 47; MA = 21; AB = 75; DA = 54; F = 26; FA = 10; H = 22 mm
    Cover / port local geometry AD = 33; AE = 33; PA = 19.5; PB = 10 mm; P = PT3/8

    Mounting and Rod-End Accessories

    Mounting: basic, LB, FA or TC with TCM1; match load direction and motion. Listed parts do not imply included supply/quantity. Confirm assembly and support quantities for seller-defined TC+TCM1.

    Part / assembly code Application and reference
    F-SC80LB Foot mount; Carbon steel
    F-SC80FA Front flange; Aluminium alloy
    F-SC80TC Trunnion mount; Ductile cast iron; order with the cylinder and match TCM1
    F-SC80TCM1 Trunnion support; Ductile cast iron
    F-M20X150I I-type rod-end joint; 608 g catalog reference. Drawing dimensions: NC = 20; ND = 80; NE = 102; NF = 40; NG = 30; NH = M20×1.5; NM = 20.
    F-M20X150Y Y-type rod-end joint; 860 g catalog reference. Drawing dimensions: NA = 44.4; NC = 20; ND = 80; NP = 40; NQ = 101; NM = 20; NH = M20×1.5; PA = 53.4; PB = 45.2.
    F-M20X150F Floating joint; 865 g catalog reference. Drawing dimensions: MA = 102; MB = 29; MC = 13; MD = 46; ME = 53; MF = 22; MG = 10; MH = 22; MI/MJ = M20×1.5; MK = 10°.
    F-M20X150U Spherical rod-end joint; 370 g catalog reference. Drawing dimensions: PA = 18; PB = 46; PC = 20; PD = 33; PE = 77; PF = 100; PG = M20×1.5; PH = 15°; PI = 34; PJ = 30; PK = 25.

    The rod-end choices use M20×1.5. Dimensions are in mm except threads and angles. MK is floating-joint angular compensation. PH is the spherical-joint angle. Carbon-steel classification does not specify all subcomponents/finishes. Add only supplied accessory mass. The floating-joint radial-offset note for M6 and smaller does not apply.

    Verify genuine SCJ seal kits, wear rings, guide bushings, nuts, covers and adjustment parts by exact model, seal and production revision. Drawing numbers and bore size are not service ordering codes. Replacement magnets concern magnetic configurations only.

    Force and Circuit Selection

    Parameter Value
    Ideal effective area, both directions 4535.67 mm² = π / 4 × (80² − 25²)
    Calculated force at 0.5 MPa, both directions 2267.84 N
    Force calculation Force (N) = annular pressure area (mm²) × pressure (MPa), before friction, backpressure and dynamic losses
    Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s, subject to cylinder speed limits; not guaranteed payload/structural safety factors

    Equal-diameter through-rod calculation. Size for annular area, load, adjusted travel, line losses, valve flow and exhaust backpressure; bore alone does not determine speed/payload.

    Installation and Maintenance

    Qualified staff must select, install and service the system. Guard both moving rod ends and secure the cylinder, loads and attachments. Before service or adjustment, isolate air and electricity, vent pressure and secure motion. Design safe responses to air/power loss, emergency stops and restart.

    Check protection from corrosive gas, chemicals, solvents, salt, water or steam, explosive atmospheres, vibration, radiant heat and sunlight. Protect sliding surfaces from damage, dust, humidity, splashes, oil and coolant. Prevent condensate freezing; external magnetic fields may disturb magnetic sensing.

    Use clean, dry, purified compressed air. Remove water, particles, oxidized oil, tar and carbon; filter to 40 µm or finer. Confirm suitability for other fluids and synthetic-oil contaminants. Excessively dry air may shorten life unless the component is designed for it.

    Factory lubrication normally needs no added oil. Once oil is introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. The guide gives oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for actual flow and avoid excess oil.

    Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant or metal tube near hot spatter. Check each tube’s pressure, temperature, OD, ID and bend radius; generic nylon/PU advice cannot override its rating.

    PT3/8 piping torque: 8–10 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

    Use speed controls at both working ports; start closed and open slowly. Meter-out commonly stabilizes motion and reduces startup runout. Adjust cushioning gradually for the load and speed, avoiding impact, rebound or forcing its screw. High mass or speed may need engineered deceleration or an external absorber.

    Air compressibility and leakage prevent assuming precise prolonged intermediate stopping with a closed-center valve or precise cylinder synchronization. Verify the adjusted travel, mechanical stop setting, available cushioning, air consumption and clearances for the actual application.

    Align rod and load motion and provide independent guidance against side load, bending and torque. Check long-rod buckling, sag and vibration; support long spans and limit unsupported lever arms. Use a suitable TC pivot arrangement for swinging motion rather than forcing a rigid LB mount. Check bracket loads and flange orientation.

    During long storage, operate periodically and prevent corrosion, following the air-quality and lubrication requirements.

    Internal Components — Family Reference

    Materials below are basic SC-family references. Not a complete SCJ double-rod/adjustment-mechanism BOM. Item numbers identify drawing references, not service codes; verify parts for the production revision.

    Family drawing item Basic material reference
    1 — Rod-end nut Carbon steel
    2 — Piston rod S45C hard-chrome-plated ground rod
    3 — Front-cover O-ring TPU
    4 — Guide bushing Wear-resistant material
    5 — Front cover Aluminium alloy
    6 — Cushion O-ring NBR
    7 — Cushion seal TPU
    8 — Cylinder barrel Aluminium alloy
    9 — Piston Aluminium alloy
    10 — Piston-rod O-ring NBR
    11 — Piston O-ring NBR
    12 — Magnet Plastic magnet; magnetic configuration only
    13 — Wear ring Wear-resistant material
    14 — Hex-socket screw Carbon steel
    15 — Rear cover Aluminium alloy
    16 — Tie rod Carbon steel
    17 — Tie-rod nut Carbon steel

    Series Ordering Options

    Parameter Value
    Series identity SCJ: double-rod, double-acting cylinder with adjustable stroke
    Adjustment-stroke options 10, 20, 30, 40, 50, 75, 100 mm; second numeric slot after the hyphen
    Magnet No suffix: without magnet; S: magnetic piston
    Seal material No suffix: TPU; H: Fluororubber; N: NBR. This product uses the blank-code TPU.
    Mounting Basic, LB, FA or TC with matching TCM1; TC+TCM1 package identifiers are seller-defined
    Thread options PT, G and NPT; match the complete ordered port and fitting thread
    Standard nominal strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 mm
    Catalog nominal-stroke limits Maximum stroke 1500 mm; allowable stroke 2000 mm

    Nominal strokes of 1600 mm and above are non-standard orders within the allowable range. Confirm ordering/delivery of other non-listed strokes. Match travel and clearance to the actual adjustment; it is not a powered stage.

    Magnetic Sensors and Connection Leads

    This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC80SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

    Sensor / separate accessory Complete ordering choices
    DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
    DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
    DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
    EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
    CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
    F-SC80SH SCJ80 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
    M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
    M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
    M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
    M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
    Electrical selection Limits and conditions
    DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
    DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
    CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
    Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. The SCJ80 TPU cylinder remains −20–70 °C, so the ordinary sensor-equipped system is limited to −10–70 °C or narrower.

    Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

    Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

    For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

    Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

    Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    PC straight 6 mm OD: PC603,PC603D,PC603-S,PC603D-S; 8 mm OD: PC803,PC803D,PC803-S,PC803D-S; 10 mm OD: PC1003,PC1003D,PC1003-S,PC1003D-S; 12 mm OD: PC1203,PC1203D,PC1203-S,PC1203D-S
    PL elbow 6 mm OD: PL603,PL603D,PL603-S,PL603D-S; 8 mm OD: PL803,PL803D,PL803-S,PL803D-S; 10 mm OD: PL1003,PL1003D,PL1003-S,PL1003D-S; 12 mm OD: PL1203,PL1203D,PL1203-S,PL1203D-S
    PLL extended elbow 6 mm OD: PLL603,PLL603D,PLL603-S,PLL603D-S; 8 mm OD: PLL803,PLL803D,PLL803-S,PLL803D-S; 10 mm OD: PLL1003,PLL1003D,PLL1003-S,PLL1003D-S; 12 mm OD: PLL1203,PLL1203D,PLL1203-S,PLL1203D-S
    PEB branch tee 6 mm OD: PEB603,PEB603D,PEB603-S,PEB603D-S; 8 mm OD: PEB803,PEB803D,PEB803-S,PEB803D-S; 10 mm OD: PEB1003,PEB1003D,PEB1003-S,PEB1003D-S; 12 mm OD: PEB1203,PEB1203D,PEB1203-S,PEB1203D-S
    PED run tee 6 mm OD: PED603,PED603D,PED603-S,PED603D-S; 8 mm OD: PED803,PED803D,PED803-S,PED803D-S; 10 mm OD: PED1003,PED1003D,PED1003-S,PED1003D-S; 12 mm OD: PED1203,PED1203D,PED1203-S,PED1203D-S
    PYB Y fitting 6 mm OD: PYB603,PYB603D,PYB603-S,PYB603D-S; 8 mm OD: PYB803,PYB803D,PYB803-S,PYB803D-S; 10 mm OD: PYB1003,PYB1003D,PYB1003-S,PYB1003D-S; 12 mm OD: PYB1203,PYB1203D,PYB1203-S,PYB1203D-S
    PH banjo elbow 6 mm OD: PH603,PH603D,PH603-S,PH603D-S; 8 mm OD: PH803,PH803D,PH803-S,PH803D-S; 10 mm OD: PH1003,PH1003D,PH1003-S,PH1003D-S; 12 mm OD: PH1203,PH1203D,PH1203-S,PH1203D-S
    PHF female-branch banjo 6 mm OD: PHF603,PHF603D,PHF603-S,PHF603D-S; 8 mm OD: PHF803,PHF803D,PHF803-S,PHF803D-S; 10 mm OD: PHF1003,PHF1003D,PHF1003-S,PHF1003D-S; 12 mm OD: PHF1203,PHF1203D,PHF1203-S,PHF1203D-S
    PHW twin banjo 6 mm OD: PHW603,PHW603D,PHW603-S,PHW603D-S; 8 mm OD: PHW803,PHW803D,PHW803-S,PHW803D-S; 10 mm OD: PHW1003,PHW1003D,PHW1003-S,PHW1003D-S; 12 mm OD: PHW1203,PHW1203D,PHW1203-S,PHW1203D-S
    PZB cross fitting 6 mm OD: PZB603,PZB603D,PZB603-S,PZB603D-S; 8 mm OD: PZB803,PZB803D,PZB803-S,PZB803D-S; 10 mm OD: PZB1003,PZB1003D,PZB1003-S,PZB1003D-S; 12 mm OD: PZB1203,PZB1203D,PZB1203-S,PZB1203D-S
    POC round straight 8 mm OD: POC803,POC803D,POC803-S,POC803D-S; 10 mm OD: POC1003,POC1003D,POC1003-S,POC1003D-S; 12 mm OD: POC1203,POC1203D,POC1203-S,POC1203D-S
    PKD reducing distributor main 10 / branch 8 mm OD: PKD10-803,PKD10-803D,PKD10-803-S,PKD10-803D-S
    BPC metal straight 6 mm OD: BPC603; 8 mm OD: BPC803; 10 mm OD: BPC1003; 12 mm OD: BPC1203
    BPOC metal round straight 10 mm OD: BPOC1003; 12 mm OD: BPOC1203
    BKC compression fitting 6 × 4 mm OD × ID: BKC0604-03,BKC0604-03-S; 8 × 5 mm OD × ID: BKC0805-03,BKC0805-03-S; 8 × 5.5 or 6 mm OD × ID: BKC0806-03,BKC0806-03-S; 10 × 6.5 mm OD × ID: BKC1065-03,BKC1065-03-S; 10 × 7.5 or 8 mm OD × ID: BKC1075-03,BKC1075-03-S; 12 × 8 mm OD × ID: BKC1208-03,BKC1208-03-S; 12 × 9 or 10 mm OD × ID: BKC1209-03,BKC1209-03-S
    BB male–male adapter other end male PT1/8: BB0103,BB0103-S; other end male PT1/4: BB0203,BB0203-S; other end male PT3/8: BB0303,BB0303-S; other end male PT1/2: BB0304,BB0304-S
    BD male–female adapter other end female PT1/8: BD0103,BD0103-S; other end female PT1/4: BD0203,BD0203-S
    BZ unused auxiliary plug BZ03,BZ03-S
    BSL valve-exhaust silencer BSL03,BSL03-S
    BSLM miniature valve-exhaust silencer BSLM03,BSLM03-S
    BESL adjustable valve-exhaust silencer BESL03,BESL03-S
    PAL plastic valve-exhaust silencer PAL03,PAL03D
    PSL elbow flow control 6 mm OD: PSL603A,PSL603AD,PSL603B,PSL603BD,PSL603A-S,PSL603AD-S,PSL603B-S,PSL603BD-S; 8 mm OD: PSL803A,PSL803AD,PSL803B,PSL803BD,PSL803A-S,PSL803AD-S,PSL803B-S,PSL803BD-S; 10 mm OD: PSL1003A,PSL1003AD,PSL1003B,PSL1003BD,PSL1003A-S,PSL1003AD-S,PSL1003B-S,PSL1003BD-S; 12 mm OD: PSL1203A,PSL1203AD,PSL1203B,PSL1203BD,PSL1203A-S,PSL1203AD-S,PSL1203B-S,PSL1203BD-S
    PSS universal flow control 10 mm OD: PSS1003A,PSS1003AD,PSS1003B,PSS1003BD,PSS1003A-S,PSS1003AD-S,PSS1003B-S,PSS1003BD-S; 12 mm OD: PSS1203A,PSS1203AD,PSS1203B,PSS1203BD,PSS1203A-S,PSS1203AD-S,PSS1203B-S,PSS1203BD-S
    PTL push-lock flow control 6 mm OD: PTL603A,PTL603AD,PTL603B,PTL603BD; 8 mm OD: PTL803A,PTL803AD,PTL803B,PTL803BD; 10 mm OD: PTL1003A,PTL1003AD,PTL1003B,PTL1003BD; 12 mm OD: PTL1203A,PTL1203AD,PTL1203B,PTL1203BD
    PSA tube-to-tube flow control 6 mm OD: PSA6,PSA6D,PSA6-S,PSA6D-S; 8 mm OD: PSA8,PSA8D,PSA8-S,PSA8D-S; 10 mm OD: PSA10,PSA10D,PSA10-S,PSA10D-S; 12 mm OD: PSA12,PSA12D,PSA12-S,PSA12D-S
    GPSA tube-to-tube flow control 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
    PPA valve-exhaust plug-in silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
    US98A/UE95A PU tubing 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
    ASC separate inline flow control two female PT3/8: ASC30010
    GAFR upstream filter/regulator female PT3/8: GAFR30010S,GAFR40010S

    Separate options; no included-kit or stock promise. Connect both SCJ80 working ports using PT3/8 fittings and the specified seal; check insertion depth, wrench/rotation clearance, flow and tube loading. PT/G/NPT are not interchangeable. The M20×1.5 rod thread is not an air port.

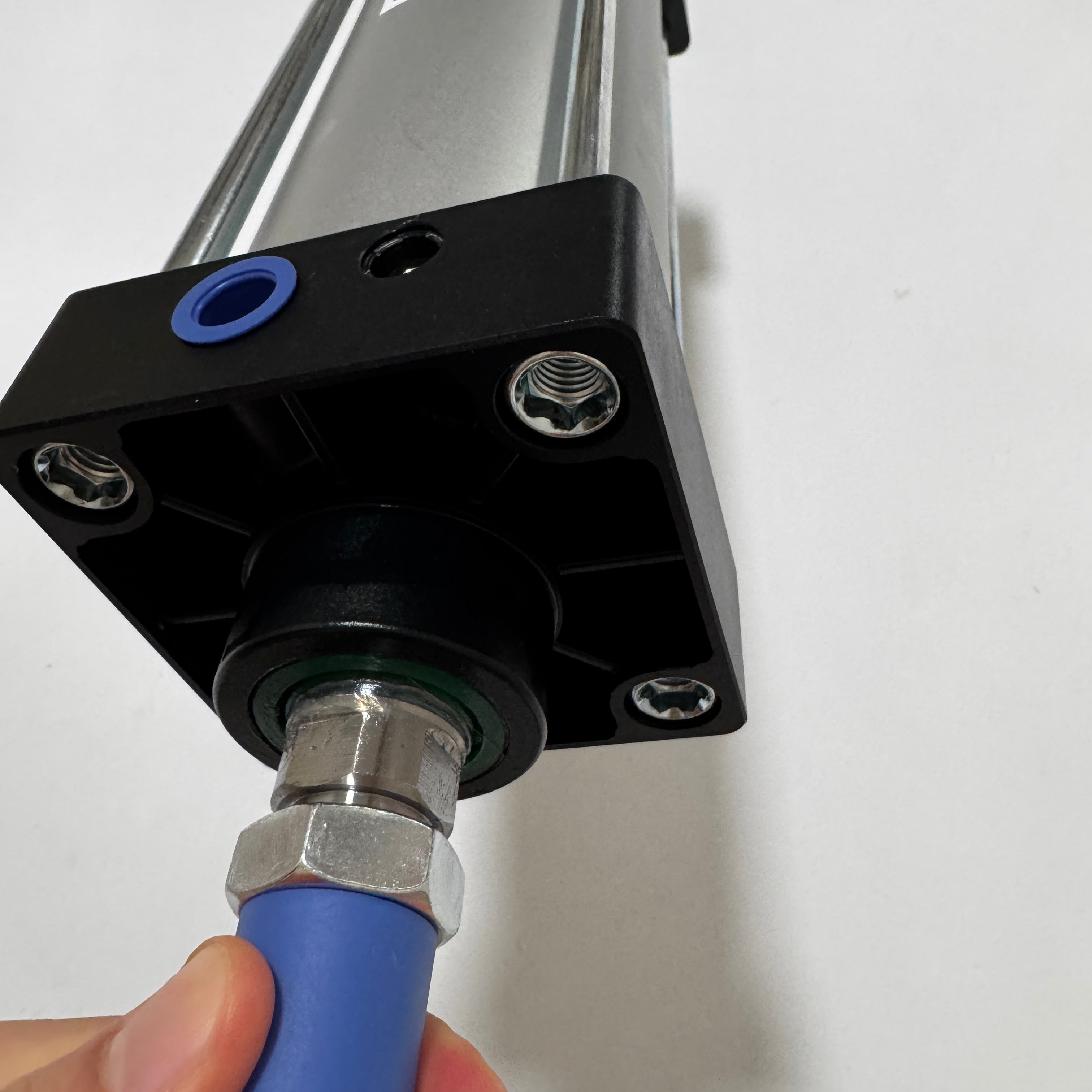

    Use suitable soft nylon/PU tubing: exact OD, plus ID for compression. Where offered: D=black, blank=grey, -M=miniature. -S identifies specified stainless-304 parts, not an all-stainless assembly. PHF has male RA and extra female RB, both PT3/8; connect or seal RB as designed. RB is not a tube socket. Tees/Y/cross/distributors must not bridge chambers or unrelated controls.

    Push-in fittings, direct/threadless controls and listed silencers: 0–1 MPa, −20–70 °C. BPC/BPOC: 0–0.9 MPa, 0–150 °C; SCJ path 0.15–0.9 MPa. BKC/BB/BD/BZ: 0–1 MPa, 0–150 °C; SCJ path 0.15–1 MPa. Using the general cylinder reference −20–70 °C, 0–150 °C parts limit the assembly to 0–70 °C or narrower. Obey lower valve/tube/sensor limits; component vacuum data do not rate the cylinder assembly.

    Install threads with the body hex, not the locking nut; insert tubing fully before tightening. BKC0806-03 accepts 8 × 5.5 or 8 × 6 mm; 8 × 5 mm needs BKC0805-03. BB/BD use one thread standard: BB male–male, BD male–female; other ends are labelled in the table. Match its gender/size and flow; no cross-thread conversion. BZ closes permitted unused auxiliary ports only, never active cylinder ports.

    At the cylinder, A meters thread→tube exhaust (meter-out), with free reverse supply; B meters tube→cylinder supply (meter-in). A is usual for double action; B needs a designed meter-in circuit. Start closed, open slowly; closed leakage is allowed, so these are not shutoffs. PTL caps on 3/8-port variants: adjustment reference: 0.24 N·m, not pipe-thread torque. Never force caps/end stops. PSA/PSA-S/GPSA are metric tube-to-tube controls, no A/B suffixes; match both ODs and the body check/throttle symbol. GPSA does not mean G thread.

    Silencers: separate valve exhaust only. Match its actual thread, flow and backpressure; not cylinder-port fittings, inlet filters or shutoffs. BESL adjusts backpressure. PPA6/8/10/12 use plain metric stems in matching sockets: POM body/cap, PE filter, 0–1 MPa, −20–70 °C; 25 dB at 0.5 MPa is a catalog test, not an onsite noise promise. PPA has no D or thread suffix.

    ASC30010: separate two-female-PT3/8-port inline control; needs male fittings. Follow P/A and the check/throttle symbol. 0.05–0.95 MPa, −20–70 °C and 40 µm-or-finer filtered air; SCJ path 0.15–0.95 MPa before lower limits. Rated flow does not guarantee cylinder speed.

    GAFR30010S,GAFR40010S: separate upstream PT3/8 filter/regulator, 40 µm element, PC bowl, differential/manual drain, bracket and round gauge, no reverse-flow valve. Inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Respect IN/OUT, flow/pressure loss, condensate, bowl environment and all downstream limits; not a cylinder fitting or vacuum regulator.

    US98A/UE95A examples: blue 100 m coils, not supplied cut lengths. Rated 1 MPa at 23 °C, temperature derating required: US98A −20–70 °C, UE95A −40–70 °C. Match OD/ID, bend radius, routing and flow; thinner low-pressure tubes are not equivalent. Size flow for the SCJ annular area and actual load; no achieved speed is guaranteed.

    Separate Directional-Valve and Tube Examples

    4A PT: single control 4A31010; double control 4A32010. 4V PT: single control 4V31010B; double control 4V32010B. 5V PT: single control 5V31010B050; double control 5V32010B050. All listed B versions use DC24V. 4V has DIN entry and internal pilot; 5V has 0.5 m leads (050) and internal pilot. 4A has single/double pneumatic control, external pilot supply and no coil. 4A configurations 30010: single control has one PT1/8 pilot port, double has two; confirm pilot threads on G versions.

    30010 (PT: 4A/4V/5V): P 3/8, A/B 3/8, R/S 1/4. Port dimensions use the PT/G thread assigned above; choose each endpoint independently. These separately piped valve examples are not direct cylinder fittings or included parts. Operating range: 0.15–0.8 MPa, −20 to 70 °C, 40 µm filtration. Confirm flow, load, pilot supply and exhaust backpressure; apply all lower component limits.

    UN54D flame-resistant tubing: 1 MPa at 23 °C, -20 to 70 °C; UN54D100065100MBU: 10 × 6.5 mm, minimum bend radius 20 mm. US98A tubing: 1 MPa at 23 °C, -20 to 70 °C; US98A160110100MBU: 16 × 11 mm, minimum bend radius 80 mm; burst reference 3 MPa at 23 °C is not working pressure; reference mass 10.03 kg/100 m. All are blue 100 m coils; derate pressure above 23 °C. UN54D flame-resistant does not mean fireproof. Match exact OD, ID, tube compatibility and bend radius; PA6/PA12 sizes 8 × 5 and 10 × 6.5 mm are not established here.

    M5 and 4M NAMUR references have their own valve connections and are not direct SCJ mounting accessories. No unverified direct adapter or complete kit is specified.

    The 16 × 11 mm tube is documented, but a complete 16 mm fitting/control connection path is not established here. Do not substitute smaller fittings or infer another tube ordering code.

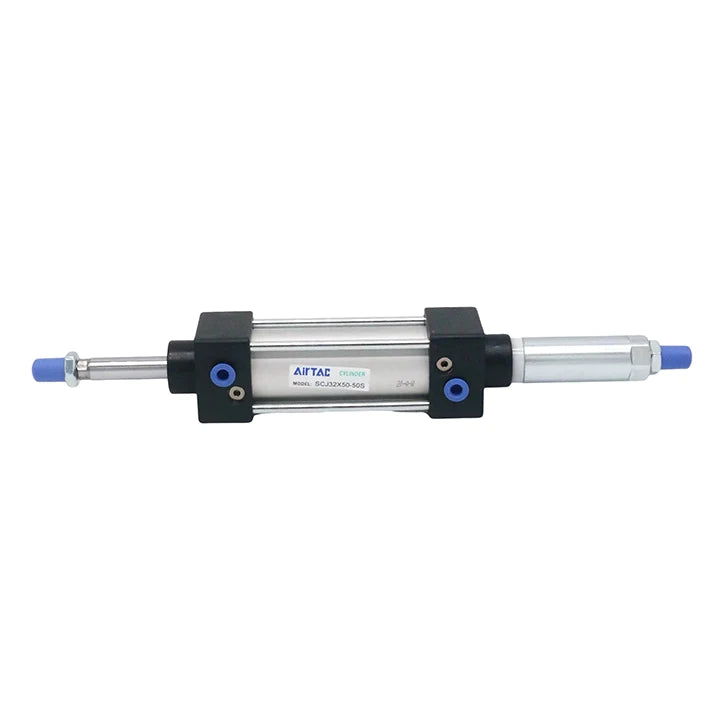

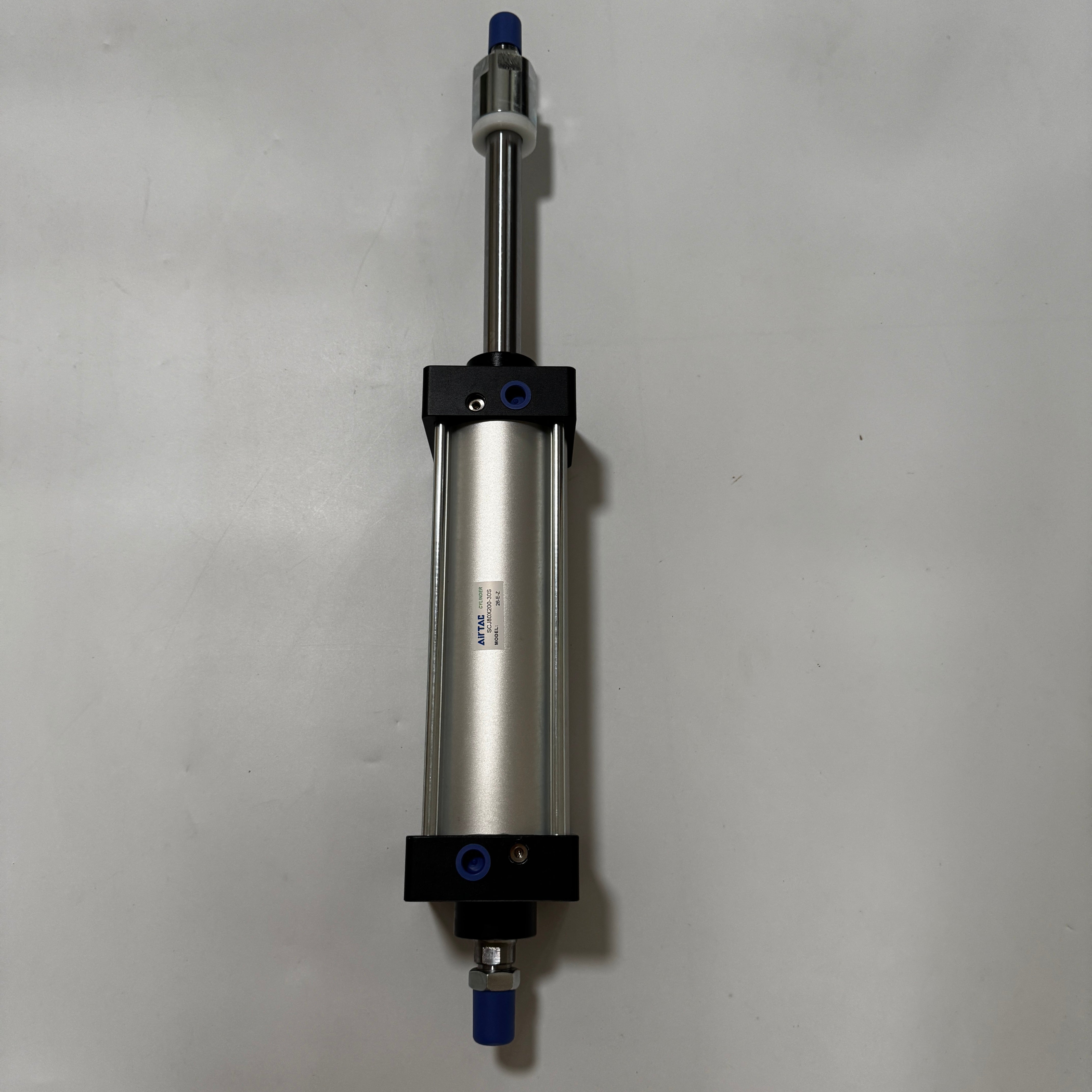

    SCJ has two working ports and equal-diameter rods. Size flow using its annular pressure area, actual load, adjusted travel, piping losses and exhaust backpressure; a general bore-based chart does not guarantee SCJ speed.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
