Airtac SCJ series: adjustable double-rod cylinder - SCJ32X1998-10STCTCM1G

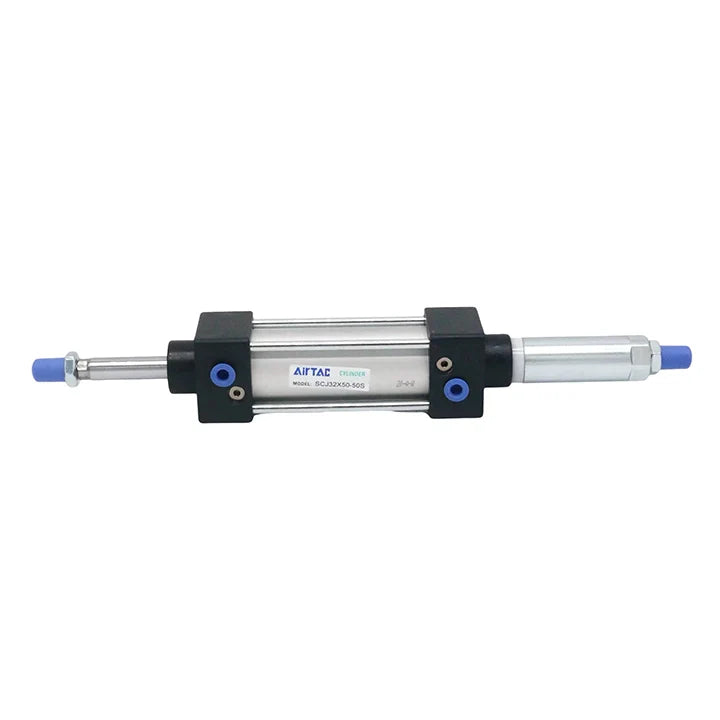

Photos are for reference only. Not all models have pictures.

Description

Specifications: SCJ32X1998-10STCTCM1G — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 32 mm bore, 1998 mm nominal stroke, 10 mm adjustment option, with magnet, TPU seal option and G1/8 working ports. Mounting configuration: trunnion mount with support.

Product Catalog

Download Airtac Product Catalog (PDF)

For product dimensions and mounting drawings, download and refer to the PDF catalog.

Model Code Explained

Code Meaning
SCJ Double-rod, double-acting cylinder with adjustable stroke
32 32 mm bore
X Separator before nominal stroke
1998 1998 mm nominal stroke
- Separator before adjustment stroke
10 10 mm adjustment-stroke option
S Magnetic piston
TCTCM1 Seller-defined TC + TCM1 package identifier: F-SC32TC trunnion mount with F-SI40TCM1 support; not a factory concatenated suffix
No seal-material suffix TPU option; this does not make every internal seal TPU
G G1/8 working ports

Technical Specifications

Parameter Value
Model SCJ32X1998-10STCTCM1G
Action Double acting, double rod, adjustable stroke
Bore 32 mm
Nominal stroke 1998 mm; Non-standard order within the catalog allowable-stroke range; confirm order conditions
Adjustment stroke 10 mm option; not a second independently powered stroke
Construction Tie-rod cylinder to Airtac enterprise standard
Magnetic piston With magnet; sensors separately selected
Mounting selection Trunnion mount with support
Seal option TPU; individual basic O-ring materials are listed as family references
Port thread G1/8; two working air ports
Working medium Clean compressed air filtered through 40 µm or finer filtration
Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
Operating temperature −20 to 70 °C; avoid freezing condensate
Piston speed 30–800 mm/s; select controls for actual load, piping and adjustment
Nominal-stroke tolerance Not specified for this stroke in the catalog tolerance table; confirm the ordered tolerance
Cushioning Adjustable pneumatic cushioning; 21 mm nominal cushion-stroke reference
Rod diameter / end thread 12 mm / M10 × 1.25
Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod holder
Estimated cylinder weight 6889 g; engineering reference, not measured shipping weight

Engineering weight estimate using the same-bore SC catalog as a baseline plus an equivalent extra-rod allowance with representative steel density. The adjustment mechanism, changed covers and internal details are not separately mass-resolved. Mounts, rod-end joints, sensors, fittings and packaging are excluded. This is not an official SCJ net mass or a measured shipping weight; no error bound is established. Use the actual weighed assembly for handling and shipping.

The adjustment-stroke code does not by itself establish a guaranteed usable-travel interval. Confirm the required adjusted travel, stop setting and end positions for the application. Verify cushioning effectiveness at the actual setting; a stroke shorter than 21 mm cannot provide the full nominal cushion travel.

Features and Operation

SCJ combines double-acting through-rod motion with a stroke-adjustment mechanism. The aluminium-alloy barrel and covers are joined by tie rods. The family design uses a compact bidirectional piston seal with grease retention and adjustable pneumatic cushioning.

Choose the mounting, nominal stroke and adjustment option for the required motion. Allow clearance for both protruding rods and the adjuster. The catalog’s 150 °C special-seal feature requires confirmation of the complete ordered cylinder; it does not change this TPU configuration’s −20 to 70 °C rating.

External and Mounting Dimensions

Dimensions are in mm except threads. Magnetic and nonmagnetic basic dimensions are equal. The following lengths are SCJ drawing references, not a guaranteed installed or moving envelope. Check both rod ends, adjustment setting, mounts, rod-end joints, fittings and sensor clearances against the drawing.

Parameter Value
Overall drawing reference: A + 2 × stroke + adjustment 4188 mm = 182 + 2 × 1998 + 10
Body face span: AC + stroke 2091 mm = 93 + 1998
Rear drawing span: DB + stroke + adjustment 2035 mm = 27 + 1998 + 10
Rear adjustment reference: DB + adjustment 37 mm = 27 + 10
Body width × height 45 × 45 mm (□B)
Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = G1/8
Parameter Value
Selected accessory TC: Trunnion mount; part F-SC32TC
Material Ductile cast iron
C + stroke 2091 mm = 93 + 1998
Accessory dimensions (mm) EB = 87; ED = 33; EE = 55; EP = 16
Accessory dimensions (mm) ET = 22; I = 17; S = 45
Trunnion center from body face 1045.5 mm = (93 + 1998) / 2; illustrated midpoint between body faces
Selected accessory TCM1: Trunnion support; part F-SI40TCM1
Material Ductile cast iron
C + stroke 2091 mm = 93 + 1998
Accessory dimensions (mm) HA = 100; HB = 75; HE = 90; HF = 71
Accessory dimensions (mm) HP = 12; HQ = 16; HR = 87; HT = 11
Accessory dimensions (mm) HJ = 54
Trunnion center from body face 1045.5 mm = (93 + 1998) / 2; illustrated midpoint between body faces

These are the compatible accessory and body-related dimensions. Use the separate SCJ overall formula for cylinder length. TC must be ordered with the cylinder, matched to TCM1 and installed at the specified position; its position is not arbitrarily adjustable.

Download and refer to the PDF catalog for the full dimension lines and mounting views.

Mounting and Rod-End Accessories

The SCJ mounting choices are basic, LB, FA or TC with matching TCM1. Select for the actual load direction and motion; listing a part does not establish included supply or quantity. For the seller-defined TC+TCM1 package, confirm the supplied assembly and support quantities.

Part / assembly code Application and reference
F-SC32LB Foot mount; Carbon steel
F-SC32FA Front flange; Aluminium alloy
F-SC32TC Trunnion mount; Ductile cast iron; order with the cylinder and match TCM1
F-SI40TCM1 Trunnion support; Ductile cast iron
F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

The rod-end choices use M10 × 1.25. Dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel category does not specify every subcomponent or finish. Add mass only for accessories actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

Confirm genuine SCJ seal kits, wear rings, guide bushings, nuts, covers and adjustment parts against the exact model, seal material and production revision. Drawing item numbers and bore size do not establish complete orderable service codes. Replacement magnets concern magnetic configurations only.

Force and Circuit Selection

Parameter Value
Ideal effective area, both directions 691.15 mm² = π / 4 × (32² − 12²)
Calculated force at 0.5 MPa, both directions 345.58 N
Force calculation Force (N) = annular pressure area (mm²) × pressure (MPa), before friction, backpressure and dynamic losses
Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor

These calculated references use equal-diameter through-rod geometry. Circuit sizing must account for annular area, actual load, adjusted travel, line losses, valve flow and exhaust backpressure; a bore alone does not guarantee a speed or payload.

Installation and Maintenance

Qualified staff must select, install and service the system. Guard both moving rod ends and secure the cylinder, loads and attachments. Before service or adjustment, isolate air and electricity, vent pressure and secure motion. Design safe responses to air/power loss, emergency stops and restart.

Check protection from corrosive gas, chemicals, solvents, salt, water or steam, explosive atmospheres, vibration, radiant heat and sunlight. Protect sliding surfaces from damage, dust, humidity, splashes, oil and coolant. Prevent condensate freezing; external magnetic fields may disturb magnetic sensing.

Use clean, dry, purified compressed air. Remove water, particles, oxidized oil, tar and carbon; filter to 40 µm or finer. Confirm suitability for other fluids and synthetic-oil contaminants. Excessively dry air may shorten life unless the component is designed for it.

Factory lubrication normally needs no added oil. Once oil is introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. The guide gives oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for actual flow and avoid excess oil.

Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant or metal tube near hot spatter. Check each tube’s pressure, temperature, OD, ID and bend radius; generic nylon/PU advice cannot override its rating.

PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

Use speed controls at both working ports; start closed and open slowly. Meter-out commonly stabilizes motion and reduces startup runout. Adjust cushioning gradually for the load and speed, avoiding impact, rebound or forcing its screw. High mass or speed may need engineered deceleration or an external absorber.

Air compressibility and leakage prevent assuming precise prolonged intermediate stopping with a closed-center valve or precise cylinder synchronization. Verify the adjusted travel, mechanical stop setting, available cushioning, air consumption and clearances for the actual application.

Align rod and load motion and provide independent guidance against side load, bending and torque. Check long-rod buckling, sag and vibration; support long spans and limit unsupported lever arms. Use a suitable TC pivot arrangement for swinging motion rather than forcing a rigid LB mount. Check bracket loads and flange orientation.

During long storage, operate periodically and prevent corrosion, following the air-quality and lubrication requirements.

Internal Components — Family Reference

The catalog’s SC-family material drawing provides the basic references below. It is not a complete SCJ double-rod and adjustment-mechanism bill of materials. Item numbers are drawing references, not separate service ordering codes; verify actual replacement parts for the production revision.

Family drawing item Basic material reference
1 — Rod-end nut Carbon steel
2 — Piston rod S45C hard-chrome-plated ground rod
3 — Front-cover O-ring TPU
4 — Guide bushing Wear-resistant material
5 — Front cover Aluminium alloy
6 — Cushion O-ring NBR
7 — Cushion seal TPU
8 — Cylinder barrel Aluminium alloy
9 — Piston Aluminium alloy
10 — Piston-rod O-ring NBR
11 — Piston O-ring NBR
12 — Magnet Plastic magnet; magnetic configuration only
13 — Wear ring Wear-resistant material
14 — Hex-socket screw Carbon steel
15 — Rear cover Aluminium alloy
16 — Tie rod Carbon steel
17 — Tie-rod nut Carbon steel

Series Ordering Options

Parameter Value
Series identity SCJ: double-rod, double-acting cylinder with adjustable stroke
Adjustment-stroke options 10, 20, 30, 40, 50, 75, 100 mm; second numeric slot after the hyphen
Magnet No suffix: without magnet; S: magnetic piston
Seal material No suffix: TPU; H: fluororubber; N: NBR. This product uses the blank-code TPU option.
Mounting Basic, LB, FA or TC with matching TCM1; TC+TCM1 package identifiers are seller-defined
Thread options PT, G and NPT; match the complete ordered port and fitting thread
Standard nominal strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
Catalog nominal-stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

Nominal strokes of 1600 mm and above are non-standard orders within the allowable range. Other non-listed strokes also require order and delivery confirmation. The adjustment code is not an independent powered stage; select actual travel and mechanical clearance with the required adjustment setting.

Magnetic Sensors and Connection Leads

This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC32SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

Sensor / separate accessory Complete ordering choices
DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
F-SC32SH SCJ32 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
Electrical selection Limits and conditions
DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. The SCJ32 TPU cylinder remains −20–70 °C, so the ordinary sensor-equipped system is limited to −10–70 °C or narrower.

Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
GPC straight 6 mm OD: GPC601,GPC601D; 8 mm OD: GPC801,GPC801D; 10 mm OD: GPC1001,GPC1001D; 12 mm OD: GPC1201,GPC1201D
GPL elbow 6 mm OD: GPL601,GPL601D; 8 mm OD: GPL801,GPL801D; 10 mm OD: GPL1001,GPL1001D; 12 mm OD: GPL1201,GPL1201D
GPC miniature straight 4 mm OD: GPC401-M,GPC401D-M; 6 mm OD: GPC601-M,GPC601D-M
GPL miniature elbow 4 mm OD: GPL401-M,GPL401D-M; 6 mm OD: GPL601-M,GPL601D-M
GPLL extended elbow 4 mm OD: GPLL401,GPLL401D; 6 mm OD: GPLL601,GPLL601D; 8 mm OD: GPLL801,GPLL801D; 10 mm OD: GPLL1001,GPLL1001D
GPEB branch tee 4 mm OD: GPEB401,GPEB401D; 6 mm OD: GPEB601,GPEB601D; 8 mm OD: GPEB801,GPEB801D; 10 mm OD: GPEB1001,GPEB1001D
GPED run tee 4 mm OD: GPED401,GPED401D; 6 mm OD: GPED601,GPED601D; 8 mm OD: GPED801,GPED801D; 10 mm OD: GPED1001,GPED1001D
GPYB Y fitting 4 mm OD: GPYB401,GPYB401D; 6 mm OD: GPYB601,GPYB601D; 8 mm OD: GPYB801,GPYB801D; 10 mm OD: GPYB1001,GPYB1001D
GPH banjo elbow 4 mm OD: GPH401,GPH401D; 6 mm OD: GPH601,GPH601D; 8 mm OD: GPH801,GPH801D
GPHF female-branch banjo 4 mm OD: GPHF401,GPHF401D; 6 mm OD: GPHF601,GPHF601D; 8 mm OD: GPHF801,GPHF801D
GPHW twin banjo 4 mm OD: GPHW401,GPHW401D; 6 mm OD: GPHW601,GPHW601D; 8 mm OD: GPHW801,GPHW801D
GPZB cross fitting 6 mm OD: GPZB601,GPZB601D; 8 mm OD: GPZB801,GPZB801D
GPKD reducing distribution fitting main 6 / branch 4 mm OD: GPKD6-401,GPKD6-401D
GBPC metal straight 4 mm OD: GBPC401; 6 mm OD: GBPC601; 8 mm OD: GBPC801; 10 mm OD: GBPC1001
GBKC compression fitting 4 × 2.5 mm OD × ID: GBKC0425-01; 6 × 4 mm OD × ID: GBKC0604-01; 8 × 5 mm OD × ID: GBKC0805-01; 8 × 5.5 or 6 mm OD × ID: GBKC0806-01
GBB male–male adapter male G1/8: GBB0101; male G1/4: GBB0102; male G3/8: GBB0103
GBZ unused auxiliary port plug GBZ01
Threaded valve-exhaust silencers GBSL01,GBSLM01,GBESL01
GPTL push-lock flow control 6 mm OD: GPTL601A,GPTL601AD,GPTL601B,GPTL601BD; 8 mm OD: GPTL801A,GPTL801AD,GPTL801B,GPTL801BD
GPSS universal flow control 6 mm OD: GPSS601A,GPSS601AD,GPSS601B,GPSS601BD; 8 mm OD: GPSS801A,GPSS801AD,GPSS801B,GPSS801BD
PSA / PSA-S inline flow control 4 mm OD: PSA4,PSA4-S,PSA4D,PSA4D-S; 6 mm OD: PSA6,PSA6-S,PSA6D,PSA6D-S; 8 mm OD: PSA8,PSA8-S,PSA8D,PSA8D-S; 10 mm OD: PSA10,PSA10-S,PSA10D,PSA10D-S; 12 mm OD: PSA12,PSA12-S,PSA12D,PSA12D-S
GPSA inline flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
PPA plug-in valve-exhaust silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
US98A / UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
ASC separate inline threaded flow control ASC10006G
GAFR upstream filter/regulator GAFR20006SG

Separately selected alternatives; no supplied-kit or stock promise. Connect both SCJ32 working ports with actual G1/8 fittings and correct seals. Check insertion depth, wrench/rotation clearance, flow and tube loads. PT/G/NPT are not interchangeable; G needs the correct face seal/mating surface. M10 × 1.25 is the rod thread, not an air port.

Use suitable soft nylon/PU and match OD; compression fittings also need the listed ID. Where offered: D = black, blank = grey, -M = miniature; -S identifies specified 304 stainless parts, not an all-stainless cylinder/circuit. GPHF: male and extra female G1/8 connections; connect or permissibly seal the female branch, which is not a tube socket. Never bridge chambers or unrelated controls with tees, Y/cross/distributors.

Ordinary push-in fittings/flow controls: 0–1 MPa, −20–70 °C. GBPC: 0–0.9 MPa, 0–150 °C; SCJ path 0.15–0.9 MPa, 0–70 °C. GBKC/GBB/GBZ: 0–1 MPa, 0–150 °C; SCJ path 0.15–1 MPa, 0–70 °C. Apply lower valve/tube/sensor limits. Component vacuum ratings do not rate a vacuum cylinder assembly.

GBKC0806-01 takes 8 × 5.5 or 8 × 6 mm tube; 8 × 5 mm needs GBKC0805-01. Install threads using the body hex, not the tube nut; insert tube fully before tightening. GBB has two male ends; match its labelled second end to a female component. GBZ is only for permitted unused auxiliary connections, never active cylinder ports.

Cylinder-end A controls thread → tube exhaust (meter-out), with free reverse supply; B controls tube → cylinder supply (meter-in). A is usual for double-acting exhaust control; B needs a designed meter-in circuit. Start closed/open slowly; not safety isolation. GPTL1/8 cap adjustment: 0.08 N·m recommended, not pipe-thread torque. PSA/PSA-S/GPSA: threadless metric tube-to-tube, no A/B suffix; match both ODs/flow symbol. GPSA does not mean G thread.

PPA6/8/10/12: plain 6/8/10/12 mm stems for matching metric push-in sockets on separate valve exhaust; POM body/cap, PE filter, 0–1 MPa, −20–70 °C. The 25 dB at 0.5 MPa catalog test is not a site-noise promise. No D/thread suffix. PPA/threaded silencers are not cylinder-port parts, inlet filters or shutoffs. Match exhaust thread/flow/backpressure; GBESL adjustment changes backpressure.

ASC: separate inline control, two female ports needing male fittings. Follow P/A/check-throttle symbols. Component 0.05–0.95 MPa, −20–70 °C; SCJ path 0.15–0.95 MPa or narrower.

GAFR20006SG: separate upstream filter/regulator, 40 µm element, PC bowl, manual/differential-pressure drain, bracket/gauge. Inlet ≤1 MPa; setting 0.15–0.9 MPa; −5–70 °C, non-freezing. Check flow, pressure drop, condensate, bowl environment and downstream limits. Not cylinder-mounted or a vacuum regulator.

US98A/UE95A: blue 100 m coil examples, not supplied cut lengths; 1 MPa at 23 °C, with temperature derating. US98A −20–70 °C; UE95A −40–70 °C; apply lower assembly limits. Match OD/ID, bend radius, routing and flow. Extra 4/10/12 mm ODs do not inherit the 6 × 4 / 8 × 5 speed references.

Directional-Valve and Tubing Examples

SCJ has two working air ports and equal-diameter rods on both sides. These valve and tubing examples are separate circuit components; select flow using the SCJ annular pressure area, actual load, adjusted travel, piping losses and exhaust backpressure. The general bore-based selection chart does not guarantee an achieved SCJ speed or establish a directly mounted valve assembly.

G1/8 examples: 4V11006BG, 4V12006BG, 4V21006BG, 4V22006BG, 4A11006G, 4A12006G, 4A21006G, 4A22006G. Valve P/A/B and R/S are G1/8 in these06 examples. Separately piped 5V PT examples: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050. Their PT ports require their own correctly threaded fittings; a G cylinder does not change valve thread. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

M5 entries in the bore-based chart concern separate valve connections, not SCJ cylinder ports. 4M entries require a NAMUR interface; no SCJ mounting/adapter compatibility is established.

Product form

Specifications: SCJ32X1998-10STCTCM1G — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 32 mm bore, 1998 mm nominal stroke, 10 mm adjustment... Read more

SKU: SCJ32X1998-10STCTCM1G

$461.01 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: SCJ32X1998-10STCTCM1G — Airtac SCJ double-rod, double-acting stroke-adjustable tie-rod cylinder; 32 mm bore, 1998 mm nominal stroke, 10 mm adjustment option, with magnet, TPU seal option and G1/8 working ports. Mounting configuration: trunnion mount with support.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For product dimensions and mounting drawings, download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    SCJ Double-rod, double-acting cylinder with adjustable stroke
    32 32 mm bore
    X Separator before nominal stroke
    1998 1998 mm nominal stroke
    - Separator before adjustment stroke
    10 10 mm adjustment-stroke option
    S Magnetic piston
    TCTCM1 Seller-defined TC + TCM1 package identifier: F-SC32TC trunnion mount with F-SI40TCM1 support; not a factory concatenated suffix
    No seal-material suffix TPU option; this does not make every internal seal TPU
    G G1/8 working ports

    Technical Specifications

    Parameter Value
    Model SCJ32X1998-10STCTCM1G
    Action Double acting, double rod, adjustable stroke
    Bore 32 mm
    Nominal stroke 1998 mm; Non-standard order within the catalog allowable-stroke range; confirm order conditions
    Adjustment stroke 10 mm option; not a second independently powered stroke
    Construction Tie-rod cylinder to Airtac enterprise standard
    Magnetic piston With magnet; sensors separately selected
    Mounting selection Trunnion mount with support
    Seal option TPU; individual basic O-ring materials are listed as family references
    Port thread G1/8; two working air ports
    Working medium Clean compressed air filtered through 40 µm or finer filtration
    Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
    Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
    Operating temperature −20 to 70 °C; avoid freezing condensate
    Piston speed 30–800 mm/s; select controls for actual load, piping and adjustment
    Nominal-stroke tolerance Not specified for this stroke in the catalog tolerance table; confirm the ordered tolerance
    Cushioning Adjustable pneumatic cushioning; 21 mm nominal cushion-stroke reference
    Rod diameter / end thread 12 mm / M10 × 1.25
    Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod holder
    Estimated cylinder weight 6889 g; engineering reference, not measured shipping weight

    Engineering weight estimate using the same-bore SC catalog as a baseline plus an equivalent extra-rod allowance with representative steel density. The adjustment mechanism, changed covers and internal details are not separately mass-resolved. Mounts, rod-end joints, sensors, fittings and packaging are excluded. This is not an official SCJ net mass or a measured shipping weight; no error bound is established. Use the actual weighed assembly for handling and shipping.

    The adjustment-stroke code does not by itself establish a guaranteed usable-travel interval. Confirm the required adjusted travel, stop setting and end positions for the application. Verify cushioning effectiveness at the actual setting; a stroke shorter than 21 mm cannot provide the full nominal cushion travel.

    Features and Operation

    SCJ combines double-acting through-rod motion with a stroke-adjustment mechanism. The aluminium-alloy barrel and covers are joined by tie rods. The family design uses a compact bidirectional piston seal with grease retention and adjustable pneumatic cushioning.

    Choose the mounting, nominal stroke and adjustment option for the required motion. Allow clearance for both protruding rods and the adjuster. The catalog’s 150 °C special-seal feature requires confirmation of the complete ordered cylinder; it does not change this TPU configuration’s −20 to 70 °C rating.

    External and Mounting Dimensions

    Dimensions are in mm except threads. Magnetic and nonmagnetic basic dimensions are equal. The following lengths are SCJ drawing references, not a guaranteed installed or moving envelope. Check both rod ends, adjustment setting, mounts, rod-end joints, fittings and sensor clearances against the drawing.

    Parameter Value
    Overall drawing reference: A + 2 × stroke + adjustment 4188 mm = 182 + 2 × 1998 + 10
    Body face span: AC + stroke 2091 mm = 93 + 1998
    Rear drawing span: DB + stroke + adjustment 2035 mm = 27 + 1998 + 10
    Rear adjustment reference: DB + adjustment 37 mm = 27 + 10
    Body width × height 45 × 45 mm (□B)
    Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
    Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
    Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
    Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = G1/8
    Parameter Value
    Selected accessory TC: Trunnion mount; part F-SC32TC
    Material Ductile cast iron
    C + stroke 2091 mm = 93 + 1998
    Accessory dimensions (mm) EB = 87; ED = 33; EE = 55; EP = 16
    Accessory dimensions (mm) ET = 22; I = 17; S = 45
    Trunnion center from body face 1045.5 mm = (93 + 1998) / 2; illustrated midpoint between body faces
    Selected accessory TCM1: Trunnion support; part F-SI40TCM1
    Material Ductile cast iron
    C + stroke 2091 mm = 93 + 1998
    Accessory dimensions (mm) HA = 100; HB = 75; HE = 90; HF = 71
    Accessory dimensions (mm) HP = 12; HQ = 16; HR = 87; HT = 11
    Accessory dimensions (mm) HJ = 54
    Trunnion center from body face 1045.5 mm = (93 + 1998) / 2; illustrated midpoint between body faces

    These are the compatible accessory and body-related dimensions. Use the separate SCJ overall formula for cylinder length. TC must be ordered with the cylinder, matched to TCM1 and installed at the specified position; its position is not arbitrarily adjustable.

    Download and refer to the PDF catalog for the full dimension lines and mounting views.

    Mounting and Rod-End Accessories

    The SCJ mounting choices are basic, LB, FA or TC with matching TCM1. Select for the actual load direction and motion; listing a part does not establish included supply or quantity. For the seller-defined TC+TCM1 package, confirm the supplied assembly and support quantities.

    Part / assembly code Application and reference
    F-SC32LB Foot mount; Carbon steel
    F-SC32FA Front flange; Aluminium alloy
    F-SC32TC Trunnion mount; Ductile cast iron; order with the cylinder and match TCM1
    F-SI40TCM1 Trunnion support; Ductile cast iron
    F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
    F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
    F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
    F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

    The rod-end choices use M10 × 1.25. Dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel category does not specify every subcomponent or finish. Add mass only for accessories actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

    Confirm genuine SCJ seal kits, wear rings, guide bushings, nuts, covers and adjustment parts against the exact model, seal material and production revision. Drawing item numbers and bore size do not establish complete orderable service codes. Replacement magnets concern magnetic configurations only.

    Force and Circuit Selection

    Parameter Value
    Ideal effective area, both directions 691.15 mm² = π / 4 × (32² − 12²)
    Calculated force at 0.5 MPa, both directions 345.58 N
    Force calculation Force (N) = annular pressure area (mm²) × pressure (MPa), before friction, backpressure and dynamic losses
    Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor

    These calculated references use equal-diameter through-rod geometry. Circuit sizing must account for annular area, actual load, adjusted travel, line losses, valve flow and exhaust backpressure; a bore alone does not guarantee a speed or payload.

    Installation and Maintenance

    Qualified staff must select, install and service the system. Guard both moving rod ends and secure the cylinder, loads and attachments. Before service or adjustment, isolate air and electricity, vent pressure and secure motion. Design safe responses to air/power loss, emergency stops and restart.

    Check protection from corrosive gas, chemicals, solvents, salt, water or steam, explosive atmospheres, vibration, radiant heat and sunlight. Protect sliding surfaces from damage, dust, humidity, splashes, oil and coolant. Prevent condensate freezing; external magnetic fields may disturb magnetic sensing.

    Use clean, dry, purified compressed air. Remove water, particles, oxidized oil, tar and carbon; filter to 40 µm or finer. Confirm suitability for other fluids and synthetic-oil contaminants. Excessively dry air may shorten life unless the component is designed for it.

    Factory lubrication normally needs no added oil. Once oil is introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. The guide gives oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for actual flow and avoid excess oil.

    Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant or metal tube near hot spatter. Check each tube’s pressure, temperature, OD, ID and bend radius; generic nylon/PU advice cannot override its rating.

    PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

    Use speed controls at both working ports; start closed and open slowly. Meter-out commonly stabilizes motion and reduces startup runout. Adjust cushioning gradually for the load and speed, avoiding impact, rebound or forcing its screw. High mass or speed may need engineered deceleration or an external absorber.

    Air compressibility and leakage prevent assuming precise prolonged intermediate stopping with a closed-center valve or precise cylinder synchronization. Verify the adjusted travel, mechanical stop setting, available cushioning, air consumption and clearances for the actual application.

    Align rod and load motion and provide independent guidance against side load, bending and torque. Check long-rod buckling, sag and vibration; support long spans and limit unsupported lever arms. Use a suitable TC pivot arrangement for swinging motion rather than forcing a rigid LB mount. Check bracket loads and flange orientation.

    During long storage, operate periodically and prevent corrosion, following the air-quality and lubrication requirements.

    Internal Components — Family Reference

    The catalog’s SC-family material drawing provides the basic references below. It is not a complete SCJ double-rod and adjustment-mechanism bill of materials. Item numbers are drawing references, not separate service ordering codes; verify actual replacement parts for the production revision.

    Family drawing item Basic material reference
    1 — Rod-end nut Carbon steel
    2 — Piston rod S45C hard-chrome-plated ground rod
    3 — Front-cover O-ring TPU
    4 — Guide bushing Wear-resistant material
    5 — Front cover Aluminium alloy
    6 — Cushion O-ring NBR
    7 — Cushion seal TPU
    8 — Cylinder barrel Aluminium alloy
    9 — Piston Aluminium alloy
    10 — Piston-rod O-ring NBR
    11 — Piston O-ring NBR
    12 — Magnet Plastic magnet; magnetic configuration only
    13 — Wear ring Wear-resistant material
    14 — Hex-socket screw Carbon steel
    15 — Rear cover Aluminium alloy
    16 — Tie rod Carbon steel
    17 — Tie-rod nut Carbon steel

    Series Ordering Options

    Parameter Value
    Series identity SCJ: double-rod, double-acting cylinder with adjustable stroke
    Adjustment-stroke options 10, 20, 30, 40, 50, 75, 100 mm; second numeric slot after the hyphen
    Magnet No suffix: without magnet; S: magnetic piston
    Seal material No suffix: TPU; H: fluororubber; N: NBR. This product uses the blank-code TPU option.
    Mounting Basic, LB, FA or TC with matching TCM1; TC+TCM1 package identifiers are seller-defined
    Thread options PT, G and NPT; match the complete ordered port and fitting thread
    Standard nominal strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
    Catalog nominal-stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

    Nominal strokes of 1600 mm and above are non-standard orders within the allowable range. Other non-listed strokes also require order and delivery confirmation. The adjustment code is not an independent powered stage; select actual travel and mechanical clearance with the required adjustment setting.

    Magnetic Sensors and Connection Leads

    This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC32SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

    Sensor / separate accessory Complete ordering choices
    DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
    DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
    DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
    EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
    CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
    F-SC32SH SCJ32 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
    M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
    M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
    M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
    M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
    Electrical selection Limits and conditions
    DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
    DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
    CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
    Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. The SCJ32 TPU cylinder remains −20–70 °C, so the ordinary sensor-equipped system is limited to −10–70 °C or narrower.

    Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

    Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

    For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

    Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

    Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    GPC straight 6 mm OD: GPC601,GPC601D; 8 mm OD: GPC801,GPC801D; 10 mm OD: GPC1001,GPC1001D; 12 mm OD: GPC1201,GPC1201D
    GPL elbow 6 mm OD: GPL601,GPL601D; 8 mm OD: GPL801,GPL801D; 10 mm OD: GPL1001,GPL1001D; 12 mm OD: GPL1201,GPL1201D
    GPC miniature straight 4 mm OD: GPC401-M,GPC401D-M; 6 mm OD: GPC601-M,GPC601D-M
    GPL miniature elbow 4 mm OD: GPL401-M,GPL401D-M; 6 mm OD: GPL601-M,GPL601D-M
    GPLL extended elbow 4 mm OD: GPLL401,GPLL401D; 6 mm OD: GPLL601,GPLL601D; 8 mm OD: GPLL801,GPLL801D; 10 mm OD: GPLL1001,GPLL1001D
    GPEB branch tee 4 mm OD: GPEB401,GPEB401D; 6 mm OD: GPEB601,GPEB601D; 8 mm OD: GPEB801,GPEB801D; 10 mm OD: GPEB1001,GPEB1001D
    GPED run tee 4 mm OD: GPED401,GPED401D; 6 mm OD: GPED601,GPED601D; 8 mm OD: GPED801,GPED801D; 10 mm OD: GPED1001,GPED1001D
    GPYB Y fitting 4 mm OD: GPYB401,GPYB401D; 6 mm OD: GPYB601,GPYB601D; 8 mm OD: GPYB801,GPYB801D; 10 mm OD: GPYB1001,GPYB1001D
    GPH banjo elbow 4 mm OD: GPH401,GPH401D; 6 mm OD: GPH601,GPH601D; 8 mm OD: GPH801,GPH801D
    GPHF female-branch banjo 4 mm OD: GPHF401,GPHF401D; 6 mm OD: GPHF601,GPHF601D; 8 mm OD: GPHF801,GPHF801D
    GPHW twin banjo 4 mm OD: GPHW401,GPHW401D; 6 mm OD: GPHW601,GPHW601D; 8 mm OD: GPHW801,GPHW801D
    GPZB cross fitting 6 mm OD: GPZB601,GPZB601D; 8 mm OD: GPZB801,GPZB801D
    GPKD reducing distribution fitting main 6 / branch 4 mm OD: GPKD6-401,GPKD6-401D
    GBPC metal straight 4 mm OD: GBPC401; 6 mm OD: GBPC601; 8 mm OD: GBPC801; 10 mm OD: GBPC1001
    GBKC compression fitting 4 × 2.5 mm OD × ID: GBKC0425-01; 6 × 4 mm OD × ID: GBKC0604-01; 8 × 5 mm OD × ID: GBKC0805-01; 8 × 5.5 or 6 mm OD × ID: GBKC0806-01
    GBB male–male adapter male G1/8: GBB0101; male G1/4: GBB0102; male G3/8: GBB0103
    GBZ unused auxiliary port plug GBZ01
    Threaded valve-exhaust silencers GBSL01,GBSLM01,GBESL01
    GPTL push-lock flow control 6 mm OD: GPTL601A,GPTL601AD,GPTL601B,GPTL601BD; 8 mm OD: GPTL801A,GPTL801AD,GPTL801B,GPTL801BD
    GPSS universal flow control 6 mm OD: GPSS601A,GPSS601AD,GPSS601B,GPSS601BD; 8 mm OD: GPSS801A,GPSS801AD,GPSS801B,GPSS801BD
    PSA / PSA-S inline flow control 4 mm OD: PSA4,PSA4-S,PSA4D,PSA4D-S; 6 mm OD: PSA6,PSA6-S,PSA6D,PSA6D-S; 8 mm OD: PSA8,PSA8-S,PSA8D,PSA8D-S; 10 mm OD: PSA10,PSA10-S,PSA10D,PSA10D-S; 12 mm OD: PSA12,PSA12-S,PSA12D,PSA12D-S
    GPSA inline flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
    PPA plug-in valve-exhaust silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
    US98A / UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
    ASC separate inline threaded flow control ASC10006G
    GAFR upstream filter/regulator GAFR20006SG

    Separately selected alternatives; no supplied-kit or stock promise. Connect both SCJ32 working ports with actual G1/8 fittings and correct seals. Check insertion depth, wrench/rotation clearance, flow and tube loads. PT/G/NPT are not interchangeable; G needs the correct face seal/mating surface. M10 × 1.25 is the rod thread, not an air port.

    Use suitable soft nylon/PU and match OD; compression fittings also need the listed ID. Where offered: D = black, blank = grey, -M = miniature; -S identifies specified 304 stainless parts, not an all-stainless cylinder/circuit. GPHF: male and extra female G1/8 connections; connect or permissibly seal the female branch, which is not a tube socket. Never bridge chambers or unrelated controls with tees, Y/cross/distributors.

    Ordinary push-in fittings/flow controls: 0–1 MPa, −20–70 °C. GBPC: 0–0.9 MPa, 0–150 °C; SCJ path 0.15–0.9 MPa, 0–70 °C. GBKC/GBB/GBZ: 0–1 MPa, 0–150 °C; SCJ path 0.15–1 MPa, 0–70 °C. Apply lower valve/tube/sensor limits. Component vacuum ratings do not rate a vacuum cylinder assembly.

    GBKC0806-01 takes 8 × 5.5 or 8 × 6 mm tube; 8 × 5 mm needs GBKC0805-01. Install threads using the body hex, not the tube nut; insert tube fully before tightening. GBB has two male ends; match its labelled second end to a female component. GBZ is only for permitted unused auxiliary connections, never active cylinder ports.

    Cylinder-end A controls thread → tube exhaust (meter-out), with free reverse supply; B controls tube → cylinder supply (meter-in). A is usual for double-acting exhaust control; B needs a designed meter-in circuit. Start closed/open slowly; not safety isolation. GPTL1/8 cap adjustment: 0.08 N·m recommended, not pipe-thread torque. PSA/PSA-S/GPSA: threadless metric tube-to-tube, no A/B suffix; match both ODs/flow symbol. GPSA does not mean G thread.

    PPA6/8/10/12: plain 6/8/10/12 mm stems for matching metric push-in sockets on separate valve exhaust; POM body/cap, PE filter, 0–1 MPa, −20–70 °C. The 25 dB at 0.5 MPa catalog test is not a site-noise promise. No D/thread suffix. PPA/threaded silencers are not cylinder-port parts, inlet filters or shutoffs. Match exhaust thread/flow/backpressure; GBESL adjustment changes backpressure.

    ASC: separate inline control, two female ports needing male fittings. Follow P/A/check-throttle symbols. Component 0.05–0.95 MPa, −20–70 °C; SCJ path 0.15–0.95 MPa or narrower.

    GAFR20006SG: separate upstream filter/regulator, 40 µm element, PC bowl, manual/differential-pressure drain, bracket/gauge. Inlet ≤1 MPa; setting 0.15–0.9 MPa; −5–70 °C, non-freezing. Check flow, pressure drop, condensate, bowl environment and downstream limits. Not cylinder-mounted or a vacuum regulator.

    US98A/UE95A: blue 100 m coil examples, not supplied cut lengths; 1 MPa at 23 °C, with temperature derating. US98A −20–70 °C; UE95A −40–70 °C; apply lower assembly limits. Match OD/ID, bend radius, routing and flow. Extra 4/10/12 mm ODs do not inherit the 6 × 4 / 8 × 5 speed references.

    Directional-Valve and Tubing Examples

    SCJ has two working air ports and equal-diameter rods on both sides. These valve and tubing examples are separate circuit components; select flow using the SCJ annular pressure area, actual load, adjusted travel, piping losses and exhaust backpressure. The general bore-based selection chart does not guarantee an achieved SCJ speed or establish a directly mounted valve assembly.

    G1/8 examples: 4V11006BG, 4V12006BG, 4V21006BG, 4V22006BG, 4A11006G, 4A12006G, 4A21006G, 4A22006G. Valve P/A/B and R/S are G1/8 in these06 examples. Separately piped 5V PT examples: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050. Their PT ports require their own correctly threaded fittings; a G cylinder does not change valve thread. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

    Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

    M5 entries in the bore-based chart concern separate valve connections, not SCJ cylinder ports. 4M entries require a NAMUR interface; no SCJ mounting/adapter compatibility is established.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
