Description

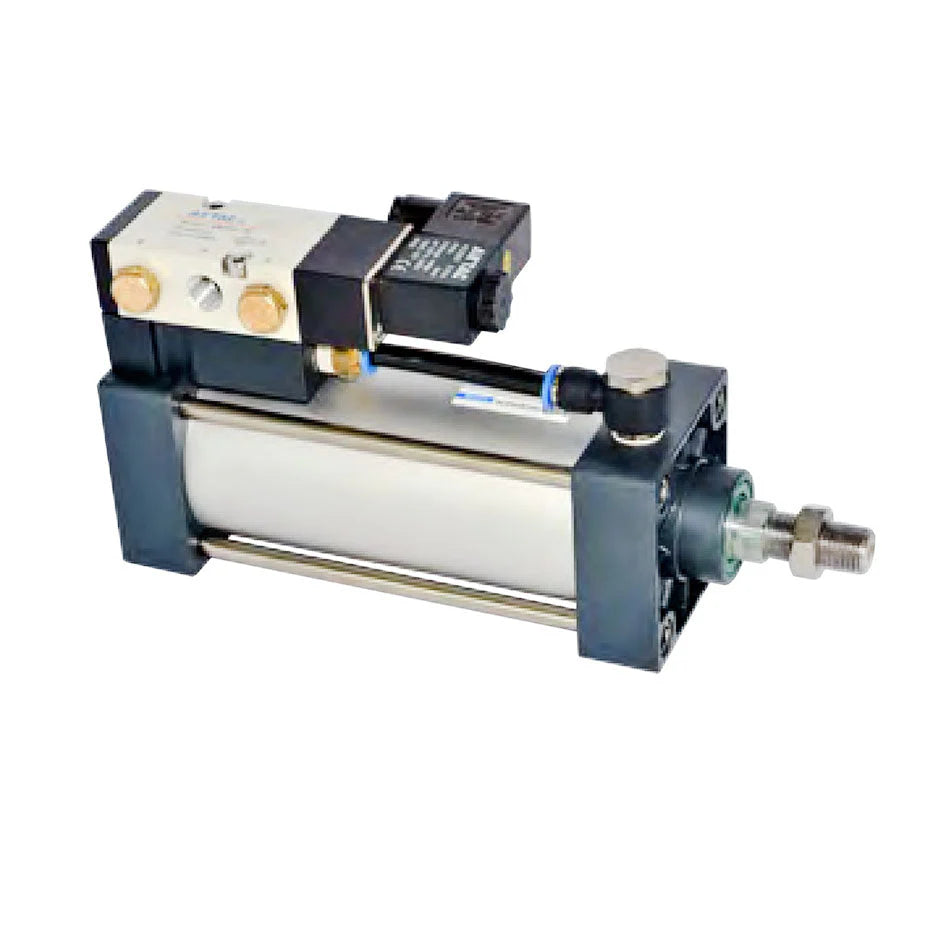

Specifications: Standard double acting valve type cylinder (SC) Bore: 100mm Stroke: 1326mm Magnet: no magnet Fixed type: CA Nozzle caliber: 3/8" Standard voltage: AC110V Power connection mode: DIN socket type Tooth type: PT tooth
Specifications
1. Model: SCF100X1326CA-10C
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB,TC,TCM1
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 29, Nozzle caliber: PT1/2, PU pipe specification (outer diameter X inner diameter): ø10Xø6.5
6. The nozzle tooth type is optional with PT tooth and G tooth. The highest operating frequency is no-load state. The sensor can be selected: DMSG,CMSG
7. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or the same level of oil.
Main components: 1.4M series solenoid valve/2. Connecting block/3.APC connector/4.PU hose/5.SC series standard cylinder/6.APH connector
Installation accessories :F-SC100LB Axial mounting F-SC100FA Flange connecting plate F-SC100CA Single-ear fixing seat F-SC100CB Binaural mount F-SC100TC Middle Trunnion Bracket F-SC80TCM1 trunnion mount ， Piston rod end joint :F-M20X150I I Connector F-M20X150Y Y connector F-M20X150F Floating joint F-M20X150U fisheye joint
Click to download Airtac product catalog
Product Features
1. Belongs to the derivative series standard cylinder valve combination, compatible with 4M210 and 4M310.
2. Bore 32, 40, 50 compatible with 4M210 valve, Bore 63, 80, 100 compatible with 4M310 valve.
3. Can be a pair of 1 control, no need to install additional control valve.
4. Save installation time and space, suitable for distributed use in large systems.
5. Provide a variety of specifications of the installation accessories, easy to install.
