Description

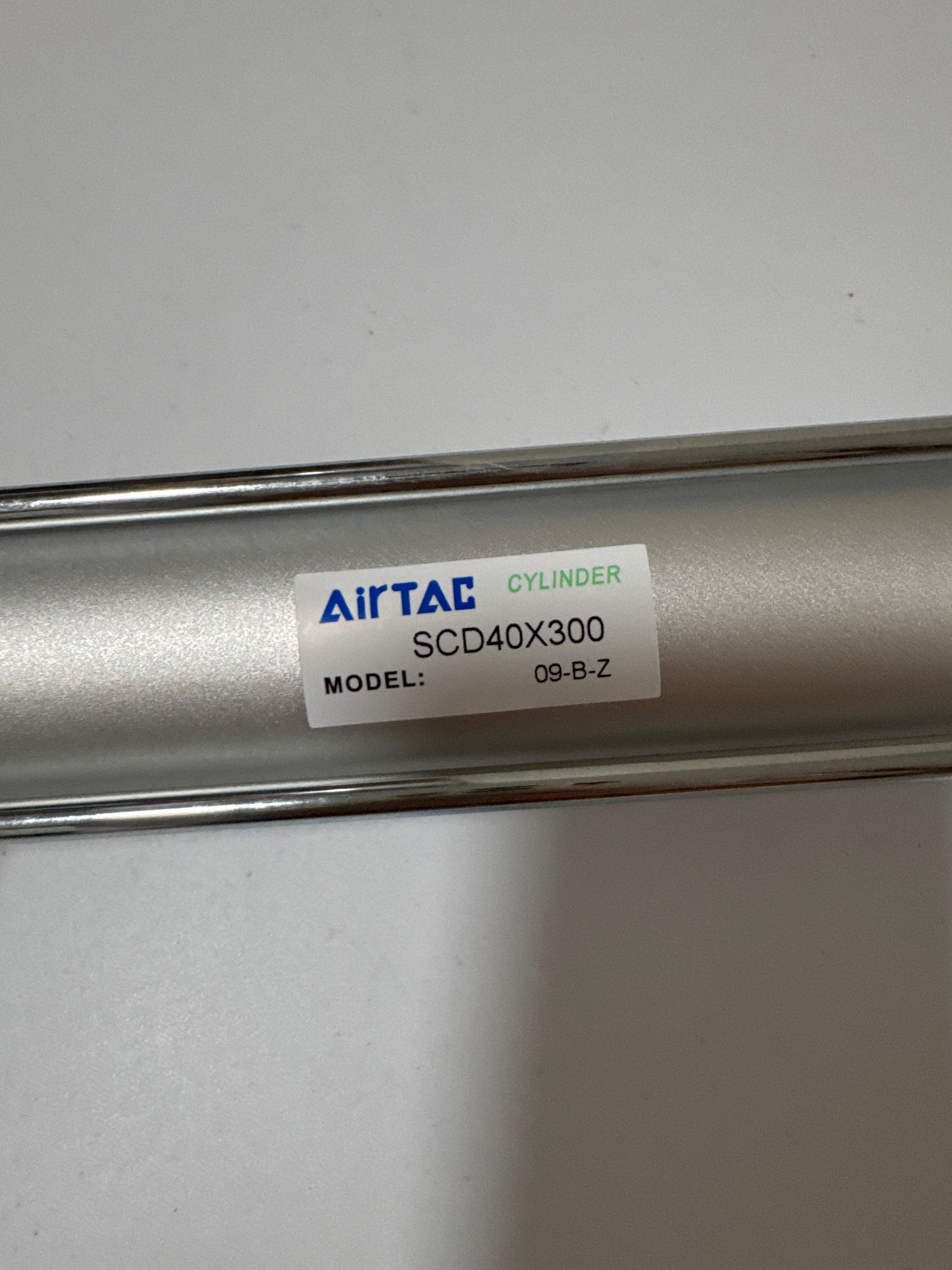

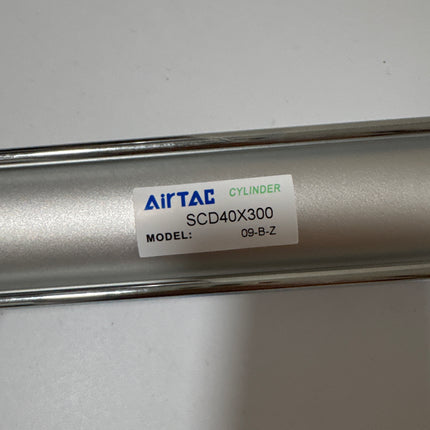

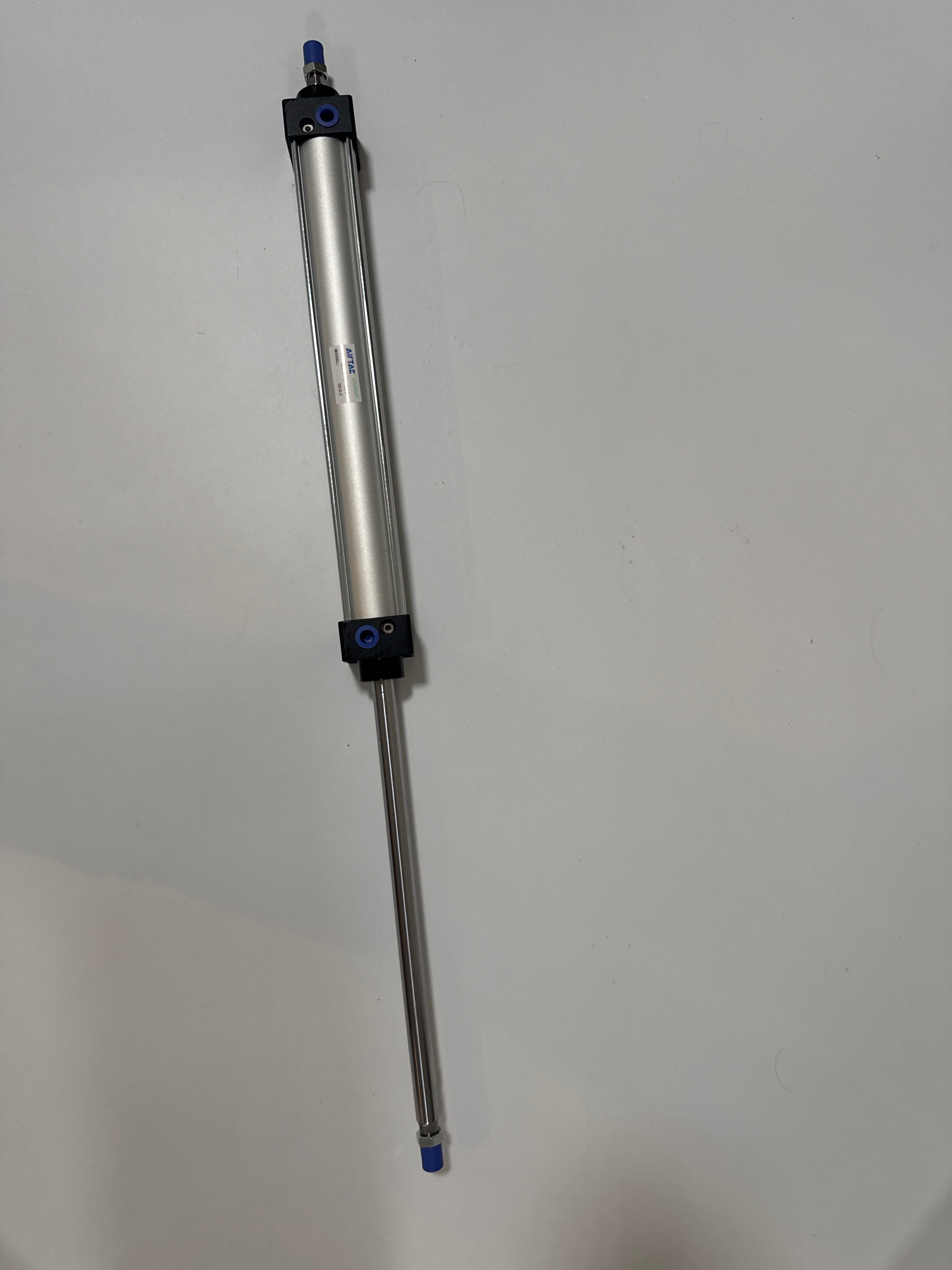

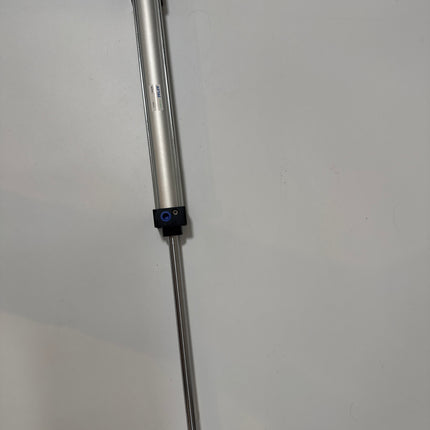

Specifications: double shaft compound type Cylinder diameter: 40mm Stroke: 300mm Magnet: no magnet Fixed type: none Seal material: TPU Tooth type: PT tooth
Specifications
1. Model: SCD40X300
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,TCM1
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/4
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSG,CMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Pillar: Carbon steel/17. Strut Nut: Carbon Steel
Type of sealing ring :P-SCD40N-R1 TPU material P-SCD40-R1 NBR Material P-SCD40N-R2 Fluorine rubber material ， Installation accessories :F-SC40LB Axial mounting F-SC40FA Flange connecting plate F-SC40TC Middle Trunnion Bracket F-SC40TCM1 trunnion mount ， Piston rod end joint :F-M12X125I I Connector F-M12X125Y Y connector F-M12X125F Floating joint F-M12X125U fisheye joint
Click to download Airtac product catalog
Product Features

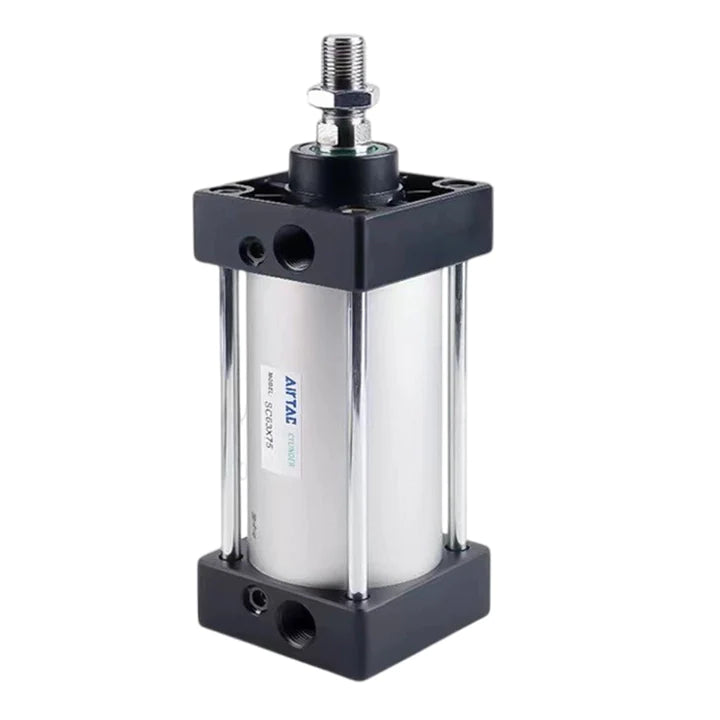

1. Yadke standard cylinder;
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. For the tie rod cylinder, the front and rear cover and aluminum tube cylinder with pillar connection, good reliability.
4. Compared with ISO15552 standard cylinders, the length of SC series cylinders with the same bore is small.
5. The cylinder buffer adjustment is stable.
6. Various specifications of the cylinder and installation accessories for selection.
7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.
