Airtac SC series: double-acting cylinder - SC50X1690TCHG

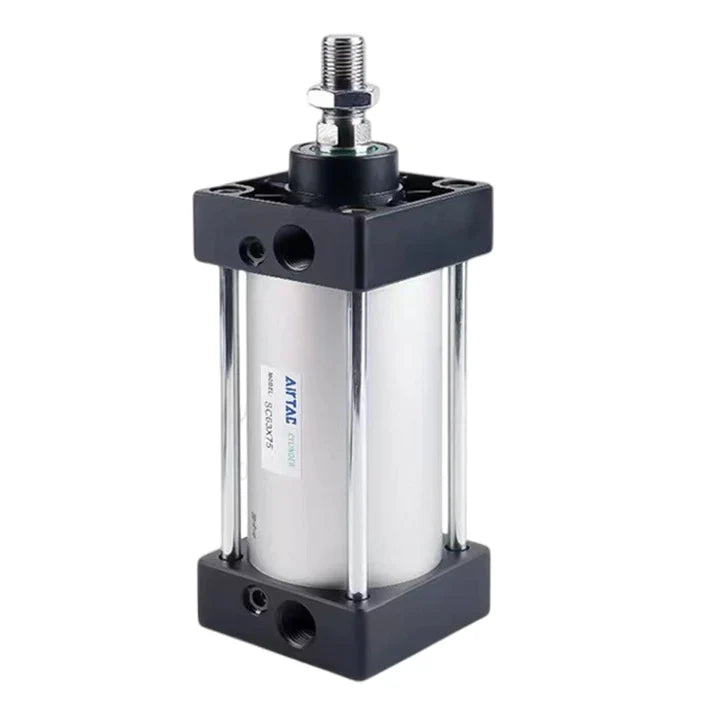

Photos are for reference only. Not all models have pictures.

Description

Specifications: SC50X1690TCHG — Airtac SC double-acting, single-rod tie-rod cylinder; 50 mm bore, 1690 mm stroke, without magnet, H fluororubber seal option and G1/4 ports. Mounting configuration: trunnion mount.

Product Catalog

Download Airtac Product Catalog (PDF)

For product dimensions and mounting drawings, download and refer to the PDF catalog.

Model Code Explained

Code Meaning
SC Double-acting, single-rod SC cylinder
50 50 mm bore
X Separator before stroke
1690 1690 mm stroke
No magnet suffix Without built-in magnet
TC Trunnion mount
H Fluororubber seals; confirm actual per-part materials
G G1/4 ports

Technical Specifications

Parameter Value
Model SC50X1690TCHG
Action Double acting, single rod
Bore 50 mm
Stroke 1690 mm; Non-standard order within the catalog allowable-stroke range; confirm order conditions
Construction Tie-rod cylinder to Airtac enterprise standard
Piston rod S45C hard-chrome-plated ground rod
Magnetic piston Without magnet; external magnetic sensors are not applicable
Mounting selection Trunnion mount
Seal option H fluororubber; basic seals are references, not the H bill of materials
Port thread G1/4
Working medium Clean compressed air filtered through 40 µm or finer filtration
Operating pressure 0.15–1 MPa
Proof pressure 1.5 MPa; not the continuous operating pressure
Operating temperature General −20 to 70 °C reference; confirm H rating; prevent condensate freezing
Piston speed 30–800 mm/s; select controls for the actual load and piping
Stroke tolerance Not specified for this stroke in the catalog tolerance table; confirm the ordered tolerance
Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference. A shorter cylinder stroke cannot provide the full nominal deceleration travel.
Rod diameter / end thread 20 mm / M16×1.5
Sensor selection Magnetic sensor options require a magnetic S cylinder; attaching a sensor alone does not add a magnetic piston
Calculated weight reference 8072.5 g (8.0725 kg); basic cylinder, excluding separately specified mounts and accessories

Weight basis: 890 g non-stroke mass + 1690 mm × 4.25 g/mm. Catalog estimate; H-seal mass difference unpublished; not measured or packed shipping weight. Unpublished mount/accessory masses, including any selected TC+TCM1 package, are excluded. Actual supplied mass prevails.

Features and Operation

The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. The 150 °C feature requires specified high-temperature seals; no H-specific range is given. Confirm the actual rating before high-temperature use.

External and Mounting Dimensions

Dimensions: mm except threads; magnetic and nonmagnetic bodies share dimensions. A + stroke is the illustrated bare-length reference: add no unspecified projection. It excludes mounts, rod-end joints, fittings, sensors and packaging, so is not the installed envelope.

Parameter Value
A + stroke, retracted 1840 mm = 150 + 1690; illustrated basic-cylinder end-to-end reference
AC + stroke, body face span 1783 mm = 93 + 1690
Derived bare length, fully extended 3530 mm = 150 + 2 × 1690
Body width × height 62 × 62 mm (□B)
Rod diameter / end thread D = 20 mm; E = M16×1.5; EA = 32 mm
Drawing dimensions (mm; threads labelled) AB = 57; AD = 27.5; AE = 27.5; DA = 42
Drawing dimensions (mm; threads labelled) F = 23; FA = 8; H = 17; K = M6×1.0
Drawing dimensions (mm; threads labelled) KA = 14.5; KB = 47; M = 38; MA = 15
Drawing dimensions (mm; threads labelled) P = G1/4; PA = 17; PB = 8.5
Parameter Value
Selected accessory TC; part F-SC50TC
Material Ductile cast iron
A + stroke 1840 mm = 150 + 1690
C + stroke 1783 mm = 93 + 1690
Drawing dimensions (mm) EB = 126; ED = 47; EE = 76; EP = 25
Drawing dimensions (mm) ET = 28; I = 23; S = 62
Trunnion center reference 891.5 mm = (93 + 1690) / 2
Application condition TC must be used with TCM1 and ordered with the cylinder; neither mounting position may be changed arbitrarily.

Complete dimension lines and mounting views: see the linked PDF catalog.

Mounting and Rod-End Accessories

Select for load direction and motion; confirm supplied parts and quantities, since compatibility does not imply inclusion. TC requires TCM1 and ordering with the cylinder; neither mounting position may be changed arbitrarily.

Part / assembly code Application and reference
F-SC50LB Foot mount; Carbon steel
F-SC50FA Front flange; Aluminium alloy
F-SC50CA Rear single clevis; Ductile cast iron
F-SC50CB Rear double clevis; Ductile cast iron
F-SC50TC Trunnion mount; Ductile cast iron; cylinder assembly option only, not separately orderable
F-SC50FA Rear flange; Aluminium alloy; same flange part as FA, mounted at the rear
F-SC40TCM1 Trunnion support; Ductile cast iron
F-M16X150I I-type rod-end joint; Carbon steel; 312 g catalog reference. Drawing dimensions: NC = 16; ND = 64; NE = 82; NF = 32; NG = 23; NH = M16×1.5; NM = 16.
F-M16X150Y Y-type rod-end joint; Carbon steel; 367.5 g catalog reference. Drawing dimensions: NA = 32; NC = 16; ND = 64; NP = 32; NQ = 80; NM = 16; NH = M16×1.5; PA = 39; PB = 32.8.
F-M16X150F Floating joint; Carbon steel; 543 g catalog reference. Drawing dimensions: MA = 90; MB = 27; MC = 10; MD = 41; ME = 44.5; MF = 19; MG = 8; MH = 17; MI/MJ = M16×1.5; MK = 7°.
F-M16X150U Spherical rod-end joint; Carbon steel; 204 g catalog reference. Drawing dimensions: PA = 15; PB = 40; PC = 16; PD = 28; PE = 64; PF = 84; PG = M16×1.5; PH = 15°; PI = 27; PJ = 22; PK = 21.

Rod-end thread: M16×1.5. Dimensions: mm except threads/angles; MK is floating-joint angular compensation, PH the spherical-joint angle. Material categories do not specify every part or finish. Count only supplied-part masses; the M6-and-smaller floating-joint radial-offset note does not apply.

Confirm genuine SC50 service codes, seal material and production revision for seal kits, wear rings, guide bushings, nuts and covers. Drawing numbers and bore size are not orderable service codes. No replacement magnet is included in this nonmagnetic cylinder.

Force and System Selection

Parameter Value
Effective piston areas Extension 1963 mm²; retraction 1649 mm²
Theoretical force at 0.5 MPa Extension 981.5 N; retraction 824.5 N
Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 3.1 / 4.1 / 5.1 / 6.1 / 7.2 / 8.3 mm²
Tube-size selection reference At 300 / 400 mm/s: 8 × 5 mm; At 500 / 600 / 700 / 800 mm/s: 10 × 6.5 mm (OD × ID)

Theoretical force, not safe payload. Account for losses, load factor and stability. The 0.1 MPa reference-table point is below the operating-pressure minimum.

Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

Installation and Maintenance

Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

PT1/4 piping torque: 6–8 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

Internal Components

Drawing item Basic material reference
1 — Rod-end nut Carbon steel
2 — Piston rod S45C hard-chrome-plated ground rod
3 — Front-cover O-ring TPU (basic reference)
4 — Guide bushing Wear-resistant material
5 — Front cover Aluminium alloy
6 — Cushion O-ring NBR (basic reference)
7 — Cushion seal TPU (basic reference)
8 — Cylinder barrel Aluminium alloy
9 — Piston Aluminium alloy
10 — Piston-rod O-ring NBR (basic reference)
11 — Piston O-ring NBR (basic reference)
12 — Magnet Not included in this nonmagnetic configuration
13 — Wear ring Wear-resistant material
14 — Hex-socket screw Carbon steel
15 — Rear cover Aluminium alloy
16 — Tie rod Carbon steel
17 — Tie-rod nut Carbon steel

Basic SC50 drawing/materials; item numbers are not service codes. Seal materials are basic-version references, not the H bill of materials.

Series Ordering Options

Parameter Value
Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
Magnet No suffix: without magnet; S: magnetic piston
Seal material No suffix: TPU; H: Fluororubber; N: NBR. This product selects H fluororubber.
Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
Port options No suffix: PT; G: G thread; T: NPT.
Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 mm
Catalog stroke limits Maximum stroke 1200 mm; allowable stroke 2000 mm

Within allowable range, >=1600 mm is treated as non-standard; other special strokes require confirmation.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
GPC straight 6 mm OD: GPC602,GPC602D; 8 mm OD: GPC802,GPC802D; 10 mm OD: GPC1002,GPC1002D; 12 mm OD: GPC1202,GPC1202D; 4 mm OD: GPC402-M,GPC402D-M
GPL elbow 6 mm OD: GPL602,GPL602D; 8 mm OD: GPL802,GPL802D; 10 mm OD: GPL1002,GPL1002D; 12 mm OD: GPL1202,GPL1202D; 4 mm OD: GPL402-M,GPL402D-M
GPLL extended elbow 4 mm OD: GPLL402,GPLL402D; 6 mm OD: GPLL602,GPLL602D; 8 mm OD: GPLL802,GPLL802D; 10 mm OD: GPLL1002,GPLL1002D; 12 mm OD: GPLL1202,GPLL1202D
GPEB branch tee 4 mm OD: GPEB402,GPEB402D; 6 mm OD: GPEB602,GPEB602D; 8 mm OD: GPEB802,GPEB802D; 10 mm OD: GPEB1002,GPEB1002D; 12 mm OD: GPEB1202,GPEB1202D
GPED run tee 4 mm OD: GPED402,GPED402D; 6 mm OD: GPED602,GPED602D; 8 mm OD: GPED802,GPED802D; 10 mm OD: GPED1002,GPED1002D; 12 mm OD: GPED1202,GPED1202D
GPYB Y fitting 4 mm OD: GPYB402,GPYB402D; 6 mm OD: GPYB602,GPYB602D; 8 mm OD: GPYB802,GPYB802D; 10 mm OD: GPYB1002,GPYB1002D; 12 mm OD: GPYB1202,GPYB1202D
GPH banjo elbow 6 mm OD: GPH602,GPH602D; 8 mm OD: GPH802,GPH802D; 10 mm OD: GPH1002,GPH1002D
GPHF female-branch banjo 6 mm OD: GPHF602,GPHF602D; 8 mm OD: GPHF802,GPHF802D; 10 mm OD: GPHF1002,GPHF1002D
GPHW twin banjo 6 mm OD: GPHW602,GPHW602D; 8 mm OD: GPHW802,GPHW802D; 10 mm OD: GPHW1002,GPHW1002D
GPZB cross fitting 6 mm OD: GPZB602,GPZB602D; 8 mm OD: GPZB802,GPZB802D; 10 mm OD: GPZB1002,GPZB1002D
GPKD reducing distributor main 8 / branch 6 mm OD: GPKD8-602,GPKD8-602D
GBPC metal straight 4 mm OD: GBPC402; 6 mm OD: GBPC602; 8 mm OD: GBPC802; 10 mm OD: GBPC1002; 12 mm OD: GBPC1202
GBKC compression fitting 6 × 4 mm OD × ID: GBKC0604-02; 8 × 5 mm OD × ID: GBKC0805-02; 8 × 5.5 or 6 mm OD × ID: GBKC0806-02; 10 × 6.5 mm OD × ID: GBKC1065-02; 10 × 7.5 or 8 mm OD × ID: GBKC1075-02; 12 × 8 mm OD × ID: GBKC1208-02; 12 × 9 or 10 mm OD × ID: GBKC1209-02
GBB male–male adapter other end male G1/8: GBB0102; other end male G1/4: GBB0202; other end male G3/8: GBB0203; other end male G1/2: GBB0204
GBD male–female adapter other end female G1/8: GBD0102
GBZ unused auxiliary plug GBZ02
GBSL valve-exhaust silencer GBSL02
GBSLM miniature valve-exhaust silencer GBSLM02
GBESL adjustable valve-exhaust silencer GBESL02
GPSS universal flow control 6 mm OD: GPSS602A,GPSS602AD,GPSS602B,GPSS602BD; 8 mm OD: GPSS802A,GPSS802AD,GPSS802B,GPSS802BD; 10 mm OD: GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD
GPTL push-lock flow control 6 mm OD: GPTL602A,GPTL602AD,GPTL602B,GPTL602BD; 8 mm OD: GPTL802A,GPTL802AD,GPTL802B,GPTL802BD; 10 mm OD: GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD
GPSA tube-to-tube flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
PPA valve-exhaust plug-in silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
ASC separate inline flow control female G1/4: ASC20008G
GAFR upstream filter/regulator female G1/4: GAFR20008SG,GAFR30008SG
US98A/UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
PSA tube-to-tube flow control 4 mm OD: PSA4,PSA4D,PSA4-S,PSA4D-S; 6 mm OD: PSA6,PSA6D,PSA6-S,PSA6D-S; 8 mm OD: PSA8,PSA8D,PSA8-S,PSA8D-S; 10 mm OD: PSA10,PSA10D,PSA10-S,PSA10D-S; 12 mm OD: PSA12,PSA12D,PSA12-S,PSA12D-S

Separate options; no included-kit or stock promise. Connect both SC50 working ports using G1/4 fittings and the specified seal; check insertion depth, wrench/rotation clearance, flow and tube loading. PT/G/NPT are not interchangeable. G joints need the correct face seal and mating surface. The M16×1.5 rod thread is not an air port.

Use suitable soft nylon/PU tubing: exact OD, plus ID for compression. Where offered: D=black, blank=grey, -M=miniature. -S identifies specified stainless-304 parts, not an all-stainless assembly. GPHF has male RA and extra female RB, both G1/4; connect or seal RB as designed. RB is not a tube socket. Tees/Y/cross/distributors must not bridge chambers or unrelated controls.

Push-in fittings, direct/threadless controls and listed silencers: 0–1 MPa, −20–70 °C. GBPC: 0–0.9 MPa, 0–150 °C; SC path 0.15–0.9 MPa. GBKC/GBB/GBD/GBZ: 0–1 MPa, 0–150 °C; SC path 0.15–1 MPa. Use actual H-cylinder and component temperature limits; no H-system range is inferred. Obey lower valve/tube/sensor limits; component vacuum data do not rate the cylinder assembly.

Install threads with the body hex, not the locking nut; insert tubing fully before tightening. GBKC0806-02 accepts 8 × 5.5 or 8 × 6 mm; 8 × 5 mm needs GBKC0805-02. GBB/GBD use one thread standard: BB male–male, BD male–female; other ends are labelled in the table. Match its gender/size and flow; no cross-thread conversion. GBZ closes permitted unused auxiliary ports only, never active cylinder ports.

At the cylinder, A meters thread→tube exhaust (meter-out), with free reverse supply; B meters tube→cylinder supply (meter-in). A is usual for double action; B needs a designed meter-in circuit. Start closed, open slowly; closed leakage is allowed, so these are not shutoffs. GPTL caps on 1/4-port variants: adjustment reference: 0.16 N·m, not pipe-thread torque. Never force caps/end stops. PSA/PSA-S/GPSA are metric tube-to-tube controls, no A/B suffixes; match both ODs and the body check/throttle symbol. GPSA does not mean G thread.

Silencers: separate valve exhaust only. Match its actual thread, flow and backpressure; not cylinder-port fittings, inlet filters or shutoffs. GBESL adjusts backpressure. PPA6/8/10/12 use plain metric stems in matching sockets: POM body/cap, PE filter, 0–1 MPa, −20–70 °C; 25 dB at 0.5 MPa is a catalog test, not an onsite noise promise. PPA has no D or thread suffix. The referenced GBSL catalog test is 13 dB at 0.5 MPa; do not apply PT noise figures to G variants.

ASC20008G: separate two-female-G1/4-port inline control; needs male fittings. Follow P/A and the check/throttle symbol. 0.05–0.95 MPa, −20–70 °C and 40 µm-or-finer filtered air; SC path 0.15–0.95 MPa before lower limits. Rated flow does not guarantee cylinder speed.

GAFR20008SG,GAFR30008SG: separate upstream G1/4 filter/regulator, 40 µm element, PC bowl, differential/manual drain, bracket and round gauge, no reverse-flow valve. Inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Respect IN/OUT, flow/pressure loss, condensate, bowl environment and all downstream limits; not a cylinder fitting or vacuum regulator.

US98A/UE95A examples: blue 100 m coils, not supplied cut lengths. Rated 1 MPa at 23 °C, temperature derating required: US98A −20–70 °C, UE95A −40–70 °C. Match OD/ID, bend radius, routing and flow; thinner low-pressure tubes are not equivalent. Only the listed sizing-reference diameters carry the reference-speed association.

Separate Directional-Valve and Tube Examples

4A G: single control 4A21008G; double control 4A22008G. 4V G: single control 4V21008BG; double control 4V22008BG. 5V PT: single control 5V21008B050; double control 5V22008B050. All listed B versions use DC24V. 4V has DIN entry and internal pilot; 5V has 0.5 m leads (050) and internal pilot. 4A has single/double pneumatic control, external pilot supply and no coil. 4A20008 pilots: single control has one PT1/8 port, double has two; confirm pilot threads on G versions.

08 port code: P 1/4, A/B 1/4, R/S 1/8. Threads are PT/G as listed; choose each endpoint independently. These separately piped valve examples are not direct cylinder fittings or included parts. Operating range: 0.15–0.8 MPa, −20 to 70 °C, 40 µm filtration. Confirm flow, load, pilot supply and exhaust backpressure; apply all lower component limits.

UN54D flame-resistant tubing: 1 MPa at 23 °C, -20 to 70 °C; UN54D080050100MBU: 8 × 5 mm, minimum bend radius 18 mm; UN54D100065100MBU: 10 × 6.5 mm, minimum bend radius 20 mm. All are blue 100 m coils; derate pressure above 23 °C. Flame-resistant does not mean fireproof. Match exact OD, ID, tube compatibility and bend radius; PA6/PA12 sizes 8 × 5 and 10 × 6.5 mm are not established here.

M5 and 4M NAMUR references have their own valve connections and are not direct SC mounting accessories. No unverified direct adapter or complete kit is specified.

Product form

Specifications: SC50X1690TCHG — Airtac SC double-acting, single-rod tie-rod cylinder; 50 mm bore, 1690 mm stroke, without magnet, H fluororubber seal... Read more

SKU: SC50X1690TCHG

$582.69 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: SC50X1690TCHG — Airtac SC double-acting, single-rod tie-rod cylinder; 50 mm bore, 1690 mm stroke, without magnet, H fluororubber seal option and G1/4 ports. Mounting configuration: trunnion mount.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For product dimensions and mounting drawings, download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    SC Double-acting, single-rod SC cylinder
    50 50 mm bore
    X Separator before stroke
    1690 1690 mm stroke
    No magnet suffix Without built-in magnet
    TC Trunnion mount
    H Fluororubber seals; confirm actual per-part materials
    G G1/4 ports

    Technical Specifications

    Parameter Value
    Model SC50X1690TCHG
    Action Double acting, single rod
    Bore 50 mm
    Stroke 1690 mm; Non-standard order within the catalog allowable-stroke range; confirm order conditions
    Construction Tie-rod cylinder to Airtac enterprise standard
    Piston rod S45C hard-chrome-plated ground rod
    Magnetic piston Without magnet; external magnetic sensors are not applicable
    Mounting selection Trunnion mount
    Seal option H fluororubber; basic seals are references, not the H bill of materials
    Port thread G1/4
    Working medium Clean compressed air filtered through 40 µm or finer filtration
    Operating pressure 0.15–1 MPa
    Proof pressure 1.5 MPa; not the continuous operating pressure
    Operating temperature General −20 to 70 °C reference; confirm H rating; prevent condensate freezing
    Piston speed 30–800 mm/s; select controls for the actual load and piping
    Stroke tolerance Not specified for this stroke in the catalog tolerance table; confirm the ordered tolerance
    Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference. A shorter cylinder stroke cannot provide the full nominal deceleration travel.
    Rod diameter / end thread 20 mm / M16×1.5
    Sensor selection Magnetic sensor options require a magnetic S cylinder; attaching a sensor alone does not add a magnetic piston
    Calculated weight reference 8072.5 g (8.0725 kg); basic cylinder, excluding separately specified mounts and accessories

    Weight basis: 890 g non-stroke mass + 1690 mm × 4.25 g/mm. Catalog estimate; H-seal mass difference unpublished; not measured or packed shipping weight. Unpublished mount/accessory masses, including any selected TC+TCM1 package, are excluded. Actual supplied mass prevails.

    Features and Operation

    The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

    The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. The 150 °C feature requires specified high-temperature seals; no H-specific range is given. Confirm the actual rating before high-temperature use.

    External and Mounting Dimensions

    Dimensions: mm except threads; magnetic and nonmagnetic bodies share dimensions. A + stroke is the illustrated bare-length reference: add no unspecified projection. It excludes mounts, rod-end joints, fittings, sensors and packaging, so is not the installed envelope.

    Parameter Value
    A + stroke, retracted 1840 mm = 150 + 1690; illustrated basic-cylinder end-to-end reference
    AC + stroke, body face span 1783 mm = 93 + 1690
    Derived bare length, fully extended 3530 mm = 150 + 2 × 1690
    Body width × height 62 × 62 mm (□B)
    Rod diameter / end thread D = 20 mm; E = M16×1.5; EA = 32 mm
    Drawing dimensions (mm; threads labelled) AB = 57; AD = 27.5; AE = 27.5; DA = 42
    Drawing dimensions (mm; threads labelled) F = 23; FA = 8; H = 17; K = M6×1.0
    Drawing dimensions (mm; threads labelled) KA = 14.5; KB = 47; M = 38; MA = 15
    Drawing dimensions (mm; threads labelled) P = G1/4; PA = 17; PB = 8.5
    Parameter Value
    Selected accessory TC; part F-SC50TC
    Material Ductile cast iron
    A + stroke 1840 mm = 150 + 1690
    C + stroke 1783 mm = 93 + 1690
    Drawing dimensions (mm) EB = 126; ED = 47; EE = 76; EP = 25
    Drawing dimensions (mm) ET = 28; I = 23; S = 62
    Trunnion center reference 891.5 mm = (93 + 1690) / 2
    Application condition TC must be used with TCM1 and ordered with the cylinder; neither mounting position may be changed arbitrarily.

    Complete dimension lines and mounting views: see the linked PDF catalog.

    Mounting and Rod-End Accessories

    Select for load direction and motion; confirm supplied parts and quantities, since compatibility does not imply inclusion. TC requires TCM1 and ordering with the cylinder; neither mounting position may be changed arbitrarily.

    Part / assembly code Application and reference
    F-SC50LB Foot mount; Carbon steel
    F-SC50FA Front flange; Aluminium alloy
    F-SC50CA Rear single clevis; Ductile cast iron
    F-SC50CB Rear double clevis; Ductile cast iron
    F-SC50TC Trunnion mount; Ductile cast iron; cylinder assembly option only, not separately orderable
    F-SC50FA Rear flange; Aluminium alloy; same flange part as FA, mounted at the rear
    F-SC40TCM1 Trunnion support; Ductile cast iron
    F-M16X150I I-type rod-end joint; Carbon steel; 312 g catalog reference. Drawing dimensions: NC = 16; ND = 64; NE = 82; NF = 32; NG = 23; NH = M16×1.5; NM = 16.
    F-M16X150Y Y-type rod-end joint; Carbon steel; 367.5 g catalog reference. Drawing dimensions: NA = 32; NC = 16; ND = 64; NP = 32; NQ = 80; NM = 16; NH = M16×1.5; PA = 39; PB = 32.8.
    F-M16X150F Floating joint; Carbon steel; 543 g catalog reference. Drawing dimensions: MA = 90; MB = 27; MC = 10; MD = 41; ME = 44.5; MF = 19; MG = 8; MH = 17; MI/MJ = M16×1.5; MK = 7°.
    F-M16X150U Spherical rod-end joint; Carbon steel; 204 g catalog reference. Drawing dimensions: PA = 15; PB = 40; PC = 16; PD = 28; PE = 64; PF = 84; PG = M16×1.5; PH = 15°; PI = 27; PJ = 22; PK = 21.

    Rod-end thread: M16×1.5. Dimensions: mm except threads/angles; MK is floating-joint angular compensation, PH the spherical-joint angle. Material categories do not specify every part or finish. Count only supplied-part masses; the M6-and-smaller floating-joint radial-offset note does not apply.

    Confirm genuine SC50 service codes, seal material and production revision for seal kits, wear rings, guide bushings, nuts and covers. Drawing numbers and bore size are not orderable service codes. No replacement magnet is included in this nonmagnetic cylinder.

    Force and System Selection

    Parameter Value
    Effective piston areas Extension 1963 mm²; retraction 1649 mm²
    Theoretical force at 0.5 MPa Extension 981.5 N; retraction 824.5 N
    Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
    Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
    Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 3.1 / 4.1 / 5.1 / 6.1 / 7.2 / 8.3 mm²
    Tube-size selection reference At 300 / 400 mm/s: 8 × 5 mm; At 500 / 600 / 700 / 800 mm/s: 10 × 6.5 mm (OD × ID)

    Theoretical force, not safe payload. Account for losses, load factor and stability. The 0.1 MPa reference-table point is below the operating-pressure minimum.

    Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

    Installation and Maintenance

    Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

    Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

    Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

    Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

    Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

    PT1/4 piping torque: 6–8 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

    Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

    Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

    Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

    During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

    Internal Components

    Drawing item Basic material reference
    1 — Rod-end nut Carbon steel
    2 — Piston rod S45C hard-chrome-plated ground rod
    3 — Front-cover O-ring TPU (basic reference)
    4 — Guide bushing Wear-resistant material
    5 — Front cover Aluminium alloy
    6 — Cushion O-ring NBR (basic reference)
    7 — Cushion seal TPU (basic reference)
    8 — Cylinder barrel Aluminium alloy
    9 — Piston Aluminium alloy
    10 — Piston-rod O-ring NBR (basic reference)
    11 — Piston O-ring NBR (basic reference)
    12 — Magnet Not included in this nonmagnetic configuration
    13 — Wear ring Wear-resistant material
    14 — Hex-socket screw Carbon steel
    15 — Rear cover Aluminium alloy
    16 — Tie rod Carbon steel
    17 — Tie-rod nut Carbon steel

    Basic SC50 drawing/materials; item numbers are not service codes. Seal materials are basic-version references, not the H bill of materials.

    Series Ordering Options

    Parameter Value
    Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
    Magnet No suffix: without magnet; S: magnetic piston
    Seal material No suffix: TPU; H: Fluororubber; N: NBR. This product selects H fluororubber.
    Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
    Port options No suffix: PT; G: G thread; T: NPT.
    Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 mm
    Catalog stroke limits Maximum stroke 1200 mm; allowable stroke 2000 mm

    Within allowable range, >=1600 mm is treated as non-standard; other special strokes require confirmation.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    GPC straight 6 mm OD: GPC602,GPC602D; 8 mm OD: GPC802,GPC802D; 10 mm OD: GPC1002,GPC1002D; 12 mm OD: GPC1202,GPC1202D; 4 mm OD: GPC402-M,GPC402D-M
    GPL elbow 6 mm OD: GPL602,GPL602D; 8 mm OD: GPL802,GPL802D; 10 mm OD: GPL1002,GPL1002D; 12 mm OD: GPL1202,GPL1202D; 4 mm OD: GPL402-M,GPL402D-M
    GPLL extended elbow 4 mm OD: GPLL402,GPLL402D; 6 mm OD: GPLL602,GPLL602D; 8 mm OD: GPLL802,GPLL802D; 10 mm OD: GPLL1002,GPLL1002D; 12 mm OD: GPLL1202,GPLL1202D
    GPEB branch tee 4 mm OD: GPEB402,GPEB402D; 6 mm OD: GPEB602,GPEB602D; 8 mm OD: GPEB802,GPEB802D; 10 mm OD: GPEB1002,GPEB1002D; 12 mm OD: GPEB1202,GPEB1202D
    GPED run tee 4 mm OD: GPED402,GPED402D; 6 mm OD: GPED602,GPED602D; 8 mm OD: GPED802,GPED802D; 10 mm OD: GPED1002,GPED1002D; 12 mm OD: GPED1202,GPED1202D
    GPYB Y fitting 4 mm OD: GPYB402,GPYB402D; 6 mm OD: GPYB602,GPYB602D; 8 mm OD: GPYB802,GPYB802D; 10 mm OD: GPYB1002,GPYB1002D; 12 mm OD: GPYB1202,GPYB1202D
    GPH banjo elbow 6 mm OD: GPH602,GPH602D; 8 mm OD: GPH802,GPH802D; 10 mm OD: GPH1002,GPH1002D
    GPHF female-branch banjo 6 mm OD: GPHF602,GPHF602D; 8 mm OD: GPHF802,GPHF802D; 10 mm OD: GPHF1002,GPHF1002D
    GPHW twin banjo 6 mm OD: GPHW602,GPHW602D; 8 mm OD: GPHW802,GPHW802D; 10 mm OD: GPHW1002,GPHW1002D
    GPZB cross fitting 6 mm OD: GPZB602,GPZB602D; 8 mm OD: GPZB802,GPZB802D; 10 mm OD: GPZB1002,GPZB1002D
    GPKD reducing distributor main 8 / branch 6 mm OD: GPKD8-602,GPKD8-602D
    GBPC metal straight 4 mm OD: GBPC402; 6 mm OD: GBPC602; 8 mm OD: GBPC802; 10 mm OD: GBPC1002; 12 mm OD: GBPC1202
    GBKC compression fitting 6 × 4 mm OD × ID: GBKC0604-02; 8 × 5 mm OD × ID: GBKC0805-02; 8 × 5.5 or 6 mm OD × ID: GBKC0806-02; 10 × 6.5 mm OD × ID: GBKC1065-02; 10 × 7.5 or 8 mm OD × ID: GBKC1075-02; 12 × 8 mm OD × ID: GBKC1208-02; 12 × 9 or 10 mm OD × ID: GBKC1209-02
    GBB male–male adapter other end male G1/8: GBB0102; other end male G1/4: GBB0202; other end male G3/8: GBB0203; other end male G1/2: GBB0204
    GBD male–female adapter other end female G1/8: GBD0102
    GBZ unused auxiliary plug GBZ02
    GBSL valve-exhaust silencer GBSL02
    GBSLM miniature valve-exhaust silencer GBSLM02
    GBESL adjustable valve-exhaust silencer GBESL02
    GPSS universal flow control 6 mm OD: GPSS602A,GPSS602AD,GPSS602B,GPSS602BD; 8 mm OD: GPSS802A,GPSS802AD,GPSS802B,GPSS802BD; 10 mm OD: GPSS1002A,GPSS1002AD,GPSS1002B,GPSS1002BD
    GPTL push-lock flow control 6 mm OD: GPTL602A,GPTL602AD,GPTL602B,GPTL602BD; 8 mm OD: GPTL802A,GPTL802AD,GPTL802B,GPTL802BD; 10 mm OD: GPTL1002A,GPTL1002AD,GPTL1002B,GPTL1002BD
    GPSA tube-to-tube flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
    PPA valve-exhaust plug-in silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
    ASC separate inline flow control female G1/4: ASC20008G
    GAFR upstream filter/regulator female G1/4: GAFR20008SG,GAFR30008SG
    US98A/UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
    PSA tube-to-tube flow control 4 mm OD: PSA4,PSA4D,PSA4-S,PSA4D-S; 6 mm OD: PSA6,PSA6D,PSA6-S,PSA6D-S; 8 mm OD: PSA8,PSA8D,PSA8-S,PSA8D-S; 10 mm OD: PSA10,PSA10D,PSA10-S,PSA10D-S; 12 mm OD: PSA12,PSA12D,PSA12-S,PSA12D-S

    Separate options; no included-kit or stock promise. Connect both SC50 working ports using G1/4 fittings and the specified seal; check insertion depth, wrench/rotation clearance, flow and tube loading. PT/G/NPT are not interchangeable. G joints need the correct face seal and mating surface. The M16×1.5 rod thread is not an air port.

    Use suitable soft nylon/PU tubing: exact OD, plus ID for compression. Where offered: D=black, blank=grey, -M=miniature. -S identifies specified stainless-304 parts, not an all-stainless assembly. GPHF has male RA and extra female RB, both G1/4; connect or seal RB as designed. RB is not a tube socket. Tees/Y/cross/distributors must not bridge chambers or unrelated controls.

    Push-in fittings, direct/threadless controls and listed silencers: 0–1 MPa, −20–70 °C. GBPC: 0–0.9 MPa, 0–150 °C; SC path 0.15–0.9 MPa. GBKC/GBB/GBD/GBZ: 0–1 MPa, 0–150 °C; SC path 0.15–1 MPa. Use actual H-cylinder and component temperature limits; no H-system range is inferred. Obey lower valve/tube/sensor limits; component vacuum data do not rate the cylinder assembly.

    Install threads with the body hex, not the locking nut; insert tubing fully before tightening. GBKC0806-02 accepts 8 × 5.5 or 8 × 6 mm; 8 × 5 mm needs GBKC0805-02. GBB/GBD use one thread standard: BB male–male, BD male–female; other ends are labelled in the table. Match its gender/size and flow; no cross-thread conversion. GBZ closes permitted unused auxiliary ports only, never active cylinder ports.

    At the cylinder, A meters thread→tube exhaust (meter-out), with free reverse supply; B meters tube→cylinder supply (meter-in). A is usual for double action; B needs a designed meter-in circuit. Start closed, open slowly; closed leakage is allowed, so these are not shutoffs. GPTL caps on 1/4-port variants: adjustment reference: 0.16 N·m, not pipe-thread torque. Never force caps/end stops. PSA/PSA-S/GPSA are metric tube-to-tube controls, no A/B suffixes; match both ODs and the body check/throttle symbol. GPSA does not mean G thread.

    Silencers: separate valve exhaust only. Match its actual thread, flow and backpressure; not cylinder-port fittings, inlet filters or shutoffs. GBESL adjusts backpressure. PPA6/8/10/12 use plain metric stems in matching sockets: POM body/cap, PE filter, 0–1 MPa, −20–70 °C; 25 dB at 0.5 MPa is a catalog test, not an onsite noise promise. PPA has no D or thread suffix. The referenced GBSL catalog test is 13 dB at 0.5 MPa; do not apply PT noise figures to G variants.

    ASC20008G: separate two-female-G1/4-port inline control; needs male fittings. Follow P/A and the check/throttle symbol. 0.05–0.95 MPa, −20–70 °C and 40 µm-or-finer filtered air; SC path 0.15–0.95 MPa before lower limits. Rated flow does not guarantee cylinder speed.

    GAFR20008SG,GAFR30008SG: separate upstream G1/4 filter/regulator, 40 µm element, PC bowl, differential/manual drain, bracket and round gauge, no reverse-flow valve. Inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Respect IN/OUT, flow/pressure loss, condensate, bowl environment and all downstream limits; not a cylinder fitting or vacuum regulator.

    US98A/UE95A examples: blue 100 m coils, not supplied cut lengths. Rated 1 MPa at 23 °C, temperature derating required: US98A −20–70 °C, UE95A −40–70 °C. Match OD/ID, bend radius, routing and flow; thinner low-pressure tubes are not equivalent. Only the listed sizing-reference diameters carry the reference-speed association.

    Separate Directional-Valve and Tube Examples

    4A G: single control 4A21008G; double control 4A22008G. 4V G: single control 4V21008BG; double control 4V22008BG. 5V PT: single control 5V21008B050; double control 5V22008B050. All listed B versions use DC24V. 4V has DIN entry and internal pilot; 5V has 0.5 m leads (050) and internal pilot. 4A has single/double pneumatic control, external pilot supply and no coil. 4A20008 pilots: single control has one PT1/8 port, double has two; confirm pilot threads on G versions.

    08 port code: P 1/4, A/B 1/4, R/S 1/8. Threads are PT/G as listed; choose each endpoint independently. These separately piped valve examples are not direct cylinder fittings or included parts. Operating range: 0.15–0.8 MPa, −20 to 70 °C, 40 µm filtration. Confirm flow, load, pilot supply and exhaust backpressure; apply all lower component limits.

    UN54D flame-resistant tubing: 1 MPa at 23 °C, -20 to 70 °C; UN54D080050100MBU: 8 × 5 mm, minimum bend radius 18 mm; UN54D100065100MBU: 10 × 6.5 mm, minimum bend radius 20 mm. All are blue 100 m coils; derate pressure above 23 °C. Flame-resistant does not mean fireproof. Match exact OD, ID, tube compatibility and bend radius; PA6/PA12 sizes 8 × 5 and 10 × 6.5 mm are not established here.

    M5 and 4M NAMUR references have their own valve connections and are not direct SC mounting accessories. No unverified direct adapter or complete kit is specified.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
