Airtac SC series: double-acting cylinder - SC32X626T

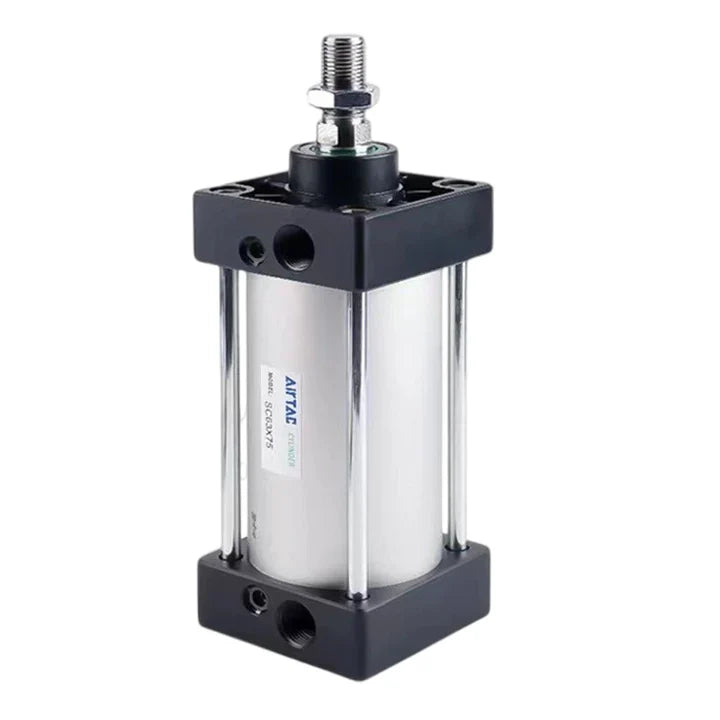

Photos are for reference only. Not all models have pictures.

Description

Specifications: SC32X626T — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 626 mm stroke, without magnet, TPU seal option and NPT1/8 ports. Mounting configuration: basic mounting.

Product Catalog

Download Airtac Product Catalog (PDF)

For product dimensions and mounting drawings, download and refer to the PDF catalog.

Model Code Explained

Code Meaning
SC SC enterprise-standard, double-acting single-rod cylinder
32 32 mm bore
X Separator before stroke
626 626 mm stroke
No magnet suffix Without built-in magnet
No mounting suffix Basic mounting
No seal-material suffix TPU option; individual O-ring materials follow the basic component table
T NPT1/8 ports

Technical Specifications

Parameter Value
Model SC32X626T
Action Double acting, single rod
Bore 32 mm
Stroke 626 mm; Special stroke; confirm order and delivery conditions
Construction Tie-rod cylinder to Airtac enterprise standard
Piston rod S45C hard-chrome-plated ground rod
Magnetic piston Without magnet; external magnetic sensors are not applicable
Mounting selection Basic mounting
Seal option TPU; this does not mean every internal O-ring is TPU
Port thread NPT1/8
Working medium Clean compressed air filtered through 40 µm or finer filtration
Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
Operating temperature −20 to 70 °C; avoid freezing condensate
Piston speed 30–800 mm/s; select controls for the actual load and piping
Stroke tolerance +1.5 / 0 mm
Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference
Rod diameter / end thread 12 mm / M10 × 1.25
Sensor selection Magnetic sensor options require a magnetic S cylinder; attaching a sensor alone does not add a magnetic piston
Calculated weight reference 1921.54 g (1.92154 kg); basic cylinder, excluding separately specified mounts and accessories

Weight basis: 488 g non-stroke mass + 626 mm × 2.29 g/mm. Catalog reference calculation, not measured or packed shipping weight. Mounting/accessory masses, including the TC+TCM1 package where selected, are not established and are excluded. Actual supplied mass prevails.

Features and Operation

The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. Its high-temperature feature refers to specially selected seals at 150 °C, not the rating of this TPU configuration. Do not extend the current −20 to 70 °C rating without confirmation of the exact special cylinder.

External and Mounting Dimensions

Dimensions are in mm except threads. Magnetic and nonmagnetic basic-cylinder dimensions are equal. Use the illustrated A + stroke reference without adding an unspecified projection. Mounts, rod-end joints, fittings, sensors and packaging are excluded from the derived bare length; it is not a complete installed envelope.

Parameter Value
A + stroke, retracted 766 mm = 140 + 626; illustrated basic-cylinder end-to-end reference
AC + stroke, body face span 719 mm = 93 + 626
Derived bare length, fully extended 1392 mm = 140 + 2 × 626
Body width × height 45 × 45 mm (□B)
Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = NPT1/8

For complete dimension lines and mounting views, download and refer to the PDF catalog.

Mounting and Rod-End Accessories

Select the installation for the load direction and motion. Listing a compatible part does not mean it is included; confirm the actual supplied parts and quantities. TC must be used with TCM1 and ordered with the cylinder. Neither mounting position may be changed arbitrarily.

Part / assembly code Application and reference
F-SC32LB Foot mount; carbon steel
F-SC32FA Front flange; aluminium alloy
F-SC32FA Rear flange; aluminium alloy; same flange part as FA, mounted at the rear
F-SC32CA Rear single clevis; ductile iron
F-SC32CB Rear double clevis; ductile iron
F-SC32TC Trunnion mount; ductile iron; cylinder assembly option only, not separately orderable
F-SI40TCM1 Trunnion support; ductile iron
F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

All four rod-end choices use M10 × 1.25. Their dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel material category does not define every subcomponent or finish. Add accessory mass only for parts actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

Confirm seal kits, wear rings, guide bushings, nuts and covers by the genuine SC32 service code, seal material and production revision. Drawing item numbers and a bore size do not establish orderable replacement codes. This nonmagnetic cylinder does not include a replacement magnet.

Force and System Selection

Parameter Value
Effective piston areas Extension 804 mm²; retraction 690 mm²
Theoretical force at 0.5 MPa Extension 402 N; retraction 345 N
Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 1.3 / 1.7 / 2.1 / 2.5 / 2.9 / 3.4 mm²
Tube-size selection reference At 300–500 mm/s: 6 × 4 mm; at 600–800 mm/s: 8 × 5 mm (OD × ID)

Catalogue theoretical values, not permissible payload. 0.1 MPa reference is below the current 0.15 MPa operating minimum; friction, back pressure, load ratio and rod stability must be checked.

Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

Installation and Maintenance

Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

Internal Components

Drawing item Basic material reference
1 — Rod-end nut Carbon steel
2 — Piston rod S45C hard-chrome-plated ground rod
3 — Front-cover O-ring TPU
4 — Guide bushing Wear-resistant material
5 — Front cover Aluminium alloy
6 — Cushion O-ring NBR
7 — Cushion seal TPU
8 — Cylinder barrel Aluminium alloy
9 — Piston Aluminium alloy
10 — Piston-rod O-ring NBR
11 — Piston O-ring NBR
12 — Magnet Not included in this nonmagnetic configuration
13 — Wear ring Wear-resistant material
14 — Hex-socket screw Carbon steel
15 — Rear cover Aluminium alloy
16 — Tie rod Carbon steel
17 — Tie-rod nut Carbon steel

Basic SC32 drawing and material reference; these item numbers are not service ordering numbers. The basic material table is not automatically an H/N seal-specific bill of materials.

Series Ordering Options

Parameter Value
Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
Magnet No suffix: without magnet; S: magnetic piston
Seal material No suffix: TPU; H: fluororubber; N: NBR. The selected product is the blank-code TPU version.
Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
Port options No suffix: PT; G: G thread; T: NPT.
Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
Catalog stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

Standard strokes, catalogue maximum stroke and allowable stroke are different limits. Strokes at or above 1600 mm within the allowable range are non-standard orders. Other special strokes require confirmation. No stroke tolerance is published for 1501–2000 mm in this table; confirm the ordered tolerance. Allowable stroke alone does not establish rod stability, installation feasibility or load capacity.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
NPC straight 5/32 in OD: NPC5/32-1/8; 1/4 in OD: NPC1/4-1/8; 5/16 in OD: NPC5/16-1/8; 3/8 in OD: NPC3/8-1/8
NPL elbow 5/32 in OD: NPL5/32-1/8; 1/4 in OD: NPL1/4-1/8; 5/16 in OD: NPL5/16-1/8; 3/8 in OD: NPL3/8-1/8
NPLL extended elbow — discontinued reference 5/32 in OD: NPLL5/32-1/8; 1/4 in OD: NPLL1/4-1/8; 5/16 in OD: NPLL5/16-1/8; 3/8 in OD: NPLL3/8-1/8
NPEB branch tee 5/32 in OD: NPEB5/32-1/8; 1/4 in OD: NPEB1/4-1/8; 5/16 in OD: NPEB5/16-1/8; 3/8 in OD: NPEB3/8-1/8
NPED run tee 5/32 in OD: NPED5/32-1/8; 1/4 in OD: NPED1/4-1/8; 5/16 in OD: NPED5/16-1/8; 3/8 in OD: NPED3/8-1/8
NPYB Y fitting 5/32 in OD: NPYB5/32-1/8; 1/4 in OD: NPYB1/4-1/8; 5/16 in OD: NPYB5/16-1/8; 3/8 in OD: NPYB3/8-1/8
NPH banjo elbow — discontinued reference 5/32 in OD: NPH5/32-1/8; 1/4 in OD: NPH1/4-1/8; 5/16 in OD: NPH5/16-1/8
NPHF female-branch banjo — discontinued reference 5/32 in OD: NPHF5/32-1/8; 1/4 in OD: NPHF1/4-1/8; 5/16 in OD: NPHF5/16-1/8
NPHW twin banjo — discontinued reference 5/32 in OD: NPHW5/32-1/8; 1/4 in OD: NPHW1/4-1/8; 5/16 in OD: NPHW5/16-1/8
NPZB cross fitting — discontinued reference 1/4 in OD: NPZB1/4-1/8; 5/16 in OD: NPZB5/16-1/8
NBPC metal straight — discontinued reference 5/32 in OD: NBPC5/32-1/8; 1/4 in OD: NBPC1/4-1/8; 5/16 in OD: NBPC5/16-1/8; 3/8 in OD: NBPC3/8-1/8
NPKD reducing distribution fitting — discontinued reference main 1/4 / branch 5/32 in OD: NPKD1/4-5/32-1/8
NBSL valve-exhaust silencer NBSL1/8
NBSLM valve-exhaust silencer NBSLM1/8
NBESL valve-exhaust silencer — discontinued reference NBESL1/8
NBZ unused auxiliary port plug NBZ1/8
NBB male–male adapter — discontinued reference second male end NPT1/8: NBB1/8-1/8; second male end NPT1/4: NBB1/8-1/4; second male end NPT3/8: NBB1/8-3/8
NBKC compression fitting — discontinued reference 5/32 × 3/32 in OD × ID: NBKC5/32-3/32-1/8; 1/4 × 5/32 in OD × ID: NBKC1/4-5/32-1/8; 5/16 × 1/5 in OD × ID: NBKC5/16-1/5-1/8
NPTL push-lock flow control 5/32 in OD: NPTL5/32-1/8A,NPTL5/32-1/8B; 1/4 in OD: NPTL1/4-1/8A,NPTL1/4-1/8B; 5/16 in OD: NPTL5/16-1/8A,NPTL5/16-1/8B
NPSS universal flow control — discontinued reference 1/4 in OD: NPSS1/4-1/8A,NPSS1/4-1/8B; 5/16 in OD: NPSS5/16-1/8A,NPSS5/16-1/8B
NPSA inch tube-to-tube flow control 5/32 in OD: NPSA5/32; 1/4 in OD: NPSA1/4; 5/16 in OD: NPSA5/16; 3/8 in OD: NPSA3/8
ASC100 separate inline flow control ASC10006T
GAFR200 upstream filter/regulator GAFR20006ST

These are separately selected alternatives, not a supplied kit or stock promise. Match actual NPT1/8 cylinder working ports, sealing method, insertion depth, wrench/rotation clearance, flow and tube loading. PT, G and NPT are not interchangeable. The M10 × 1.25 rod thread is not an air port. Marked discontinued families, including NPSS, are historical/installed-equipment references only: confirm remaining availability or an approved replacement before ordering, not current standard supply.

Use suitable soft nylon or PU tubing with the exact inch OD; compression fittings also require the listed ID. 5/32, 1/4, 5/16 and 3/8 in are 3.96875, 6.35, 7.9375 and 9.525 mm, not nominal metric tube sizes. NPHF has male RA and additional female RB, both NPT1/8: connect or seal RB as the circuit permits; it is not a tube socket. Tees, crosses and distribution fittings must not bridge chambers or unrelated controls. NPKD uses main 1/4 in and branch 5/32 in OD.

Ordinary push-in fittings and listed flow controls are rated 0–1 MPa, −20–70 °C. NBPC/NBKC/NBB/NBZ are 0–1 MPa, 0–150 °C, limiting the SC path to 0.15–1 MPa, 0–70 °C before lower component limits. NBPC does not share the metric BPC 0.9 MPa limit. A component vacuum rating does not approve a vacuum cylinder assembly.

NBKC5/32-3/32-1/8 follows the explicit model/dimension row; a conflicting equal-OD/ID selection-matrix row requires procurement confirmation. Hold the body hex for thread installation, not the tube-locking nut; insert tubing fully and tighten correctly. NBB has two male NPT ends; match the separately labelled second end to a female component. NBZ closes only permitted unused auxiliary connections, never either active cylinder working port.

At the cylinder, A restricts cylinder/thread → tube exhaust (meter-out), with free reverse supply; B restricts tube → cylinder supply (meter-in). A is the usual double-acting exhaust-control choice; B needs a designed meter-in circuit. Start closed and open slowly; these are not safety isolation. NPTL1/8 maximum cap-adjustment torque is 0.08 N·m, not pipe-thread torque. Do not force end stops or use pliers. NPSA is an inch tube-to-tube control without A/B suffixes: match both ODs and the body flow symbol.

NBSL/NBSLM/NBESL are only for a separately selected valve exhaust with matching NPT1/8 thread, adequate flow and acceptable backpressure. They are not cylinder working-port parts, inlet filters or shutoffs; NBESL adjustment changes backpressure. ASC10006T has two female NPT1/8 ports and needs separate male connections; follow its P/A and check/throttle symbol. Its 0.05–0.95 MPa, −20–70 °C limits the SC path to 0.15–0.95 MPa before other limits.

GAFR20006ST is a separate upstream NPT1/8 filter/regulator: inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Check flow, pressure drop, condensate, bowl environment and all downstream limits. It is not a cylinder-mounted fitting or vacuum regulator. Metric PU coils, PSA/GPSA and PPA are not specified for these inch sockets; select separately verified inch tubing and connections. No complete inch-tube coil ordering code is established here.

Separate Directional-Valve and Tube Examples

The SC32 NPT1/8 cylinder can be controlled through a correctly designed separate pneumatic circuit. The independently verified directional-valve examples below have PT/G ports, not NPT: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V11006BG, 4V12006B, 4V12006BG, 4V21006B, 4V21006BG, 4V22006B, 4V22006BG, 4A11006, 4A11006G, 4A12006, 4A12006G, 4A21006, 4A21006G, 4A22006, 4A22006G. Match valve-side and cylinder-side fittings and tubing separately; a complete mixed-thread connection kit is not established by these examples. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

M5 entries in the bore-based chart concern separate valve connections, not SC cylinder ports. 4M entries require a NAMUR interface; no SC mounting/adapter compatibility is established.

The PA/UN examples are metric tubing references, not matches for the reviewed inch NPT fitting sockets. Do not equate 6 mm with 1/4 inch or 8 mm with 5/16 inch; choose a separately verified complete tube/fitting chain.

Product form

Specifications: SC32X626T — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 626 mm stroke, without magnet, TPU seal option... Read more

SKU: SC32X626T

$157.82 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: SC32X626T — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 626 mm stroke, without magnet, TPU seal option and NPT1/8 ports. Mounting configuration: basic mounting.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For product dimensions and mounting drawings, download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    SC SC enterprise-standard, double-acting single-rod cylinder
    32 32 mm bore
    X Separator before stroke
    626 626 mm stroke
    No magnet suffix Without built-in magnet
    No mounting suffix Basic mounting
    No seal-material suffix TPU option; individual O-ring materials follow the basic component table
    T NPT1/8 ports

    Technical Specifications

    Parameter Value
    Model SC32X626T
    Action Double acting, single rod
    Bore 32 mm
    Stroke 626 mm; Special stroke; confirm order and delivery conditions
    Construction Tie-rod cylinder to Airtac enterprise standard
    Piston rod S45C hard-chrome-plated ground rod
    Magnetic piston Without magnet; external magnetic sensors are not applicable
    Mounting selection Basic mounting
    Seal option TPU; this does not mean every internal O-ring is TPU
    Port thread NPT1/8
    Working medium Clean compressed air filtered through 40 µm or finer filtration
    Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
    Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
    Operating temperature −20 to 70 °C; avoid freezing condensate
    Piston speed 30–800 mm/s; select controls for the actual load and piping
    Stroke tolerance +1.5 / 0 mm
    Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference
    Rod diameter / end thread 12 mm / M10 × 1.25
    Sensor selection Magnetic sensor options require a magnetic S cylinder; attaching a sensor alone does not add a magnetic piston
    Calculated weight reference 1921.54 g (1.92154 kg); basic cylinder, excluding separately specified mounts and accessories

    Weight basis: 488 g non-stroke mass + 626 mm × 2.29 g/mm. Catalog reference calculation, not measured or packed shipping weight. Mounting/accessory masses, including the TC+TCM1 package where selected, are not established and are excluded. Actual supplied mass prevails.

    Features and Operation

    The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

    The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. Its high-temperature feature refers to specially selected seals at 150 °C, not the rating of this TPU configuration. Do not extend the current −20 to 70 °C rating without confirmation of the exact special cylinder.

    External and Mounting Dimensions

    Dimensions are in mm except threads. Magnetic and nonmagnetic basic-cylinder dimensions are equal. Use the illustrated A + stroke reference without adding an unspecified projection. Mounts, rod-end joints, fittings, sensors and packaging are excluded from the derived bare length; it is not a complete installed envelope.

    Parameter Value
    A + stroke, retracted 766 mm = 140 + 626; illustrated basic-cylinder end-to-end reference
    AC + stroke, body face span 719 mm = 93 + 626
    Derived bare length, fully extended 1392 mm = 140 + 2 × 626
    Body width × height 45 × 45 mm (□B)
    Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
    Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
    Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
    Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = NPT1/8

    For complete dimension lines and mounting views, download and refer to the PDF catalog.

    Mounting and Rod-End Accessories

    Select the installation for the load direction and motion. Listing a compatible part does not mean it is included; confirm the actual supplied parts and quantities. TC must be used with TCM1 and ordered with the cylinder. Neither mounting position may be changed arbitrarily.

    Part / assembly code Application and reference
    F-SC32LB Foot mount; carbon steel
    F-SC32FA Front flange; aluminium alloy
    F-SC32FA Rear flange; aluminium alloy; same flange part as FA, mounted at the rear
    F-SC32CA Rear single clevis; ductile iron
    F-SC32CB Rear double clevis; ductile iron
    F-SC32TC Trunnion mount; ductile iron; cylinder assembly option only, not separately orderable
    F-SI40TCM1 Trunnion support; ductile iron
    F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
    F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
    F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
    F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

    All four rod-end choices use M10 × 1.25. Their dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel material category does not define every subcomponent or finish. Add accessory mass only for parts actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

    Confirm seal kits, wear rings, guide bushings, nuts and covers by the genuine SC32 service code, seal material and production revision. Drawing item numbers and a bore size do not establish orderable replacement codes. This nonmagnetic cylinder does not include a replacement magnet.

    Force and System Selection

    Parameter Value
    Effective piston areas Extension 804 mm²; retraction 690 mm²
    Theoretical force at 0.5 MPa Extension 402 N; retraction 345 N
    Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
    Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
    Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 1.3 / 1.7 / 2.1 / 2.5 / 2.9 / 3.4 mm²
    Tube-size selection reference At 300–500 mm/s: 6 × 4 mm; at 600–800 mm/s: 8 × 5 mm (OD × ID)

    Catalogue theoretical values, not permissible payload. 0.1 MPa reference is below the current 0.15 MPa operating minimum; friction, back pressure, load ratio and rod stability must be checked.

    Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

    Installation and Maintenance

    Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

    Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

    Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

    Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

    Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

    PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

    Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

    Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

    Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

    During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

    Internal Components

    Drawing item Basic material reference
    1 — Rod-end nut Carbon steel
    2 — Piston rod S45C hard-chrome-plated ground rod
    3 — Front-cover O-ring TPU
    4 — Guide bushing Wear-resistant material
    5 — Front cover Aluminium alloy
    6 — Cushion O-ring NBR
    7 — Cushion seal TPU
    8 — Cylinder barrel Aluminium alloy
    9 — Piston Aluminium alloy
    10 — Piston-rod O-ring NBR
    11 — Piston O-ring NBR
    12 — Magnet Not included in this nonmagnetic configuration
    13 — Wear ring Wear-resistant material
    14 — Hex-socket screw Carbon steel
    15 — Rear cover Aluminium alloy
    16 — Tie rod Carbon steel
    17 — Tie-rod nut Carbon steel

    Basic SC32 drawing and material reference; these item numbers are not service ordering numbers. The basic material table is not automatically an H/N seal-specific bill of materials.

    Series Ordering Options

    Parameter Value
    Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
    Magnet No suffix: without magnet; S: magnetic piston
    Seal material No suffix: TPU; H: fluororubber; N: NBR. The selected product is the blank-code TPU version.
    Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
    Port options No suffix: PT; G: G thread; T: NPT.
    Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
    Catalog stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

    Standard strokes, catalogue maximum stroke and allowable stroke are different limits. Strokes at or above 1600 mm within the allowable range are non-standard orders. Other special strokes require confirmation. No stroke tolerance is published for 1501–2000 mm in this table; confirm the ordered tolerance. Allowable stroke alone does not establish rod stability, installation feasibility or load capacity.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    NPC straight 5/32 in OD: NPC5/32-1/8; 1/4 in OD: NPC1/4-1/8; 5/16 in OD: NPC5/16-1/8; 3/8 in OD: NPC3/8-1/8
    NPL elbow 5/32 in OD: NPL5/32-1/8; 1/4 in OD: NPL1/4-1/8; 5/16 in OD: NPL5/16-1/8; 3/8 in OD: NPL3/8-1/8
    NPLL extended elbow — discontinued reference 5/32 in OD: NPLL5/32-1/8; 1/4 in OD: NPLL1/4-1/8; 5/16 in OD: NPLL5/16-1/8; 3/8 in OD: NPLL3/8-1/8
    NPEB branch tee 5/32 in OD: NPEB5/32-1/8; 1/4 in OD: NPEB1/4-1/8; 5/16 in OD: NPEB5/16-1/8; 3/8 in OD: NPEB3/8-1/8
    NPED run tee 5/32 in OD: NPED5/32-1/8; 1/4 in OD: NPED1/4-1/8; 5/16 in OD: NPED5/16-1/8; 3/8 in OD: NPED3/8-1/8
    NPYB Y fitting 5/32 in OD: NPYB5/32-1/8; 1/4 in OD: NPYB1/4-1/8; 5/16 in OD: NPYB5/16-1/8; 3/8 in OD: NPYB3/8-1/8
    NPH banjo elbow — discontinued reference 5/32 in OD: NPH5/32-1/8; 1/4 in OD: NPH1/4-1/8; 5/16 in OD: NPH5/16-1/8
    NPHF female-branch banjo — discontinued reference 5/32 in OD: NPHF5/32-1/8; 1/4 in OD: NPHF1/4-1/8; 5/16 in OD: NPHF5/16-1/8
    NPHW twin banjo — discontinued reference 5/32 in OD: NPHW5/32-1/8; 1/4 in OD: NPHW1/4-1/8; 5/16 in OD: NPHW5/16-1/8
    NPZB cross fitting — discontinued reference 1/4 in OD: NPZB1/4-1/8; 5/16 in OD: NPZB5/16-1/8
    NBPC metal straight — discontinued reference 5/32 in OD: NBPC5/32-1/8; 1/4 in OD: NBPC1/4-1/8; 5/16 in OD: NBPC5/16-1/8; 3/8 in OD: NBPC3/8-1/8
    NPKD reducing distribution fitting — discontinued reference main 1/4 / branch 5/32 in OD: NPKD1/4-5/32-1/8
    NBSL valve-exhaust silencer NBSL1/8
    NBSLM valve-exhaust silencer NBSLM1/8
    NBESL valve-exhaust silencer — discontinued reference NBESL1/8
    NBZ unused auxiliary port plug NBZ1/8
    NBB male–male adapter — discontinued reference second male end NPT1/8: NBB1/8-1/8; second male end NPT1/4: NBB1/8-1/4; second male end NPT3/8: NBB1/8-3/8
    NBKC compression fitting — discontinued reference 5/32 × 3/32 in OD × ID: NBKC5/32-3/32-1/8; 1/4 × 5/32 in OD × ID: NBKC1/4-5/32-1/8; 5/16 × 1/5 in OD × ID: NBKC5/16-1/5-1/8
    NPTL push-lock flow control 5/32 in OD: NPTL5/32-1/8A,NPTL5/32-1/8B; 1/4 in OD: NPTL1/4-1/8A,NPTL1/4-1/8B; 5/16 in OD: NPTL5/16-1/8A,NPTL5/16-1/8B
    NPSS universal flow control — discontinued reference 1/4 in OD: NPSS1/4-1/8A,NPSS1/4-1/8B; 5/16 in OD: NPSS5/16-1/8A,NPSS5/16-1/8B
    NPSA inch tube-to-tube flow control 5/32 in OD: NPSA5/32; 1/4 in OD: NPSA1/4; 5/16 in OD: NPSA5/16; 3/8 in OD: NPSA3/8
    ASC100 separate inline flow control ASC10006T
    GAFR200 upstream filter/regulator GAFR20006ST

    These are separately selected alternatives, not a supplied kit or stock promise. Match actual NPT1/8 cylinder working ports, sealing method, insertion depth, wrench/rotation clearance, flow and tube loading. PT, G and NPT are not interchangeable. The M10 × 1.25 rod thread is not an air port. Marked discontinued families, including NPSS, are historical/installed-equipment references only: confirm remaining availability or an approved replacement before ordering, not current standard supply.

    Use suitable soft nylon or PU tubing with the exact inch OD; compression fittings also require the listed ID. 5/32, 1/4, 5/16 and 3/8 in are 3.96875, 6.35, 7.9375 and 9.525 mm, not nominal metric tube sizes. NPHF has male RA and additional female RB, both NPT1/8: connect or seal RB as the circuit permits; it is not a tube socket. Tees, crosses and distribution fittings must not bridge chambers or unrelated controls. NPKD uses main 1/4 in and branch 5/32 in OD.

    Ordinary push-in fittings and listed flow controls are rated 0–1 MPa, −20–70 °C. NBPC/NBKC/NBB/NBZ are 0–1 MPa, 0–150 °C, limiting the SC path to 0.15–1 MPa, 0–70 °C before lower component limits. NBPC does not share the metric BPC 0.9 MPa limit. A component vacuum rating does not approve a vacuum cylinder assembly.

    NBKC5/32-3/32-1/8 follows the explicit model/dimension row; a conflicting equal-OD/ID selection-matrix row requires procurement confirmation. Hold the body hex for thread installation, not the tube-locking nut; insert tubing fully and tighten correctly. NBB has two male NPT ends; match the separately labelled second end to a female component. NBZ closes only permitted unused auxiliary connections, never either active cylinder working port.

    At the cylinder, A restricts cylinder/thread → tube exhaust (meter-out), with free reverse supply; B restricts tube → cylinder supply (meter-in). A is the usual double-acting exhaust-control choice; B needs a designed meter-in circuit. Start closed and open slowly; these are not safety isolation. NPTL1/8 maximum cap-adjustment torque is 0.08 N·m, not pipe-thread torque. Do not force end stops or use pliers. NPSA is an inch tube-to-tube control without A/B suffixes: match both ODs and the body flow symbol.

    NBSL/NBSLM/NBESL are only for a separately selected valve exhaust with matching NPT1/8 thread, adequate flow and acceptable backpressure. They are not cylinder working-port parts, inlet filters or shutoffs; NBESL adjustment changes backpressure. ASC10006T has two female NPT1/8 ports and needs separate male connections; follow its P/A and check/throttle symbol. Its 0.05–0.95 MPa, −20–70 °C limits the SC path to 0.15–0.95 MPa before other limits.

    GAFR20006ST is a separate upstream NPT1/8 filter/regulator: inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Check flow, pressure drop, condensate, bowl environment and all downstream limits. It is not a cylinder-mounted fitting or vacuum regulator. Metric PU coils, PSA/GPSA and PPA are not specified for these inch sockets; select separately verified inch tubing and connections. No complete inch-tube coil ordering code is established here.

    Separate Directional-Valve and Tube Examples

    The SC32 NPT1/8 cylinder can be controlled through a correctly designed separate pneumatic circuit. The independently verified directional-valve examples below have PT/G ports, not NPT: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V11006BG, 4V12006B, 4V12006BG, 4V21006B, 4V21006BG, 4V22006B, 4V22006BG, 4A11006, 4A11006G, 4A12006, 4A12006G, 4A21006, 4A21006G, 4A22006, 4A22006G. Match valve-side and cylinder-side fittings and tubing separately; a complete mixed-thread connection kit is not established by these examples. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

    Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

    M5 entries in the bore-based chart concern separate valve connections, not SC cylinder ports. 4M entries require a NAMUR interface; no SC mounting/adapter compatibility is established.

    The PA/UN examples are metric tubing references, not matches for the reviewed inch NPT fitting sockets. Do not equate 6 mm with 1/4 inch or 8 mm with 5/16 inch; choose a separately verified complete tube/fitting chain.
