Airtac SC series: double-acting cylinder - SC32X225SH

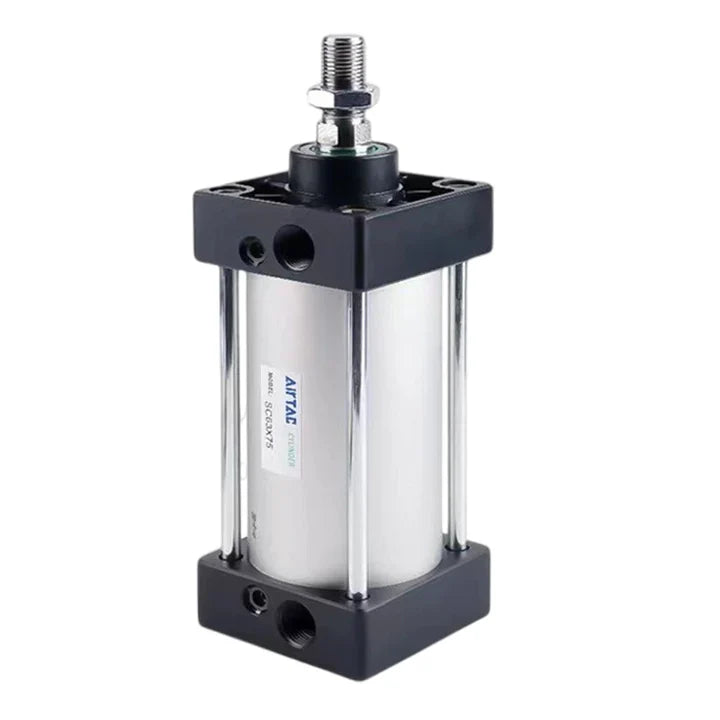

Photos are for reference only. Not all models have pictures.

Description

Specifications: SC32X225SH — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 225 mm stroke, with magnet, H fluororubber seal option and PT1/8 ports. Mounting configuration: basic mounting.

Product Catalog

Download Airtac Product Catalog (PDF)

For product dimensions and mounting drawings, download and refer to the PDF catalog.

Model Code Explained

Code Meaning
SC SC enterprise-standard, double-acting single-rod cylinder
32 32 mm bore
X Separator before stroke
225 225 mm stroke
S With magnetic piston
No mounting suffix Basic mounting
H Fluororubber seals; confirm actual per-part seal materials
No thread suffix PT1/8 ports

Technical Specifications

Parameter Value
Model SC32X225SH
Action Double acting, single rod
Bore 32 mm
Stroke 225 mm; Special stroke; confirm order and delivery conditions
Construction Tie-rod cylinder to Airtac enterprise standard
Piston rod S45C hard-chrome-plated ground rod
Magnetic piston With magnet; sensors are separately selected
Mounting selection Basic mounting
Seal option H fluororubber; basic-table seals are references, not the H bill of materials
Port thread PT1/8
Working medium Clean compressed air filtered through 40 µm or finer filtration
Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
Operating temperature General reference: −20 to 70 °C; confirm the H rating; avoid freezing condensate
Piston speed 30–800 mm/s; select controls for the actual load and piping
Stroke tolerance +1 / 0 mm
Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference
Rod diameter / end thread 12 mm / M10 × 1.25
Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod mounting hardware; select an exact version separately
Calculated weight reference 1011.25 g (1.01125 kg); basic cylinder, excluding separately specified mounts and accessories

Weight basis: 496 g non-stroke mass + 225 mm × 2.29 g/mm. Catalog estimate; H-seal mass difference is unpublished; not measured or packed shipping weight. Mounting/accessory masses, including the TC+TCM1 package where selected, are not established and are excluded. Actual supplied mass prevails.

Features and Operation

The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. Its 150 °C feature requires specified high-temperature seals; it gives no H-specific range. Confirm the actual cylinder rating before high-temperature use.

External and Mounting Dimensions

Dimensions are in mm except threads. Magnetic and nonmagnetic basic-cylinder dimensions are equal. Use the illustrated A + stroke reference without adding an unspecified projection. Mounts, rod-end joints, fittings, sensors and packaging are excluded from the derived bare length; it is not a complete installed envelope.

Parameter Value
A + stroke, retracted 365 mm = 140 + 225; illustrated basic-cylinder end-to-end reference
AC + stroke, body face span 318 mm = 93 + 225
Derived bare length, fully extended 590 mm = 140 + 2 × 225
Body width × height 45 × 45 mm (□B)
Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = PT1/8

For complete dimension lines and mounting views, download and refer to the PDF catalog.

Mounting and Rod-End Accessories

Select the installation for the load direction and motion. Listing a compatible part does not mean it is included; confirm the actual supplied parts and quantities. TC must be used with TCM1 and ordered with the cylinder. Neither mounting position may be changed arbitrarily.

Part / assembly code Application and reference
F-SC32LB Foot mount; carbon steel
F-SC32FA Front flange; aluminium alloy
F-SC32FA Rear flange; aluminium alloy; same flange part as FA, mounted at the rear
F-SC32CA Rear single clevis; ductile iron
F-SC32CB Rear double clevis; ductile iron
F-SC32TC Trunnion mount; ductile iron; cylinder assembly option only, not separately orderable
F-SI40TCM1 Trunnion support; ductile iron
F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

All four rod-end choices use M10 × 1.25. Their dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel material category does not define every subcomponent or finish. Add accessory mass only for parts actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

Confirm seal kits, wear rings, guide bushings, nuts and covers by the genuine SC32 service code, seal material and production revision. Drawing item numbers and a bore size do not establish orderable replacement codes. Replacement magnets are relevant only to magnetic cylinders.

Force and System Selection

Parameter Value
Effective piston areas Extension 804 mm²; retraction 690 mm²
Theoretical force at 0.5 MPa Extension 402 N; retraction 345 N
Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 1.3 / 1.7 / 2.1 / 2.5 / 2.9 / 3.4 mm²
Tube-size selection reference At 300–500 mm/s: 6 × 4 mm; at 600–800 mm/s: 8 × 5 mm (OD × ID)

Catalogue theoretical values, not permissible payload. 0.1 MPa reference is below the current 0.15 MPa operating minimum; friction, back pressure, load ratio and rod stability must be checked.

Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

Installation and Maintenance

Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

Internal Components

Drawing item Basic material reference
1 — Rod-end nut Carbon steel
2 — Piston rod S45C hard-chrome-plated ground rod
3 — Front-cover O-ring TPU (basic reference)
4 — Guide bushing Wear-resistant material
5 — Front cover Aluminium alloy
6 — Cushion O-ring NBR (basic reference)
7 — Cushion seal TPU (basic reference)
8 — Cylinder barrel Aluminium alloy
9 — Piston Aluminium alloy
10 — Piston-rod O-ring NBR (basic reference)
11 — Piston O-ring NBR (basic reference)
12 — Magnet Plastic magnet for this magnetic configuration
13 — Wear ring Wear-resistant material
14 — Hex-socket screw Carbon steel
15 — Rear cover Aluminium alloy
16 — Tie rod Carbon steel
17 — Tie-rod nut Carbon steel

Basic SC32 drawing and materials; item numbers are not service ordering codes. Seal materials shown are basic-version references, not the H bill of materials.

Series Ordering Options

Parameter Value
Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
Magnet No suffix: without magnet; S: magnetic piston
Seal material No suffix: TPU; H: fluororubber; N: NBR. This product selects H fluororubber.
Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
Port options No suffix: PT; G: G thread; T: NPT.
Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
Catalog stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

Standard strokes, catalogue maximum stroke and allowable stroke are different limits. Strokes at or above 1600 mm within the allowable range are non-standard orders. Other special strokes require confirmation. No stroke tolerance is published for 1501–2000 mm in this table; confirm the ordered tolerance. Allowable stroke alone does not establish rod stability, installation feasibility or load capacity.

Magnetic Sensors and Connection Leads

This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC32SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

Sensor / separate accessory Complete ordering choices
DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
F-SC32SH SC32 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
Electrical selection Limits and conditions
DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. For this H cylinder, apply actual cylinder, sensor and cable temperature limits; CMSG-H does not establish the system rating.

Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
PC straight 4 mm OD: PC401,PC401D,PC401-M,PC401D-M,PC401-S,PC401D-S; 6 mm OD: PC601,PC601D,PC601-M,PC601D-M,PC601-S,PC601D-S; 8 mm OD: PC801,PC801D,PC801-S,PC801D-S; 10 mm OD: PC1001,PC1001D,PC1001-S,PC1001D-S; 12 mm OD: PC1201,PC1201D,PC1201-S,PC1201D-S
POC round straight 4 mm OD: POC401,POC401D,POC401-S,POC401D-S; 6 mm OD: POC601,POC601D,POC601-S,POC601D-S; 8 mm OD: POC801,POC801D,POC801-S,POC801D-S; 10 mm OD: POC1001,POC1001D,POC1001-S,POC1001D-S
PL elbow 4 mm OD: PL401,PL401D,PL401-M,PL401D-M,PL401-S,PL401D-S; 6 mm OD: PL601,PL601D,PL601-M,PL601D-M,PL601-S,PL601D-S; 8 mm OD: PL801,PL801D,PL801-S,PL801D-S; 10 mm OD: PL1001,PL1001D,PL1001-S,PL1001D-S; 12 mm OD: PL1201,PL1201D,PL1201-S,PL1201D-S
PLL extended elbow 4 mm OD: PLL401,PLL401D,PLL401-S,PLL401D-S; 6 mm OD: PLL601,PLL601D,PLL601-S,PLL601D-S; 8 mm OD: PLL801,PLL801D,PLL801-S,PLL801D-S; 10 mm OD: PLL1001,PLL1001D,PLL1001-S,PLL1001D-S
PH banjo elbow 4 mm OD: PH401,PH401D,PH401-S,PH401D-S; 6 mm OD: PH601,PH601D,PH601-S,PH601D-S; 8 mm OD: PH801,PH801D,PH801-S,PH801D-S
PHF female-branch banjo 4 mm OD: PHF401,PHF401D,PHF401-S,PHF401D-S; 6 mm OD: PHF601,PHF601D,PHF601-S,PHF601D-S; 8 mm OD: PHF801,PHF801D,PHF801-S,PHF801D-S
PHW twin banjo 4 mm OD: PHW401,PHW401D,PHW401-S,PHW401D-S; 6 mm OD: PHW601,PHW601D,PHW601-S,PHW601D-S; 8 mm OD: PHW801,PHW801D,PHW801-S,PHW801D-S
PEB branch tee 4 mm OD: PEB401,PEB401D,PEB401-S,PEB401D-S; 6 mm OD: PEB601,PEB601D,PEB601-S,PEB601D-S; 8 mm OD: PEB801,PEB801D,PEB801-S,PEB801D-S; 10 mm OD: PEB1001,PEB1001D,PEB1001-S,PEB1001D-S
PED run tee 4 mm OD: PED401,PED401D,PED401-S,PED401D-S; 6 mm OD: PED601,PED601D,PED601-S,PED601D-S; 8 mm OD: PED801,PED801D,PED801-S,PED801D-S; 10 mm OD: PED1001,PED1001D,PED1001-S,PED1001D-S
PYB Y fitting 4 mm OD: PYB401,PYB401D,PYB401-S,PYB401D-S; 6 mm OD: PYB601,PYB601D,PYB601-S,PYB601D-S; 8 mm OD: PYB801,PYB801D,PYB801-S,PYB801D-S; 10 mm OD: PYB1001,PYB1001D,PYB1001-S,PYB1001D-S
PZB cross fitting 6 mm OD: PZB601,PZB601D,PZB601-S,PZB601D-S; 8 mm OD: PZB801,PZB801D,PZB801-S,PZB801D-S
BPC metal straight 4 mm OD: BPC401; 6 mm OD: BPC601; 8 mm OD: BPC801; 10 mm OD: BPC1001
BPOC metal round straight 4 mm OD: BPOC401; 6 mm OD: BPOC601; 8 mm OD: BPOC801
PKD reducing distribution fitting main 6 / branch 4 mm OD: PKD6-401,PKD6-401D,PKD6-401-S,PKD6-401D-S
BKC compression fitting 4 × 2.5 mm OD × ID: BKC0425-01,BKC0425-01-S; 6 × 4 mm OD × ID: BKC0604-01,BKC0604-01-S; 8 × 5 mm OD × ID: BKC0805-01,BKC0805-01-S; 8 × 5.5 or 6 mm OD × ID: BKC0806-01,BKC0806-01-S
BB male–male adapter PT1/8: BB0101,BB0101-S; PT1/4: BB0102,BB0102-S; PT3/8: BB0103,BB0103-S
BZ unused auxiliary port plug BZ01,BZ01-S
Threaded valve-exhaust silencers BSL01,BSLM01,BESL01,PAL01,PAL01D,PALM01,PALM01D,BSL01-S,BSLM01-S,BESL01-S
PSL elbow flow control 4 mm OD: PSL401A,PSL401AD,PSL401B,PSL401BD,PSL401A-S,PSL401AD-S,PSL401B-S,PSL401BD-S; 6 mm OD: PSL601A,PSL601AD,PSL601B,PSL601BD,PSL601A-S,PSL601AD-S,PSL601B-S,PSL601BD-S; 8 mm OD: PSL801A,PSL801AD,PSL801B,PSL801BD,PSL801A-S,PSL801AD-S,PSL801B-S,PSL801BD-S
PSS universal flow control 6 mm OD: PSS601A,PSS601AD,PSS601B,PSS601BD,PSS601A-S,PSS601AD-S,PSS601B-S,PSS601BD-S; 8 mm OD: PSS801A,PSS801AD,PSS801B,PSS801BD,PSS801A-S,PSS801AD-S,PSS801B-S,PSS801BD-S
PTL push-lock flow control 6 mm OD: PTL601A,PTL601AD,PTL601B,PTL601BD,PTL601A-M,PTL601AD-M,PTL601B-M,PTL601BD-M; 8 mm OD: PTL801A,PTL801AD,PTL801B,PTL801BD; 4 mm OD: PTL401A-M,PTL401AD-M,PTL401B-M,PTL401BD-M
PSA / PSA-S inline flow control 4 mm OD: PSA4,PSA4-S,PSA4D,PSA4D-S; 6 mm OD: PSA6,PSA6-S,PSA6D,PSA6D-S; 8 mm OD: PSA8,PSA8-S,PSA8D,PSA8D-S; 10 mm OD: PSA10,PSA10-S,PSA10D,PSA10D-S; 12 mm OD: PSA12,PSA12-S,PSA12D,PSA12D-S
GPSA inline flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
PPA plug-in valve-exhaust silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
US98A / UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
ASC separate inline threaded flow control ASC10006
GAFR upstream filter/regulator GAFR20006S

Separately selected alternatives; no supplied-kit or stock promise. Connect both SC32 working ports with actual PT1/8 fittings and correct seals. Check insertion depth, wrench/rotation clearance, flow and tube loads. PT/G/NPT are not interchangeable; G needs the correct face seal/mating surface. M10 × 1.25 is the rod thread, not an air port.

Use suitable soft nylon/PU and match OD; compression fittings also need the listed ID. Where offered: D = black, blank = grey, -M = miniature; -S identifies specified 304 stainless parts, not an all-stainless cylinder/circuit. PHF: male and extra female PT1/8 connections; connect or permissibly seal the female branch, which is not a tube socket. Never bridge chambers or unrelated controls with tees, Y/cross/distributors.

Ordinary push-in fittings/flow controls: 0–1 MPa, −20–70 °C. BPC/BPOC: 0–0.9 MPa, 0–150 °C; SC pressure 0.15–0.9 MPa. BKC/BB/BZ: 0–1 MPa, 0–150 °C; SC pressure 0.15–1 MPa. Apply actual H-cylinder and lower valve/tube/sensor limits; no H-system temperature range is inferred. Component vacuum ratings do not rate a vacuum cylinder assembly.

BKC0806-01 takes 8 × 5.5 or 8 × 6 mm tube; 8 × 5 mm needs BKC0805-01. Install threads using the body hex, not the tube nut; insert tube fully before tightening. BB has two male ends; match its labelled second end to a female component. BZ is only for permitted unused auxiliary connections, never active cylinder ports.

Cylinder-end A controls thread → tube exhaust (meter-out), with free reverse supply; B controls tube → cylinder supply (meter-in). A is usual for double-acting exhaust control; B needs a designed meter-in circuit. Start closed/open slowly; not safety isolation. PTL1/8 cap adjustment: 0.08 N·m recommended, not pipe-thread torque. PSA/PSA-S/GPSA: threadless metric tube-to-tube, no A/B suffix; match both ODs/flow symbol. GPSA does not mean G thread.

PPA6/8/10/12: plain 6/8/10/12 mm stems for matching metric push-in sockets on separate valve exhaust; POM body/cap, PE filter, 0–1 MPa, −20–70 °C. The 25 dB at 0.5 MPa catalog test is not a site-noise promise. No D/thread suffix. PPA/threaded silencers are not cylinder-port parts, inlet filters or shutoffs. Match exhaust thread/flow/backpressure; BESL adjustment changes backpressure.

ASC: separate inline control, two female ports needing male fittings. Follow P/A/check-throttle symbols. Component 0.05–0.95 MPa, −20–70 °C; SC path 0.15–0.95 MPa or narrower.

GAFR20006S: separate upstream filter/regulator, 40 µm element, PC bowl, manual/differential-pressure drain, bracket/gauge. Inlet ≤1 MPa; setting 0.15–0.9 MPa; −5–70 °C, non-freezing. Check flow, pressure drop, condensate, bowl environment and downstream limits. Not cylinder-mounted or a vacuum regulator.

US98A/UE95A: blue 100 m coil examples, not supplied cut lengths; 1 MPa at 23 °C, with temperature derating. US98A −20–70 °C; UE95A −40–70 °C; apply lower assembly limits. Match OD/ID, bend radius, routing and flow. Extra 4/10/12 mm ODs do not inherit the 6 × 4 / 8 × 5 speed references.

Separate Directional-Valve and Tube Examples

PT1/8 examples: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V12006B, 4V21006B, 4V22006B, 4A11006, 4A12006, 4A21006, 4A22006. Valve P/A/B and R/S are PT1/8 in these06 examples. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

M5 entries in the bore-based chart concern separate valve connections, not SC cylinder ports. 4M entries require a NAMUR interface; no SC mounting/adapter compatibility is established.

Product form

Specifications: SC32X225SH — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 225 mm stroke, with magnet, H fluororubber seal... Read more

SKU: SC32X225SH

$107.33 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: SC32X225SH — Airtac SC double-acting, single-rod tie-rod cylinder; 32 mm bore, 225 mm stroke, with magnet, H fluororubber seal option and PT1/8 ports. Mounting configuration: basic mounting.

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For product dimensions and mounting drawings, download and refer to the PDF catalog.

    Model Code Explained

    Code Meaning
    SC SC enterprise-standard, double-acting single-rod cylinder
    32 32 mm bore
    X Separator before stroke
    225 225 mm stroke
    S With magnetic piston
    No mounting suffix Basic mounting
    H Fluororubber seals; confirm actual per-part seal materials
    No thread suffix PT1/8 ports

    Technical Specifications

    Parameter Value
    Model SC32X225SH
    Action Double acting, single rod
    Bore 32 mm
    Stroke 225 mm; Special stroke; confirm order and delivery conditions
    Construction Tie-rod cylinder to Airtac enterprise standard
    Piston rod S45C hard-chrome-plated ground rod
    Magnetic piston With magnet; sensors are separately selected
    Mounting selection Basic mounting
    Seal option H fluororubber; basic-table seals are references, not the H bill of materials
    Port thread PT1/8
    Working medium Clean compressed air filtered through 40 µm or finer filtration
    Operating pressure 0.15–1.0 MPa (1.5–10 bar; approximately 22–145 psi)
    Proof pressure 1.5 MPa (15 bar); not the continuous operating pressure
    Operating temperature General reference: −20 to 70 °C; confirm the H rating; avoid freezing condensate
    Piston speed 30–800 mm/s; select controls for the actual load and piping
    Stroke tolerance +1 / 0 mm
    Cushioning Adjustable pneumatic cushioning at both ends; 21 mm nominal cushion-stroke reference
    Rod diameter / end thread 12 mm / M10 × 1.25
    Sensor selection CMSG, DMSG or EMSG G-profile sensor with the specified tie-rod mounting hardware; select an exact version separately
    Calculated weight reference 1011.25 g (1.01125 kg); basic cylinder, excluding separately specified mounts and accessories

    Weight basis: 496 g non-stroke mass + 225 mm × 2.29 g/mm. Catalog estimate; H-seal mass difference is unpublished; not measured or packed shipping weight. Mounting/accessory masses, including the TC+TCM1 package where selected, are not established and are excluded. Actual supplied mass prevails.

    Features and Operation

    The aluminium-alloy barrel and end covers are joined by carbon-steel tie rods. The compact bidirectional piston seal retains grease, and the pneumatic cushioning can be adjusted for the actual motion. Multiple mounting and stroke options are available.

    The catalog compares the shorter SC length with ISO 15552 cylinders of the same bore; this is not a declaration that SC conforms to ISO 15552. Its 150 °C feature requires specified high-temperature seals; it gives no H-specific range. Confirm the actual cylinder rating before high-temperature use.

    External and Mounting Dimensions

    Dimensions are in mm except threads. Magnetic and nonmagnetic basic-cylinder dimensions are equal. Use the illustrated A + stroke reference without adding an unspecified projection. Mounts, rod-end joints, fittings, sensors and packaging are excluded from the derived bare length; it is not a complete installed envelope.

    Parameter Value
    A + stroke, retracted 365 mm = 140 + 225; illustrated basic-cylinder end-to-end reference
    AC + stroke, body face span 318 mm = 93 + 225
    Derived bare length, fully extended 590 mm = 140 + 2 × 225
    Body width × height 45 × 45 mm (□B)
    Mounting holes 8 × M6 × 1.0 (K), 14.5 mm deep (KA); 33 × 33 mm centers (□KB)
    Rod diameter / end thread D = 12 mm; E = M10 × 1.25; EA = 22 mm
    Front locating and local geometry M = 28; MA = 15; AB = 47; DA = 32; F = 17; FA = 6; H = 10 mm
    Cover / port local geometry AD = 27.5; AE = 27.5; PA = 14; PB = 5.5 mm; P = PT1/8

    For complete dimension lines and mounting views, download and refer to the PDF catalog.

    Mounting and Rod-End Accessories

    Select the installation for the load direction and motion. Listing a compatible part does not mean it is included; confirm the actual supplied parts and quantities. TC must be used with TCM1 and ordered with the cylinder. Neither mounting position may be changed arbitrarily.

    Part / assembly code Application and reference
    F-SC32LB Foot mount; carbon steel
    F-SC32FA Front flange; aluminium alloy
    F-SC32FA Rear flange; aluminium alloy; same flange part as FA, mounted at the rear
    F-SC32CA Rear single clevis; ductile iron
    F-SC32CB Rear double clevis; ductile iron
    F-SC32TC Trunnion mount; ductile iron; cylinder assembly option only, not separately orderable
    F-SI40TCM1 Trunnion support; ductile iron
    F-M10X125I I-type rod-end joint; 75 g catalog reference. Drawing dimensions: NC = 10; ND = 40; NE = 50; NF = 15; NG = 20; NH = M10×1.25; NM = 10.
    F-M10X125Y Y-type rod-end joint; 86 g catalog reference. Drawing dimensions: A = 52; B = 40; C = 20; D = 19; F = 18; E = M10×1.25; G = 25; H = 10; I = 10.
    F-M10X125F Floating joint; 107 g catalog reference. Drawing dimensions: MA = 58; MB = 22; MC = 7; MD = 21; ME = 26; MF = 11; MG = 6; MH = 10; MI/MJ = M10×1.25; MK = 12°.
    F-M10X125U Spherical rod-end joint; 69 g catalog reference. Drawing dimensions: PA = 11; PB = 26; PC = 10; PD = 20; PE = 43; PF = 56; PG = M10×1.25; PH = 13°; PI = 19; PJ = 17; PK = 14.

    All four rod-end choices use M10 × 1.25. Their dimensions are in mm except threads and angles; MK is floating-joint angular compensation and PH is the spherical-joint angle. The carbon-steel material category does not define every subcomponent or finish. Add accessory mass only for parts actually supplied; the floating-joint radial-offset note for M6 and smaller does not apply.

    Confirm seal kits, wear rings, guide bushings, nuts and covers by the genuine SC32 service code, seal material and production revision. Drawing item numbers and a bore size do not establish orderable replacement codes. Replacement magnets are relevant only to magnetic cylinders.

    Force and System Selection

    Parameter Value
    Effective piston areas Extension 804 mm²; retraction 690 mm²
    Theoretical force at 0.5 MPa Extension 402 N; retraction 345 N
    Force calculation Force (N) = effective area (mm²) × pressure (MPa), before friction and dynamic losses
    Load-ratio guidance Up to 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s; not a guaranteed payload or structural safety factor
    Required effective flow area At 300 / 400 / 500 / 600 / 700 / 800 mm/s: 1.3 / 1.7 / 2.1 / 2.5 / 2.9 / 3.4 mm²
    Tube-size selection reference At 300–500 mm/s: 6 × 4 mm; at 600–800 mm/s: 8 × 5 mm (OD × ID)

    Catalogue theoretical values, not permissible payload. 0.1 MPa reference is below the current 0.15 MPa operating minimum; friction, back pressure, load ratio and rod stability must be checked.

    Reference speeds depend on load, pressure, valve flow, tube length, fittings, cushion adjustment and exhaust backpressure. Flow area is a circuit-sizing reference, not piston area or a guaranteed achieved speed. Long strokes require stability, buckling, guidance and installation checks.

    Installation and Maintenance

    Qualified staff must select/install/service the system. Guard motion; secure cylinders, loads and attachments. Before service, isolate air/electricity, vent pressure and secure motion. Design safe air/power-loss, emergency-stop and restart responses against unexpected extension or dropped loads.

    Check protection from corrosive gas, chemicals, solvents, salt, water/steam, explosive atmospheres, vibration, radiant heat and sun. Protect sliding surfaces from damage, dust, humidity, splashes, oil/coolant. Prevent condensate freezing. Special seals do not extend this rating; external magnetic fields may disturb cylinders/sensors.

    Use clean, dry, purified air, not raw compressor discharge. Remove water, particles, oxidized oil, tar/carbon; filter to 40 µm or finer. Confirm suitability for other fluids/synthetic-oil contaminants. Excessively dry air may shorten life unless designed for it.

    Factory lubrication normally needs no added oil. Once introduced, continue additive-free ISO-VG32 turbine oil; incompatible oil may swell seals. Guide: ≤25 mg/m³ oil mist, 0.5–5 drops/1000 L. Size the lubricator for flow; avoid excess oil.

    Blow pipes clean; start sealing tape 1.5–2 threads back to keep fragments out. Use suitable flame-resistant/metal tube near hot spatter. Check each tube’s pressure, temperature, OD/ID and bend radius; generic nylon/PU advice cannot override its rating.

    PT1/8 piping torque: 5–7 N·m with the specified mating connection; not a G/NPT installation or sensor-adjustment torque.

    Use speed controls at both ports; start closed/open slowly. Meter-out commonly stabilizes motion/reduces startup runout. Adjust cushioning gradually to load/speed, avoiding impact, rebound or forcing the screw. High mass/speed may need engineered deceleration or an external absorber.

    Compressibility/leakage prevent assuming precise prolonged mid-stroke stopping with a closed-center valve or precise cylinder synchronization. Match bore/stroke/cushion/mounts/sensors to load, pressure and travel; allow installation/adjustment margin, favor suitable standard strokes and check air consumption.

    Align rod/load motion; independently guide side load, bending and torque—rod-end joints do not replace guides. Check long-rod buckling/sag/vibration; add suitable intermediate/front-cover support and limit unsupported lever arms. Swinging links need CA/CB/TC pivots, not forced rigid LB mounts. Support height increases fastener/bracket torque; orient flanges for push/pull loads.

    During long storage, operate periodically and prevent corrosion, following air-quality/lubrication requirements.

    Internal Components

    Drawing item Basic material reference
    1 — Rod-end nut Carbon steel
    2 — Piston rod S45C hard-chrome-plated ground rod
    3 — Front-cover O-ring TPU (basic reference)
    4 — Guide bushing Wear-resistant material
    5 — Front cover Aluminium alloy
    6 — Cushion O-ring NBR (basic reference)
    7 — Cushion seal TPU (basic reference)
    8 — Cylinder barrel Aluminium alloy
    9 — Piston Aluminium alloy
    10 — Piston-rod O-ring NBR (basic reference)
    11 — Piston O-ring NBR (basic reference)
    12 — Magnet Plastic magnet for this magnetic configuration
    13 — Wear ring Wear-resistant material
    14 — Hex-socket screw Carbon steel
    15 — Rear cover Aluminium alloy
    16 — Tie rod Carbon steel
    17 — Tie-rod nut Carbon steel

    Basic SC32 drawing and materials; item numbers are not service ordering codes. Seal materials shown are basic-version references, not the H bill of materials.

    Series Ordering Options

    Parameter Value
    Related series SC: single rod; SCD: double rod; SCJ: double rod with adjustable stroke. This product is SC.
    Magnet No suffix: without magnet; S: magnetic piston
    Seal material No suffix: TPU; H: fluororubber; N: NBR. This product selects H fluororubber.
    Mounting Basic, LB, FA, FB, CA, CB, TC; matching TCM1 support is specified in the accessory table.
    Port options No suffix: PT; G: G thread; T: NPT.
    Standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
    Catalog stroke limits Maximum stroke 1000 mm; allowable stroke 2000 mm

    Standard strokes, catalogue maximum stroke and allowable stroke are different limits. Strokes at or above 1600 mm within the allowable range are non-standard orders. Other special strokes require confirmation. No stroke tolerance is published for 1501–2000 mm in this table; confirm the ordered tolerance. Allowable stroke alone does not establish rod stability, installation feasibility or load capacity.

    Magnetic Sensors and Connection Leads

    This S cylinder accepts G-profile DMSG, CMSG and miniature EMSG sensors using the matching F-SC32SH tie-rod holder. Sensors, holders and mating leads are separately ordered; select the output and load circuit. The following permitted codes do not guarantee inventory or included supply.

    Sensor / separate accessory Complete ordering choices
    DMSG two-wire standard: DMSG-020,DMSG-030,DMSG-050,DMSG-100,DMSG-M08,DMSG-M08010,DMSG-M08020,DMSG-M08030,DMSG-M12,DMSG-M12010,DMSG-M12020,DMSG-M12030; W: DMSG-020-W,DMSG-030-W,DMSG-050-W,DMSG-100-W; A05: A05-DMSG-020,A05-DMSG-030,A05-DMSG-050,A05-DMSG-100; A06: A06-DMSG-020,A06-DMSG-030,A06-DMSG-050,A06-DMSG-100
    DMSG NPN three-wire standard: DMSG-N020,DMSG-N030,DMSG-N050,DMSG-N100,DMSG-NM08,DMSG-NM08010,DMSG-NM08020,DMSG-NM08030,DMSG-NM12,DMSG-NM12010,DMSG-NM12020,DMSG-NM12030; W: DMSG-N020-W,DMSG-N030-W,DMSG-N050-W,DMSG-N100-W
    DMSG PNP three-wire standard: DMSG-P020,DMSG-P030,DMSG-P050,DMSG-P100,DMSG-PM08,DMSG-PM08010,DMSG-PM08020,DMSG-PM08030,DMSG-PM12,DMSG-PM12010,DMSG-PM12020,DMSG-PM12030; W: DMSG-P020-W,DMSG-P030-W,DMSG-P050-W,DMSG-P100-W
    EMSG two-wire standard: EMSG-020,EMSG-030,EMSG-050,EMSG-100,EMSG-M08,EMSG-M08010,EMSG-M08020,EMSG-M08030,EMSG-M12,EMSG-M12010,EMSG-M12020,EMSG-M12030; W: EMSG-020-W,EMSG-030-W,EMSG-050-W,EMSG-100-W; A05: A05-EMSG-020,A05-EMSG-030,A05-EMSG-050,A05-EMSG-100; A06: A06-EMSG-020,A06-EMSG-030,A06-EMSG-050,A06-EMSG-100
    CMSG two-wire standard: CMSG-020,CMSG-030,CMSG-050,CMSG-100,CMSG-M08,CMSG-M08010,CMSG-M08020,CMSG-M08030,CMSG-M12,CMSG-M12010,CMSG-M12020,CMSG-M12030; H: CMSG-020-H,CMSG-030-H,CMSG-050-H,CMSG-100-H,CMSG-M08-H,CMSG-M08010-H,CMSG-M08020-H,CMSG-M08030-H,CMSG-M12-H,CMSG-M12010-H,CMSG-M12020-H,CMSG-M12030-H; A05: A05-CMSG-020,A05-CMSG-030,A05-CMSG-050,A05-CMSG-100
    F-SC32SH SC32 tie-rod sensor holder; one per selected sensor unless the actual kit specifies otherwise. Sensor count is not determined by S.
    M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
    M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
    M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
    M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
    Electrical selection Limits and conditions
    DMSG/EMSG two-wire 10–28 V DC; load 2.5–100 mA; capacity ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA; switching ≤1000 Hz.
    DMSG NPN/PNP three-wire 5–30 V DC; switching ≤30 V, ≤200 mA, ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA; switching ≤1000 Hz.
    CMSG reed two-wire 5–240 V AC/DC; ≤100 mA, ≤10 W, ≤200 Hz. No internal/leakage current or protection circuit. Standard residual voltage ≤2.5 V at DC 100 mA; H has no residual voltage or indicator.
    Sensor environment All listed sensors: 50 G impact reference. DMSG/EMSG have reverse-polarity and transient protection; EMSG also has overheat protection. Standard temperatures −10–70 °C; CMSG-H −10–125 °C. For this H cylinder, apply actual cylinder, sensor and cable temperature limits; CMSG-H does not establish the system rating.

    Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male quick connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. These lengths are unrelated to cylinder stroke. Two-wire is the blank output; N and P are NPN and PNP.

    Standard/A05 DMSG and EMSG are IP64; direct W and A06 are IP68. Quick connectors do not have W. All CMSG versions are IP64. A05 is high-flex robot cable; A06 is oil-resistant high-flex. A05/A06 direct leads have a 19 mm minimum bend radius. Industry versions are two-wire and direct-lead only; CMSG A05 has no H, and no A06 CMSG choice is listed. These are not explosion-proof or permanent-immersion approvals.

    For a quick connector, match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire pins: 1 brown (+), 3 blue (−), 4 black output. Direct-lead sensors need no quick mating cable. Cable temperature, IP and voltage ratings are not independently given here; do not transfer sensor-body ratings to the complete cable assembly or raise the cylinder temperature because a CMSG-H is selected.

    Seat the holder on the tie rod against the barrel, place the sensor near the middle of its switching range and verify clearance and signal. Sensor fastening torque is recommended at 0.15–0.20 N·m, maximum 0.25 N·m; it is not cylinder-bolt or air-port torque.

    Connect the load before applying power and follow the selected two-wire/NPN/PNP diagram. Two-wire sensors require a series load, not a direct connection across the supply. Maintain insulation and separate signal from power/high-voltage cables. Avoid pulling or repeated flexing, impacts, strong magnetic fields, iron chips, current surges and abrupt temperature changes. Protect against water, oil and welding spatter; inspect mounting, cables and switching periodically.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    PC straight 4 mm OD: PC401,PC401D,PC401-M,PC401D-M,PC401-S,PC401D-S; 6 mm OD: PC601,PC601D,PC601-M,PC601D-M,PC601-S,PC601D-S; 8 mm OD: PC801,PC801D,PC801-S,PC801D-S; 10 mm OD: PC1001,PC1001D,PC1001-S,PC1001D-S; 12 mm OD: PC1201,PC1201D,PC1201-S,PC1201D-S
    POC round straight 4 mm OD: POC401,POC401D,POC401-S,POC401D-S; 6 mm OD: POC601,POC601D,POC601-S,POC601D-S; 8 mm OD: POC801,POC801D,POC801-S,POC801D-S; 10 mm OD: POC1001,POC1001D,POC1001-S,POC1001D-S
    PL elbow 4 mm OD: PL401,PL401D,PL401-M,PL401D-M,PL401-S,PL401D-S; 6 mm OD: PL601,PL601D,PL601-M,PL601D-M,PL601-S,PL601D-S; 8 mm OD: PL801,PL801D,PL801-S,PL801D-S; 10 mm OD: PL1001,PL1001D,PL1001-S,PL1001D-S; 12 mm OD: PL1201,PL1201D,PL1201-S,PL1201D-S
    PLL extended elbow 4 mm OD: PLL401,PLL401D,PLL401-S,PLL401D-S; 6 mm OD: PLL601,PLL601D,PLL601-S,PLL601D-S; 8 mm OD: PLL801,PLL801D,PLL801-S,PLL801D-S; 10 mm OD: PLL1001,PLL1001D,PLL1001-S,PLL1001D-S
    PH banjo elbow 4 mm OD: PH401,PH401D,PH401-S,PH401D-S; 6 mm OD: PH601,PH601D,PH601-S,PH601D-S; 8 mm OD: PH801,PH801D,PH801-S,PH801D-S
    PHF female-branch banjo 4 mm OD: PHF401,PHF401D,PHF401-S,PHF401D-S; 6 mm OD: PHF601,PHF601D,PHF601-S,PHF601D-S; 8 mm OD: PHF801,PHF801D,PHF801-S,PHF801D-S
    PHW twin banjo 4 mm OD: PHW401,PHW401D,PHW401-S,PHW401D-S; 6 mm OD: PHW601,PHW601D,PHW601-S,PHW601D-S; 8 mm OD: PHW801,PHW801D,PHW801-S,PHW801D-S
    PEB branch tee 4 mm OD: PEB401,PEB401D,PEB401-S,PEB401D-S; 6 mm OD: PEB601,PEB601D,PEB601-S,PEB601D-S; 8 mm OD: PEB801,PEB801D,PEB801-S,PEB801D-S; 10 mm OD: PEB1001,PEB1001D,PEB1001-S,PEB1001D-S
    PED run tee 4 mm OD: PED401,PED401D,PED401-S,PED401D-S; 6 mm OD: PED601,PED601D,PED601-S,PED601D-S; 8 mm OD: PED801,PED801D,PED801-S,PED801D-S; 10 mm OD: PED1001,PED1001D,PED1001-S,PED1001D-S
    PYB Y fitting 4 mm OD: PYB401,PYB401D,PYB401-S,PYB401D-S; 6 mm OD: PYB601,PYB601D,PYB601-S,PYB601D-S; 8 mm OD: PYB801,PYB801D,PYB801-S,PYB801D-S; 10 mm OD: PYB1001,PYB1001D,PYB1001-S,PYB1001D-S
    PZB cross fitting 6 mm OD: PZB601,PZB601D,PZB601-S,PZB601D-S; 8 mm OD: PZB801,PZB801D,PZB801-S,PZB801D-S
    BPC metal straight 4 mm OD: BPC401; 6 mm OD: BPC601; 8 mm OD: BPC801; 10 mm OD: BPC1001
    BPOC metal round straight 4 mm OD: BPOC401; 6 mm OD: BPOC601; 8 mm OD: BPOC801
    PKD reducing distribution fitting main 6 / branch 4 mm OD: PKD6-401,PKD6-401D,PKD6-401-S,PKD6-401D-S
    BKC compression fitting 4 × 2.5 mm OD × ID: BKC0425-01,BKC0425-01-S; 6 × 4 mm OD × ID: BKC0604-01,BKC0604-01-S; 8 × 5 mm OD × ID: BKC0805-01,BKC0805-01-S; 8 × 5.5 or 6 mm OD × ID: BKC0806-01,BKC0806-01-S
    BB male–male adapter PT1/8: BB0101,BB0101-S; PT1/4: BB0102,BB0102-S; PT3/8: BB0103,BB0103-S
    BZ unused auxiliary port plug BZ01,BZ01-S
    Threaded valve-exhaust silencers BSL01,BSLM01,BESL01,PAL01,PAL01D,PALM01,PALM01D,BSL01-S,BSLM01-S,BESL01-S
    PSL elbow flow control 4 mm OD: PSL401A,PSL401AD,PSL401B,PSL401BD,PSL401A-S,PSL401AD-S,PSL401B-S,PSL401BD-S; 6 mm OD: PSL601A,PSL601AD,PSL601B,PSL601BD,PSL601A-S,PSL601AD-S,PSL601B-S,PSL601BD-S; 8 mm OD: PSL801A,PSL801AD,PSL801B,PSL801BD,PSL801A-S,PSL801AD-S,PSL801B-S,PSL801BD-S
    PSS universal flow control 6 mm OD: PSS601A,PSS601AD,PSS601B,PSS601BD,PSS601A-S,PSS601AD-S,PSS601B-S,PSS601BD-S; 8 mm OD: PSS801A,PSS801AD,PSS801B,PSS801BD,PSS801A-S,PSS801AD-S,PSS801B-S,PSS801BD-S
    PTL push-lock flow control 6 mm OD: PTL601A,PTL601AD,PTL601B,PTL601BD,PTL601A-M,PTL601AD-M,PTL601B-M,PTL601BD-M; 8 mm OD: PTL801A,PTL801AD,PTL801B,PTL801BD; 4 mm OD: PTL401A-M,PTL401AD-M,PTL401B-M,PTL401BD-M
    PSA / PSA-S inline flow control 4 mm OD: PSA4,PSA4-S,PSA4D,PSA4D-S; 6 mm OD: PSA6,PSA6-S,PSA6D,PSA6D-S; 8 mm OD: PSA8,PSA8-S,PSA8D,PSA8D-S; 10 mm OD: PSA10,PSA10-S,PSA10D,PSA10D-S; 12 mm OD: PSA12,PSA12-S,PSA12D,PSA12D-S
    GPSA inline flow control 4 mm OD: GPSA4,GPSA4D; 6 mm OD: GPSA6,GPSA6D; 8 mm OD: GPSA8,GPSA8D; 10 mm OD: GPSA10,GPSA10D; 12 mm OD: GPSA12,GPSA12D
    PPA plug-in valve-exhaust silencer 6 mm OD: PPA6; 8 mm OD: PPA8; 10 mm OD: PPA10; 12 mm OD: PPA12
    US98A / UE95A PU tubing 4 × 2.5 mm OD × ID: US98A040025100MBU,UE95A040025100MBU; 6 × 4 mm OD × ID: US98A060040100MBU,UE95A060040100MBU; 8 × 5 mm OD × ID: US98A080050100MBU,UE95A080050100MBU; 10 × 6.5 mm OD × ID: US98A100065100MBU,UE95A100065100MBU; 12 × 8 mm OD × ID: US98A120080100MBU,UE95A120080100MBU
    ASC separate inline threaded flow control ASC10006
    GAFR upstream filter/regulator GAFR20006S

    Separately selected alternatives; no supplied-kit or stock promise. Connect both SC32 working ports with actual PT1/8 fittings and correct seals. Check insertion depth, wrench/rotation clearance, flow and tube loads. PT/G/NPT are not interchangeable; G needs the correct face seal/mating surface. M10 × 1.25 is the rod thread, not an air port.

    Use suitable soft nylon/PU and match OD; compression fittings also need the listed ID. Where offered: D = black, blank = grey, -M = miniature; -S identifies specified 304 stainless parts, not an all-stainless cylinder/circuit. PHF: male and extra female PT1/8 connections; connect or permissibly seal the female branch, which is not a tube socket. Never bridge chambers or unrelated controls with tees, Y/cross/distributors.

    Ordinary push-in fittings/flow controls: 0–1 MPa, −20–70 °C. BPC/BPOC: 0–0.9 MPa, 0–150 °C; SC pressure 0.15–0.9 MPa. BKC/BB/BZ: 0–1 MPa, 0–150 °C; SC pressure 0.15–1 MPa. Apply actual H-cylinder and lower valve/tube/sensor limits; no H-system temperature range is inferred. Component vacuum ratings do not rate a vacuum cylinder assembly.

    BKC0806-01 takes 8 × 5.5 or 8 × 6 mm tube; 8 × 5 mm needs BKC0805-01. Install threads using the body hex, not the tube nut; insert tube fully before tightening. BB has two male ends; match its labelled second end to a female component. BZ is only for permitted unused auxiliary connections, never active cylinder ports.

    Cylinder-end A controls thread → tube exhaust (meter-out), with free reverse supply; B controls tube → cylinder supply (meter-in). A is usual for double-acting exhaust control; B needs a designed meter-in circuit. Start closed/open slowly; not safety isolation. PTL1/8 cap adjustment: 0.08 N·m recommended, not pipe-thread torque. PSA/PSA-S/GPSA: threadless metric tube-to-tube, no A/B suffix; match both ODs/flow symbol. GPSA does not mean G thread.

    PPA6/8/10/12: plain 6/8/10/12 mm stems for matching metric push-in sockets on separate valve exhaust; POM body/cap, PE filter, 0–1 MPa, −20–70 °C. The 25 dB at 0.5 MPa catalog test is not a site-noise promise. No D/thread suffix. PPA/threaded silencers are not cylinder-port parts, inlet filters or shutoffs. Match exhaust thread/flow/backpressure; BESL adjustment changes backpressure.

    ASC: separate inline control, two female ports needing male fittings. Follow P/A/check-throttle symbols. Component 0.05–0.95 MPa, −20–70 °C; SC path 0.15–0.95 MPa or narrower.

    GAFR20006S: separate upstream filter/regulator, 40 µm element, PC bowl, manual/differential-pressure drain, bracket/gauge. Inlet ≤1 MPa; setting 0.15–0.9 MPa; −5–70 °C, non-freezing. Check flow, pressure drop, condensate, bowl environment and downstream limits. Not cylinder-mounted or a vacuum regulator.

    US98A/UE95A: blue 100 m coil examples, not supplied cut lengths; 1 MPa at 23 °C, with temperature derating. US98A −20–70 °C; UE95A −40–70 °C; apply lower assembly limits. Match OD/ID, bend radius, routing and flow. Extra 4/10/12 mm ODs do not inherit the 6 × 4 / 8 × 5 speed references.

    Separate Directional-Valve and Tube Examples

    PT1/8 examples: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V12006B, 4V21006B, 4V22006B, 4A11006, 4A12006, 4A21006, 4A22006. Valve P/A/B and R/S are PT1/8 in these06 examples. These are separately ordered circuit examples, not included parts or a speed guarantee. B means DC24V; the cylinder SKU does not select valve voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A requires independent pneumatic pilot commands and has no coil voltage; confirm the actual pilot-port thread and pilot-air supply separately. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Confirm actual flow, switching logic, temperature, exhaust backpressure and the lowest component rating.

    Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Pressure derates with temperature; select compatible fittings and actual required length. These are supply-pack examples, not included cut lengths. The reviewed nylon table does not establish an 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

    M5 entries in the bore-based chart concern separate valve connections, not SC cylinder ports. 4M entries require a NAMUR interface; no SC mounting/adapter compatibility is established.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
