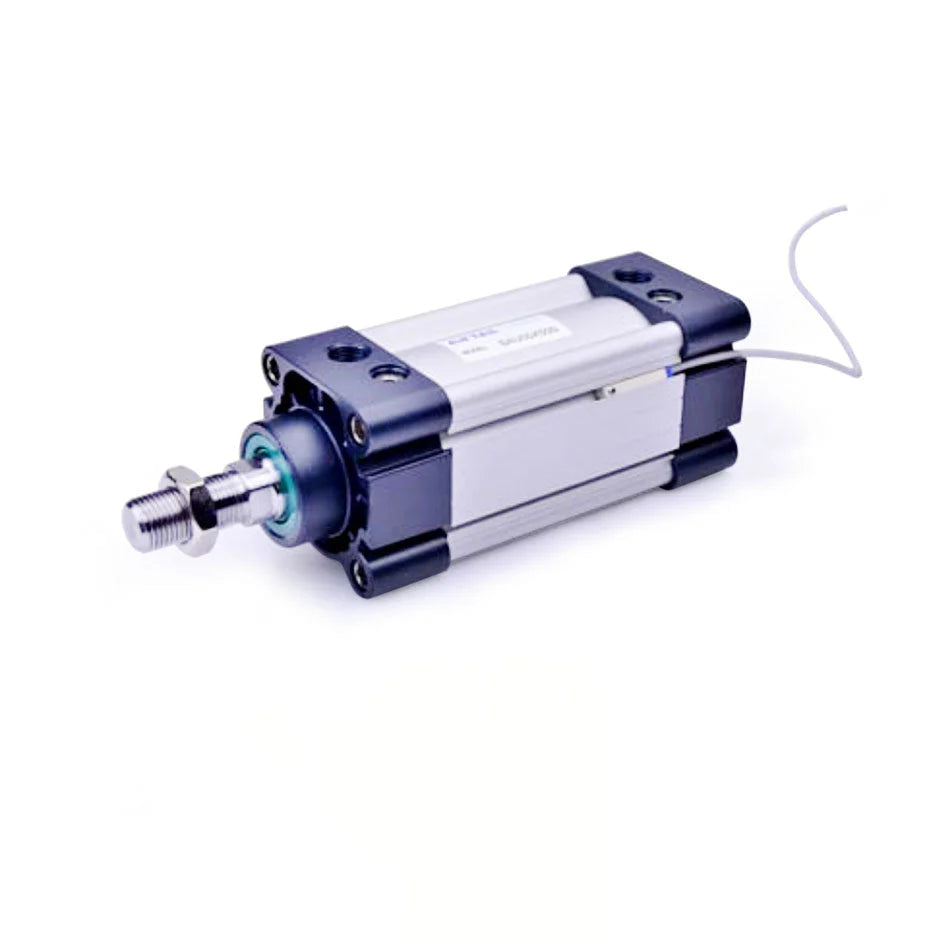

Specification: standard compound type Bore: 32mm Stroke: 1660mm Magnet: with magnet Fixed type: CB Seal material: TPU Tooth type: NPT tooth
Specifications
1. Model: SAU32X1660SCBT
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,LB
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 21, Nozzle caliber: PT1/8
6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSG,CMSG,EMSG
Internal structure and main parts material: 1. nut: carbon steel/2. Piston rod: S45C hard chrome abrasive rod/3. Front cover o order: TPU/4. Bushing: wear-resistant material/5. Front cover: Aluminum alloy/6. Buffer O: NBR/7. Cushioning gasket: TPU/8. Cylinder: aluminum alloy/9. Piston: Aluminum alloy/10. Piston rod O: NBR/11. Piston O: NBR/12. Magnet: plastic/13. Wear ring: wear-resistant material/14. Hexagon socket bolt: carbon steel/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel
Click to download Airtac product catalog
Product Features
1. The enterprise standard cylinder.
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. For the aluminum tube meter type, no pull rod, good corrosion resistance. Peripheral with sensor mounting groove, easy to use.
4. Compared with ISO15552 standard cylinders, the length of SAU series cylinders with the same bore is small.
5. The cylinder buffer adjustment is stable.
6. Cylinder mounting accessories are shared with SC series cylinders.
7. Select high temperature sealing material, can ensure the normal operation of the cylinder at 150°C.
