Airtac SAIJ:standard cylinder,adjustable stroke type - SAIJ200X150-75

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

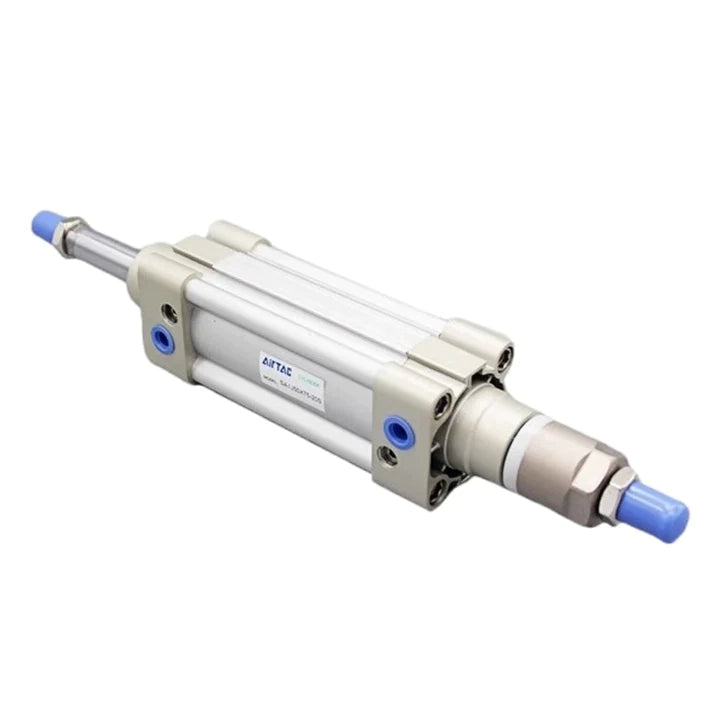

Adjustable stroke type,200mm bore,150mm stroke,75mm adjustable stroke,medium carbon steel rod,TPU seals material, without magnet,PT thread Product Features:1.ISO15552 (original ISO6431)... Read more

SKU: SAIJ200X150-75-PT

$758.57

Image may not be representative of actual product.

Click to download the SAI Airtac catalog

Download: 3D model selection.

Airtac SAI cylinders are a functional replacement for the SMC C95 series cylinders.

Airtac Product Details

Valve

Overview of SAI Series Products

Standard Specifications
• Bore: 32, 40, 50, 63, 80, 100, 125, 160, 200 mm
• Standard cylinder body with strong versatility and excellent compatibility.
No Connecting Rod Structure
• Aluminum profile cylinder tube
• No connecting rod design for a sleek and compact appearance
• Excellent corrosion resistance
Multiple Piston Rod End Joints
Compatible with various connection methods:
• Screw head
• Y-type head
• Side connector
• Eye connector
Multiple Cylinder Types
• SAI: Double Acting
• SAID: Dual-rod Double Acting
• SAIJ: Adjustable Stroke Dual-rod Double Acting
• SAIL: Locking Type
• SAIF: Guided Type
Adjustable Air Cushion on Front and Rear Covers
• Adjustable cushioning design enhances stability and prolongs service life.
Easy and Flexible Sensor Installation
• Pre-set sensor grooves on both sides of the cylinder body
• Flexible mounting with a wide range of angles
• Compatible with sensor models: CMSE, DMSE
Multiple Mounting Accessories Available
• Models include: LB, FA, FB, CA, CB, CR, FTC, TCM1, TCM2, TC, etc.
• Flexible installation to suit various mechanical structure requirements.

Installation and Usage

When load changes occur during operation, select a cylinder with ample output force.
Under high temperature or corrosive conditions, choose a cylinder with appropriate high-temperature or corrosion resistance.
In humid, dusty, or contaminated environments, take necessary protective measures.
Before connecting the cylinder to the pipeline, clear out any debris from inside the pipe to prevent foreign matter from entering the cylinder.
The working medium should be filtered with a 40μm or finer filter before use.
In low-temperature environments, implement antifreeze measures to prevent system water from freezing.
Perform an air-driven trial run before use; set the cushion to the minimum and gradually relax it to avoid excessive impact that could damage the cylinder.
Avoid applying lateral loads during operation to maintain normal function and extend service life.
If the cylinder is unused for an extended period, protect the surface from rust and cover the air inlet/outlet with dust caps.

Theoretical Output Force Table

Cylinder Bore (mm)	Piston Rod Diameter (mm)	Operating Mode	Pressurized Area (mm²)	0.1 MPa	0.2 MPa	0.3 MPa	0.4 MPa	0.5 MPa	0.6 MPa	0.7 MPa	0.8 MPa	0.9 MPa
32	12	Double Acting - Push Side	804	80.4	160.8	241.2	321.6	402	482.4	562.8	643.2	723.6
32	12	Double Acting - Pull Side	690	69	138	207	276	345	414	483	552	621
40	16	Double Acting - Push Side	1256	125.6	251.2	376.8	502.4	628	753.6	879.2	1004.8	1130.4
40	16	Double Acting - Pull Side	1055	105.5	211	316.5	422	527.5	633	738.5	844	949.5
50	20	Double Acting - Push Side	1963	196.3	392.6	588.9	785.2	981.5	1177.8	1374.1	1570.4	1766.7
50	20	Double Acting - Pull Side	1649	164.9	329.8	494.7	659.6	824.5	989.4	1154.3	1399.2	1484.1
63	20	Double Acting - Push Side	3117	311.7	623.4	935.1	1246.8	1558.5	1870.2	2181.9	2493.6	2805.3
63	20	Double Acting - Pull Side	2803	280.3	560.6	840.9	1121.2	1401.5	1681.8	1962.1	2242.4	2522.7
80	25	Double Acting - Push Side	5026	502.6	1005.2	1507.8	2010.4	2513	3015.6	3518.2	4020.8	4523.4
80	25	Double Acting - Pull Side	4536	453.6	907.2	1360.8	1814.4	2268	2721.6	3175.2	3628.8	4082.4
100	32	Double Acting - Push Side	7853	785.3	1570.6	2355.9	3141.2	3926.5	4711.8	5288.2	6282.4	7067.7
100	32	Double Acting - Pull Side	7362	736.2	1472.4	2208.6	2944.8	3681	4417.2	5153.4	5889.6	6625.8
125	32	Double Acting - Push Side	12272	1227.2	2454.4	3681.6	4908.8	6136	7363.2	8590.4	9817.6	11044.8
125	32	Double Acting - Pull Side	11468	1146.8	2293.6	3440.4	4587.2	5734	6880.8	8027.6	9174.4	10321.2
160	40	Double Acting - Push Side	18849	1884.9	3769.8	5654.7	7539.6	9424.5	11309.4	13194.3	15079.2	16964.1
160	40	Double Acting - Pull Side	17663	1766.3	3532.6	5298.9	7065.2	8831.5	10597.8	12364.1	14130.4	15896.7
200	40	Double Acting - Push Side	31416	3141.6	6283.2	9424.8	12566.4	15708	18849.6	21991.2	25132.8	28274.4
200	40	Double Acting - Pull Side	30157	3015.7	6031.4	9047.1	12062.8	15078.5	18094.2	21109.9	24125.6	27141.3

Product Features

1. ISO15552 (formerly ISO6431) standard cylinder.
2. Piston seal features a special bidirectional sealing structure, compact design with oil storage function.
3. Cross-shaped aluminum tube with no connecting rod, excellent corrosion resistance; external sensor mounting grooves allow for quick and easy installation.
4. Smooth and stable cushion adjustment.
5. Multiple cylinder specifications and mounting accessories available for customer selection.

Specifications Table

Parameter	32	40	50	63	80	100	125	160	200
Operating Mode	Double Acting
Working Medium	Air (filtered with 40μm or finer filter)
Mounting Type (SAI)	Basic FA	FB CA	CB CR	LB TC	FTC	TC	FTC	TCM1	TCM2
Mounting Type (SAID, SAIJ)	Basic			FA	LB	TC	FTC	TCM1	TCM2
Operating Pressure Range	0.15~1.0MPa (22~145psi) (1.5~10.0bar)
Guaranteed Pressure Resistance	1.5MPa (215psi) (15bar)
Operating Temperature (℃)	-20~70
Operating Speed Range (mm/s)	30~800	30~800	30~800	30~800	30~800	30~800	30~800	30~500	30~500
Stroke Tolerance (mm)	0~250: ±1.0	0~250: ±1.0	0~250: ±1.0	251~1000: ±1.5	1001~1500: ±2.0	1001~1500: ±2.0	1001~1500: ±2.0	1001~1500: ±2.0	1001~1500: ±2.0
Buffer Type	Adjustable Buffer
Buffer Stroke (mm)	27	30	36	36	40	40	50
Port Size	PT1/8	PT1/4		PT3/8	PT1/2			PT3/4

Stroke Table

Inner Diameter (mm)	Standard Stroke (mm)	Maximum Stroke (mm)	Allowable Stroke (mm)
32	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500	1000	1800
40	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800	1200	1800
50	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	1800
63	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
80	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
100	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
125	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	1800
160	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

Order Code Structure

No.	Item	Content
1	Specification Code	SAI: Standard Double Acting; SAID: Dual-rod Double Acting; SAIJ: Adjustable Stroke Dual-rod Double Acting
2	Bore	32, 40, 50, 63, 80, 100, 125, 160, 200
3	Piston Rod Material	Blank: Medium Carbon Steel; A: SUS420J2; B: SUS304
4	Stroke	Refer to Stroke Table
5	Adjustable Stroke	Only available for SAIJ; options: 10, 20, 30, 40, 50, 75, 100
6	Magnet Code	Blank: No Magnet; S: With Magnet
7	Mounting Type	Blank, LB, FA, FB, CA, CB, CR, TC, FTC (see diagram)
8	Sealing Material	Blank: TPU; H: Fluoroelastomer; N: NBR
9	Thread Code	Blank: PT Thread; G: G Thread
