Description
Specifications: Standard Compound Valved Cylinder (SAI) Cylinder diameter: 50mm Travel: 71mm Magnet: no magnet Fixed type: none Nozzle caliber: 1/8" Standard voltage: DC24V Power connection mode: DIN socket type Tooth type: G tooth
Specifications
1. Model: SAIF50X71-06BG
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT1/4, PU pipe specification (outer diameter X inner diameter): ø8Xø5
6. The nozzle tooth type is optional with PT tooth and G tooth. The highest operating frequency is no-load state. The sensor can be selected: DMSE,CMSE
7. If there is oil lubrication, it cannot be stopped in the middle. It is recommended that the lubricating oil be ISO VG32 or the same level of oil.

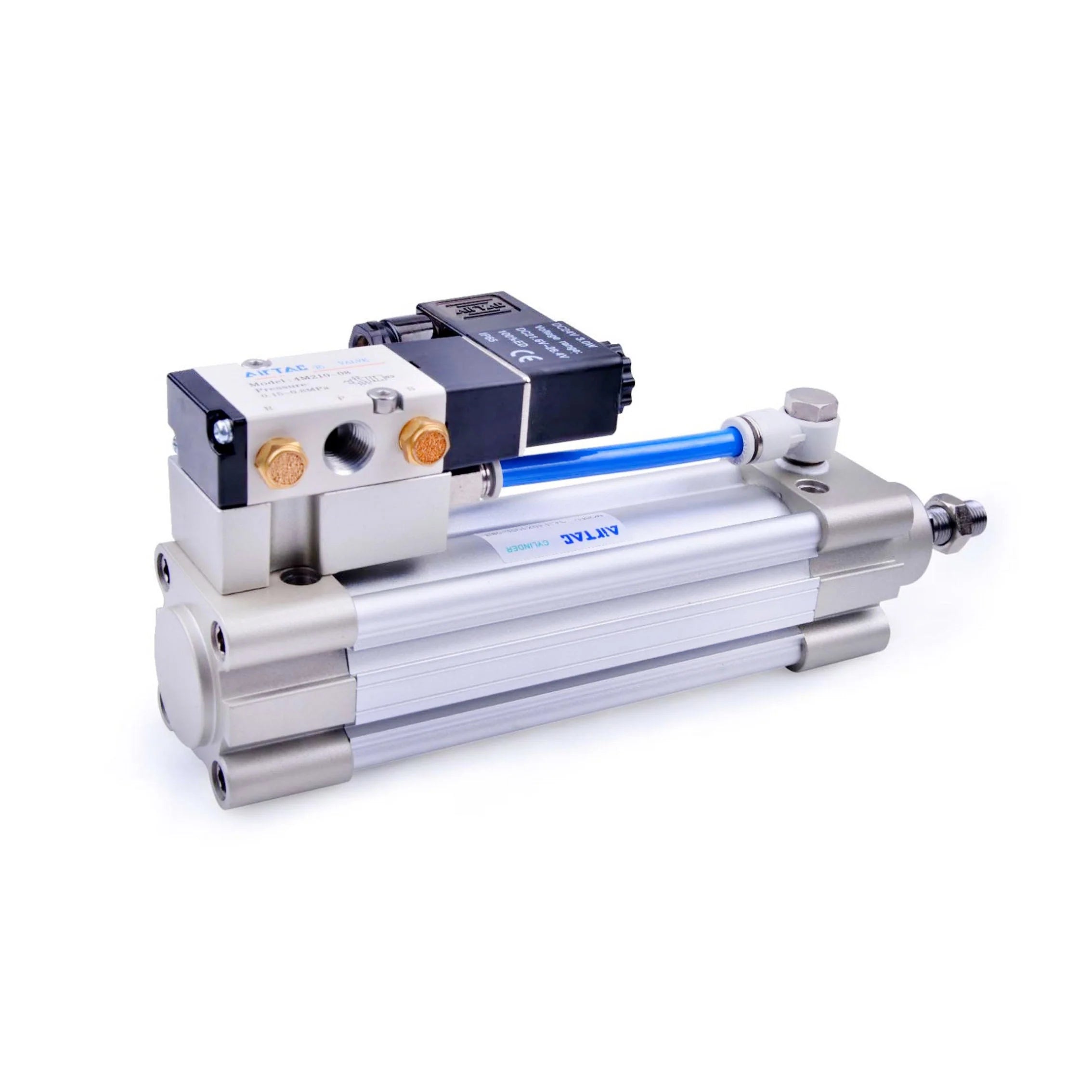

Main components: 1.4M series solenoid valve/2. Connecting block/3.APC connector/4.PU hose/5.SAI series standard cylinder/6.APH connector
Installation accessories :F-SI50LB Axial mounting F-SI50FA Flange connecting plate F-SE50CA Single-ear fixing seat F-SE50CB Binaural mount F-SI50CR Single-ear connection seat F-SAI50TC Middle Trunnion Bracket F-SI50FTC Front cover trunnion bracket F-SI40TCM1 trunnion mount F-SI40TCM2 trunnion mount ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint
Click to download Airtac product catalog
Product Features
1. It belongs to the derivative series of standard cylinder and valve combination. It is used with 4M210 and 4M310. Cylinder diameters 32, 40 and 50 are equipped with 4M210 valves, and cylinder diameters 63, 80 and 100 are equipped with 4M310 valves.
2. A pair of 1 control, no need to install additional control valve.
3. Save installation time and installation space, suitable for distributed use in large systems.
4. Various specifications of the installation accessories optional, easy to install.
