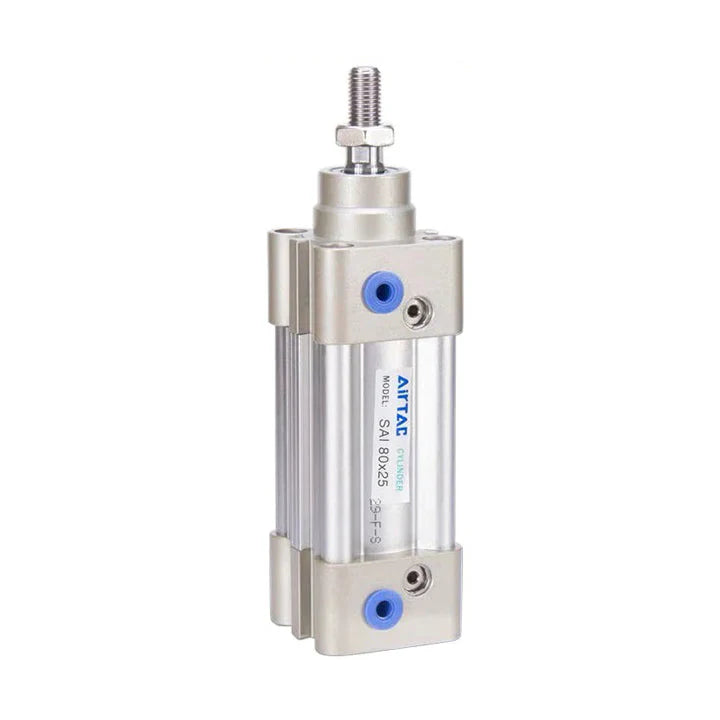

Description
Specifications: double shaft compound type Bore: 200mm Piston rod material: medium carbon steel Travel: 388mm Magnet: no magnet Fixed type: TC Seal material: NBR Tooth type: PT tooth
Specifications
1. Model: SAID200X388TCN
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~500, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 50, Nozzle caliber: PT3/4
6. The nozzle tooth type is optional with PT tooth and G tooth, and the sensor can be optional: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel
Type of sealing ring :P-SAID200-R1 TPU material P-SAID200N-R1 NBR Material P-SAID200-R2 Fluorine rubber material ， Installation accessories :F-SI200LB Axial mounting F-SI200FA Flange connecting plate F-SI200TC Middle Trunnion Bracket F-SI200FTC Front cover trunnion bracket F-SI200TCM1 trunnion mount F-SI160TCM2 trunnion mount ， Piston rod end joint :F-M36X200I I Connector F-M36X200Y Y connector F-M36X200F Floating joint F-M36X200U fisheye joint
Click to download Airtac product catalog
Product Features
1.ISO15552 (original ISO6431) standard cylinder.
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick.
4. The cylinder buffer adjustment is stable.
5. Various specifications of the cylinder and cylinder mounting accessories are available.
