Description
Specification: standard compound type Bore: 63mm Piston rod material: SUS304 Travel: 50mm Magnet: with magnet Fixed type: none Seal material: TPU Tooth type: PT tooth
Specifications

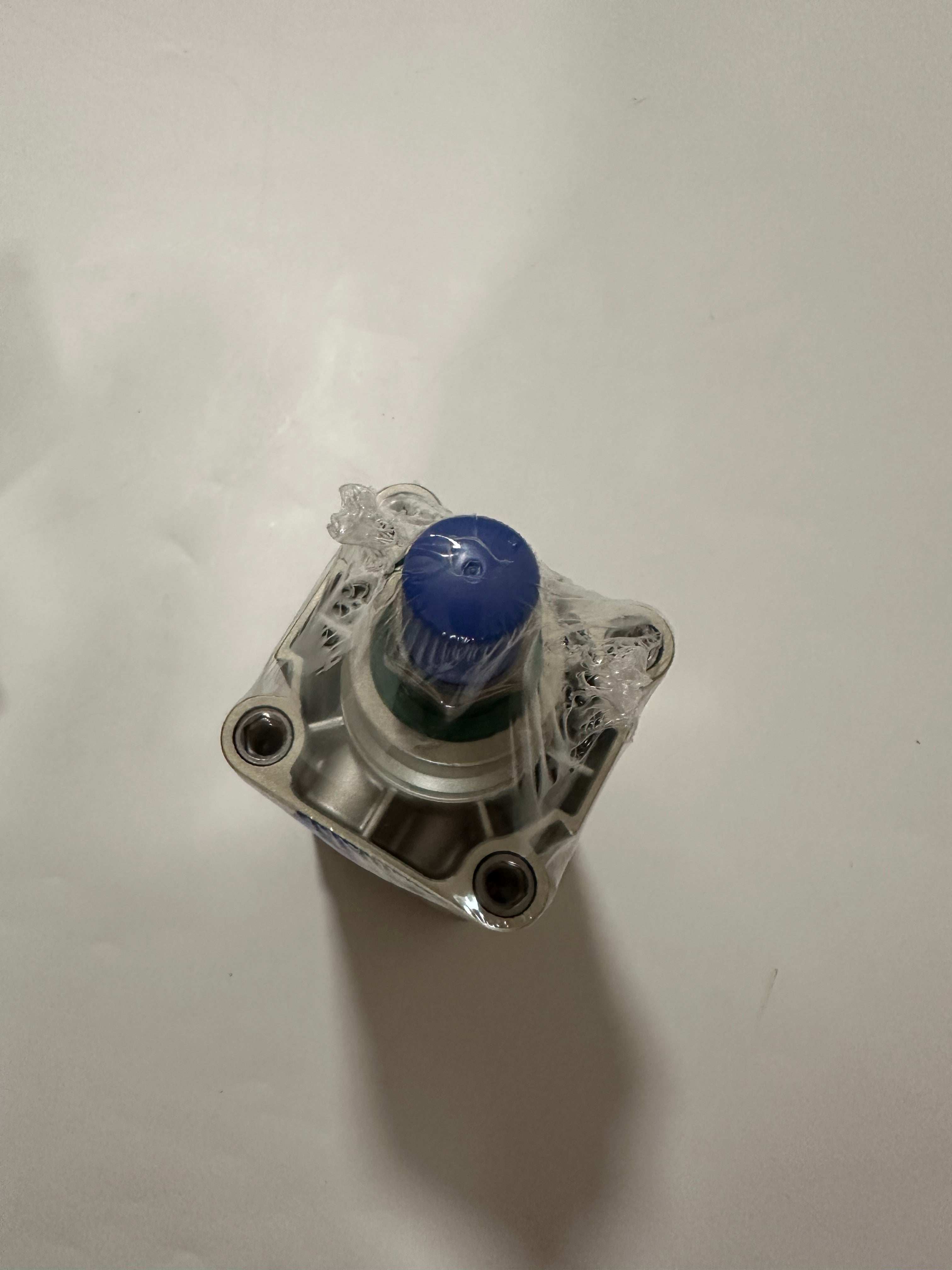

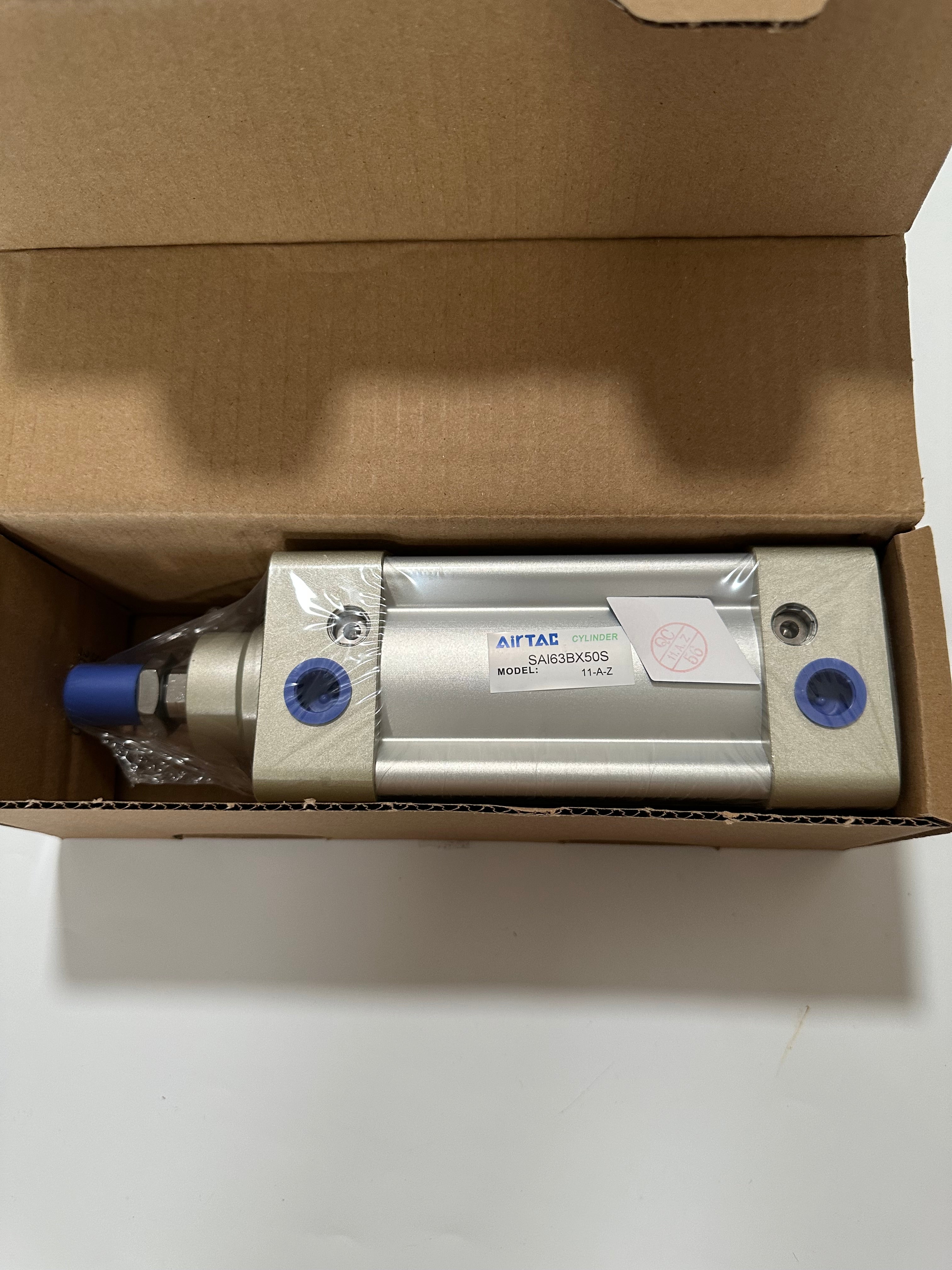

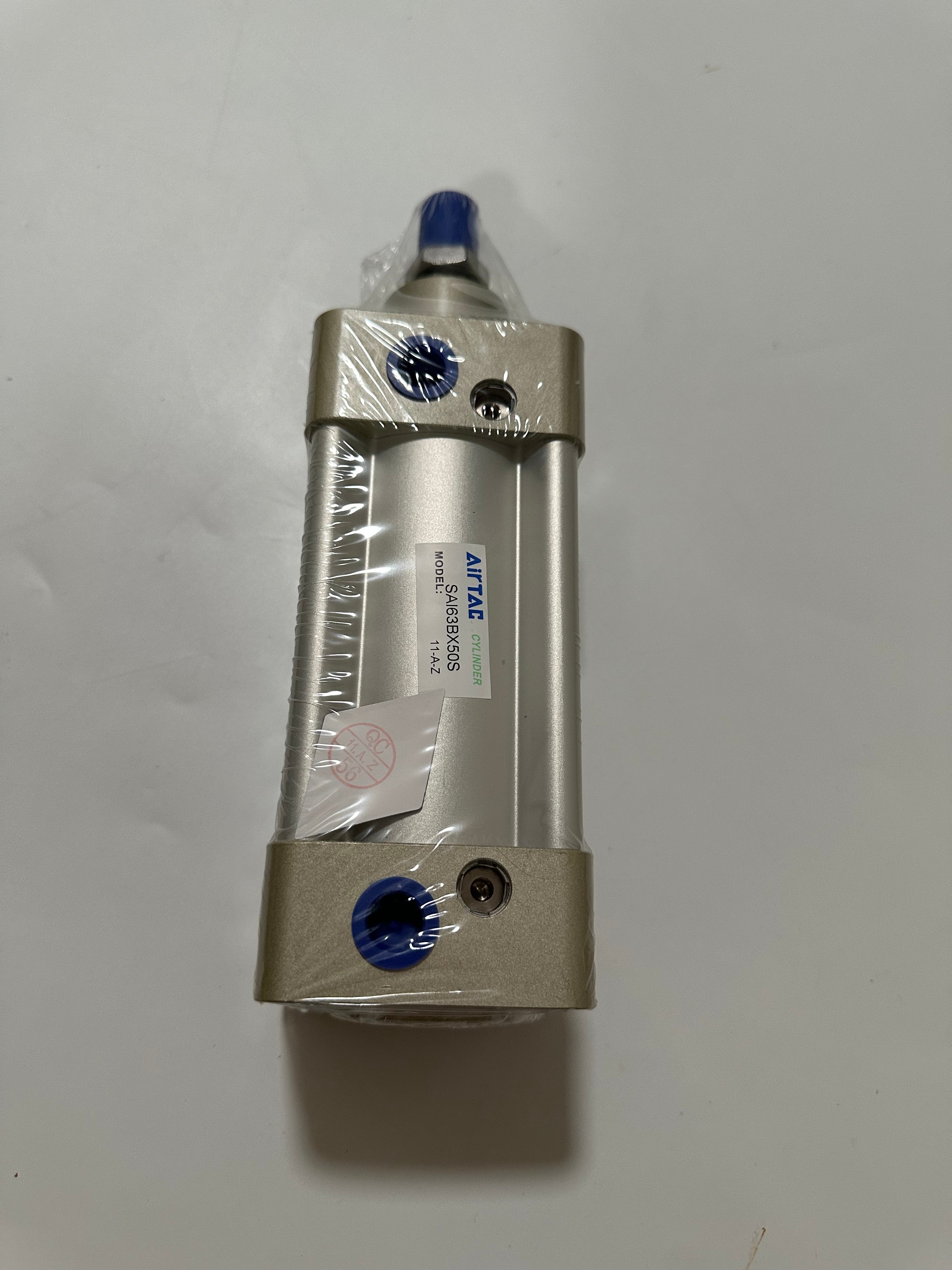

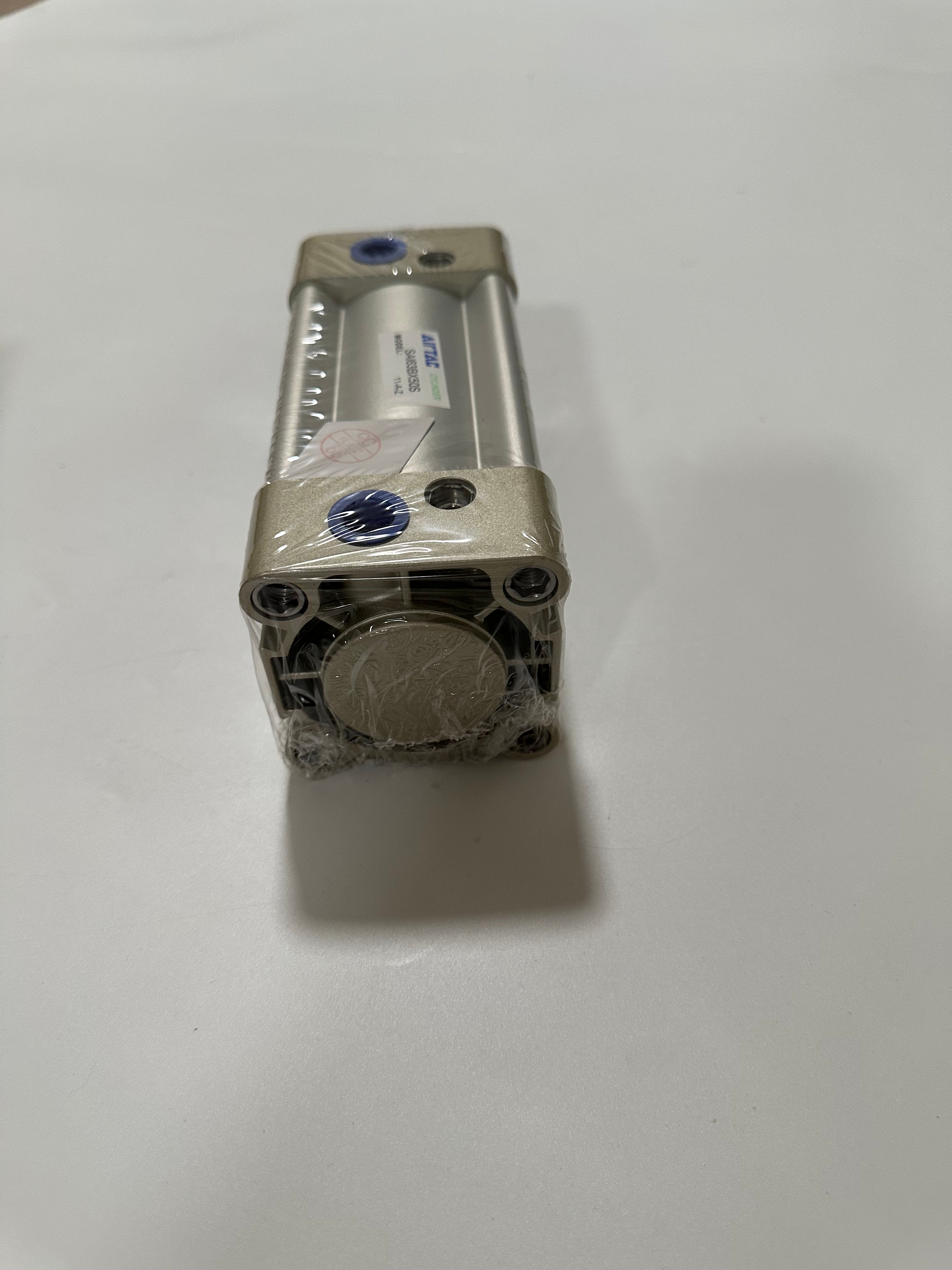

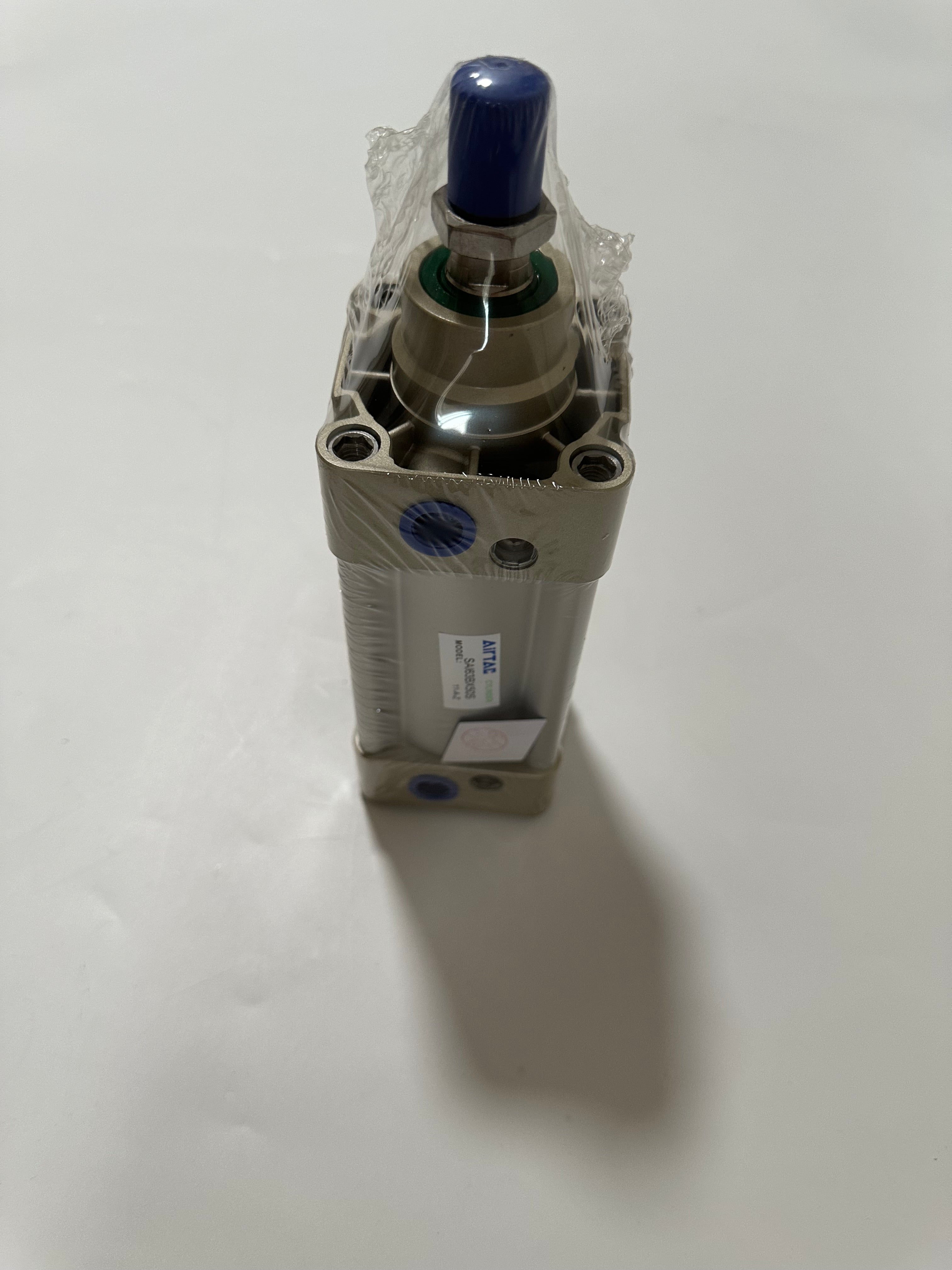

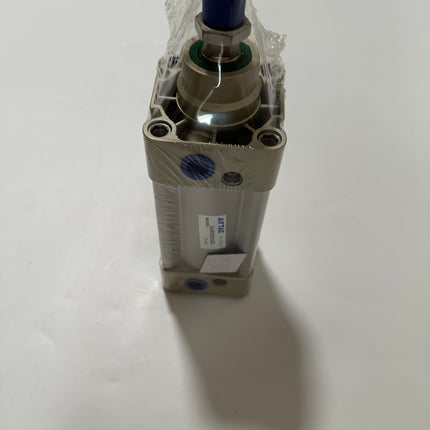

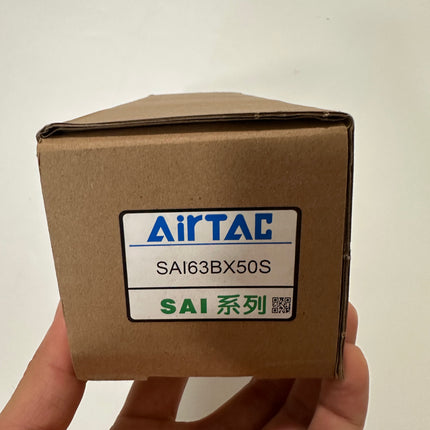

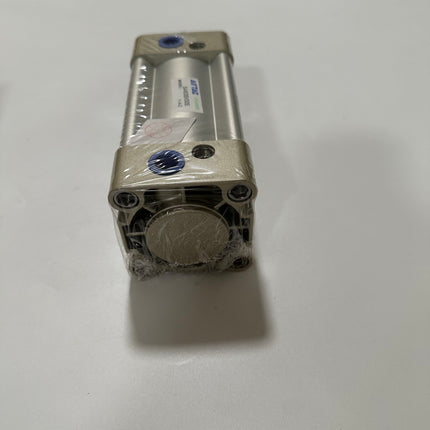

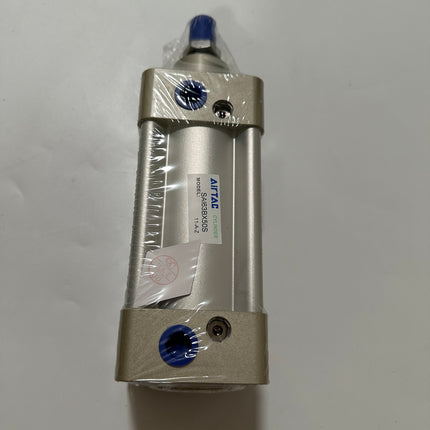

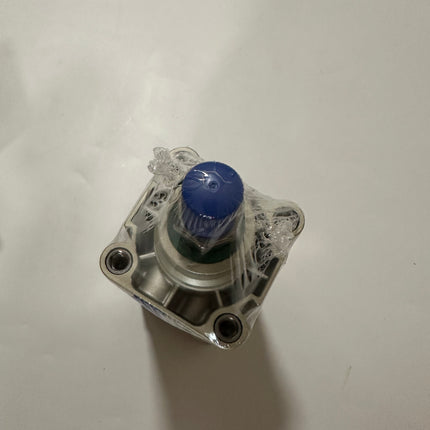

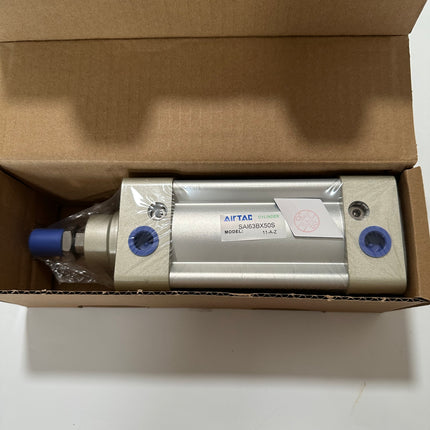

1. Model: SAI63BX50S
2. Action type: double action type, working medium: air (filtered by filter screen above 40μm), fixed type: basic type, FA,FB,CA,CB,CR,LB,TC,FTC,TCM1,TCM2
3. Use pressure range: 0.15~1.0MPa(22~145psi)(1.5~10.0bar), Guaranteed pressure resistance: 1.5MPa(215psi)(15bar)
4. Working temperature ℃:-20~70, Use speed range mm/s:30~800, Travel tolerance range: 0~250+0/1.0,251~1000+0/1.5,1001~1500+0/2.0
5. Buffer type: adjustable buffer, buffer stroke: 30, Nozzle caliber: PT3/8
6. The nozzle tooth type is optional with PT tooth, G tooth and NPT tooth, and the sensor can be selected: DMSE,CMSE
Internal structure and main parts material: 1. nut: carbon steel, stainless steel/2. Piston rod: S45C hard chrome-plated abrasive rod, stainless steel/3. Front cover o order: TPU/4. Front cover: Aluminum alloy/5. Bushing: wear-resistant material/6. Buffer O: TPU/7. Cylinder: aluminum alloy/8. Piston rod O: NBR/9. Piston: Aluminum alloy/10. Piston Oring: NBR/11. Wear ring: wear-resistant material/12. Magnet: plastic (below 100), rubber (other)/13. Hexagon socket bolt: carbon steel/14. Cushioning gasket: TPU/15. Back cover: Aluminum alloy/16. Strut Nut: Carbon Steel, Stainless Steel
Type of sealing ring :P-SAI63-R1 TPU material P-SAI63N-R1 NBR Material P-SAI63-R2 Fluorine rubber material ， Installation accessories :F-SI63LB Axial mounting F-SI63FA Flange connecting plate F-SE63CA Single-ear fixing seat F-SE63CB Binaural mount F-SI63CR Single-ear connection seat F-SAI63TC Middle Trunnion Bracket F-SI63FTC Front cover trunnion bracket F-SI63TCM1 trunnion mount F-SI63TCM2 trunnion mount ， cylinder magnetic ring :GMED41X59.5X5 cylinder magnetic ring SAI63 Cylinder magnetic ring sleeve with groove wear-resistant guide ring ， Piston rod end joint :F-M16X150I I Connector F-M16X150Y Y connector F-M16X150F Floating joint F-M16X150U fisheye joint ， Cylinder front cover rear cover accessories :SAI63 Front cover SAI63 Rear lid
Click to download Airtac product catalog
Product Features

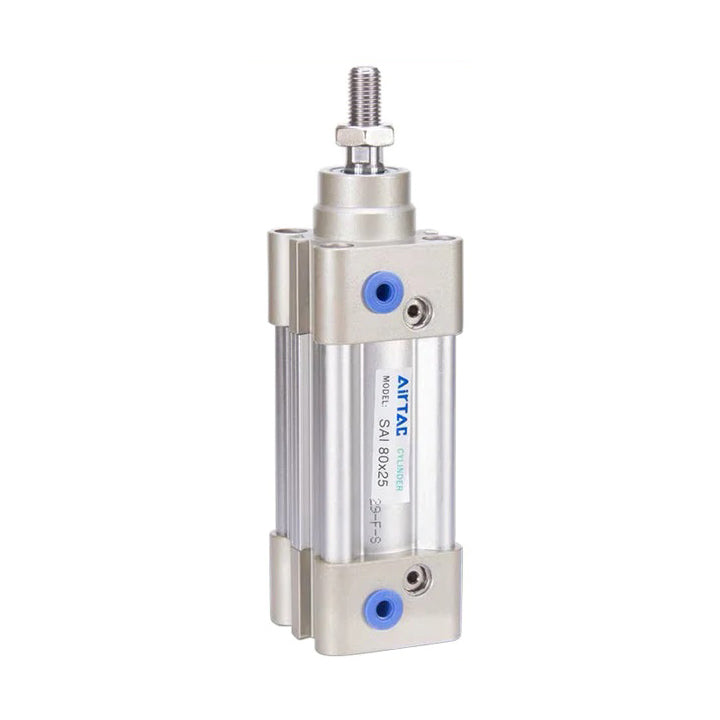

1.ISO15552 (original ISO6431) standard cylinder.
2. The piston seal adopts special-shaped two-way sealing structure, compact size and oil storage function.
3. M-shaped aluminum tube, no tie rod, good anti-corrosion performance. External with sensor mounting groove, sensor installation is convenient and quick.
4. The cylinder buffer adjustment is stable.
5. Various specifications of the cylinder and cylinder mounting accessories are available.
