Airtac SAI series: standard cylinder - SAI32BX675SCBHT

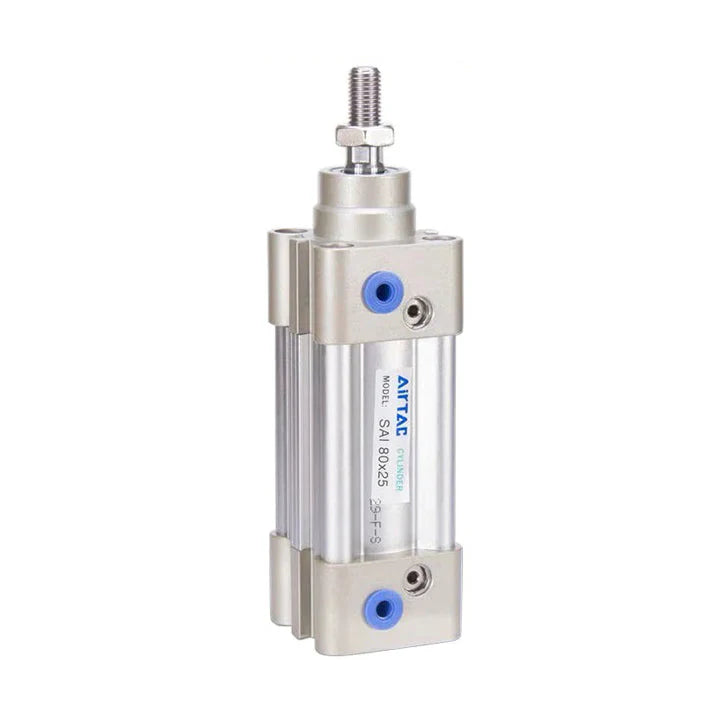

Photos are for reference only. Not all models have pictures.

Description

Specifications: SAI32BX675SCBHT — SAI series double-acting single-rod cylinder; 32 mm bore × 675 mm stroke; SUS304 rod (B); magnet fitted (S); double rear clevis (CB); fluororubber seals (H); NPT1/8 ports (T).

Product Catalog

Download Airtac Product Catalog (PDF)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

SI to SAI replacement guide

Model Code Explained

Code Meaning
SAI Standard double-acting single-rod cylinder
32 32 mm bore
B SUS304 stainless steel
X Separator before stroke
675 675 mm stroke
S Magnet fitted; sensor separately selected
CB Double rear clevis
H Fluororubber seal option
T NPT1/8 working ports

Technical Specifications

Parameter Value
Model SAI32BX675SCBHT
Action Double acting, single rod
Bore 32 mm
Stroke 675 mm; Special stroke; confirm order and delivery conditions
Piston rod material SUS304 stainless steel
Magnetic piston With magnet; sensors separately selected
Mounting selection Double rear clevis
Seal option Fluororubber
Working ports NPT1/8; two working air ports
Working medium Air filtered to 40 µm or finer
Operating pressure 0.15–1 MPa (1.5–10 bar; approximately 22–145 psi)
Proof pressure 1.5 MPa (15 bar); not continuous operating pressure
Temperature General catalog: -20 to 70 °C; H-assembly range unestablished
Piston speed 30–800 mm/s
Stroke tolerance +1.5 / -0 mm
Cushioning Adjustable pneumatic cushion; 27 mm nominal cushion reference
Rod diameter / end thread 12 mm / M10×1.25
Cylinder reference weight 2211.5 g; catalog calculation, not measured shipping weight

Reference weight = 497 + 2.54 × 675 g, in decimal grams, using the matching magnetic SAI single-rod base. A/B rod and H/N seal mass differences are unquantified, so this is not certified variant mass. Brackets, rod joints, sensors and packaging are excluded; actual weight prevails.

The 27 mm nominal cushion distance is not guaranteed usable deceleration length for a shorter stroke. Verify performance at the actual load and speed.

H means fluororubber, not 150 °C approval for the cylinder, sensors, cables or circuit.

Features and Operation

ISO15552 standard cylinder, formerly ISO6431.

Special-shaped bidirectional piston sealing structure with compact size and oil storage.

Profiled aluminium tube without tie rods, corrosion resistance and external sensor grooves.

Stable adjustable pneumatic cushioning.

Multiple cylinder variants and mounting accessories are available.

External and Mounting Dimensions

A+stroke ends at rear-cover face. Derived bare overall adds the shown NA rear boss once. Bare body only; no joints, sensor, mounting accessories or packaging. Magnetic/nonmagnetic dimensions are the same. Symbols refer to their individual drawings, not extra overall dimensions. Plain numerical dimensions below are in millimetres; threads are explicit. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Basic dimension / drawing symbol Dimension (mm) / thread
Illustrated A + stroke to rear-cover face 817 mm = 142 + 675
Body face span: AC + stroke 769 mm = 94 + 675
Derived bare retracted length: A + stroke + NA 820 mm = 142 + 675 + 3
Derived bare extended length: A + 2 × stroke + NA 1495 mm = 142 + 2 × 675 + 3
Body cross-section 47 × 47 mm
A 142 mm before adding the actual stroke
AB 48
AC 94 mm before adding the actual stroke
AD 27.5
AE 27.5
B 47
D 12
DA 29
E M10×1.25
EA 22
F 17
FA 6
M 30
MA 19
H 10
K M6
KA 16
KB 32.5
N 30
NA 3
P NPT1/8
PA 13
PB 5.5

Selected Mounting Dimensions

Accessory / drawing symbol Dimension (mm) / thread
CB — Double rear clevis F-SE32CB; symbols below refer to this accessory
A + stroke 817 = 142 + 675
C + stroke 769 = 94 + 675
CC 22
CD 10.5
CE 10
CJ 13
CP 26
CT 45
PA1 51
PB1 45.5
S 46.5
T 32.5

Mounting and Rod-End Accessories

Mounting option Part code and material
LB — Axial foot mounting F-SI32LB; Low-carbon steel
FA — Front flange mounting F-SI32FA; Aluminium alloy
FB — Rear flange mounting F-SI32FA; Aluminium alloy
CA — Single rear clevis F-SE32CA; Ductile cast iron
CB — Double rear clevis F-SE32CB; Ductile cast iron
CR — Single clevis connection F-SI32CR; Ductile cast iron
TC — Intermediate trunnion mounting F-SAI32TC; Ductile cast iron
FTC — Front-cover trunnion mounting F-SI32FTC; Ductile cast iron
TCM1 — Trunnion support type 1 F-SI32TCM1; Ductile cast iron
TCM2 — Trunnion support type 2 F-SI32TCM2; Aluminium alloy

FA/FB use the same flange plate at different positions. CR requires CB. TC/FTC use matching TCM1/TCM2 supports; confirm the package and fasteners.

SAI32–125 TC is adjustable and separately orderable. The factory-fixed SAI160/200 restriction does not apply to this 32 mm cylinder. Support centers are drawing references; position for the actual load.

For this 32 mm TC bracket, locking torque is 2–3 N·m and the static holding-force reference is 800 N, not cylinder thrust or rated payload. Above this, specify factory nonstandard fixed TC. Fit and position the barrel brackets, check sloping-face contact, then pre-tighten, intermediate-tighten and finally tighten the eight black screws.

Drawing holes: LB 4 AP; FA/FB 4 BP; CR 4 K through-holes and 4 L counterbores; TCM1 4 E; TCM2 4 L through-holes and 4 K counterbores. CA DQ/CB CP tolerance: ±0.1 mm. Hole counts do not establish supplied fastener quantities.

Rod-End Joint Dimensions

Joint / drawing symbol Dimension (mm) / thread / angle
I joint F-M10X125I; symbols below refer to this joint
NC 10
ND 40
NE 50
NF 15
NG 20
NH M10×1.25
NM 10
Reference weight 75 g; separately specified part
Y clevis joint F-M10X125Y; symbols below refer to this joint
A 52
B 40
C 20
D 19
F 18
E M10×1.25
G 25
H 10
I 10
Reference weight 86 g; separately specified part
Floating joint F-M10X125F; symbols below refer to this joint
MA 58
MB 22
MC 7
MD 21
ME 26
MF 11
MG 6
MH 10
MI_MJ M10×1.25
MK 12°
Reference weight 107 g; separately specified part
Spherical rod-end joint F-M10X125U; symbols below refer to this joint
PA 11
PB 26
PC 10
PD 20
PE 43
PF 56
PG M10×1.25
PH 13°
PI 19
PJ 17
PK 14
Reference weight 69 g; separately specified part

M10 × 1.25 rod-end accessories are cataloged as carbon steel, without specifying every component or finish. Select joints and guides for the load. Their masses are excluded from bare-cylinder weight. The Y drawing does not establish a separate pin-kit code or guaranteed kit count.

Force and Application

Parameter Value
Extension effective area 804 mm²; catalog rounded single-rod area
Extension at 0.5 MPa 402 N theoretical
Retraction effective area 690 mm²; catalog rounded single-rod area
Retraction at 0.5 MPa 345 N theoretical

Theoretical axial force = effective area in mm² × pressure in MPa, before friction and losses. Rod area reduces retraction area. These are not safe working loads or guaranteed payloads.

Installation and Maintenance

Use qualified personnel. Before maintenance, secure loads, guard moving parts, isolate power/air and release residual pressure. Prevent unexpected restart motion; design for air or power loss.

Use clean, dry air filtered to 40 µm or finer; remove water, degraded oil and debris. Protect against dust, corrosion, coolant, weld spatter, vibration and heat. Prevent freezing; evaluate unusually dry air. Strong magnetic fields can affect sensing.

Start unloaded; increase load gradually. Align rod/load axes; guide against side load, bending, impact and torque. Check long-stroke buckling, sag, supports and air consumption. Rod joints do not replace guides.

General load-ratio guidelines: at most 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s. These are not structural safety factors or payload guarantees. Observe cylinder pressure/speed limits.

Fit flow controls at both ports. Double action commonly uses meter-out: start closed and open gradually. Adjust cushions for load/speed without forcing screws. Heavy or fast loads may need an external absorber or deceleration circuit.

Air compressibility/leakage prevent assuming precise prolonged stops with a closed-center valve or automatic multi-cylinder synchronization. Swinging links need CA/CB/TC pivots, not rigid LB mounts forced through an arc. Select flange direction/support height for the load.

Factory lubrication generally needs no added oil. If introduced, use additive-free ISO-VG32 turbine oil continuously. Catalog guide: oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for flow; avoid excess or incompatible oil.

Clean piping; keep sealant off leading threads. Where tape is required, start 1.5–2 threads back. Verify tube pressure, temperature, OD, ID and bend radius. Hot-spatter areas may need metal or flame-resistant tubing.

Protect sliding surfaces. Periodically operate stored cylinders and prevent corrosion. Observe the lowest cylinder/fitting/valve/tube/sensor/cable limit; temperature options do not raise other component ratings.

Internal Components — SAI Catalog Reference

Item Material reference
1. Nut Carbon steel / stainless steel
2. Piston rod S45C hard-chrome-plated ground bar / stainless steel
3. Front-cover O-ring TPU
4. Front cover Aluminium alloy
5. Bushing Wear-resistant material
6. Cushion O-ring TPU
7. Barrel Aluminium alloy
8. Piston-rod O-ring NBR
9. Piston Aluminium alloy
10. Piston O-ring NBR
11. Wear ring Wear-resistant material
12. Magnet Plastic type for bores100 and below; rubber type for other bores
13. Hexagon socket bolt Carbon steel
14. Cushion seal TPU
15. Rear cover Aluminium alloy
16. Support screw cap Carbon steel / stainless steel

This SAI structure reference is not a material certificate for every option. Ordered rod/seal choices prevail: A/B does not make the whole cylinder stainless steel; a seal option does not replace every named elastomer with one material.

Series Ordering Options

Parameter Value
Rod material choices Blank: Medium-carbon steel; A: SUS420J2 stainless steel; B: SUS304 stainless steel
Seal choices Blank: TPU; H: Fluororubber; N: NBR
Magnet choice Blank: no magnet; S: magnet fitted, sensors separately selected
Thread choices PT, G or NPT as specified by the actual order; do not mix thread standards
Catalog standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
Maximum / allowable stroke 1000 / 1800 mm; separate catalog limits, not a list of all standard strokes
Stroke tolerance bands 0–250 mm: +1 / -0 mm; 251–1000 mm: +1.5 / -0 mm; 1001–1500 mm: +2 / -0 mm; above 1500 mm not specified

Series alternatives are not simultaneous model features. Confirm special strokes and unlisted combinations. Retain the complete model; select mounts, joints, sensors and circuit parts separately.

Magnetic Sensors and Connection Leads

Magnetic S variants accept E-profile DMSE electronic or CMSE reed sensors directly in the barrel groove. Select sensing positions and circuit type; sensors and mating leads are separately ordered, and S does not specify their quantity. No tie-rod holder is required.

Sensor / separate lead Complete ordering choices
DMSE two-wire standard: DMSE-020,DMSE-030,DMSE-050,DMSE-100,DMSE-M08,DMSE-M08010,DMSE-M08020,DMSE-M08030,DMSE-M12,DMSE-M12010,DMSE-M12020,DMSE-M12030; W: DMSE-020-W,DMSE-030-W,DMSE-050-W,DMSE-100-W; A05: A05-DMSE-020,A05-DMSE-030,A05-DMSE-050,A05-DMSE-100; A06: A06-DMSE-020,A06-DMSE-030,A06-DMSE-050,A06-DMSE-100
DMSE NPN three-wire standard: DMSE-N020,DMSE-N030,DMSE-N050,DMSE-N100,DMSE-NM08,DMSE-NM08010,DMSE-NM08020,DMSE-NM08030,DMSE-NM12,DMSE-NM12010,DMSE-NM12020,DMSE-NM12030; W: DMSE-N020-W,DMSE-N030-W,DMSE-N050-W,DMSE-N100-W
DMSE PNP three-wire standard: DMSE-P020,DMSE-P030,DMSE-P050,DMSE-P100,DMSE-PM08,DMSE-PM08010,DMSE-PM08020,DMSE-PM08030,DMSE-PM12,DMSE-PM12010,DMSE-PM12020,DMSE-PM12030; W: DMSE-P020-W,DMSE-P030-W,DMSE-P050-W,DMSE-P100-W
CMSE two-wire reed standard: CMSE-020,CMSE-030,CMSE-050,CMSE-100,CMSE-M08,CMSE-M08010,CMSE-M08020,CMSE-M08030,CMSE-M12,CMSE-M12010,CMSE-M12020,CMSE-M12030; H: CMSE-020-H,CMSE-030-H,CMSE-050-H,CMSE-100-H,CMSE-M08-H,CMSE-M08010-H,CMSE-M08020-H,CMSE-M08030-H,CMSE-M12-H,CMSE-M12010-H,CMSE-M12020-H,CMSE-M12030-H; A05: A05-CMSE-020,A05-CMSE-030,A05-CMSE-050,A05-CMSE-100
M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
Electrical / physical reference Limits and conditions
DMSE two-wire 10–28 V DC; 2.5–100 mA load; ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA.
DMSE NPN/PNP three-wire 5–30 V DC; switching ≤30 V and ≤200 mA, capacity ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA.
CMSE reed two-wire 5–240 V AC/DC; meet both ≤100 mA and ≤10 W. Standard residual voltage ≤2.5 V at DC 100 mA; H has no indicator or residual voltage shown. No internal/leakage current or protection circuit shown.
Frequency, shock and temperature DMSE ≤1000 Hz with reverse-polarity/surge protection; CMSE ≤200 Hz. Both: 50 G shock reference. Standard −10–70 °C; CMSE-H −10–125 °C. Sensor H does not raise the cylinder, cable or connector rating.
E-profile body dimensions DMSE length 25, height 4.7 mm; CMSE length 26.8, height 5.3 mm. Both: cross-section width 6.3, upper width 5.2 mm.

Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. Lead length is unrelated to cylinder stroke. Blank output is two-wire; N/P are NPN/PNP.

DMSE standard/A05 are IP64; W/A06 are IP68. All CMSE are IP64. A05 is flex-resistant robot cable; A06 is oil-resistant flex-resistant cable. A05/A06 are two-wire direct-lead only, with 19 mm minimum bend radius. No W quick-connector, A05/A06-W, CMSE-W, CMSE-A06 or A05-CMSE-H option is listed.

Match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire: 1 brown (+), 3 blue (−), 4 black output. Direct leads need no quick mating cable. Independent cable temperature, IP and voltage ratings are not given; do not transfer sensor-body ratings to the complete assembly.

For three-wire NPN put the load between positive and black output; for PNP between black output and negative. Check residual voltage and leakage for PLC inputs and series/parallel circuits; simultaneous series sensing lights the LEDs together, not a universal PLC compatibility guarantee.

Insert E-profile sensor into the matching cylinder groove with its screw clear of the bottom face; position near the middle of the switching range, then tighten. Recommended locking torque 0.15–0.20 N·m; never exceed 0.25 N·m.

Connect the correct load and supply before energizing; two-wire sensors must not be placed directly across the supply without a load. Keep leads insulated and separate from high-voltage/power wiring; prevent repeated strain, impact and strong magnetic interference.

Inspect sensor fixing, cable condition and indication periodically. Waterproof versions are not a guarantee for prolonged immersion; protect against oil, chemicals, weld spatter, rapid temperature cycling and dense magnetic material as required.

H cylinder seal code and CMS sensor H suffix are separate options. The SAI/SAIJ general published cylinder range is −20 to 70 °C; no independently established full H cylinder range is supplied here. Apply the limits of the actual cylinder, selected sensor, cable and connectors together.

Connection and Tube-Side Options

Separately selected component Complete ordering codes; tube dimensions as labelled
NPC straight 5/32 in OD: NPC5/32-1/8; 1/4 in OD: NPC1/4-1/8; 5/16 in OD: NPC5/16-1/8; 3/8 in OD: NPC3/8-1/8
NPL elbow 5/32 in OD: NPL5/32-1/8; 1/4 in OD: NPL1/4-1/8; 5/16 in OD: NPL5/16-1/8; 3/8 in OD: NPL3/8-1/8
NPLL extended elbow — discontinued reference 5/32 in OD: NPLL5/32-1/8; 1/4 in OD: NPLL1/4-1/8; 5/16 in OD: NPLL5/16-1/8; 3/8 in OD: NPLL3/8-1/8
NPEB branch tee 5/32 in OD: NPEB5/32-1/8; 1/4 in OD: NPEB1/4-1/8; 5/16 in OD: NPEB5/16-1/8; 3/8 in OD: NPEB3/8-1/8
NPED run tee 5/32 in OD: NPED5/32-1/8; 1/4 in OD: NPED1/4-1/8; 5/16 in OD: NPED5/16-1/8; 3/8 in OD: NPED3/8-1/8
NPYB Y fitting 5/32 in OD: NPYB5/32-1/8; 1/4 in OD: NPYB1/4-1/8; 5/16 in OD: NPYB5/16-1/8; 3/8 in OD: NPYB3/8-1/8
NPH banjo elbow — discontinued reference 5/32 in OD: NPH5/32-1/8; 1/4 in OD: NPH1/4-1/8; 5/16 in OD: NPH5/16-1/8
NPHF female-branch banjo — discontinued reference 5/32 in OD: NPHF5/32-1/8; 1/4 in OD: NPHF1/4-1/8; 5/16 in OD: NPHF5/16-1/8
NPHW twin banjo — discontinued reference 5/32 in OD: NPHW5/32-1/8; 1/4 in OD: NPHW1/4-1/8; 5/16 in OD: NPHW5/16-1/8
NPZB cross fitting — discontinued reference 1/4 in OD: NPZB1/4-1/8; 5/16 in OD: NPZB5/16-1/8
NBPC metal straight — discontinued reference 5/32 in OD: NBPC5/32-1/8; 1/4 in OD: NBPC1/4-1/8; 5/16 in OD: NBPC5/16-1/8; 3/8 in OD: NBPC3/8-1/8
NPKD reducing distribution fitting — discontinued reference main 1/4 / branch 5/32 in OD: NPKD1/4-5/32-1/8
NBSL valve-exhaust silencer NBSL1/8
NBSLM valve-exhaust silencer NBSLM1/8
NBESL valve-exhaust silencer — discontinued reference NBESL1/8
NBZ unused auxiliary port plug NBZ1/8
NBB male–male adapter — discontinued reference second male end NPT1/8: NBB1/8-1/8; second male end NPT1/4: NBB1/8-1/4; second male end NPT3/8: NBB1/8-3/8
NBKC compression fitting — discontinued reference 5/32 × 3/32 in OD × ID: NBKC5/32-3/32-1/8; 1/4 × 5/32 in OD × ID: NBKC1/4-5/32-1/8; 5/16 × 1/5 in OD × ID: NBKC5/16-1/5-1/8
NPTL push-lock flow control 5/32 in OD: NPTL5/32-1/8A,NPTL5/32-1/8B; 1/4 in OD: NPTL1/4-1/8A,NPTL1/4-1/8B; 5/16 in OD: NPTL5/16-1/8A,NPTL5/16-1/8B
NPSS universal flow control — discontinued reference 1/4 in OD: NPSS1/4-1/8A,NPSS1/4-1/8B; 5/16 in OD: NPSS5/16-1/8A,NPSS5/16-1/8B
NPSA inch tube-to-tube flow control 5/32 in OD: NPSA5/32; 1/4 in OD: NPSA1/4; 5/16 in OD: NPSA5/16; 3/8 in OD: NPSA3/8
ASC100 separate inline flow control ASC10006T
GAFR200 upstream filter/regulator GAFR20006ST

These are separately selected alternatives, not a supplied kit or stock promise. Match actual NPT1/8 cylinder working ports, sealing method, insertion depth, wrench/rotation clearance, flow and tube loading. PT, G and NPT are not interchangeable. The M10 × 1.25 rod thread is not an air port. Marked discontinued families, including NPSS, are historical/installed-equipment references only: confirm remaining availability or an approved replacement before ordering, not current standard supply.

Use suitable soft nylon or PU tubing with the exact inch OD; compression fittings also require the listed ID. 5/32, 1/4, 5/16 and 3/8 in are 3.96875, 6.35, 7.9375 and 9.525 mm, not nominal metric tube sizes. NPHF has male RA and additional female RB, both NPT1/8: connect or seal RB as the circuit permits; it is not a tube socket. Tees, crosses and distribution fittings must not bridge chambers or unrelated controls. NPKD uses main 1/4 in and branch 5/32 in OD.

Ordinary push-in fittings and listed flow controls are rated 0–1 MPa, −20–70 °C. NBPC/NBKC/NBB/NBZ are 0–1 MPa, 0–150 °C, limiting H pressure to 0.15–1 MPa; actual H temperature and lower component limits apply. NBPC does not share the metric BPC 0.9 MPa limit. A component vacuum rating does not approve a vacuum cylinder assembly.

NBKC5/32-3/32-1/8 follows the explicit model/dimension row; a conflicting equal-OD/ID selection-matrix row requires procurement confirmation. Hold the body hex for thread installation, not the tube-locking nut; insert tubing fully and tighten correctly. NBB has two male NPT ends; match the separately labelled second end to a female component. NBZ closes only permitted unused auxiliary connections, never either active cylinder working port.

At the cylinder, A restricts cylinder/thread → tube exhaust (meter-out), with free reverse supply; B restricts tube → cylinder supply (meter-in). A is the usual double-acting exhaust-control choice; B needs a designed meter-in circuit. Start closed and open slowly; these are not safety isolation. NPTL1/8 maximum cap-adjustment torque is 0.08 N·m, not pipe-thread torque. Do not force end stops or use pliers. NPSA is an inch tube-to-tube control without A/B suffixes: match both ODs and the body flow symbol.

NBSL/NBSLM/NBESL are only for a separately selected valve exhaust with matching NPT1/8 thread, adequate flow and acceptable backpressure. They are not cylinder working-port parts, inlet filters or shutoffs; NBESL adjustment changes backpressure. ASC10006T has two female NPT1/8 ports and needs separate male connections; follow its P/A and check/throttle symbol. Its 0.05–0.95 MPa, −20–70 °C limits the SAI path to 0.15–0.95 MPa before other limits.

GAFR20006ST is a separate upstream NPT1/8 filter/regulator: inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Check flow, pressure drop, condensate, bowl environment and all downstream limits. It is not a cylinder-mounted fitting or vacuum regulator. Metric PU coils, PSA/GPSA and PPA are not specified for these inch sockets; select separately verified inch tubing and connections. No complete inch-tube coil ordering code is established here.

Separate Directional-Valve and Tube Examples

The SAI32 NPT1/8 cylinder can be controlled through a correctly designed separate pneumatic circuit. The independently verified directional-valve examples below have PT/G ports, not NPT: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V11006BG, 4V12006B, 4V12006BG, 4V21006B, 4V21006BG, 4V22006B, 4V22006BG, 4A11006, 4A11006G, 4A12006, 4A12006G, 4A21006, 4A21006G, 4A22006, 4A22006G. Match valve-side and cylinder-side fittings and tubing separately; a complete mixed-thread connection kit is not established by these examples. Separate circuit examples; no speed guarantee. B means DC24V; cylinder SKU does not select voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A needs independent pneumatic pilot commands, no coil voltage; verify pilot-port thread and pilot-air supply. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Verify switching logic; apply the circuit conditions below.

Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Derate pressure for temperature; select compatible fittings and length. Coils are not supplied cut lengths. No reviewed nylon 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

M5 chart entries are separate valve connections, not SAI cylinder ports. 4M needs NAMUR; no SAI mounting/adapter compatibility is established.

The PA/UN examples are metric tubing references, not matches for the reviewed inch NPT fitting sockets. Do not equate 6 mm with 1/4 inch or 8 mm with 5/16 inch; choose a separately verified complete tube/fitting chain.

Circuit-Sizing Reference

Theoretical reference speed Flow-area and tube reference
300 mm/s 1.3 mm² effective flow area; 6 × 4 mm tube OD × ID
400 mm/s 1.7 mm² effective flow area; 6 × 4 mm tube OD × ID
500 mm/s 2.1 mm² effective flow area; 6 × 4 mm tube OD × ID
600 mm/s 2.5 mm² effective flow area; 8 × 5 mm tube OD × ID
700 mm/s 2.9 mm² effective flow area; 8 × 5 mm tube OD × ID
800 mm/s 3.4 mm² effective flow area; 8 × 5 mm tube OD × ID

Generic bore-based circuit references, not measured SAI32 speeds. Flow area is neither piston area nor rated valve flow. Pressure, tube length and load are unspecified; the 0.5 MPa force example does not apply. Design for actual valve flow, fittings, tubing, cushioning, exhaust backpressure and the 30–800 mm/s cylinder limit. Similar nominal sizes do not make metric tubes fit inch sockets.

Download the catalog above for dimensions, mounting drawings and symbol positions. Before installation, check the complete configuration, available space and separately selected accessories.

Product form

Specifications: SAI32BX675SCBHT — SAI series double-acting single-rod cylinder; 32 mm bore × 675 mm stroke; SUS304 rod (B); magnet fitted... Read more

SKU: SAI32BX675SCBHT

$245.53 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: SAI32BX675SCBHT — SAI series double-acting single-rod cylinder; 32 mm bore × 675 mm stroke; SUS304 rod (B); magnet fitted (S); double rear clevis (CB); fluororubber seals (H); NPT1/8 ports (T).

    Product Catalog

    Download Airtac Product Catalog (PDF)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    SI to SAI replacement guide

    Model Code Explained

    Code Meaning
    SAI Standard double-acting single-rod cylinder
    32 32 mm bore
    B SUS304 stainless steel
    X Separator before stroke
    675 675 mm stroke
    S Magnet fitted; sensor separately selected
    CB Double rear clevis
    H Fluororubber seal option
    T NPT1/8 working ports

    Technical Specifications

    Parameter Value
    Model SAI32BX675SCBHT
    Action Double acting, single rod
    Bore 32 mm
    Stroke 675 mm; Special stroke; confirm order and delivery conditions
    Piston rod material SUS304 stainless steel
    Magnetic piston With magnet; sensors separately selected
    Mounting selection Double rear clevis
    Seal option Fluororubber
    Working ports NPT1/8; two working air ports
    Working medium Air filtered to 40 µm or finer
    Operating pressure 0.15–1 MPa (1.5–10 bar; approximately 22–145 psi)
    Proof pressure 1.5 MPa (15 bar); not continuous operating pressure
    Temperature General catalog: -20 to 70 °C; H-assembly range unestablished
    Piston speed 30–800 mm/s
    Stroke tolerance +1.5 / -0 mm
    Cushioning Adjustable pneumatic cushion; 27 mm nominal cushion reference
    Rod diameter / end thread 12 mm / M10×1.25
    Cylinder reference weight 2211.5 g; catalog calculation, not measured shipping weight

    Reference weight = 497 + 2.54 × 675 g, in decimal grams, using the matching magnetic SAI single-rod base. A/B rod and H/N seal mass differences are unquantified, so this is not certified variant mass. Brackets, rod joints, sensors and packaging are excluded; actual weight prevails.

    The 27 mm nominal cushion distance is not guaranteed usable deceleration length for a shorter stroke. Verify performance at the actual load and speed.

    H means fluororubber, not 150 °C approval for the cylinder, sensors, cables or circuit.

    Features and Operation

    ISO15552 standard cylinder, formerly ISO6431.

    Special-shaped bidirectional piston sealing structure with compact size and oil storage.

    Profiled aluminium tube without tie rods, corrosion resistance and external sensor grooves.

    Stable adjustable pneumatic cushioning.

    Multiple cylinder variants and mounting accessories are available.

    External and Mounting Dimensions

    A+stroke ends at rear-cover face. Derived bare overall adds the shown NA rear boss once. Bare body only; no joints, sensor, mounting accessories or packaging. Magnetic/nonmagnetic dimensions are the same. Symbols refer to their individual drawings, not extra overall dimensions. Plain numerical dimensions below are in millimetres; threads are explicit. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Basic dimension / drawing symbol Dimension (mm) / thread
    Illustrated A + stroke to rear-cover face 817 mm = 142 + 675
    Body face span: AC + stroke 769 mm = 94 + 675
    Derived bare retracted length: A + stroke + NA 820 mm = 142 + 675 + 3
    Derived bare extended length: A + 2 × stroke + NA 1495 mm = 142 + 2 × 675 + 3
    Body cross-section 47 × 47 mm
    A 142 mm before adding the actual stroke
    AB 48
    AC 94 mm before adding the actual stroke
    AD 27.5
    AE 27.5
    B 47
    D 12
    DA 29
    E M10×1.25
    EA 22
    F 17
    FA 6
    M 30
    MA 19
    H 10
    K M6
    KA 16
    KB 32.5
    N 30
    NA 3
    P NPT1/8
    PA 13
    PB 5.5

    Selected Mounting Dimensions

    Accessory / drawing symbol Dimension (mm) / thread
    CB — Double rear clevis F-SE32CB; symbols below refer to this accessory
    A + stroke 817 = 142 + 675
    C + stroke 769 = 94 + 675
    CC 22
    CD 10.5
    CE 10
    CJ 13
    CP 26
    CT 45
    PA1 51
    PB1 45.5
    S 46.5
    T 32.5

    Mounting and Rod-End Accessories

    Mounting option Part code and material
    LB — Axial foot mounting F-SI32LB; Low-carbon steel
    FA — Front flange mounting F-SI32FA; Aluminium alloy
    FB — Rear flange mounting F-SI32FA; Aluminium alloy
    CA — Single rear clevis F-SE32CA; Ductile cast iron
    CB — Double rear clevis F-SE32CB; Ductile cast iron
    CR — Single clevis connection F-SI32CR; Ductile cast iron
    TC — Intermediate trunnion mounting F-SAI32TC; Ductile cast iron
    FTC — Front-cover trunnion mounting F-SI32FTC; Ductile cast iron
    TCM1 — Trunnion support type 1 F-SI32TCM1; Ductile cast iron
    TCM2 — Trunnion support type 2 F-SI32TCM2; Aluminium alloy

    FA/FB use the same flange plate at different positions. CR requires CB. TC/FTC use matching TCM1/TCM2 supports; confirm the package and fasteners.

    SAI32–125 TC is adjustable and separately orderable. The factory-fixed SAI160/200 restriction does not apply to this 32 mm cylinder. Support centers are drawing references; position for the actual load.

    For this 32 mm TC bracket, locking torque is 2–3 N·m and the static holding-force reference is 800 N, not cylinder thrust or rated payload. Above this, specify factory nonstandard fixed TC. Fit and position the barrel brackets, check sloping-face contact, then pre-tighten, intermediate-tighten and finally tighten the eight black screws.

    Drawing holes: LB 4 AP; FA/FB 4 BP; CR 4 K through-holes and 4 L counterbores; TCM1 4 E; TCM2 4 L through-holes and 4 K counterbores. CA DQ/CB CP tolerance: ±0.1 mm. Hole counts do not establish supplied fastener quantities.

    Rod-End Joint Dimensions

    Joint / drawing symbol Dimension (mm) / thread / angle
    I joint F-M10X125I; symbols below refer to this joint
    NC 10
    ND 40
    NE 50
    NF 15
    NG 20
    NH M10×1.25
    NM 10
    Reference weight 75 g; separately specified part
    Y clevis joint F-M10X125Y; symbols below refer to this joint
    A 52
    B 40
    C 20
    D 19
    F 18
    E M10×1.25
    G 25
    H 10
    I 10
    Reference weight 86 g; separately specified part
    Floating joint F-M10X125F; symbols below refer to this joint
    MA 58
    MB 22
    MC 7
    MD 21
    ME 26
    MF 11
    MG 6
    MH 10
    MI_MJ M10×1.25
    MK 12°
    Reference weight 107 g; separately specified part
    Spherical rod-end joint F-M10X125U; symbols below refer to this joint
    PA 11
    PB 26
    PC 10
    PD 20
    PE 43
    PF 56
    PG M10×1.25
    PH 13°
    PI 19
    PJ 17
    PK 14
    Reference weight 69 g; separately specified part

    M10 × 1.25 rod-end accessories are cataloged as carbon steel, without specifying every component or finish. Select joints and guides for the load. Their masses are excluded from bare-cylinder weight. The Y drawing does not establish a separate pin-kit code or guaranteed kit count.

    Force and Application

    Parameter Value
    Extension effective area 804 mm²; catalog rounded single-rod area
    Extension at 0.5 MPa 402 N theoretical
    Retraction effective area 690 mm²; catalog rounded single-rod area
    Retraction at 0.5 MPa 345 N theoretical

    Theoretical axial force = effective area in mm² × pressure in MPa, before friction and losses. Rod area reduces retraction area. These are not safe working loads or guaranteed payloads.

    Installation and Maintenance

    Use qualified personnel. Before maintenance, secure loads, guard moving parts, isolate power/air and release residual pressure. Prevent unexpected restart motion; design for air or power loss.

    Use clean, dry air filtered to 40 µm or finer; remove water, degraded oil and debris. Protect against dust, corrosion, coolant, weld spatter, vibration and heat. Prevent freezing; evaluate unusually dry air. Strong magnetic fields can affect sensing.

    Start unloaded; increase load gradually. Align rod/load axes; guide against side load, bending, impact and torque. Check long-stroke buckling, sag, supports and air consumption. Rod joints do not replace guides.

    General load-ratio guidelines: at most 0.7 at static/low speed, 0.5 at 50–500 mm/s and 0.3 above 500 mm/s. These are not structural safety factors or payload guarantees. Observe cylinder pressure/speed limits.

    Fit flow controls at both ports. Double action commonly uses meter-out: start closed and open gradually. Adjust cushions for load/speed without forcing screws. Heavy or fast loads may need an external absorber or deceleration circuit.

    Air compressibility/leakage prevent assuming precise prolonged stops with a closed-center valve or automatic multi-cylinder synchronization. Swinging links need CA/CB/TC pivots, not rigid LB mounts forced through an arc. Select flange direction/support height for the load.

    Factory lubrication generally needs no added oil. If introduced, use additive-free ISO-VG32 turbine oil continuously. Catalog guide: oil mist ≤25 mg/m³ and 0.5–5 drops per 1000 L. Size the lubricator for flow; avoid excess or incompatible oil.

    Clean piping; keep sealant off leading threads. Where tape is required, start 1.5–2 threads back. Verify tube pressure, temperature, OD, ID and bend radius. Hot-spatter areas may need metal or flame-resistant tubing.

    Protect sliding surfaces. Periodically operate stored cylinders and prevent corrosion. Observe the lowest cylinder/fitting/valve/tube/sensor/cable limit; temperature options do not raise other component ratings.

    Internal Components — SAI Catalog Reference

    Item Material reference
    1. Nut Carbon steel / stainless steel
    2. Piston rod S45C hard-chrome-plated ground bar / stainless steel
    3. Front-cover O-ring TPU
    4. Front cover Aluminium alloy
    5. Bushing Wear-resistant material
    6. Cushion O-ring TPU
    7. Barrel Aluminium alloy
    8. Piston-rod O-ring NBR
    9. Piston Aluminium alloy
    10. Piston O-ring NBR
    11. Wear ring Wear-resistant material
    12. Magnet Plastic type for bores100 and below; rubber type for other bores
    13. Hexagon socket bolt Carbon steel
    14. Cushion seal TPU
    15. Rear cover Aluminium alloy
    16. Support screw cap Carbon steel / stainless steel

    This SAI structure reference is not a material certificate for every option. Ordered rod/seal choices prevail: A/B does not make the whole cylinder stainless steel; a seal option does not replace every named elastomer with one material.

    Series Ordering Options

    Parameter Value
    Rod material choices Blank: Medium-carbon steel; A: SUS420J2 stainless steel; B: SUS304 stainless steel
    Seal choices Blank: TPU; H: Fluororubber; N: NBR
    Magnet choice Blank: no magnet; S: magnet fitted, sensors separately selected
    Thread choices PT, G or NPT as specified by the actual order; do not mix thread standards
    Catalog standard strokes 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm
    Maximum / allowable stroke 1000 / 1800 mm; separate catalog limits, not a list of all standard strokes
    Stroke tolerance bands 0–250 mm: +1 / -0 mm; 251–1000 mm: +1.5 / -0 mm; 1001–1500 mm: +2 / -0 mm; above 1500 mm not specified

    Series alternatives are not simultaneous model features. Confirm special strokes and unlisted combinations. Retain the complete model; select mounts, joints, sensors and circuit parts separately.

    Magnetic Sensors and Connection Leads

    Magnetic S variants accept E-profile DMSE electronic or CMSE reed sensors directly in the barrel groove. Select sensing positions and circuit type; sensors and mating leads are separately ordered, and S does not specify their quantity. No tie-rod holder is required.

    Sensor / separate lead Complete ordering choices
    DMSE two-wire standard: DMSE-020,DMSE-030,DMSE-050,DMSE-100,DMSE-M08,DMSE-M08010,DMSE-M08020,DMSE-M08030,DMSE-M12,DMSE-M12010,DMSE-M12020,DMSE-M12030; W: DMSE-020-W,DMSE-030-W,DMSE-050-W,DMSE-100-W; A05: A05-DMSE-020,A05-DMSE-030,A05-DMSE-050,A05-DMSE-100; A06: A06-DMSE-020,A06-DMSE-030,A06-DMSE-050,A06-DMSE-100
    DMSE NPN three-wire standard: DMSE-N020,DMSE-N030,DMSE-N050,DMSE-N100,DMSE-NM08,DMSE-NM08010,DMSE-NM08020,DMSE-NM08030,DMSE-NM12,DMSE-NM12010,DMSE-NM12020,DMSE-NM12030; W: DMSE-N020-W,DMSE-N030-W,DMSE-N050-W,DMSE-N100-W
    DMSE PNP three-wire standard: DMSE-P020,DMSE-P030,DMSE-P050,DMSE-P100,DMSE-PM08,DMSE-PM08010,DMSE-PM08020,DMSE-PM08030,DMSE-PM12,DMSE-PM12010,DMSE-PM12020,DMSE-PM12030; W: DMSE-P020-W,DMSE-P030-W,DMSE-P050-W,DMSE-P100-W
    CMSE two-wire reed standard: CMSE-020,CMSE-030,CMSE-050,CMSE-100,CMSE-M08,CMSE-M08010,CMSE-M08020,CMSE-M08030,CMSE-M12,CMSE-M12010,CMSE-M12020,CMSE-M12030; H: CMSE-020-H,CMSE-030-H,CMSE-050-H,CMSE-100-H,CMSE-M08-H,CMSE-M08010-H,CMSE-M08020-H,CMSE-M08030-H,CMSE-M12-H,CMSE-M12010-H,CMSE-M12020-H,CMSE-M12030-H; A05: A05-CMSE-020,A05-CMSE-030,A05-CMSE-050,A05-CMSE-100
    M8 female lead, 2 wires 2 m: F-ECM08B020; 3 m: F-ECM08B030; 5 m: F-ECM08B050; 10 m: F-ECM08B100
    M8 female lead, 3 wires 2 m: F-ECM08C020; 3 m: F-ECM08C030; 5 m: F-ECM08C050; 10 m: F-ECM08C100
    M12 female lead, 2 wires 2 m: F-ECM12B020; 3 m: F-ECM12B030; 5 m: F-ECM12B050; 10 m: F-ECM12B100
    M12 female lead, 3 wires 2 m: F-ECM12C020; 3 m: F-ECM12C030; 5 m: F-ECM12C050; 10 m: F-ECM12C100
    Electrical / physical reference Limits and conditions
    DMSE two-wire 10–28 V DC; 2.5–100 mA load; ≤2.8 W; internal current ≤3 mA; residual voltage ≤3.5 V; leakage ≤0.06 mA.
    DMSE NPN/PNP three-wire 5–30 V DC; switching ≤30 V and ≤200 mA, capacity ≤6 W; internal current ≤5 mA; residual voltage ≤0.7 V; leakage ≤0.01 mA.
    CMSE reed two-wire 5–240 V AC/DC; meet both ≤100 mA and ≤10 W. Standard residual voltage ≤2.5 V at DC 100 mA; H has no indicator or residual voltage shown. No internal/leakage current or protection circuit shown.
    Frequency, shock and temperature DMSE ≤1000 Hz with reverse-polarity/surge protection; CMSE ≤200 Hz. Both: 50 G shock reference. Standard −10–70 °C; CMSE-H −10–125 °C. Sensor H does not raise the cylinder, cable or connector rating.
    E-profile body dimensions DMSE length 25, height 4.7 mm; CMSE length 26.8, height 5.3 mm. Both: cross-section width 6.3, upper width 5.2 mm.

    Direct-lead 020/030/050/100 means 2/3/5/10 m. M08/M12 are M8/M12 male connectors with 0.5 m lead; M08010/020/030 and M12010/020/030 have 1/2/3 m leads. Lead length is unrelated to cylinder stroke. Blank output is two-wire; N/P are NPN/PNP.

    DMSE standard/A05 are IP64; W/A06 are IP68. All CMSE are IP64. A05 is flex-resistant robot cable; A06 is oil-resistant flex-resistant cable. A05/A06 are two-wire direct-lead only, with 19 mm minimum bend radius. No W quick-connector, A05/A06-W, CMSE-W, CMSE-A06 or A05-CMSE-H option is listed.

    Match M8/M12 and B two-wire/C three-wire female leads to the sensor. Two-wire pins: 1 brown (+), 4 blue (−), 3 unused. Three-wire: 1 brown (+), 3 blue (−), 4 black output. Direct leads need no quick mating cable. Independent cable temperature, IP and voltage ratings are not given; do not transfer sensor-body ratings to the complete assembly.

    For three-wire NPN put the load between positive and black output; for PNP between black output and negative. Check residual voltage and leakage for PLC inputs and series/parallel circuits; simultaneous series sensing lights the LEDs together, not a universal PLC compatibility guarantee.

    Insert E-profile sensor into the matching cylinder groove with its screw clear of the bottom face; position near the middle of the switching range, then tighten. Recommended locking torque 0.15–0.20 N·m; never exceed 0.25 N·m.

    Connect the correct load and supply before energizing; two-wire sensors must not be placed directly across the supply without a load. Keep leads insulated and separate from high-voltage/power wiring; prevent repeated strain, impact and strong magnetic interference.

    Inspect sensor fixing, cable condition and indication periodically. Waterproof versions are not a guarantee for prolonged immersion; protect against oil, chemicals, weld spatter, rapid temperature cycling and dense magnetic material as required.

    H cylinder seal code and CMS sensor H suffix are separate options. The SAI/SAIJ general published cylinder range is −20 to 70 °C; no independently established full H cylinder range is supplied here. Apply the limits of the actual cylinder, selected sensor, cable and connectors together.

    Connection and Tube-Side Options

    Separately selected component Complete ordering codes; tube dimensions as labelled
    NPC straight 5/32 in OD: NPC5/32-1/8; 1/4 in OD: NPC1/4-1/8; 5/16 in OD: NPC5/16-1/8; 3/8 in OD: NPC3/8-1/8
    NPL elbow 5/32 in OD: NPL5/32-1/8; 1/4 in OD: NPL1/4-1/8; 5/16 in OD: NPL5/16-1/8; 3/8 in OD: NPL3/8-1/8
    NPLL extended elbow — discontinued reference 5/32 in OD: NPLL5/32-1/8; 1/4 in OD: NPLL1/4-1/8; 5/16 in OD: NPLL5/16-1/8; 3/8 in OD: NPLL3/8-1/8
    NPEB branch tee 5/32 in OD: NPEB5/32-1/8; 1/4 in OD: NPEB1/4-1/8; 5/16 in OD: NPEB5/16-1/8; 3/8 in OD: NPEB3/8-1/8
    NPED run tee 5/32 in OD: NPED5/32-1/8; 1/4 in OD: NPED1/4-1/8; 5/16 in OD: NPED5/16-1/8; 3/8 in OD: NPED3/8-1/8
    NPYB Y fitting 5/32 in OD: NPYB5/32-1/8; 1/4 in OD: NPYB1/4-1/8; 5/16 in OD: NPYB5/16-1/8; 3/8 in OD: NPYB3/8-1/8
    NPH banjo elbow — discontinued reference 5/32 in OD: NPH5/32-1/8; 1/4 in OD: NPH1/4-1/8; 5/16 in OD: NPH5/16-1/8
    NPHF female-branch banjo — discontinued reference 5/32 in OD: NPHF5/32-1/8; 1/4 in OD: NPHF1/4-1/8; 5/16 in OD: NPHF5/16-1/8
    NPHW twin banjo — discontinued reference 5/32 in OD: NPHW5/32-1/8; 1/4 in OD: NPHW1/4-1/8; 5/16 in OD: NPHW5/16-1/8
    NPZB cross fitting — discontinued reference 1/4 in OD: NPZB1/4-1/8; 5/16 in OD: NPZB5/16-1/8
    NBPC metal straight — discontinued reference 5/32 in OD: NBPC5/32-1/8; 1/4 in OD: NBPC1/4-1/8; 5/16 in OD: NBPC5/16-1/8; 3/8 in OD: NBPC3/8-1/8
    NPKD reducing distribution fitting — discontinued reference main 1/4 / branch 5/32 in OD: NPKD1/4-5/32-1/8
    NBSL valve-exhaust silencer NBSL1/8
    NBSLM valve-exhaust silencer NBSLM1/8
    NBESL valve-exhaust silencer — discontinued reference NBESL1/8
    NBZ unused auxiliary port plug NBZ1/8
    NBB male–male adapter — discontinued reference second male end NPT1/8: NBB1/8-1/8; second male end NPT1/4: NBB1/8-1/4; second male end NPT3/8: NBB1/8-3/8
    NBKC compression fitting — discontinued reference 5/32 × 3/32 in OD × ID: NBKC5/32-3/32-1/8; 1/4 × 5/32 in OD × ID: NBKC1/4-5/32-1/8; 5/16 × 1/5 in OD × ID: NBKC5/16-1/5-1/8
    NPTL push-lock flow control 5/32 in OD: NPTL5/32-1/8A,NPTL5/32-1/8B; 1/4 in OD: NPTL1/4-1/8A,NPTL1/4-1/8B; 5/16 in OD: NPTL5/16-1/8A,NPTL5/16-1/8B
    NPSS universal flow control — discontinued reference 1/4 in OD: NPSS1/4-1/8A,NPSS1/4-1/8B; 5/16 in OD: NPSS5/16-1/8A,NPSS5/16-1/8B
    NPSA inch tube-to-tube flow control 5/32 in OD: NPSA5/32; 1/4 in OD: NPSA1/4; 5/16 in OD: NPSA5/16; 3/8 in OD: NPSA3/8
    ASC100 separate inline flow control ASC10006T
    GAFR200 upstream filter/regulator GAFR20006ST

    These are separately selected alternatives, not a supplied kit or stock promise. Match actual NPT1/8 cylinder working ports, sealing method, insertion depth, wrench/rotation clearance, flow and tube loading. PT, G and NPT are not interchangeable. The M10 × 1.25 rod thread is not an air port. Marked discontinued families, including NPSS, are historical/installed-equipment references only: confirm remaining availability or an approved replacement before ordering, not current standard supply.

    Use suitable soft nylon or PU tubing with the exact inch OD; compression fittings also require the listed ID. 5/32, 1/4, 5/16 and 3/8 in are 3.96875, 6.35, 7.9375 and 9.525 mm, not nominal metric tube sizes. NPHF has male RA and additional female RB, both NPT1/8: connect or seal RB as the circuit permits; it is not a tube socket. Tees, crosses and distribution fittings must not bridge chambers or unrelated controls. NPKD uses main 1/4 in and branch 5/32 in OD.

    Ordinary push-in fittings and listed flow controls are rated 0–1 MPa, −20–70 °C. NBPC/NBKC/NBB/NBZ are 0–1 MPa, 0–150 °C, limiting H pressure to 0.15–1 MPa; actual H temperature and lower component limits apply. NBPC does not share the metric BPC 0.9 MPa limit. A component vacuum rating does not approve a vacuum cylinder assembly.

    NBKC5/32-3/32-1/8 follows the explicit model/dimension row; a conflicting equal-OD/ID selection-matrix row requires procurement confirmation. Hold the body hex for thread installation, not the tube-locking nut; insert tubing fully and tighten correctly. NBB has two male NPT ends; match the separately labelled second end to a female component. NBZ closes only permitted unused auxiliary connections, never either active cylinder working port.

    At the cylinder, A restricts cylinder/thread → tube exhaust (meter-out), with free reverse supply; B restricts tube → cylinder supply (meter-in). A is the usual double-acting exhaust-control choice; B needs a designed meter-in circuit. Start closed and open slowly; these are not safety isolation. NPTL1/8 maximum cap-adjustment torque is 0.08 N·m, not pipe-thread torque. Do not force end stops or use pliers. NPSA is an inch tube-to-tube control without A/B suffixes: match both ODs and the body flow symbol.

    NBSL/NBSLM/NBESL are only for a separately selected valve exhaust with matching NPT1/8 thread, adequate flow and acceptable backpressure. They are not cylinder working-port parts, inlet filters or shutoffs; NBESL adjustment changes backpressure. ASC10006T has two female NPT1/8 ports and needs separate male connections; follow its P/A and check/throttle symbol. Its 0.05–0.95 MPa, −20–70 °C limits the SAI path to 0.15–0.95 MPa before other limits.

    GAFR20006ST is a separate upstream NPT1/8 filter/regulator: inlet ≤1 MPa, setting 0.15–0.9 MPa, −5–70 °C non-freezing. Check flow, pressure drop, condensate, bowl environment and all downstream limits. It is not a cylinder-mounted fitting or vacuum regulator. Metric PU coils, PSA/GPSA and PPA are not specified for these inch sockets; select separately verified inch tubing and connections. No complete inch-tube coil ordering code is established here.

    Separate Directional-Valve and Tube Examples

    The SAI32 NPT1/8 cylinder can be controlled through a correctly designed separate pneumatic circuit. The independently verified directional-valve examples below have PT/G ports, not NPT: 5V11006B050, 5V12006B050, 5V21006B050, 5V22006B050, 4V11006B, 4V11006BG, 4V12006B, 4V12006BG, 4V21006B, 4V21006BG, 4V22006B, 4V22006BG, 4A11006, 4A11006G, 4A12006, 4A12006G, 4A21006, 4A21006G, 4A22006, 4A22006G. Match valve-side and cylinder-side fittings and tubing separately; a complete mixed-thread connection kit is not established by these examples. Separate circuit examples; no speed guarantee. B means DC24V; cylinder SKU does not select voltage. 10/20 are single/double actuation. Listed 5V uses 050 (0.5 m leads), internal pilot and PT ports only; no G or NPT 5V code is inferred. Listed 4V uses default DIN entry and internal pilot; I flying-lead or -W external-pilot variants are not these examples. 4A needs independent pneumatic pilot commands, no coil voltage; verify pilot-port thread and pilot-air supply. The listed valve limit is 0.15–0.8 MPa with 40 µm filtered air, below the cylinder maximum of 1.0 MPa. Verify switching logic; apply the circuit conditions below.

    Blue 100 m coil examples: PA6060040100MBU (PA6, 6×4 mm, -10 to 70°C,3 MPa at 23°C,min bend 45 mm); PA12060040100MBU (PA12, 6×4 mm, -40 to 70°C,2 MPa at 23°C,min bend 35 mm); UN54D060040100MBU (flame-resistant, 6×4 mm, -20 to 70°C,1 MPa at 23°C,min bend 12 mm); UN54D080050100MBU (flame-resistant, 8×5 mm, -20 to 70°C,1 MPa at 23°C,min bend 18 mm). Derate pressure for temperature; select compatible fittings and length. Coils are not supplied cut lengths. No reviewed nylon 8×5 mm option; 8×6 is different. Flame resistance is not a fireproof-system claim.

    M5 chart entries are separate valve connections, not SAI cylinder ports. 4M needs NAMUR; no SAI mounting/adapter compatibility is established.

    The PA/UN examples are metric tubing references, not matches for the reviewed inch NPT fitting sockets. Do not equate 6 mm with 1/4 inch or 8 mm with 5/16 inch; choose a separately verified complete tube/fitting chain.

    Circuit-Sizing Reference

    Theoretical reference speed Flow-area and tube reference
    300 mm/s 1.3 mm² effective flow area; 6 × 4 mm tube OD × ID
    400 mm/s 1.7 mm² effective flow area; 6 × 4 mm tube OD × ID
    500 mm/s 2.1 mm² effective flow area; 6 × 4 mm tube OD × ID
    600 mm/s 2.5 mm² effective flow area; 8 × 5 mm tube OD × ID
    700 mm/s 2.9 mm² effective flow area; 8 × 5 mm tube OD × ID
    800 mm/s 3.4 mm² effective flow area; 8 × 5 mm tube OD × ID

    Generic bore-based circuit references, not measured SAI32 speeds. Flow area is neither piston area nor rated valve flow. Pressure, tube length and load are unspecified; the 0.5 MPa force example does not apply. Design for actual valve flow, fittings, tubing, cushioning, exhaust backpressure and the 30–800 mm/s cylinder limit. Similar nominal sizes do not make metric tubes fit inch sockets.

    Download the catalog above for dimensions, mounting drawings and symbol positions. Before installation, check the complete configuration, available space and separately selected accessories.

    Recently viewed products

      Footer image

      © 2026 Airtac, Powered by Shopify

      • US (USD $) US (USD $)
      • Ach Direct Debit
      • Amazon
      • American Express
      • Apple Pay
      • Bizum
      • Diners Club
      • Discover
      • Google Pay
      • Mastercard
      • MB WAY
      • PayPal
      • Satispay
      • Shop Pay
      • USDC
      • Visa
