Description

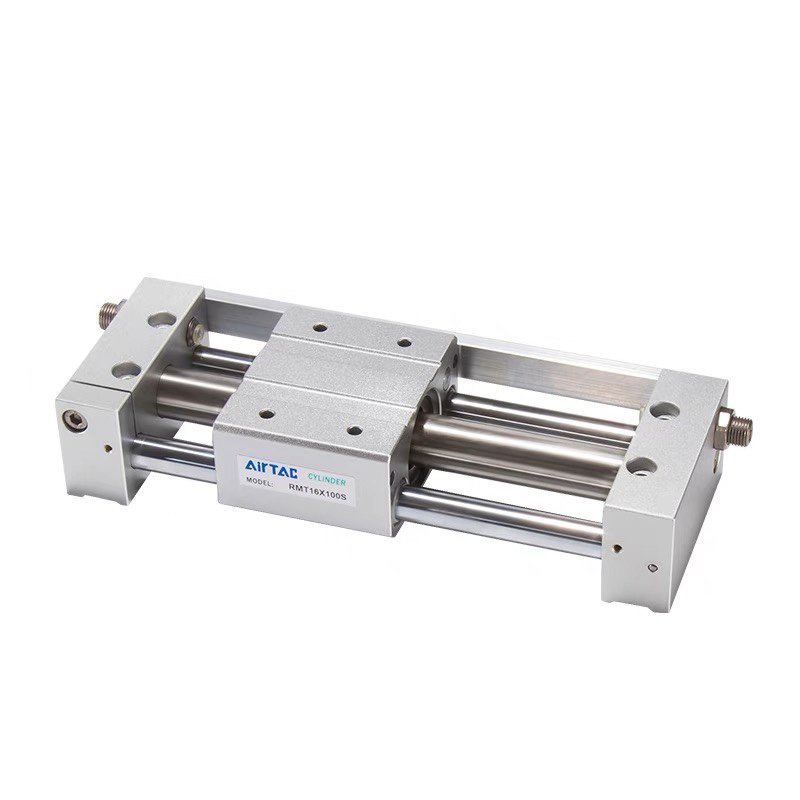

Specifications: magnetically coupled rod-less cylinder (guide rod type) Cylinder diameter: 40mm Stroke: 250mm Magnet: no magnet Buffer mode: 2 adjusting screws Tooth type: PT tooth
Click to download Airtac product catalog
Product Features
1. Magnetic coupling rodless cylinder, no mechanical connection between the piston and the slider, excellent sealing performance.
2. The action of the piston is transmitted to the external slider through the magnetic coupling force, without the need for a piston rod, the installation space is less than that of an ordinary cylinder, and the maximum stroke is larger than that of an ordinary cylinder.
3. Both ends of the cylinder with adjustable buffer and fixed buffer device, the reversing action is smooth and no impact, while avoiding mechanical damage. Optional external oil buffer, better buffer effect.
4. The piston cavity is separated from the slider to prevent dust and dirt from entering the system and extend the service life of the cylinder.
5. Double guide rod structure, high guide precision, can withstand a certain lateral or eccentric load.
