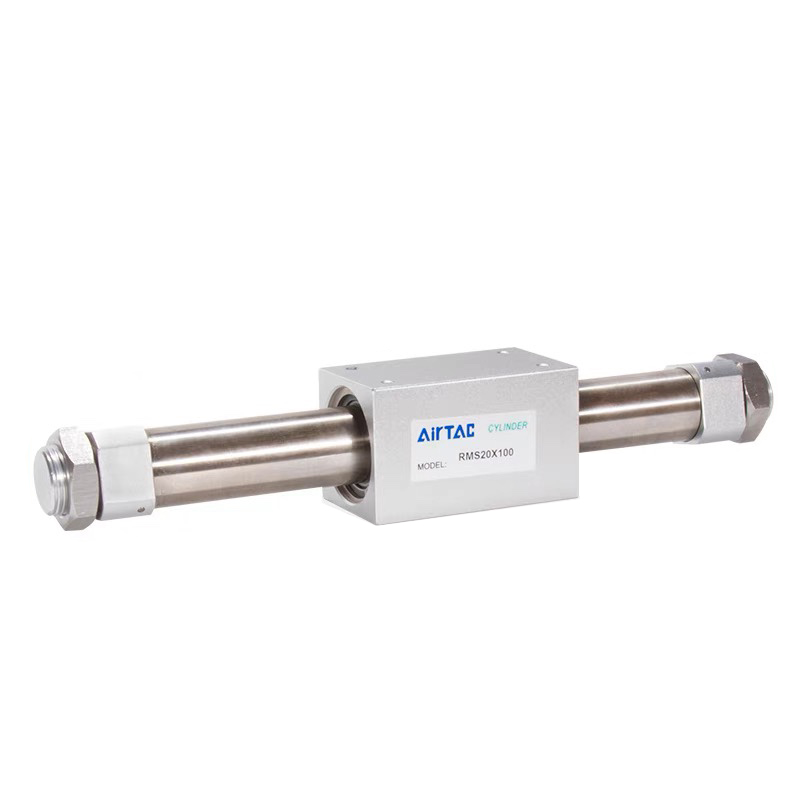

Airtac RMS series: magnetically coupled rod-less cylinder - RMS32X100LBT

Description

Specifications: Magnetic coupling rod-less cylinder Installation type: standard type Bore: 32mm Stroke: 100mm Fixed type: foot seat fixed frame Tooth type: NPT tooth

Click to download Airtac product catalog

Product Features

1. Magnetic coupling type rod-less cylinder, no mechanical connection between the piston and the slider, excellent sealing performance.

2. The action of the piston is transmitted to the external slider through the magnetic coupling force, without the need for a piston rod, the installation space is less than that of an ordinary cylinder, and the maximum stroke is larger than that of an ordinary cylinder.

3. Both ends of the cylinder with adjustable buffer and fixed buffer device, the reversing action is smooth and no impact, while avoiding mechanical damage.

4. The piston cavity is separated from the slider to prevent dust and dirt from entering the system and extend the service life of the cylinder.

Product form

Specifications: Magnetic coupling rod-less cylinder Installation type: standard type Bore: 32mm Stroke: 100mm Fixed type: foot seat fixed frame Tooth... Read more

SKU: RMS32X100LBT

$364.15

    • Guaranteed secure & safe checkout.

      paypal
    • Image may not be representative of actual product.
    • Airtac RMS cylinders are a functional replacement for the SMC CY3B series cylinders.
    • Shipped today? Order within: Jun 21, 2026 17:00:00 -0700

    Description

    Specifications: Magnetic coupling rod-less cylinder Installation type: standard type Bore: 32mm Stroke: 100mm Fixed type: foot seat fixed frame Tooth type: NPT tooth

    Click to download Airtac product catalog

    Product Features

    1. Magnetic coupling type rod-less cylinder, no mechanical connection between the piston and the slider, excellent sealing performance.

    2. The action of the piston is transmitted to the external slider through the magnetic coupling force, without the need for a piston rod, the installation space is less than that of an ordinary cylinder, and the maximum stroke is larger than that of an ordinary cylinder.

    3. Both ends of the cylinder with adjustable buffer and fixed buffer device, the reversing action is smooth and no impact, while avoiding mechanical damage.

    4. The piston cavity is separated from the slider to prevent dust and dirt from entering the system and extend the service life of the cylinder.
