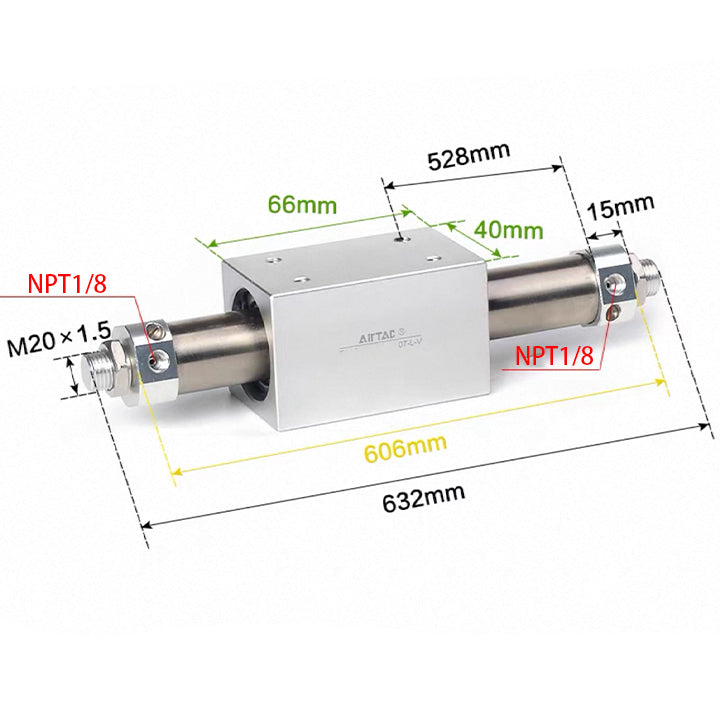

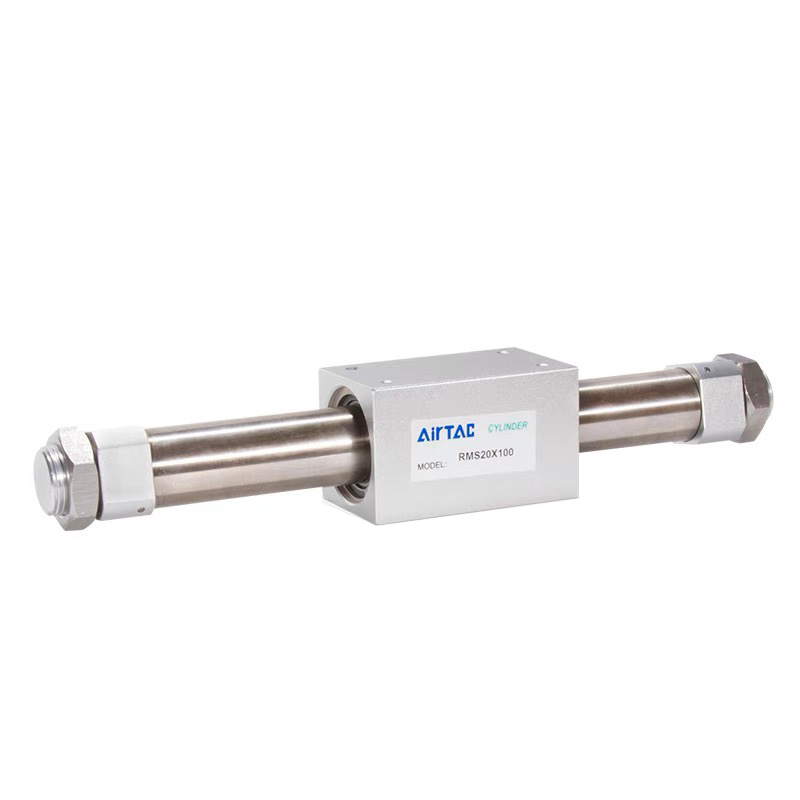

Airtac RMS: Rodless Magnetic cylinder - RMS20X500T

Description

Rodless magnetic cylinder,basic version ,20mm bore,500mm stroke,NPT thread type



Product Features:
1. This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobile piston fitted with annular magnets.The mobile carriage is also equipped with magnets to provide magnetic coupling (carriage/piston). The carriage slide freely along the main tube.
2. It is dust-proof as the isolation between the carriage and piston.
3. It is compact in space.
4. The non adjustable ruber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder provide the action smoothly.

Product form

Rodless magnetic cylinder,basic version ,20mm bore,500mm stroke,NPT thread type   Product Features:1. This magnetic cylinder is basically a pneumatic rodless... Read more

SKU: RMS20X500-NPT

$197.43

    • Image may not be representative of actual product.
    • Airtac RMS cylinders are a functional replacement for the SMC CY3B series cylinders.

      Description

      Rodless magnetic cylinder,basic version ,20mm bore,500mm stroke,NPT thread type



      Product Features:
      1. This magnetic cylinder is basically a pneumatic rodless cylinder featuring a mobile piston fitted with annular magnets.The mobile carriage is also equipped with magnets to provide magnetic coupling (carriage/piston). The carriage slide freely along the main tube.
      2. It is dust-proof as the isolation between the carriage and piston.
      3. It is compact in space.
      4. The non adjustable ruber bumpers and the adjustable pneumatic cushioning on both ends of the cylinder provide the action smoothly.
